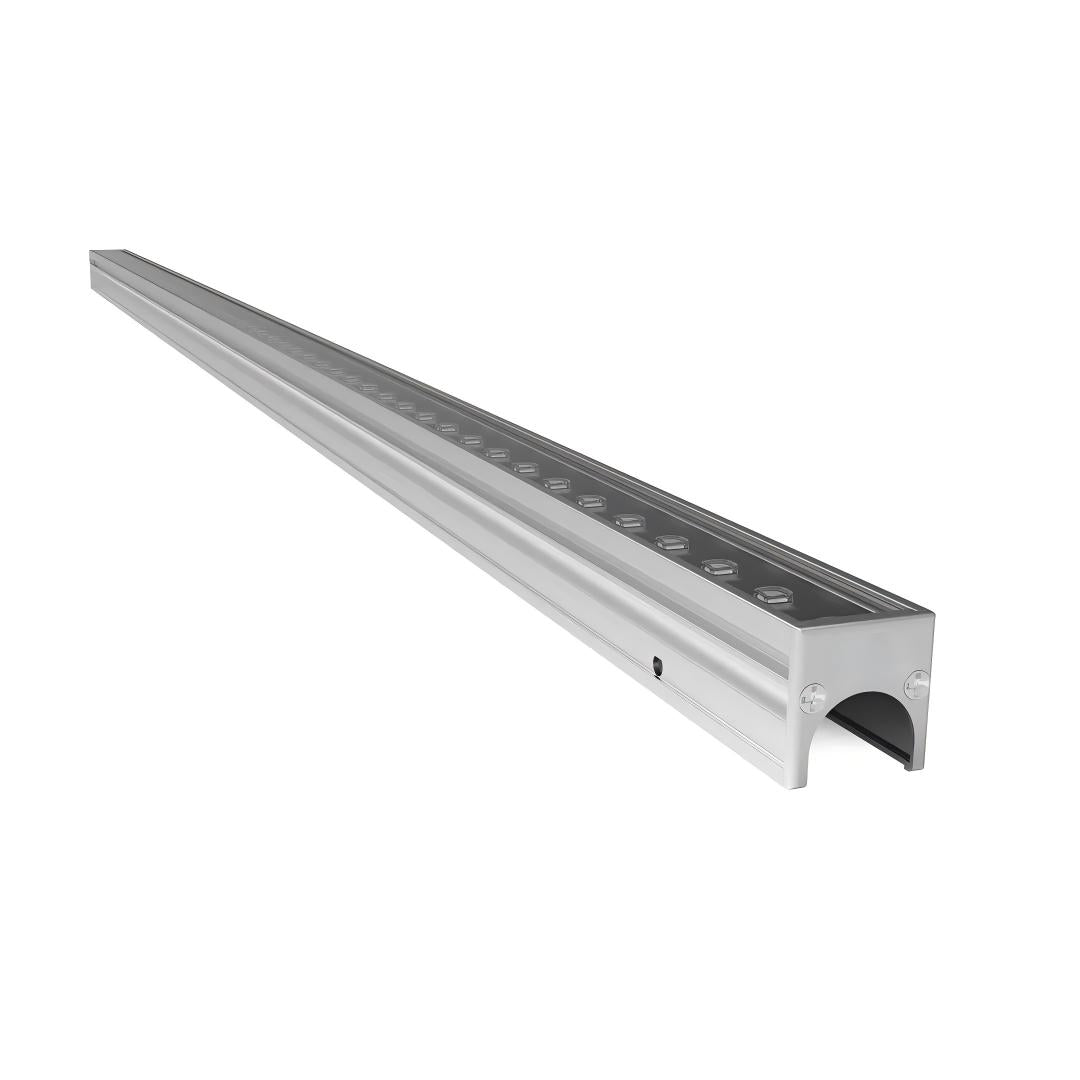

VividLine U28 Linear light
The VividLine-U28 Full-Colour Series is a high-performance architectural linear lighting system designed for dynamic façade, landscape and exterior applications. Its ultra-slim 28mm profile allows the luminaire to integrate discreetly into architectural details, delivering powerful visual effects without disrupting the surrounding design.
Featuring 8 individually controlled pixels and up to 65,536 levels of grayscale, the U28 produces exceptionally smooth colour transitions, gradients and animated lighting effects. DMX512 control enables multiple luminaires to operate as a coordinated system, making it particularly suitable for large-scale façades, building outlines and creative architectural lighting installations.
Built for demanding outdoor environments, the U28 combines a robust aluminium body with a fully sealed construction for reliable long-term performance. Integrated thermal management, lightning protection and ESD protection further enhance system stability in permanent exterior installations.
Its compact dimensions and flexible control capabilities make the VividLine-U28 suitable for both subtle architectural accents and highly expressive dynamic lighting schemes.
Product Features
- Ultra-Slim 28mm Profile – Discreet integration into façades and architectural details
- Pixel-Controlled Lighting – 8 individually controlled pixels for dynamic visual effects
- 65,536-Level Grayscale – Smooth dimming, gradients and refined colour transitions
- DMX512 Control – Designed for synchronised and programmable lighting installations
- Full-Colour Capability – Suitable for RGB and dynamic architectural lighting applications
- Outdoor Construction – Fully sealed design for permanent exterior installations
- Efficient Thermal Management – Aluminium housing supports effective heat dissipation
- Integrated Protection – Lightning and ESD protection for enhanced system reliability
- Scalable System Design – Suitable for both individual architectural features and large interconnected installations
Ideal Applications:
Building Façades · Architectural Outlines · Landscape Features · Public Spaces · Commercial Exteriors · Feature Walls · Dynamic Architectural Lighting
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Architectural Linear Wall Washer
Dimensions:
L1000 × W28 × H29.5mm
Colour Options:
White · RGB · RGBW
Light Source:
SMD LED
LED Configuration:
36 / 48 / 60 LEDs depending on configuration
Power Options:
9W · 12W · 15W
Input Voltage:
DC24V
Rated Lifespan:
35,000 hours
Material:
High-strength aluminium alloy · Tempered glass
Weight:
0.77 kg
Beam Angle:
≥110°
Pixel Control:
Up to 8 individually controlled pixels
Grayscale:
256 / 65,536 levels
Control Options:
ON/OFF · DMX512
Luminaire Efficacy:
White ≥50 lm/W
RGB ≥25 lm/W
RGBW ≥35 lm/W
Ingress Protection:
IP66
Operating Temperature:
-30°C to +50°C
Storage Temperature:
-40°C to +70°C
Thermal Management:
Aluminium housing with low thermal-resistance heat dissipation design
System Protection:
Lightning protection · Electrostatic discharge (ESD) protection
Control System Capacity:
Up to 8 ports per sub-controller · Up to 512 pixels per port
Data Transmission:
CAT-5e transmission up to 100m
Application Environment:
Outdoor
Applications:
Architectural Façades · Building Outlines · Landscape · Commercial Exteriors · Public Spaces · Feature Lighting
Project Configuration:
Custom lighting and control configurations available for project requirements
Warranty:
5-Year Warranty
