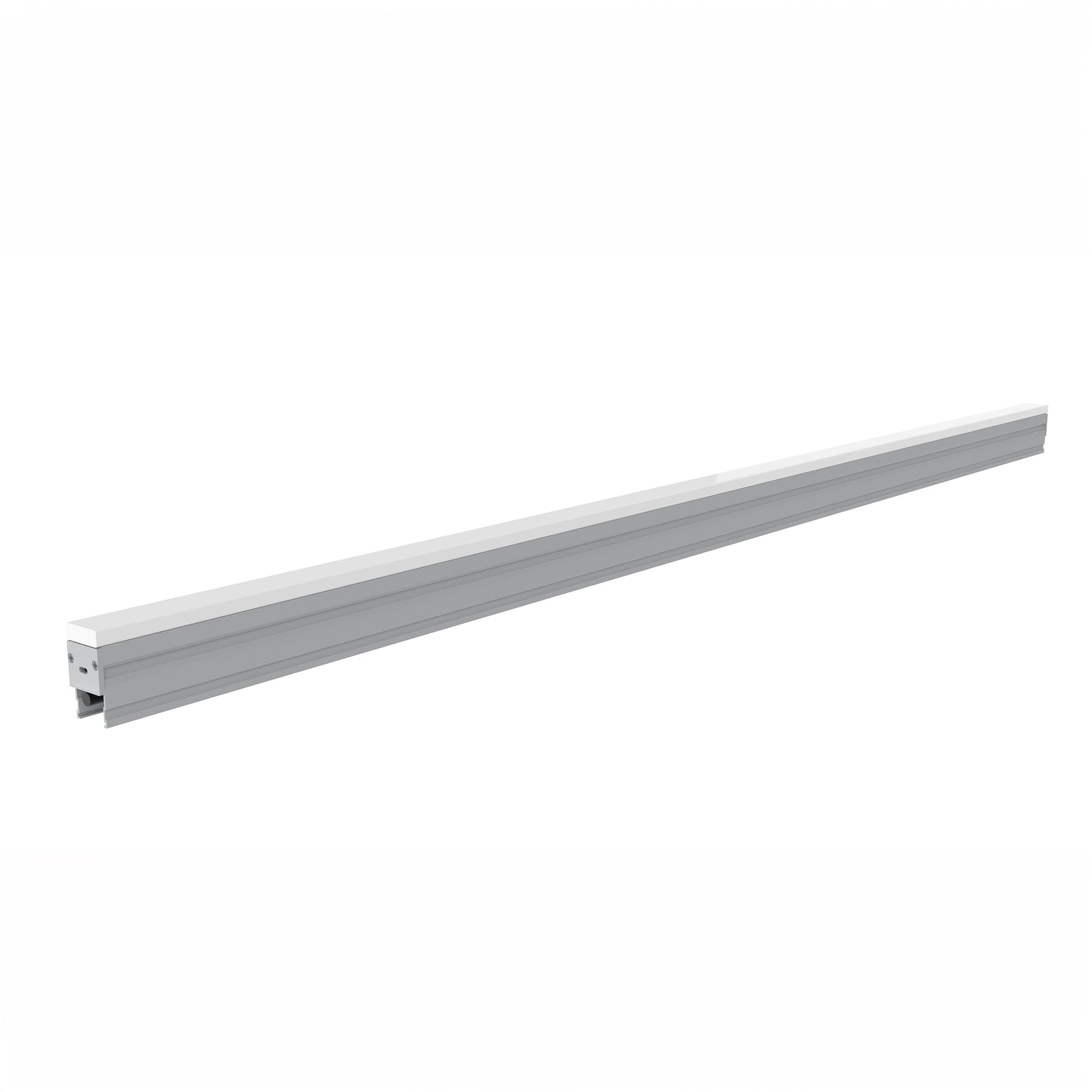

VividLine U1637 Linear Light
The VividLine U1637 is a slim architectural linear lighting system developed for continuous illumination across façades, landscapes and exterior architectural features. Its diffused three-sided optical design creates a soft, uniform line of light with minimal visible hotspots, allowing the luminaire to integrate cleanly into both architectural and landscape environments.
Designed for seamless linear applications, multiple luminaires can be installed together to create uninterrupted runs of light with minimal visible gaps. DMX512 control enables precise dimming, colour transitions and synchronised dynamic effects across larger installations.
With multiple profile sizes and flexible mounting options, the VividLine U1637 can be adapted to a wide range of architectural conditions. DC48V long-distance power supply capability also makes the system particularly suitable for larger-scale exterior installations where extended lighting runs are required.
Product Features
Uniform Illumination
Three-sided diffused optical design delivers soft, consistent illumination with reduced visible hotspots.
Seamless Linear Effect
Designed to create clean, continuous lines of light with minimal dark areas between luminaires.
Dynamic Control
DMX512 parallel control supports precise, synchronised and programmable lighting effects.
Multiple Profile Options
Available in 16mm, 20mm, 22mm, 30mm and 36mm widths to suit different architectural applications.
Flexible Installation
Multiple mounting solutions allow integration across façades, landscape structures and architectural details.
Long-Distance Power
DC48V power architecture supports extended installation runs and larger-scale lighting systems.
Applications

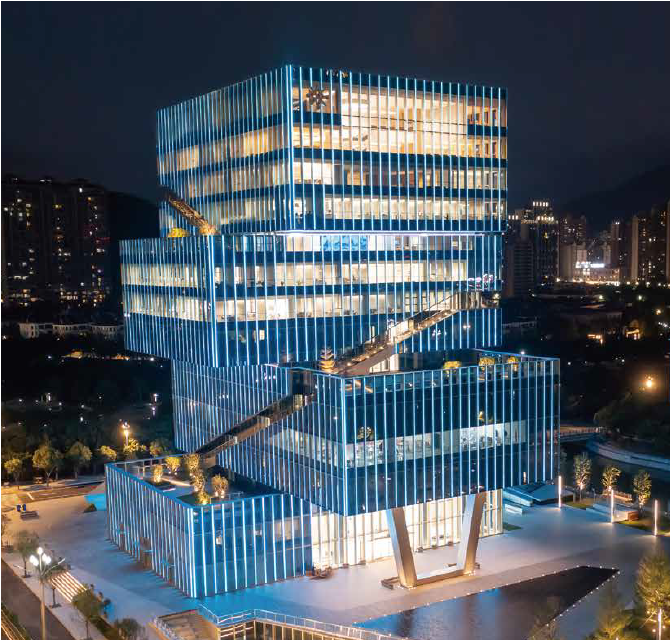

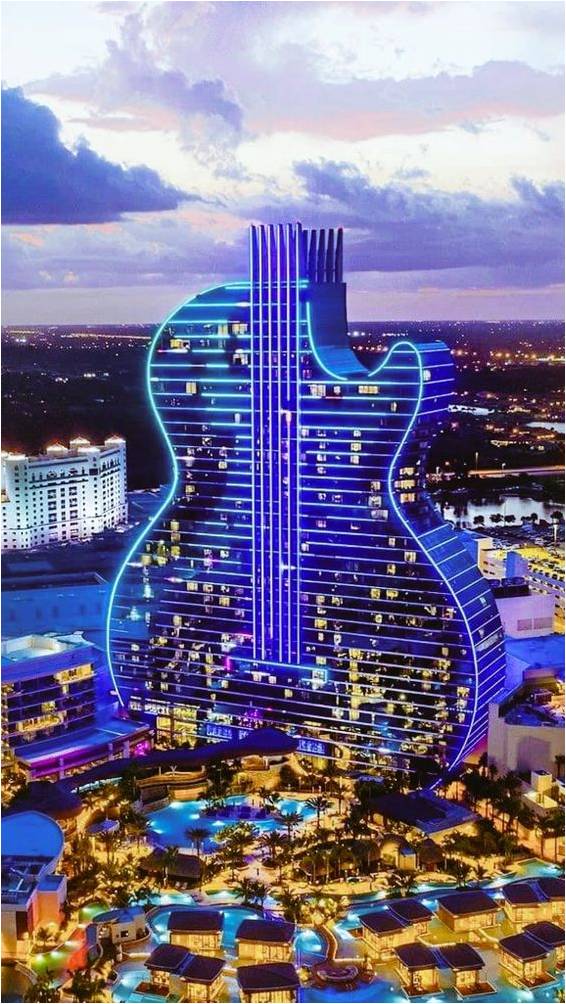

Architectural Façades · Building Outlines · Landscape Features · Commercial Exteriors · Public Spaces · Feature Lighting
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Architectural Linear Lighting System
Colour Options:
White · RGB · RGBW
Light Source:
SMD LED · RGB 3-in-1 · RGBW 4-in-1
Profile Options:
16mm · 20mm · 22mm · 30mm · 36mm
Rated Lifespan:
35,000 hours
Material:
High-strength aluminium alloy
Weight:
Varies by profile and configuration
Control System:
DMX512
Power Supply:
DC48V long-distance power supply
Optical Distribution:
Diffused three-sided illumination for continuous, uniform lighting
Beam Angle:
Varies by configuration
Operating Temperature:
-10°C to +50°C
Storage Temperature:
-40°C to +70°C
Ingress Protection:
IP66
Application Environment:
Outdoor
Mounting Options:
Multiple mounting solutions available to suit architectural requirements
Light Distribution Data:
Available upon request
Customisation:
Custom profile, colour and control configurations available for project requirements
Applications:
Architectural Façades · Building Outlines · Landscape Features · Commercial Exteriors · Public Spaces · Feature Lighting
Warranty:
5-Year Warranty
