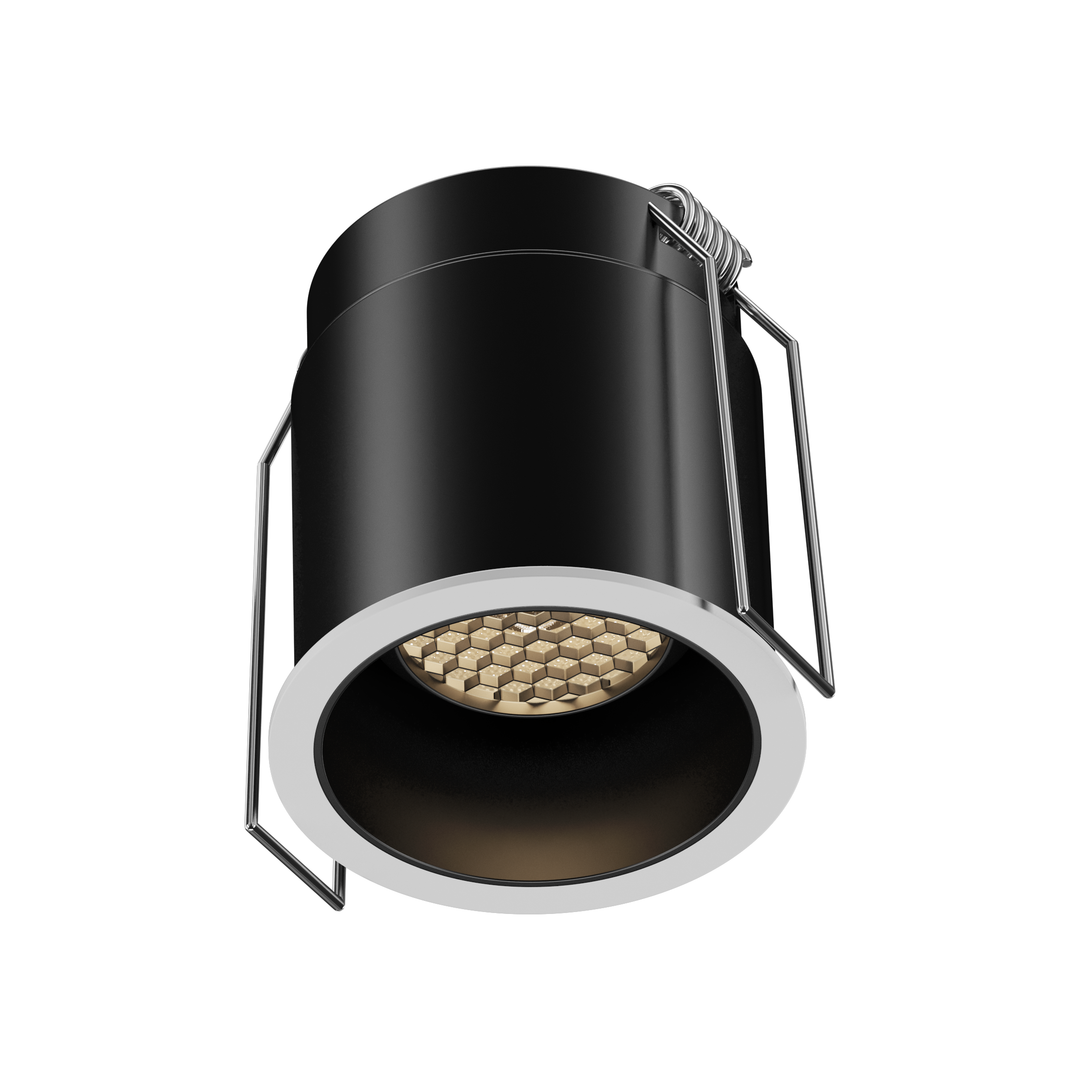

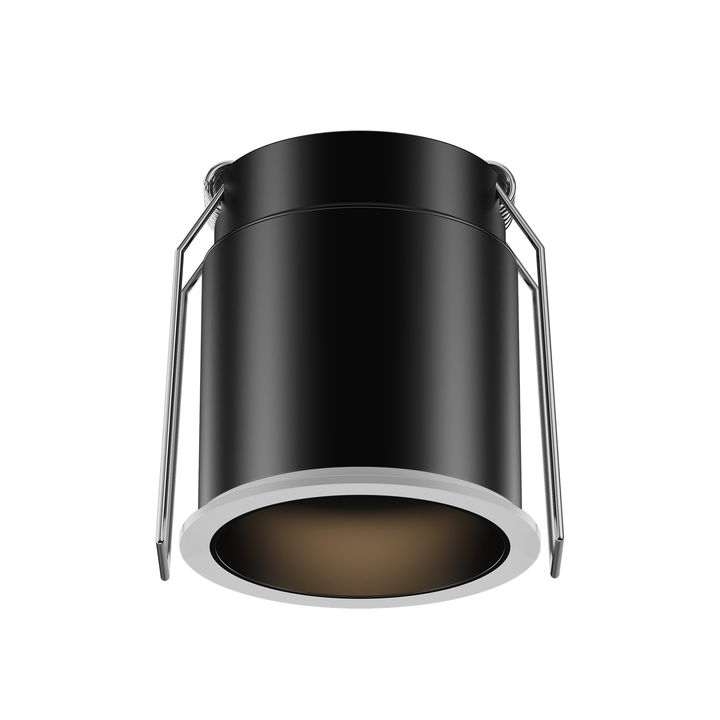

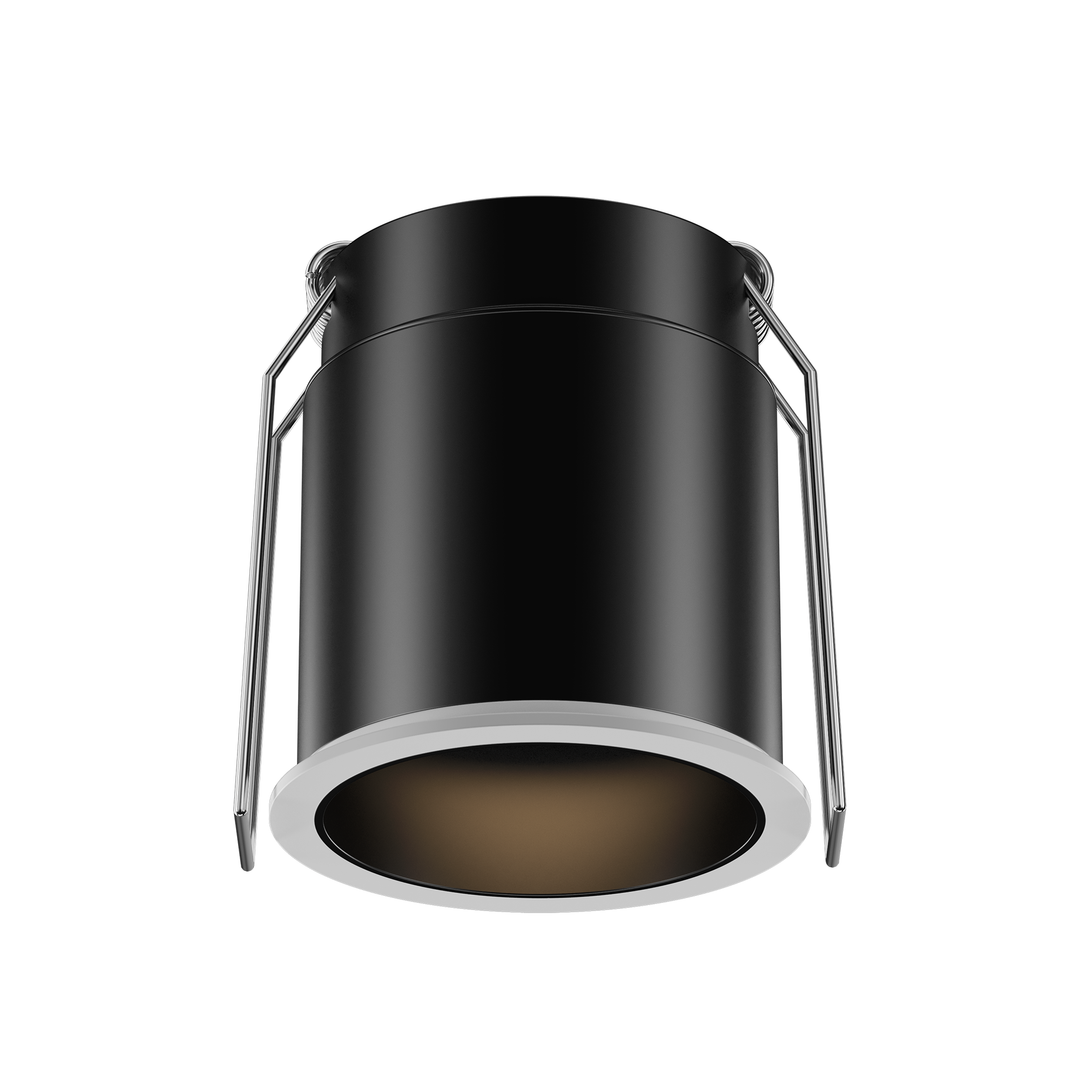

PIN 55 Narrow Beam Architectural Downlight
The PIN 55 Narrow Beam Architectural Downlight is designed for applications where precise accent lighting is essential. Featuring a narrow 5° beam angle, it delivers highly concentrated illumination with exceptional accuracy, creating dramatic visual contrast while minimising light spill.

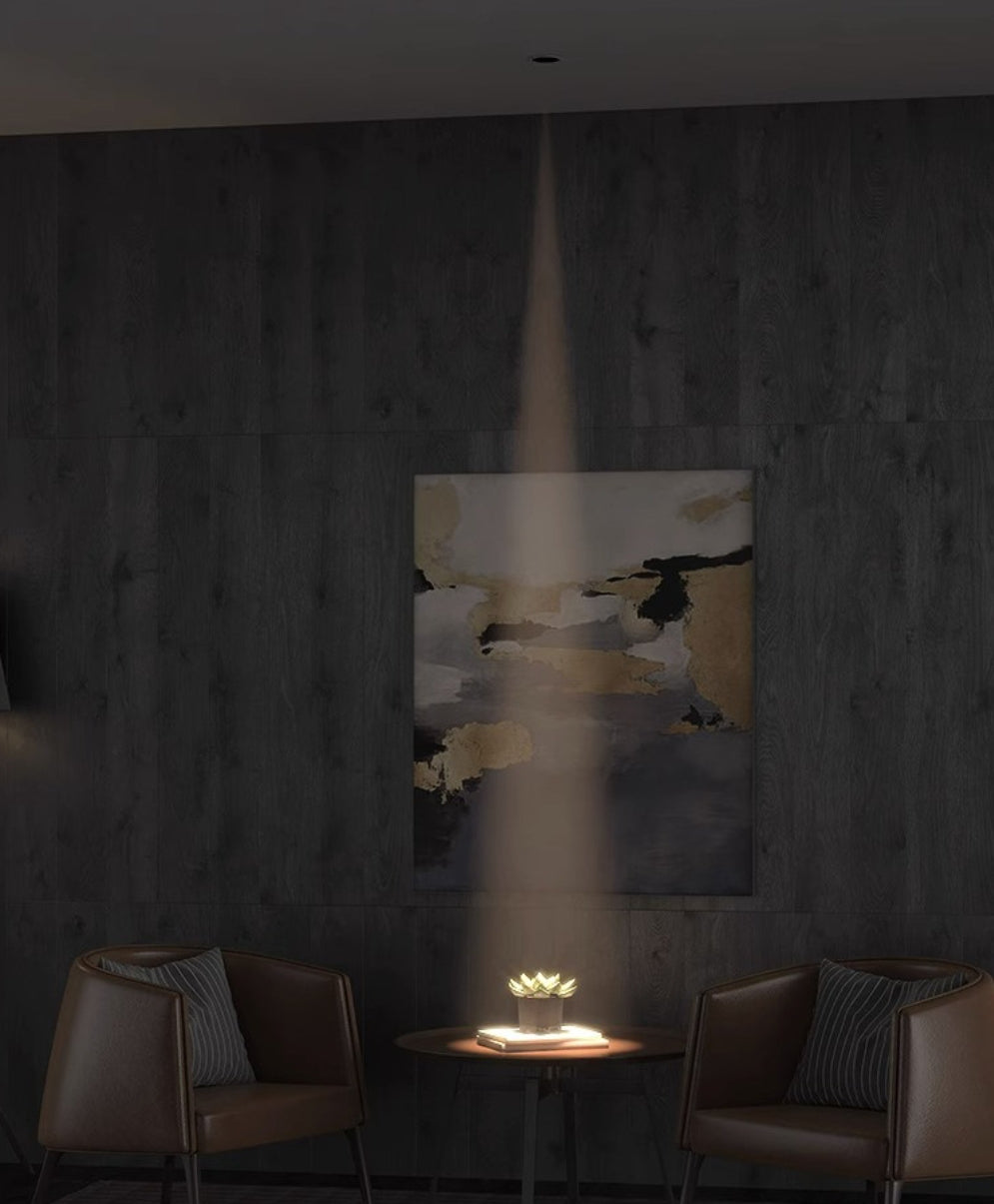

Designed and engineered exclusively by Lucretia, the PIN Series incorporates the PinPoint™ Optical System, delivering exceptional beam precision within a compact architectural form. Whether highlighting artwork, sculptures, luxury retail displays or architectural details, it directs light exactly where it is needed, creating clean, controlled and visually striking lighting effects.
With a compact 55 mm cut-out, high colour rendering and professional dimming options, the PIN 55 integrates seamlessly into luxury residences, galleries, museums, hospitality venues and premium retail environments. Its minimalist appearance allows the architecture to remain the focus while delivering outstanding lighting performance.
The PIN 55 Narrow Beam Architectural Downlight delivers exceptional beam precision for projects where every detail matters.
- Customisable
- Worldwide shipping
- Secure Payment
Type
Narrow Beam Architectural Downlight
Power Options
3.5W
Luminous Flux
140 lm
Central Light Intensity
12,122 cd
Colour Temperature
2700K / 3000K / 3500K / 4000K
Colour Rendering
CRI >90
Colour Consistency
SDCM <3
Beam Angle
5°
Optical System
PinPoint™ Optical System
Glare Control
Deep Recessed Optical Design
Reflector Finishes
Matte White, Matte Black
Control Options
Non-Dimmable, DALI and 0–10V
Input Voltage
220–240V AC, 50/60Hz
Dimensions
Ø60 × H66 mm
Cut-Out
Ø55 mm
Construction
Die-cast Aluminium Housing
Material
Die-cast Aluminium
Ingress Protection
IP20
Installation
Recessed
Customisation
Custom CCT and Control Options Available
Warranty
5-Year Warranty
Applications
Luxury Residential, Galleries, Museums, Art Exhibitions, Retail Displays, Hospitality and Commercial Interiors.
