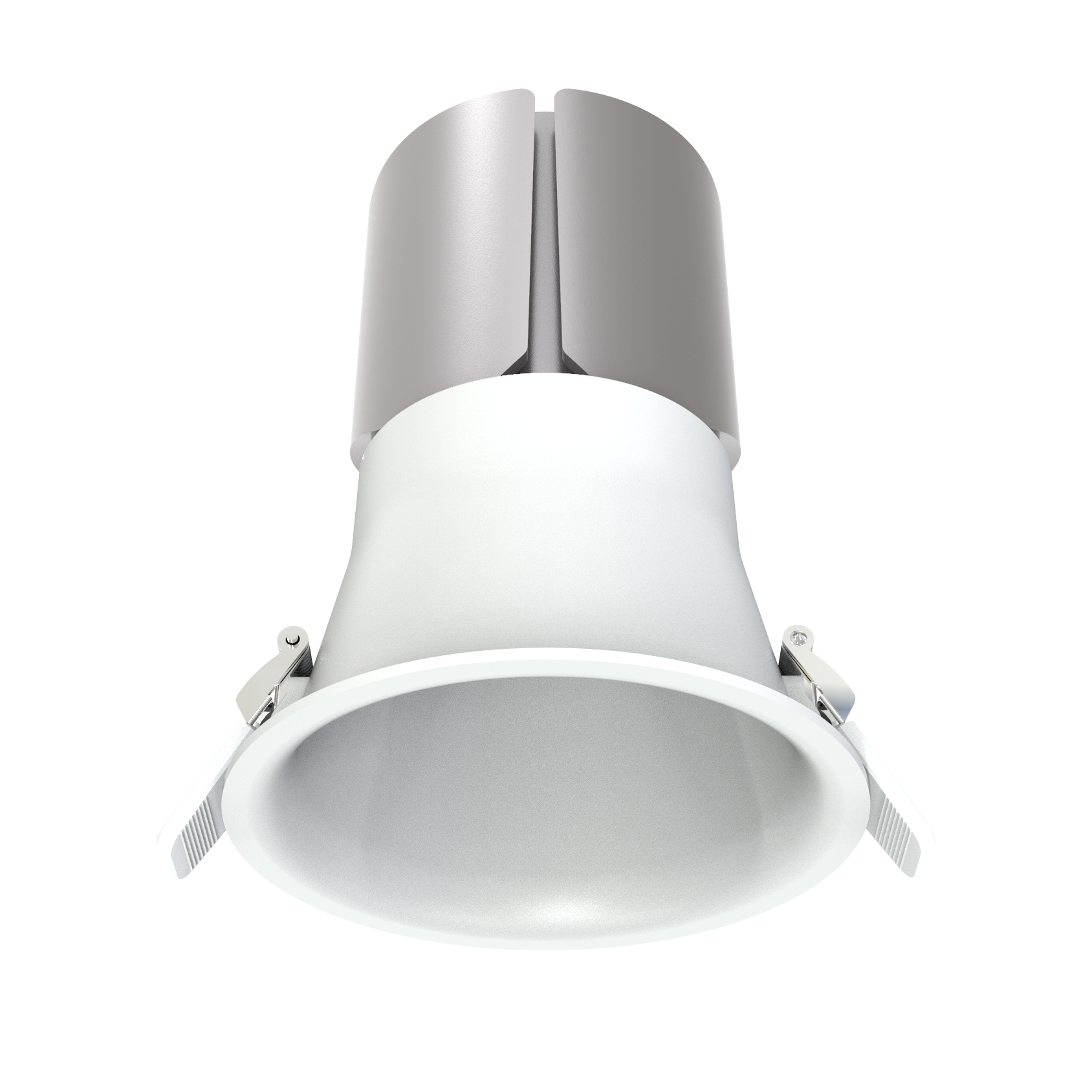

P1 4" Architectural LED Recessed Downlight
Designed by Lucretia. Engineered for North America.
The P1 4" Architectural LED Recessed Downlight is part of Lucretia's next-generation architectural lighting platform, purpose-built exclusively for the North American market.
Developed entirely in-house, the P1 Series is engineered to meet the installation practices, certification standards and performance expectations of architectural projects throughout the United States and Canada. Every detail—from optical engineering and thermal management to modular construction and installation systems—has been carefully designed to deliver exceptional reliability, flexibility and long-term performance.
Designed for applications requiring higher lumen output and greater ceiling heights, the P1 4" Architectural LED Recessed Downlight delivers outstanding visual comfort, precision beam control and superior lighting performance. Its versatile design makes it an ideal solution for luxury residences, hospitality venues, commercial interiors, retail environments, galleries and museums.
Supporting 120–277V universal input voltage, multiple dimming protocols and a comprehensive range of beam angles, trims and optical accessories, the P1 adapts effortlessly to a wide variety of project requirements. Optional IC-Rated Housings and New Construction Plates provide complete installation flexibility for both remodel and new construction applications.
Built around Lucretia's innovative modular architecture, the P1 features a tool-free serviceable design that allows the LED engine, optics and trims to be replaced or upgraded quickly and efficiently. This reduces maintenance time, extends product life and ensures the luminaire remains adaptable as project requirements evolve.
More than a recessed downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Architectural LED Recessed Downlight
Power Options:
20W · 25W
Luminous Flux:
20W: Up to 1,946 lm (3000K)
25W: Up to 2,245 lm (3000K)
Luminous Efficacy:
Up to 90 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Beam Angles:
15° · 24° · 38° · 50°
Optical System:
Precision optical system with interchangeable lenses for accurate beam control and consistent light distribution.
Glare Control:
Deep recessed optical design with optional honeycomb louvre for enhanced glare reduction.
LED Engine:
High-performance Bridgelux LED module.
Construction:
Precision die-cast aluminium housing with integrated thermal management architecture.
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request.
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
Ø75.2 × H86 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.45 kg
Trim Options:
Round Trim · Round Trimless · Square Trim · Square Trimless
Available in Fixed and Adjustable configurations.
Optical Accessories:
Interchangeable Lens · Honeycomb Louvre · Beam Softening Lens · Oval Beam Lens · Single Polarising Filter · Double Polarising Filter
Luminaire Dimensions:
Round Trim: Ø115 × H64 mm
Round Trimless: Ø95 × H64 mm
Square Trim: 112 × 112 × H64 mm
Square Trimless: 95 × 95 × H64 mm
Cut-Out:
Round Trim: Ø100 mm
Round Trimless: Ø100 mm
Square Trim: 100 × 100 mm
Square Trimless: 100 × 100 mm
Ingress Protection:
IP20 · IP54
Installation Options:
Remodel Installation · New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States & Canada
Serviceability:
LED module, optical components and driver replaceable without removing the complete luminaire.
Customisation:
Custom beam angles, colour temperatures, trim finishes and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Commercial
