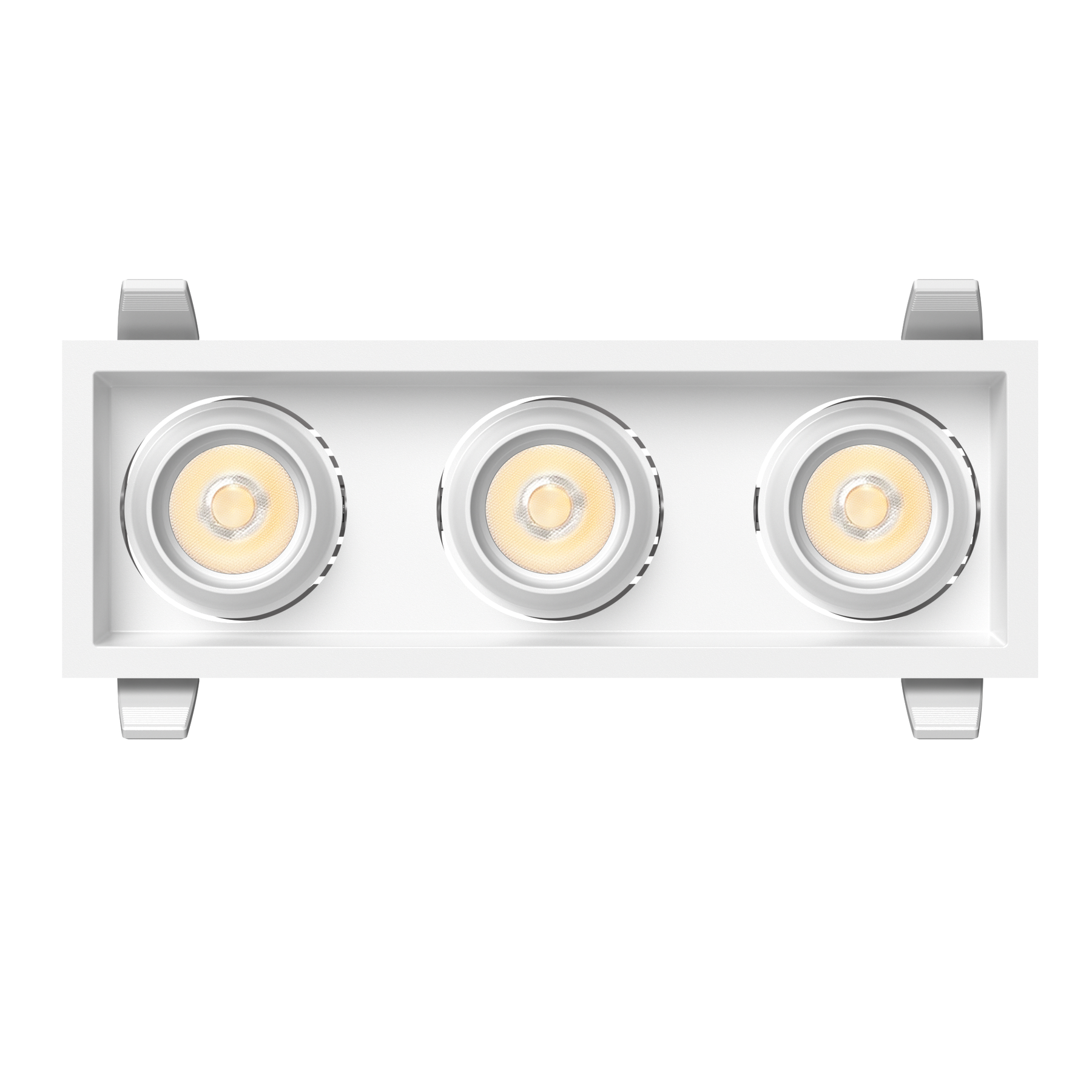

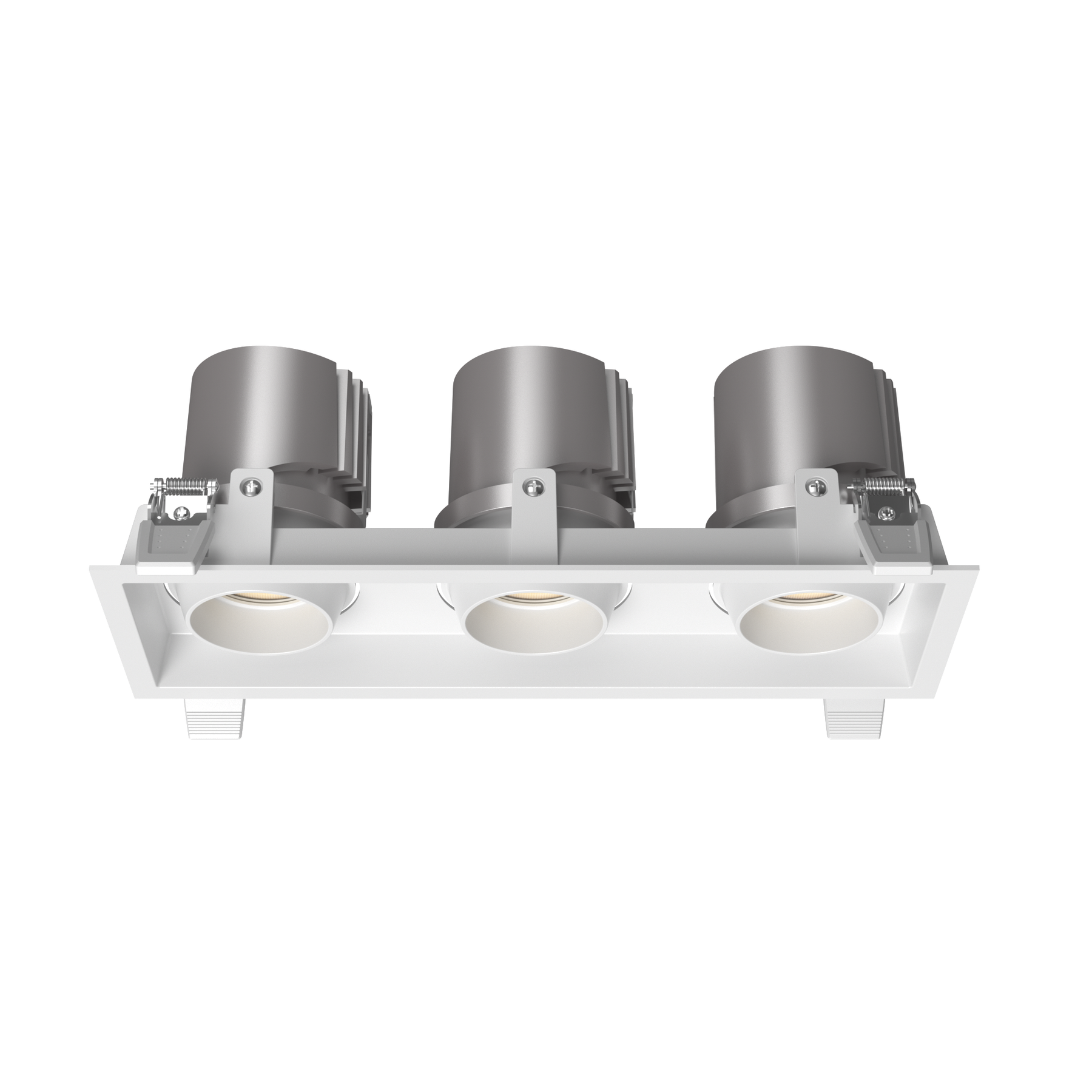

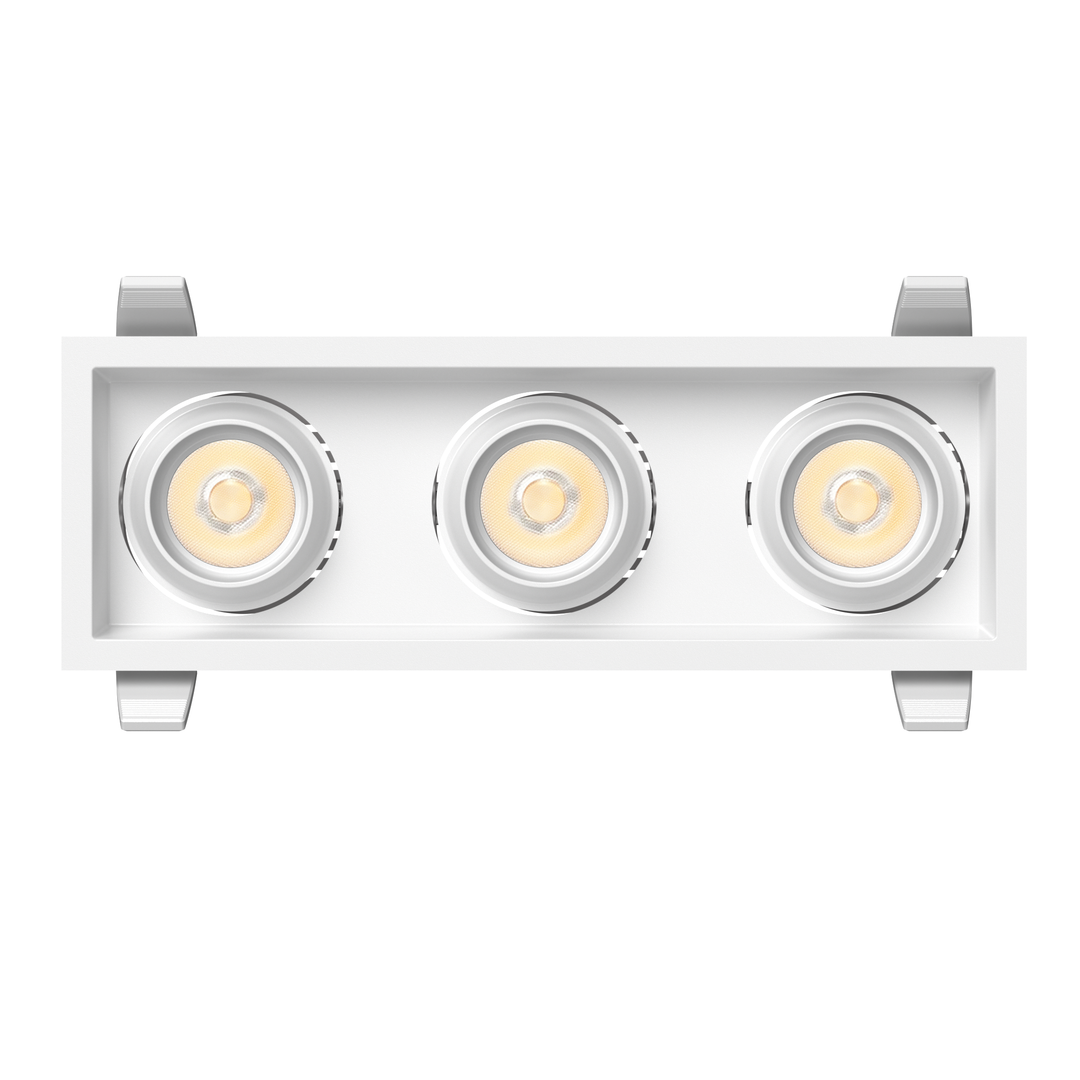

P1 3" Triple Architectural LED Recessed Downlight
Designed by Lucretia. Engineered for North America.
The P1 3" Triple Architectural LED Recessed Downlight extends Lucretia's next-generation architectural lighting platform with a high-performance triple-light configuration, purpose-built exclusively for the North American market.
Designed and engineered entirely in-house, the P1 Series has been developed to meet the installation practices, certification requirements and performance expectations of professional architectural lighting projects throughout the United States and Canada. Its triple optical design delivers increased light output, wider coverage and excellent beam consistency while maintaining exceptional visual comfort.
Featuring three independently engineered optical modules with precision optics and deep recessed glare control, the P1 3" Triple Architectural LED Recessed Downlight provides outstanding illumination for luxury residential, hospitality, retail, commercial and architectural environments where higher output and wider coverage are required.
Supporting 120–277V universal input voltage, multiple dimming protocols and optional IC-Rated Housings and New Construction Plates, the P1 integrates seamlessly into both remodel and new construction projects.
Built around Lucretia's modular lighting platform, the P1 features a tool-free serviceable design that allows the LED engines, optics and driver to be replaced quickly and efficiently, extending product life while simplifying maintenance.
More than a recessed downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Triple Architectural LED Recessed Downlight
Power Options:
30W (3 × 10W)
45W (3 × 15W)
Luminous Flux:
30W: Up to 2,964 lm (3000K)
45W: Up to 3,960 lm (3000K)
Luminous Efficacy:
Up to 88 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Beam Angles:
15° · 24° · 38° · 50°
Optical System:
Triple precision optical system with interchangeable lenses for accurate beam control and consistent light distribution.
Glare Control:
Deep recessed optical design for enhanced visual comfort and reduced glare.
LED Engine:
Triple high-performance Bridgelux LED modules.
Construction:
Precision die-cast aluminium housing with integrated thermal management architecture.
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request.
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
3 × Ø60.7 × H68.3 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.78 kg
Trim Options:
Square Trimless
Available in Fixed configuration.
Luminaire Dimensions:
264 × 84 × H52 mm
Cut-Out:
270 × 90 mm
Ingress Protection:
IP20 · IP54
Installation Options:
Remodel Installation
New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States & Canada
Serviceability:
Tool-free modular design with replaceable LED modules, optics and driver for simplified maintenance.
Customisation:
Custom beam angles, colour temperatures and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Commercial · Offices · Corridors · Galleries · Museums
Lead Time & Delivery
Our products are made or prepared to order to ensure quality and precision.
Lead times vary depending on stock availability, production schedule, and delivery location.
In-Stock Items
- Melbourne Metro: 1–2 business days
- Other Australian locations: 2–5 business days
- Remote areas (including Hobart & Cairns): 5–7 business days
Made-to-Order / Backordered Items
- Standard production & delivery: 8–12 weeks
- Airfreight option available: 4–5 weeks (additional cost may apply)
International Shipping
All international orders are built to meet local electrical standards.
- Air Freight: approx. 3–4 weeks (production + air transit)
- Sea Freight: approx. 8–12 weeks (production + sea transit)
For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.
