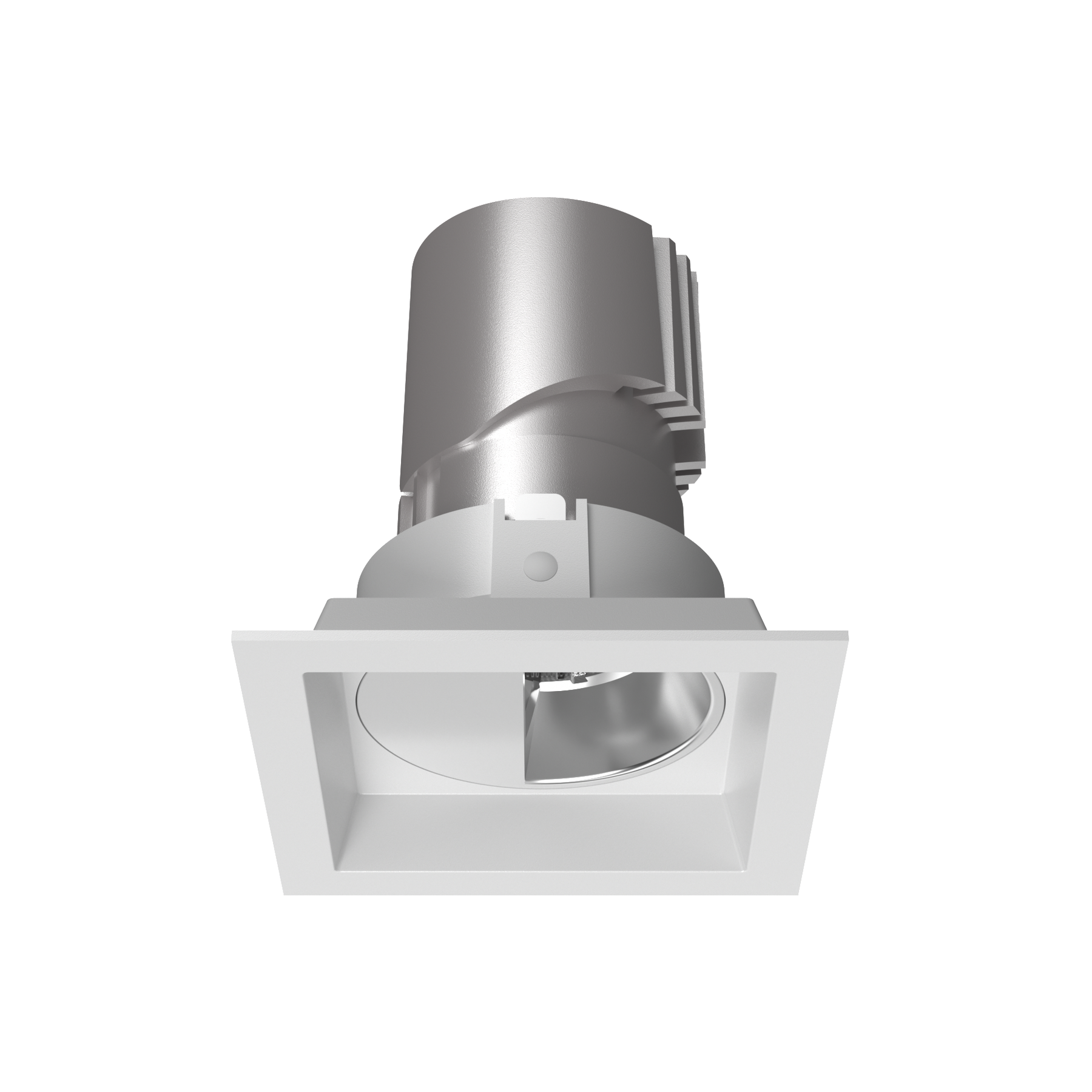

P1 3" Square Architectural LED Wall Wash Downlight
Designed by Lucretia. Engineered for North America.
The P1 3" Square Architectural LED Wall Wash Downlight is part of Lucretia's next-generation architectural lighting platform, purpose-built exclusively for the North American market.
Designed and engineered entirely in-house, the P1 Series has been developed to meet the installation practices, certification requirements and performance expectations of professional architectural lighting projects throughout the United States and Canada.
Featuring a precision asymmetric wall wash optical system, the P1 3" Square Architectural LED Wall Wash Downlight delivers exceptionally smooth and uniform vertical illumination while eliminating hotspots and scalloping. The clean square aperture integrates seamlessly into contemporary architecture, making it ideal for luxury residences, hospitality, retail environments, galleries, museums and feature walls.
Supporting 120–277V universal input voltage, multiple dimming protocols and optional IC-Rated Housings and New Construction Plates, the P1 provides outstanding flexibility for both remodel and new construction projects.
Built around Lucretia's modular lighting platform, the P1 features a tool-free serviceable design that allows the LED engine, optics and driver to be replaced quickly and efficiently, extending product life while simplifying maintenance.
More than a wall wash downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Square Architectural LED Wall Wash Downlight
Power Options:
10W · 15W
Luminous Flux:
10W: Up to 988 lm (3000K)
15W: Up to 1320 lm (3000K)
Luminous Efficacy:
Up to 88 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Optical System:
Precision asymmetric wall wash optical system engineered for smooth, uniform vertical illumination.
Wall Wash Performance:
Designed to minimise scalloping and hotspots while providing consistent wall-to-wall illumination.
Glare Control:
Deep recessed optical design for enhanced visual comfort and reduced glare.
LED Engine:
High-performance Bridgelux LED module.
Construction:
Precision die-cast aluminium housing with integrated thermal management architecture.
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request.
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
Ø60.7 × H68.3 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.26 kg
Trim Options:
Square Trim
Available in Fixed configuration.
Luminaire Dimensions:
102 × 102 × H52 mm
Cut-Out:
90 × 90 mm
Ingress Protection:
IP20 · IP54
Installation Options:
Remodel Installation
New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States & Canada
Serviceability:
Tool-free modular design with replaceable LED module, optics and driver for simplified maintenance.
Customisation:
Custom beam angles, colour temperatures, trim finishes and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Feature Walls · Corridors · Architectural Wall Washing
