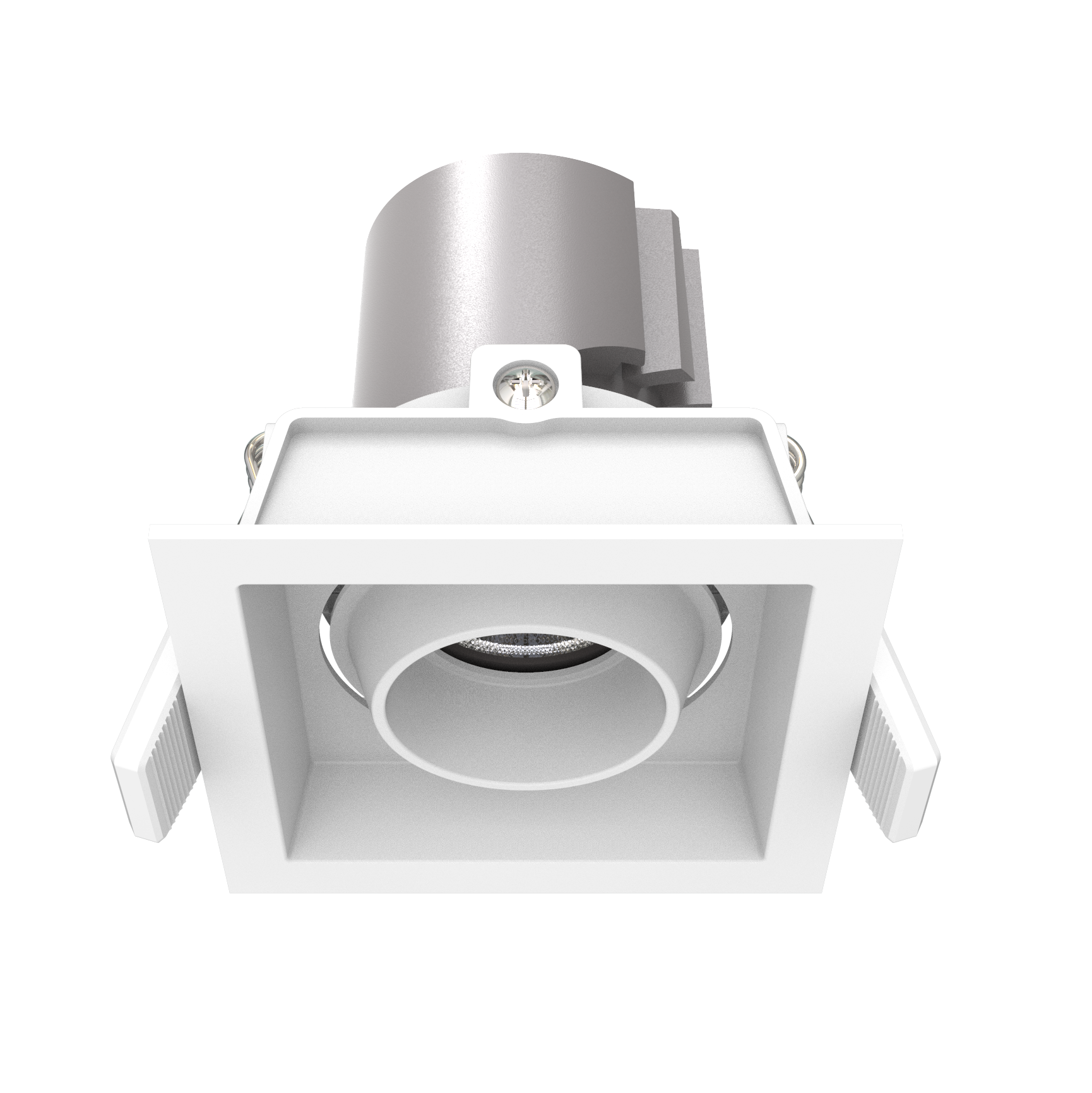

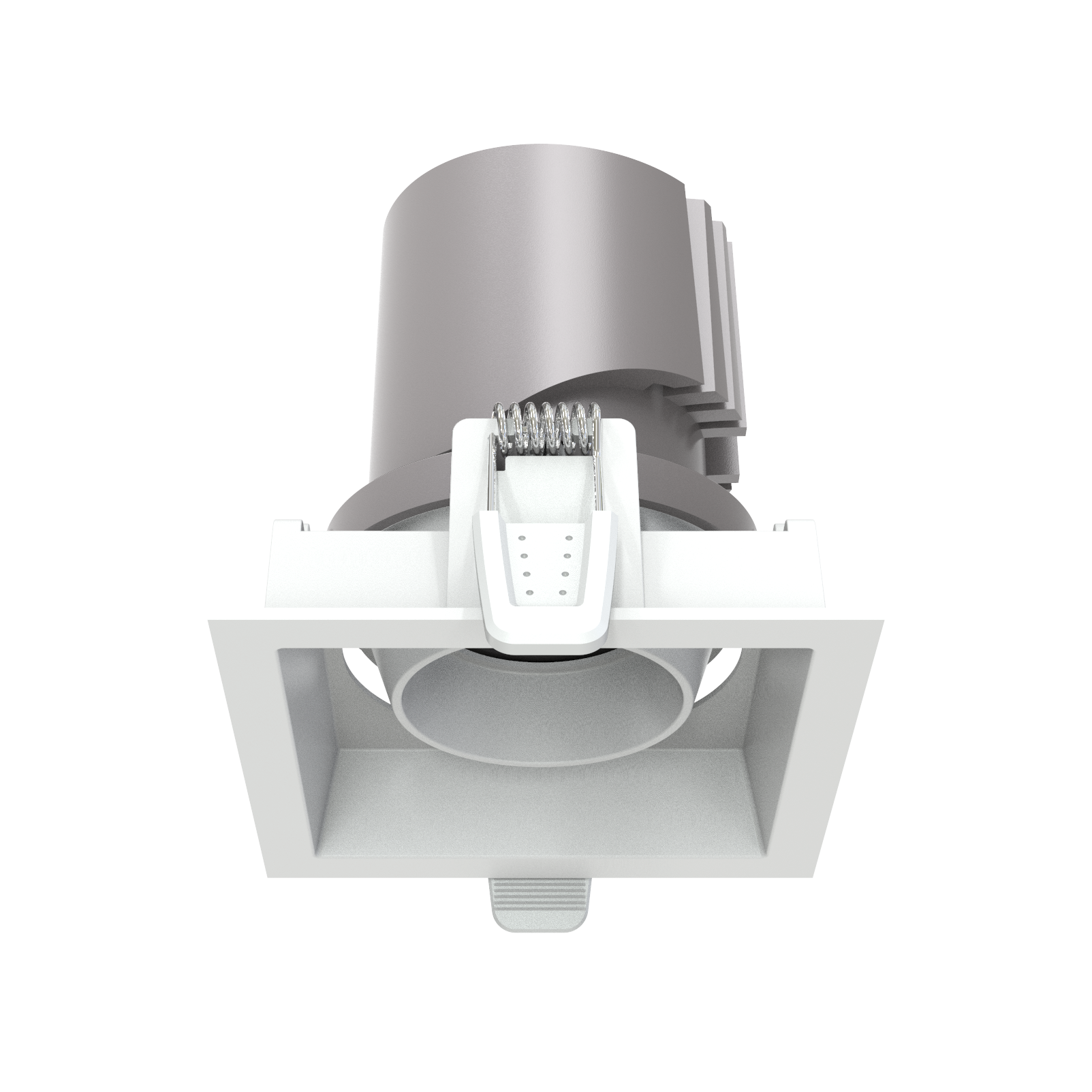

P1 3" Square Adjustable Architectural LED Downlight
Designed by Lucretia. Engineered for North America.
The P1 3" Square Adjustable Architectural LED Downlight expands Lucretia's next-generation architectural lighting platform with a precision adjustable optical system and contemporary square trim, purpose-built exclusively for the North American market.
Designed and engineered entirely in-house, the P1 Series has been developed to meet the installation practices, certification requirements and performance expectations of professional architectural lighting projects throughout the United States and Canada. Its adjustable optical design provides precise beam aiming while maintaining exceptional visual comfort and clean architectural aesthetics.
Featuring a fully adjustable optical module with precision optics and deep recessed glare control, the P1 3" Square Adjustable Architectural LED Downlight delivers outstanding beam control, enhanced lighting flexibility and accurate accent illumination for luxury residential, hospitality, retail, gallery and commercial applications.
Supporting 120–277V universal input voltage, multiple dimming protocols and optional IC-Rated Housings and New Construction Plates, the P1 integrates seamlessly into both remodel and new construction projects.
Built around Lucretia's modular lighting platform, the P1 features a tool-free serviceable design that allows the LED engine, optics and driver to be replaced quickly and efficiently, extending product life while simplifying maintenance.
More than an adjustable downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type
Square Adjustable Architectural LED Recessed Downlight
Power Options
10W / 15W
Luminaire Efficacy
Up to 92 lm/W (CRI 90+, 3000K)
Colour Temperature
2700K / 3000K / 4000K
Colour Rendering
CRI 90+
Beam Angles
15° / 24° / 38° / 50°
Adjustability
355° Rotation / 30° Tilt
Optical System
Precision reflector with high-transmission optical lens.
Glare Control
Deep recessed light source with precision optical reflector.
LED Brand
Bridgelux
Light Source
High-performance COB LED
Construction
Die-cast aluminium housing with integrated thermal management.
Reflector Finishes
Matt White / Matt Black / Specular / Satin
Trim Finishes
Textured White / Textured Black / Custom RAL Colours Available
Control Options
TRIAC (120V Standard) / 0–10V
Input Voltage
120–277V AC, 50/60Hz
Power Factor
0.9
Dimensions
90 × 90 × 37 mm
LED Module Dimensions
Ø60.7 × H68.3 mm
Cut-Out
80 × 80 mm
Junction Box
Included
Junction Box Size
197 × 60 × 40 mm
Weight
0.26 kg
Ingress Protection
IP20 / IP54
Lifetime
L70 >50,000 Hours
MacAdam Step
SDCM <3
Flicker
Flicker-Free
Serviceability
Replaceable LED Module and Driver.
Certifications
ETL Listed
Warranty
5-Year Limited Warranty
Applications
Luxury Residential, Hospitality, Retail, Gallery, Museum, Office and Architectural Interiors.
