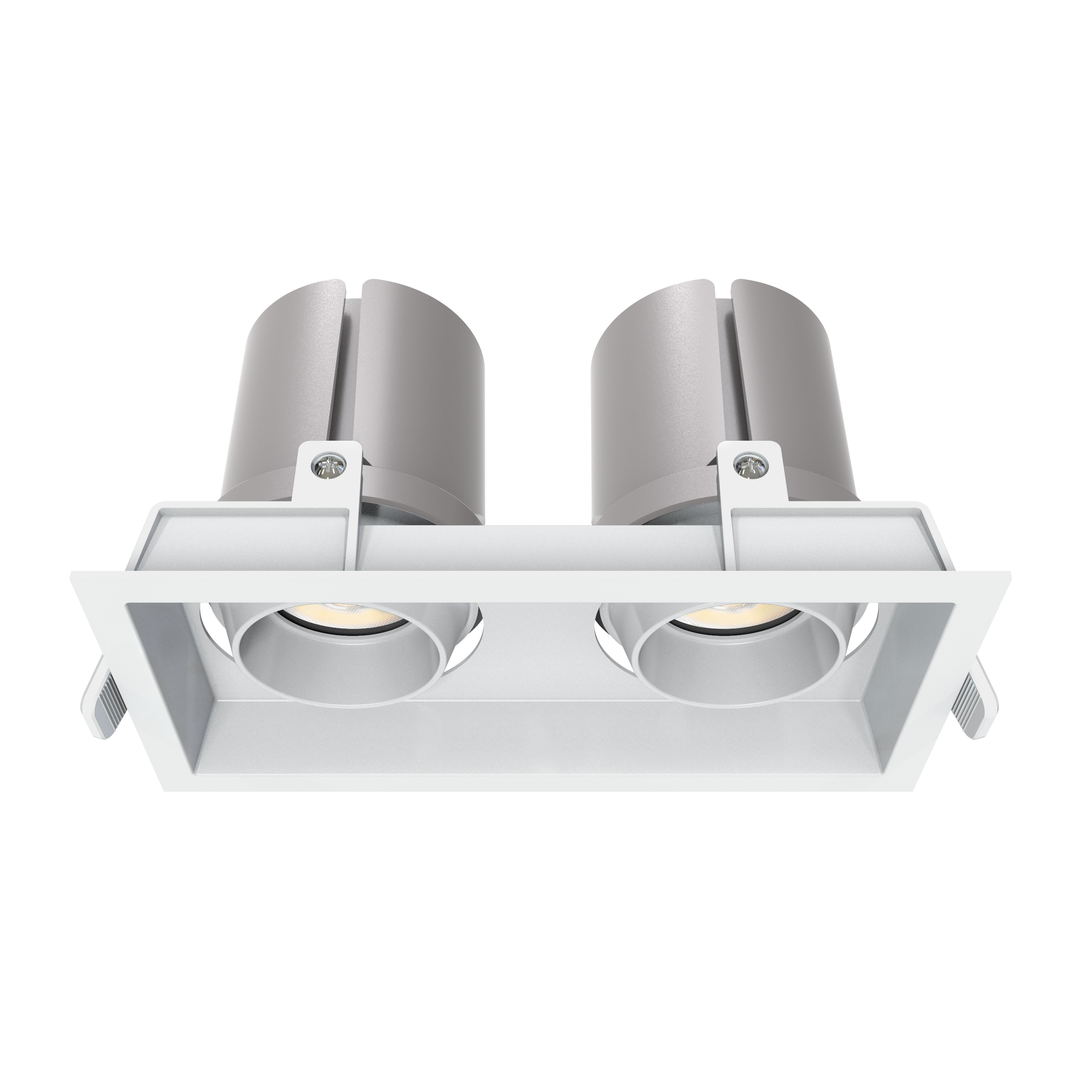

P1 3" Dual Architectural LED Recessed Downlight
Designed by Lucretia. Engineered for North America.
The P1 3" Dual Architectural LED Recessed Downlight expands Lucretia's next-generation architectural lighting platform with a dual-light configuration, purpose-built exclusively for the North American market.
Designed and engineered entirely in-house, the P1 Series has been developed to meet the installation practices, certification requirements and performance expectations of professional architectural lighting projects throughout the United States and Canada. Its dual optical design delivers greater light output and wider coverage while maintaining exceptional visual comfort and architectural aesthetics.
Featuring two independently engineered optical modules with precision optics and deep recessed glare control, the P1 3" Dual Architectural LED Recessed Downlight provides excellent beam control, improved uniformity and increased flexibility for luxury residential, hospitality, retail and commercial applications.
Supporting 120–277V universal input voltage, multiple dimming protocols and optional IC-Rated Housings and New Construction Plates, the P1 integrates seamlessly into both remodel and new construction projects.
Built around Lucretia's modular lighting platform, the P1 features a tool-free serviceable design that allows the LED engines, optics and driver to be replaced quickly and efficiently, extending product life while simplifying maintenance.
More than a dual downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Dual Architectural LED Recessed Downlight
Power Options:
20W (2 × 10W)
30W (2 × 15W)
Luminous Flux:
20W: Up to 1,976 lm (3000K)
30W: Up to 2,640 lm (3000K)
Luminous Efficacy:
Up to 88 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Beam Angles:
15° · 24° · 38° · 50°
Optical System:
Dual precision optical system with interchangeable lenses for accurate beam control and consistent light distribution.
Glare Control:
Deep recessed optical design for enhanced visual comfort and reduced glare.
LED Engine:
Dual high-performance Bridgelux LED modules.
Construction:
Precision die-cast aluminium housing with integrated thermal management architecture.
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request.
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
2 × Ø60.7 × H68.3 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.52 kg
Trim Options:
Square Trim
Available in Fixed configuration.
Luminaire Dimensions:
190 × 100 × H52 mm
Cut-Out:
175 × 90 mm
Ingress Protection:
IP20 · IP54
Installation Options:
Remodel Installation
New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States & Canada
Serviceability:
Tool-free modular design with replaceable LED modules, optics and driver for simplified maintenance.
Customisation:
Custom beam angles, colour temperatures and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Commercial · Offices · Corridors · Galleries · Museums
