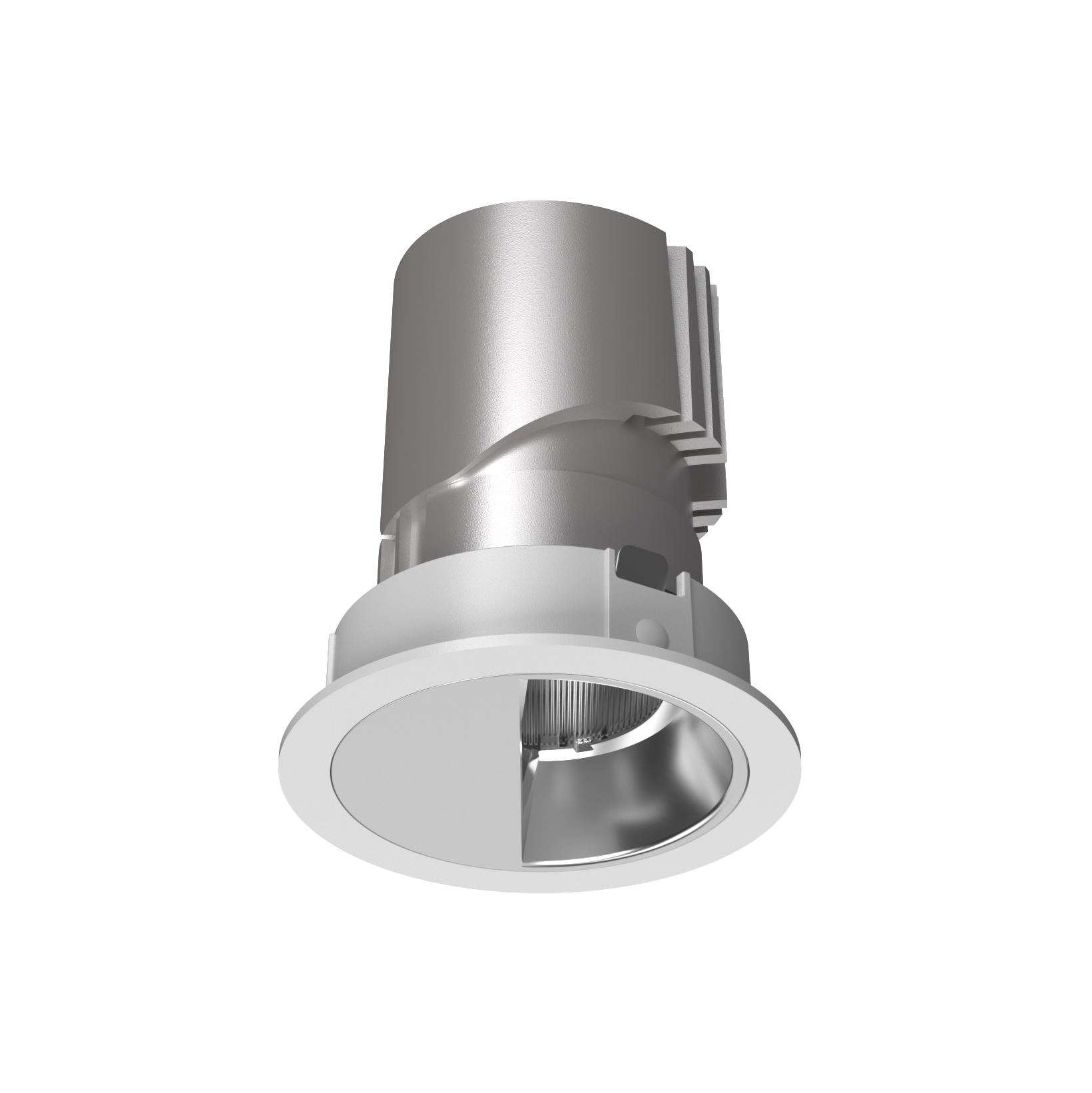

P1 3" Architectural LED Wall Wash Downlight
Designed by Lucretia. Engineered for North America.
The P1 3" Architectural LED Wall Wash Downlight is part of Lucretia's next-generation architectural lighting platform, purpose-built exclusively for the North American market.
Designed to deliver exceptionally uniform vertical illumination, the P1 Wall Wash features a precision-engineered optical system that provides smooth, even light distribution across walls without visible hotspots or scalloping. It is ideal for illuminating feature walls, artwork, retail displays, galleries, museums and luxury residential interiors.
Developed entirely in-house, the P1 Series combines advanced optical engineering, modular construction and long-term serviceability to meet the performance expectations of professional architectural lighting projects throughout the United States and Canada.
Supporting 120–277V universal input voltage, multiple dimming protocols and optional IC-Rated Housings and New Construction Plates, the P1 integrates seamlessly into both remodel and new construction applications.
Built around Lucretia's modular lighting platform, the P1 features a tool-free serviceable design that allows the LED engine, optics and trims to be replaced quickly and efficiently, extending product life while simplifying maintenance.
More than a wall wash downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Architectural LED Wall Wash Downlight
Power Options:
10W · 15W
Luminous Flux:
10W: Up to 988 lm (3000K)
15W: Up to 1320 lm (3000K)
Luminous Efficacy:
Up to 88 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Optical System:
Precision asymmetric wall wash optical system engineered for smooth, uniform vertical illumination with excellent wall uniformity.
Wall Wash Performance:
Designed to eliminate scalloping and hotspots while providing consistent illumination across vertical surfaces.
Glare Control:
Deep recessed optical design for enhanced visual comfort and reduced glare.
LED Engine:
High-performance Bridgelux LED module.
Construction:
Precision die-cast aluminium housing with integrated thermal management architecture.
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request.
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
Ø60.7 × H68.3 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.26 kg
Trim Options:
Round Trim
Round Trimless
Available in Fixed configurations.
Luminaire Dimensions:
Round Trim: Ø85 × H52 mm
Round Trimless: Ø71 × H52 mm
Cut-Out:
Ø75 mm
Ingress Protection:
IP20 · IP54
Installation Options:
Remodel Installation
New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States & Canada
Serviceability:
Tool-free modular design with replaceable LED module, optics and driver for simplified maintenance.
Customisation:
Custom colour temperatures, trim finishes and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Feature Walls · Corridors · Architectural Wall Washing
