P1 3" Architectural LED Recessed Downlight
Designed by Lucretia. Engineered for North America.
The P1 Series is Lucretia's next-generation architectural lighting platform, purpose-built exclusively for the North American market.
Developed entirely in-house, the P1 Series reflects our commitment to delivering architectural lighting solutions that meet the performance expectations, installation practices and certification requirements of the United States and Canada. From optical engineering and thermal management to installation systems and modular architecture, every detail has been designed specifically for North American projects.
The P1 3" Architectural LED Recessed Downlight combines precision optics, exceptional visual comfort and a highly modular design, making it an ideal solution for luxury residences, hospitality, commercial and architectural environments. Designed to give architects, lighting designers and electrical contractors greater flexibility, the P1 adapts seamlessly to a wide variety of applications.

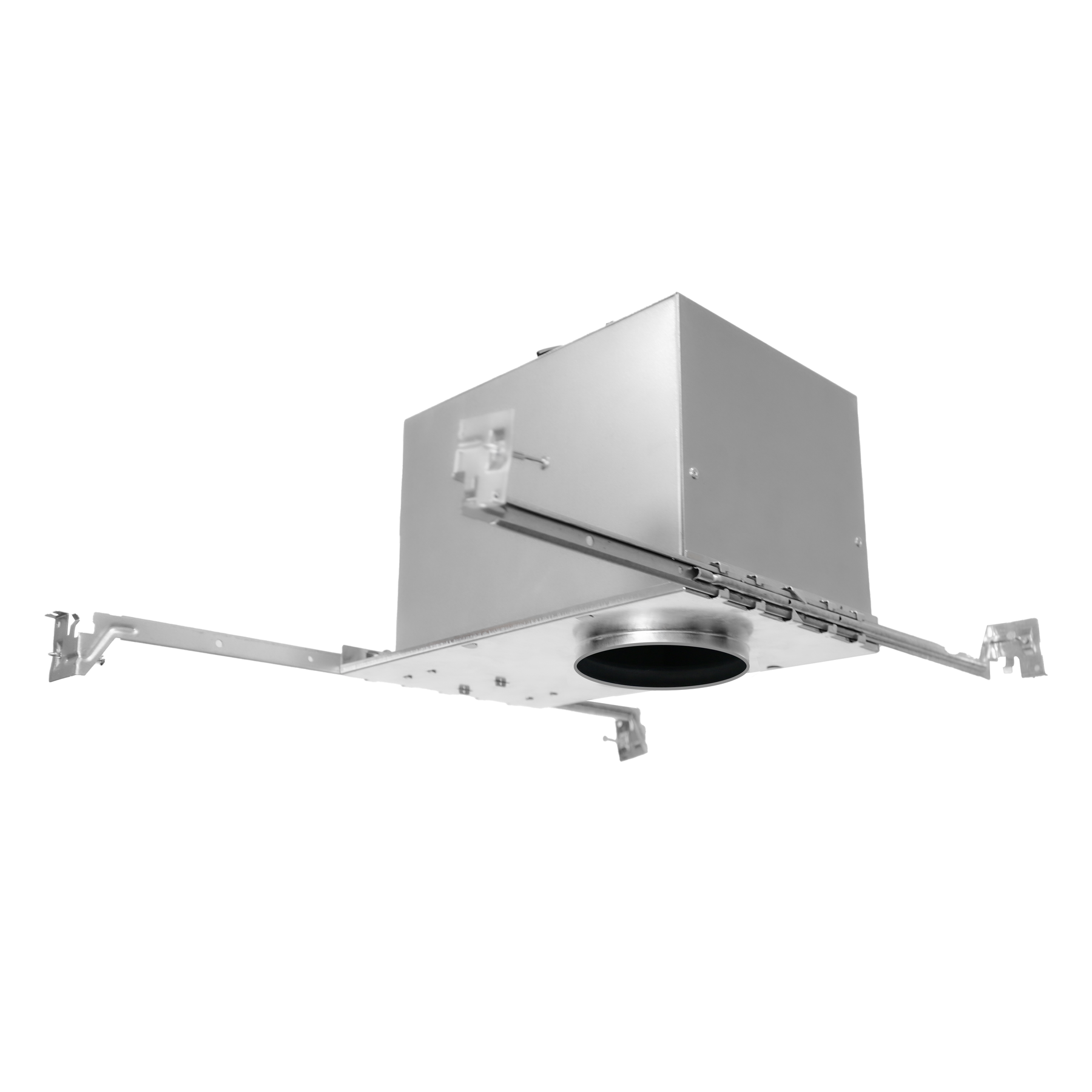

Certified for both the United States and Canada, the P1 supports 120–277V universal input voltage, multiple industry-standard dimming protocols and a comprehensive range of beam angles, trims and optical accessories. Optional IC-Rated Housings and New Construction Plates provide complete installation flexibility for both new construction and remodel projects.
As Lucretia's next-generation modular architectural lighting platform, the P1 features an innovative tool-free modular system that allows trims, optics and LED modules to be replaced or upgraded quickly and efficiently. This approach simplifies maintenance, extends product life and provides long-term flexibility as project requirements evolve.
More than a recessed downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Architectural LED Recessed Downlight
Power Options:
10W · 15W
Luminous Flux:
10W: 878–988 lm at 3000K
15W: 1105–1320 lm at 3000K
Luminous Efficacy:
Up to 88 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request
Colour Rendering:
CRI 90+
Beam Angles:
15° · 24° · 38° · 50°
Optical System:
Precision optical system with interchangeable lenses for accurate beam control and consistent light distribution
Glare Control:

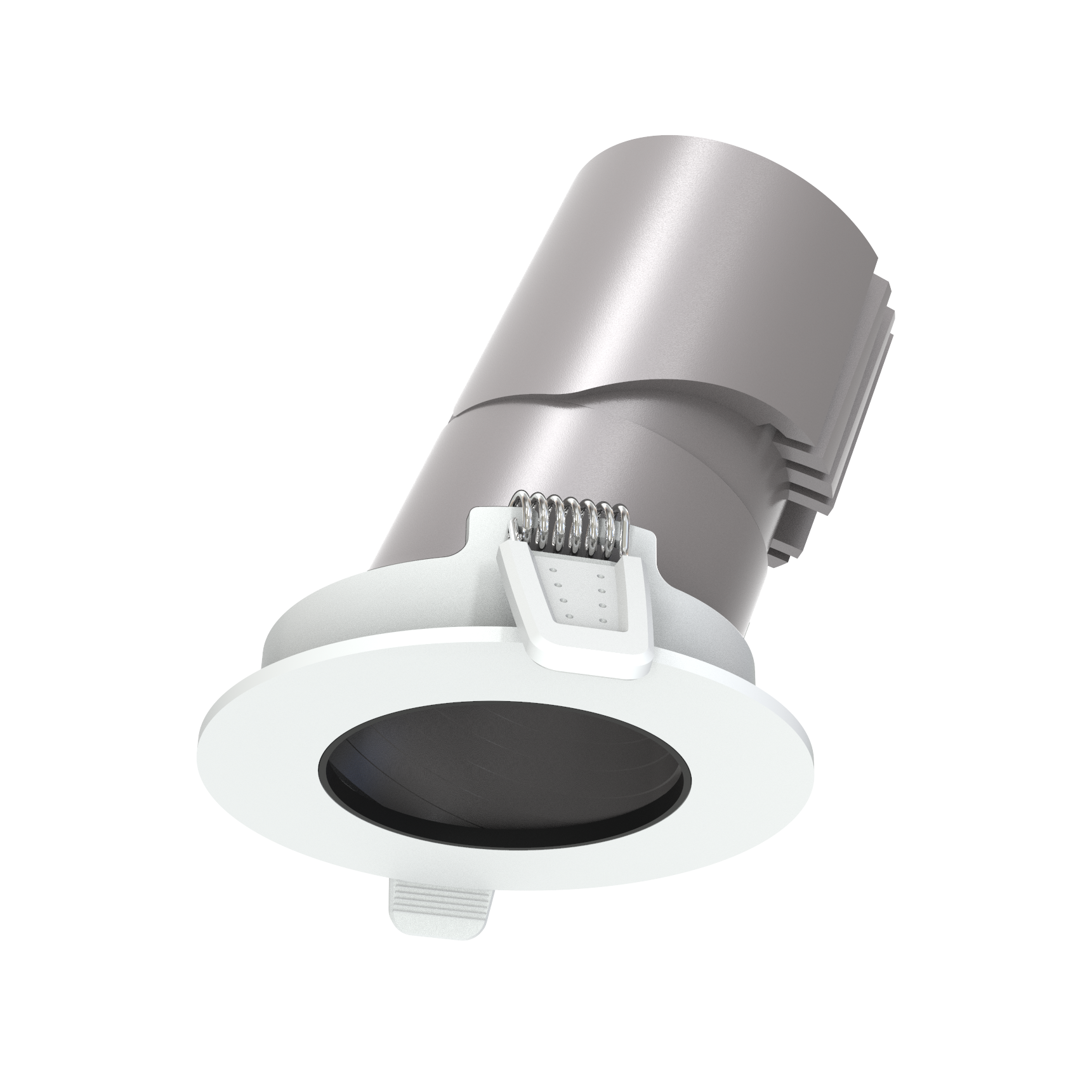

Deep recessed optical design with optional honeycomb louvre for enhanced glare reduction
Light Source:
High-performance Bridgelux LED module
Construction:
Precision die-cast aluminium construction with integrated thermal management
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
Ø60.7 × H68.3 mm
Remote J-Box Dimensions:
197 × 60 × H40 mm
Weight:
0.26 kg
Trim Options:

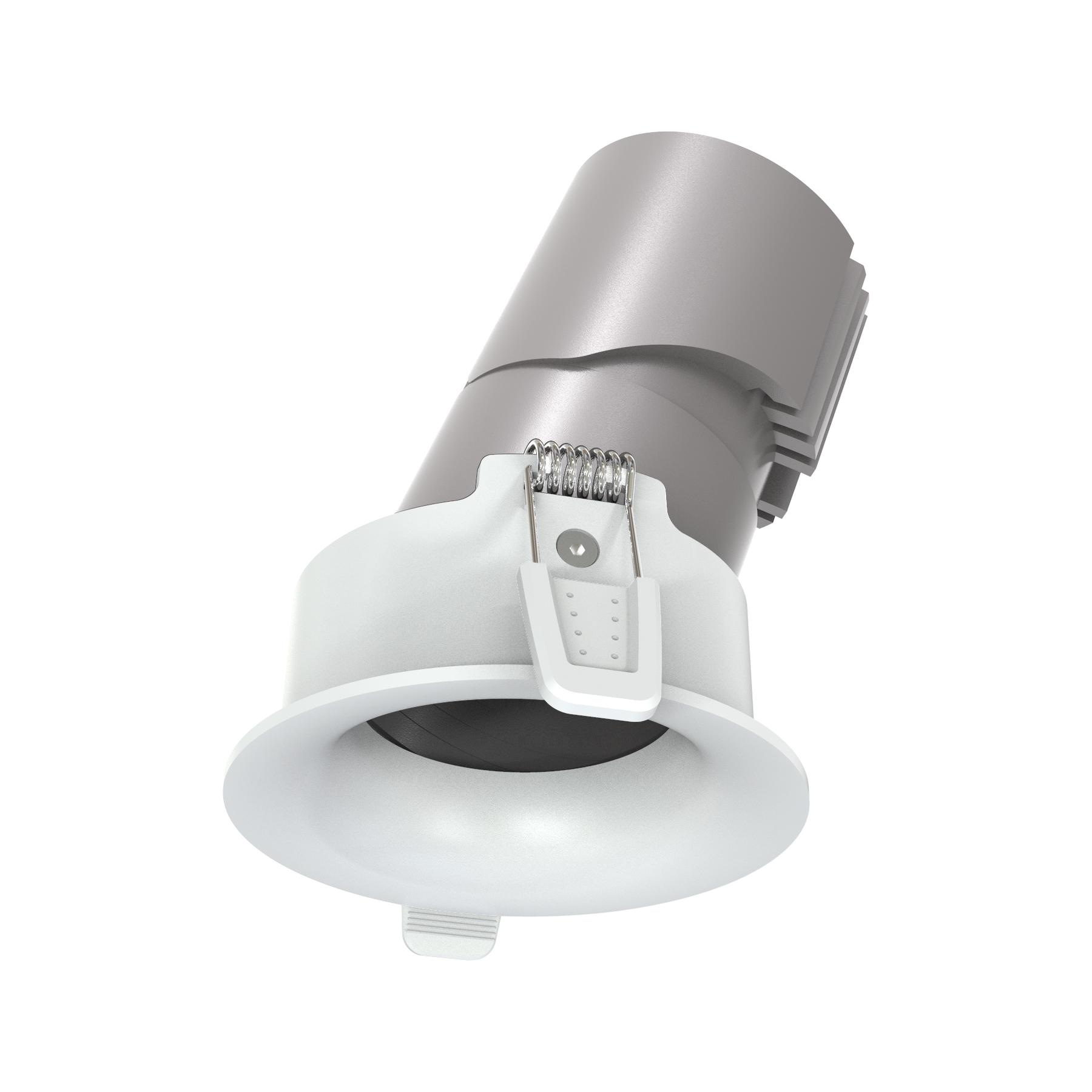

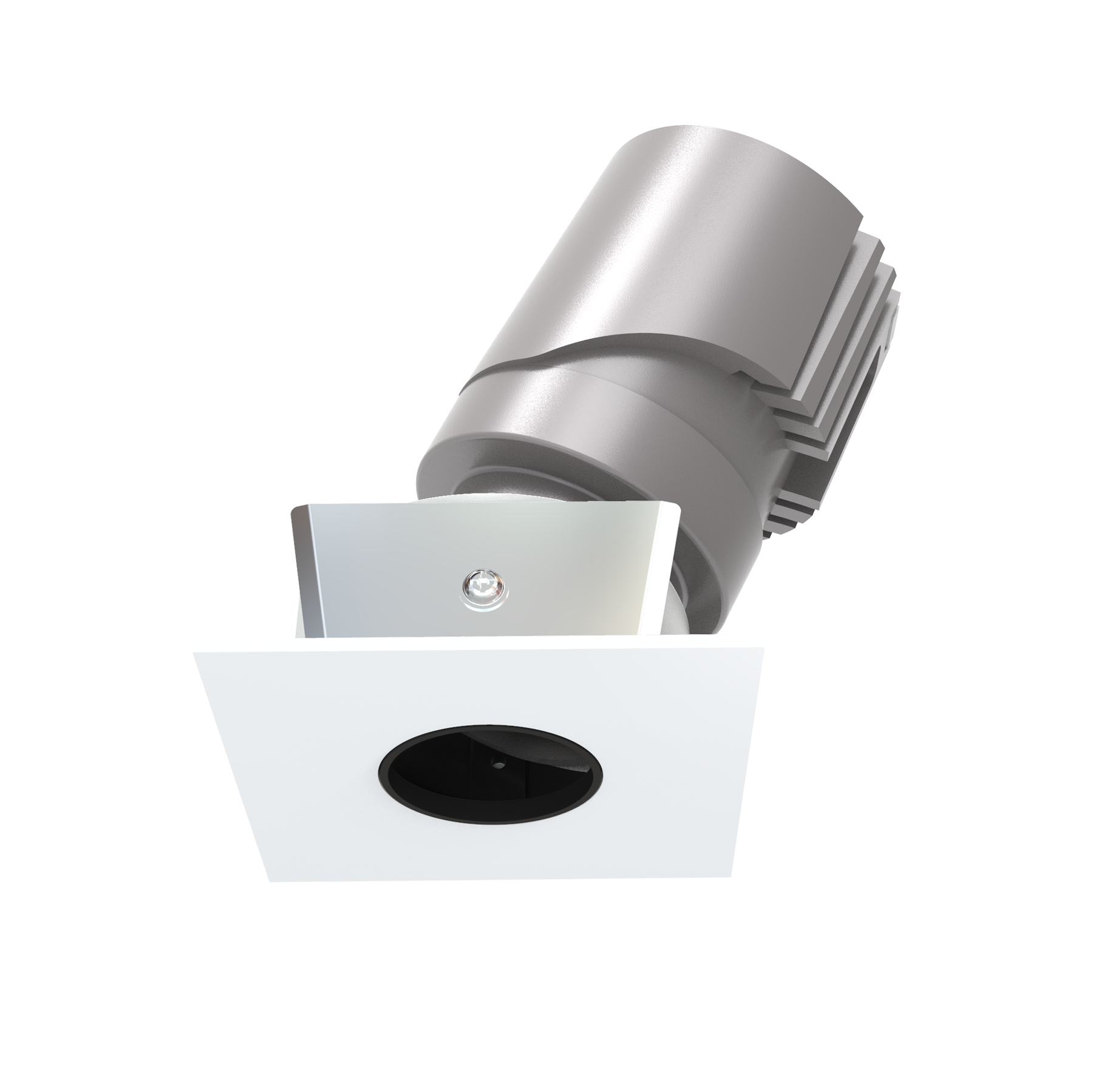

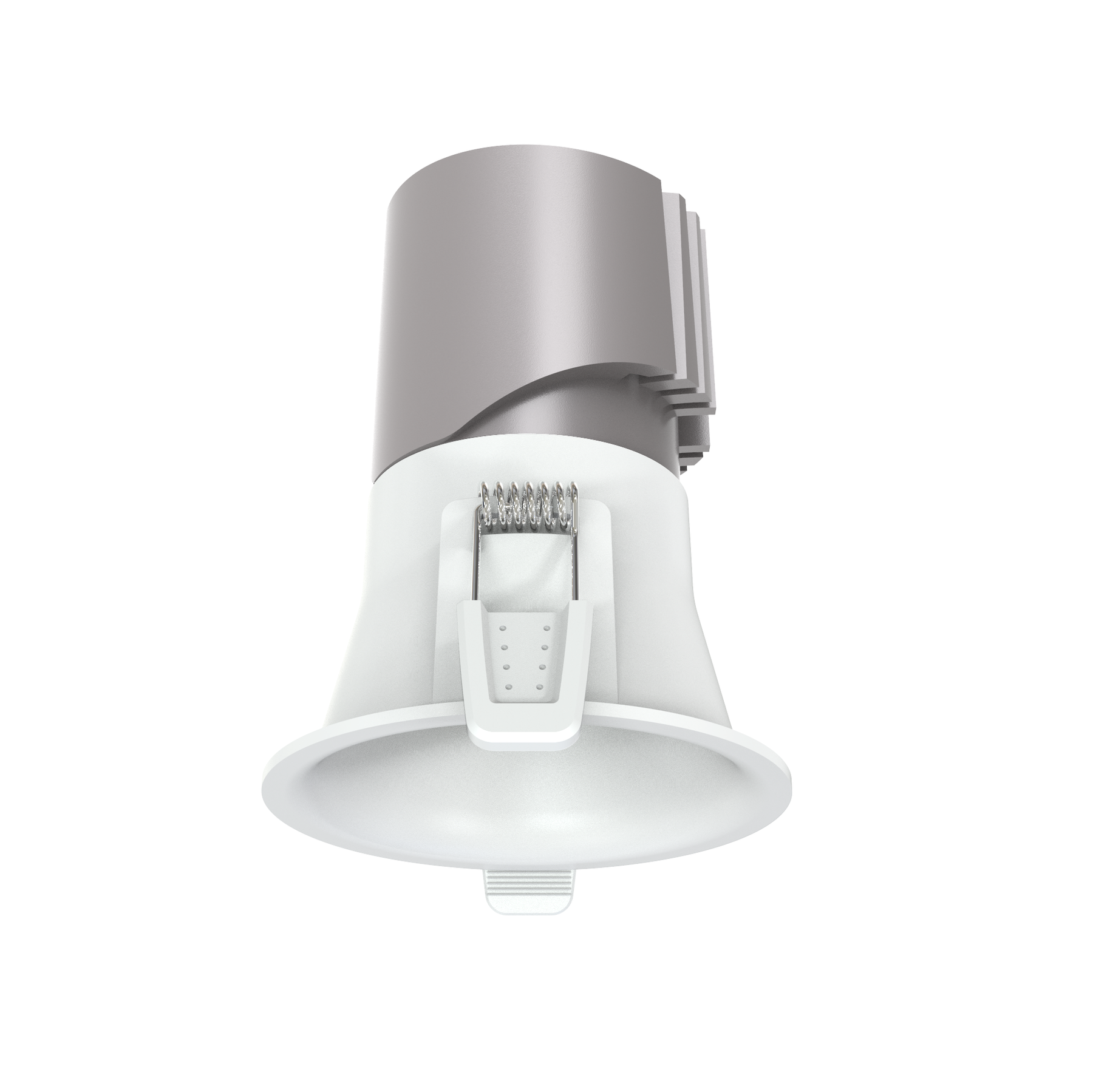

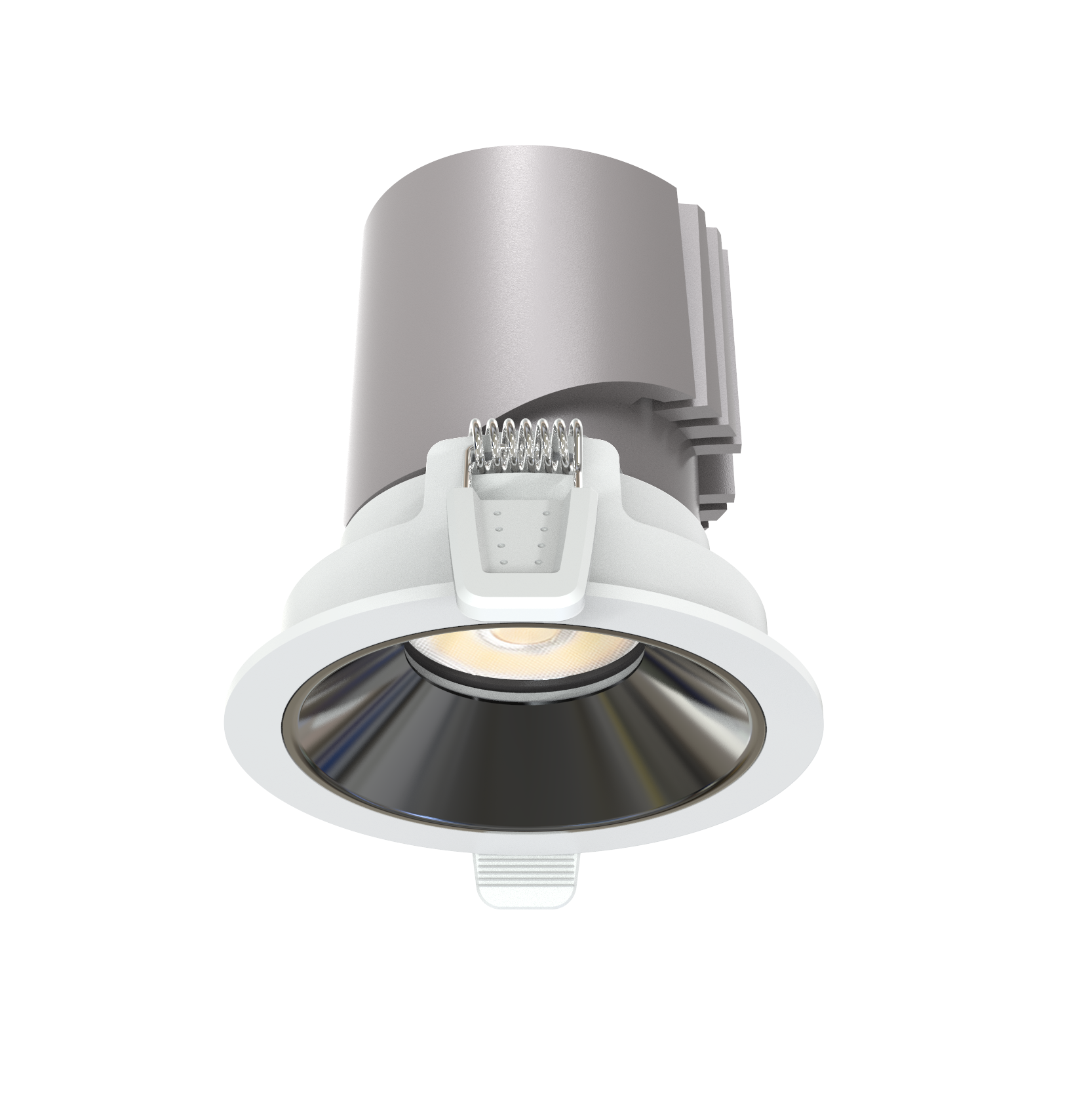

Round Trim · Round Trimless · Square Trim · Square Trimless

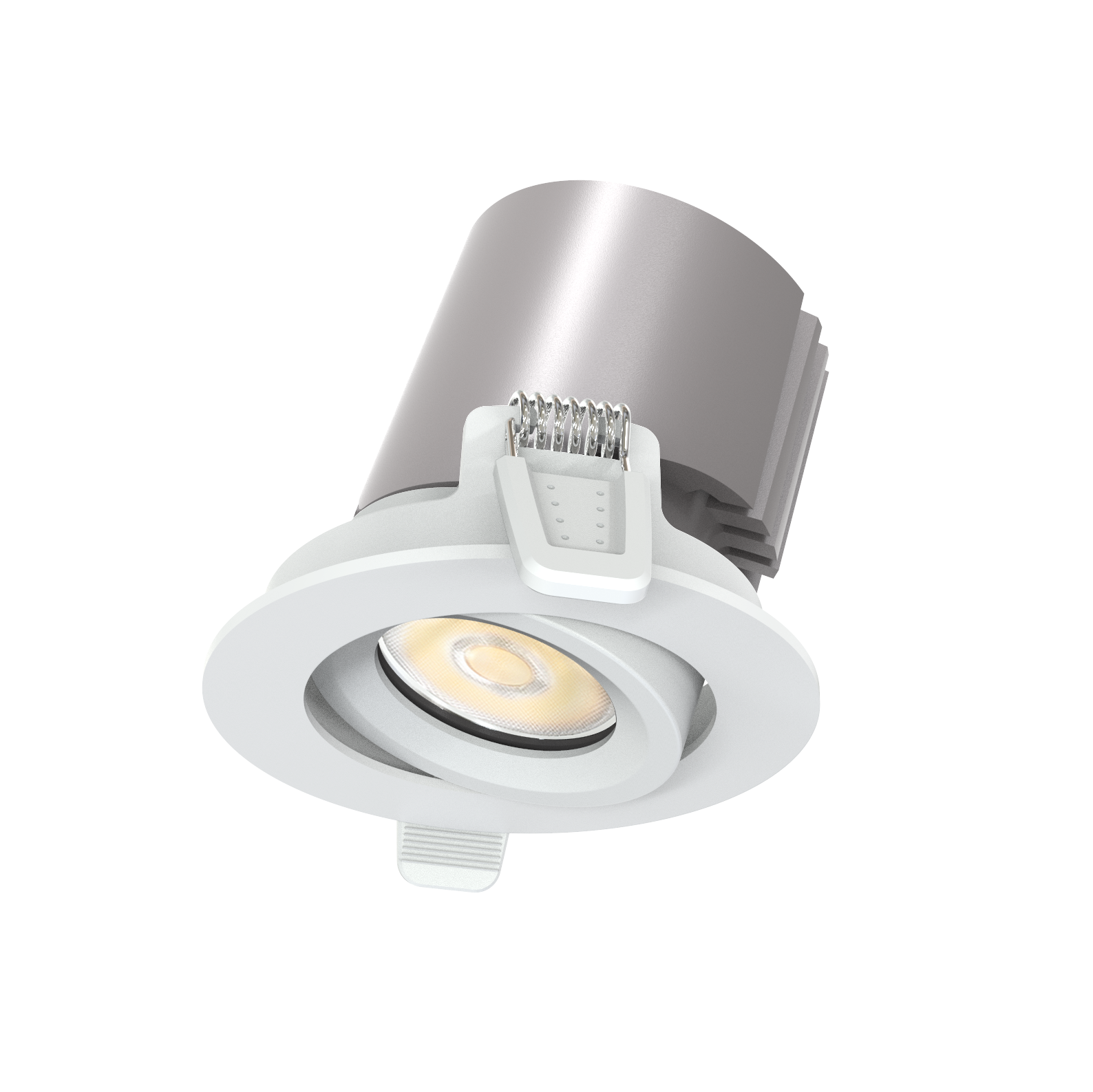

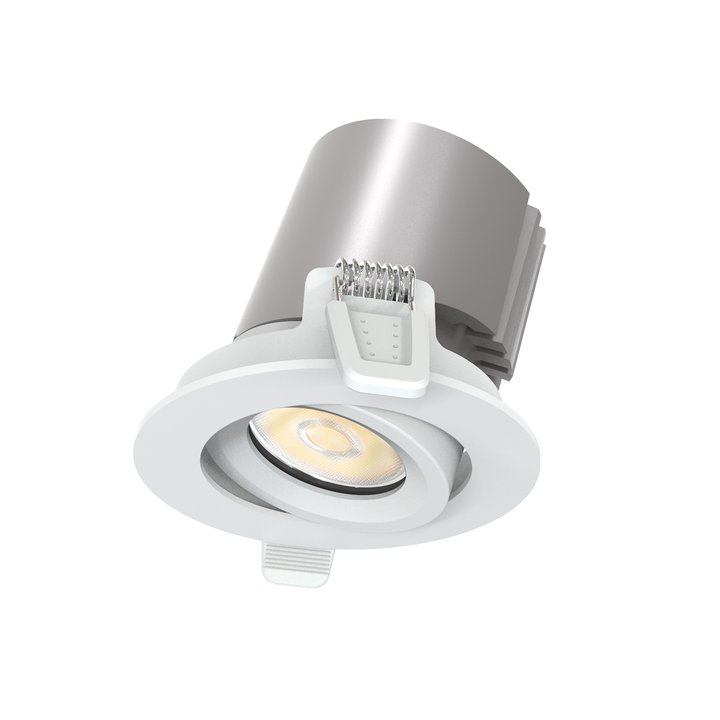

Available in Fixed and Adjustable configurations
Optical Accessories:
Interchangeable Lens · Honeycomb Louvre · Beam Softening Lens · Oval Beam Lens · Single Polarising Filter · Double Polarising Filter
Luminaire Dimensions:
Round Trim: Ø85 × H52 mm
Round Trimless: Ø71 × H52 mm
Square Trim: 85 × 85 × H52 mm
Square Trimless: 71 × 71 × H52 mm
Cut-Out:
Round Trim: Ø75 mm
Round Trimless: Ø76 mm
Square Trim: 75 × 75 mm
Square Trimless: 75 × 75 mm
Ingress Protection:
IP20 · IP54
Installation Options:

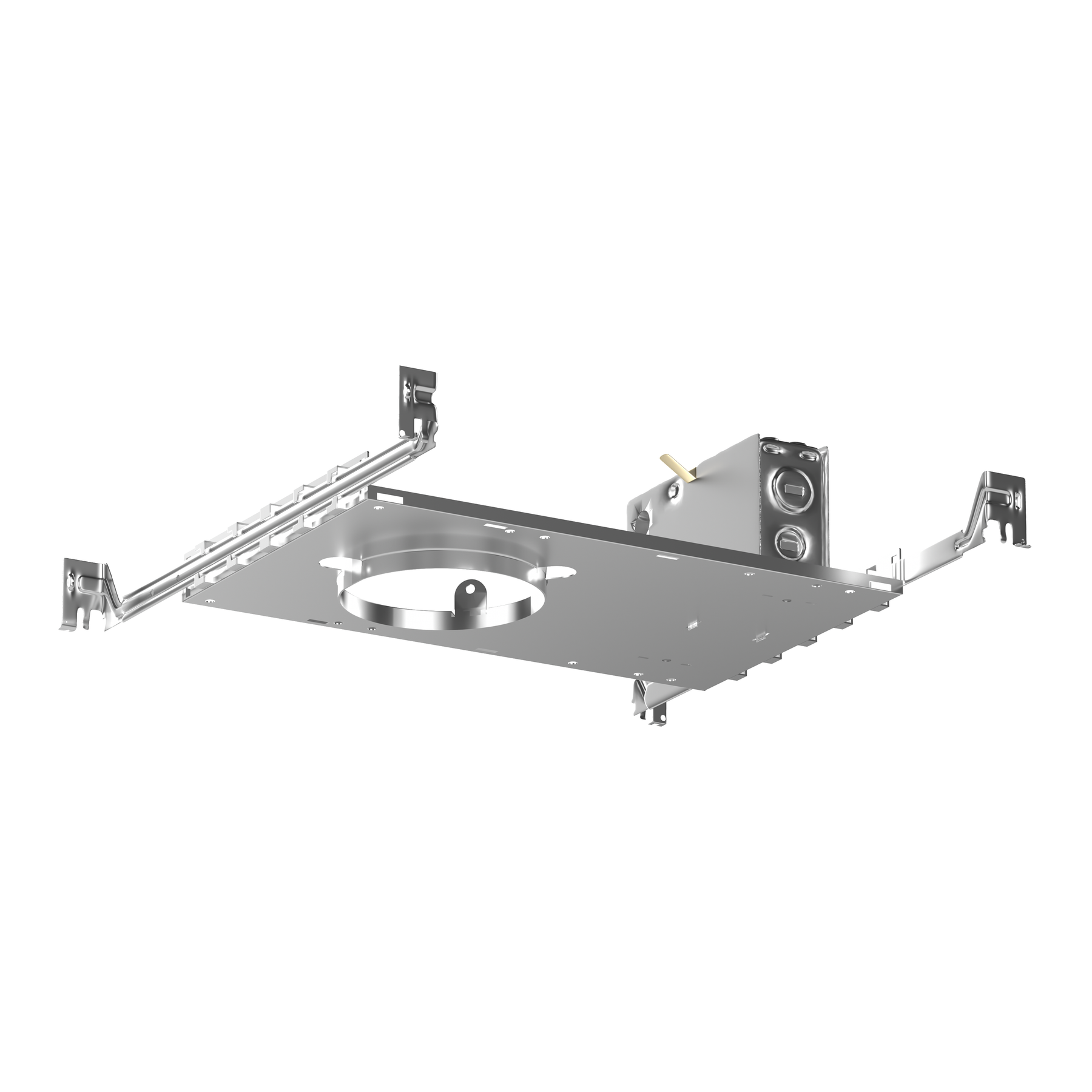

Remodel · New Construction · Optional IC-Rated Housing · Optional New Construction Plate
Certification:
ETL Listed for the United States and Canada
Serviceability:
LED module, optical components and driver replaceable without removing the complete luminaire
Customisation:
Custom beam angles, colour temperatures, trim finishes and control solutions available for project requirements
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Commercial
