P1 2" Architectural LED Recessed Downlight
- Customisable
- Secure payments
- Worldwide shipping
Designed by Lucretia. Engineered for North America.

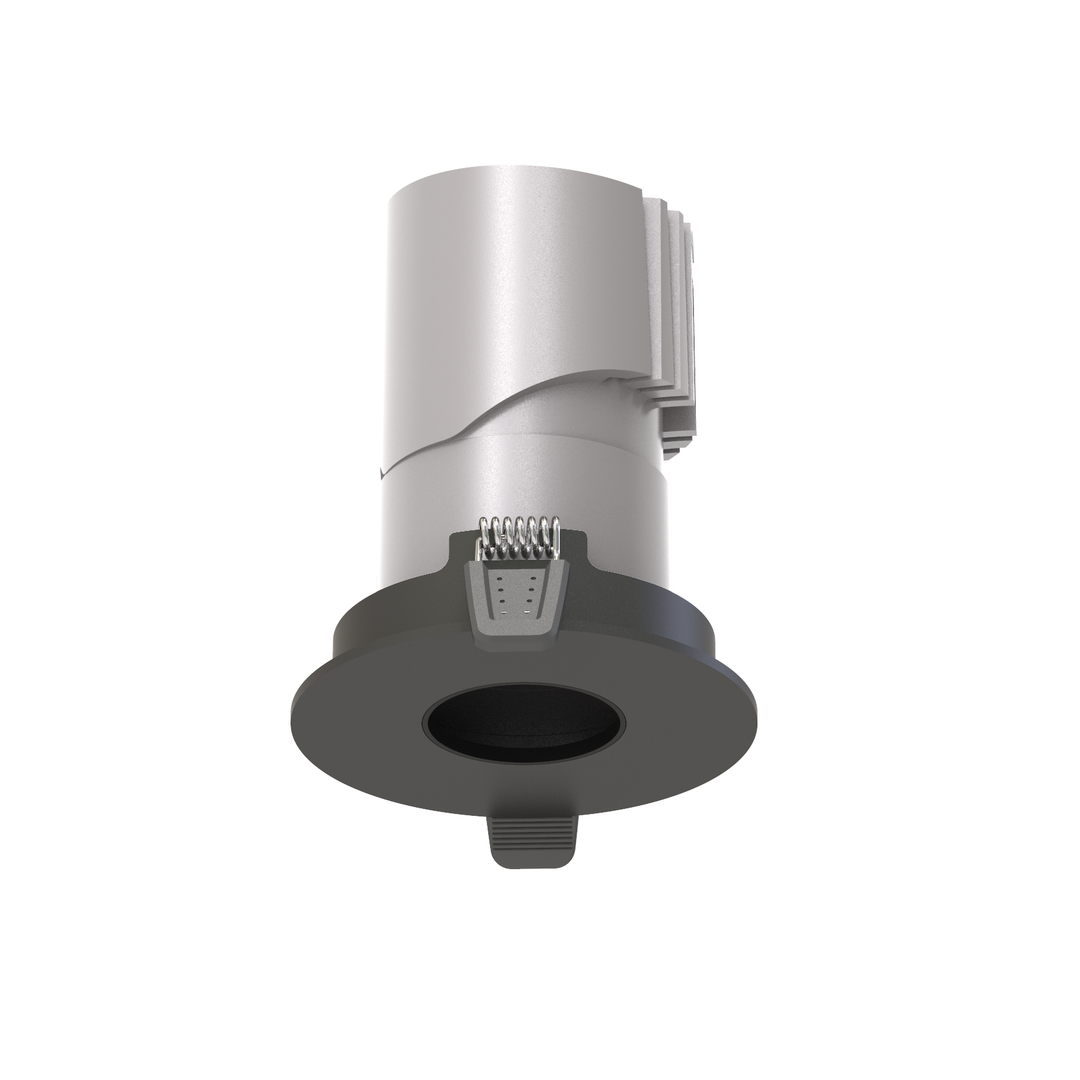

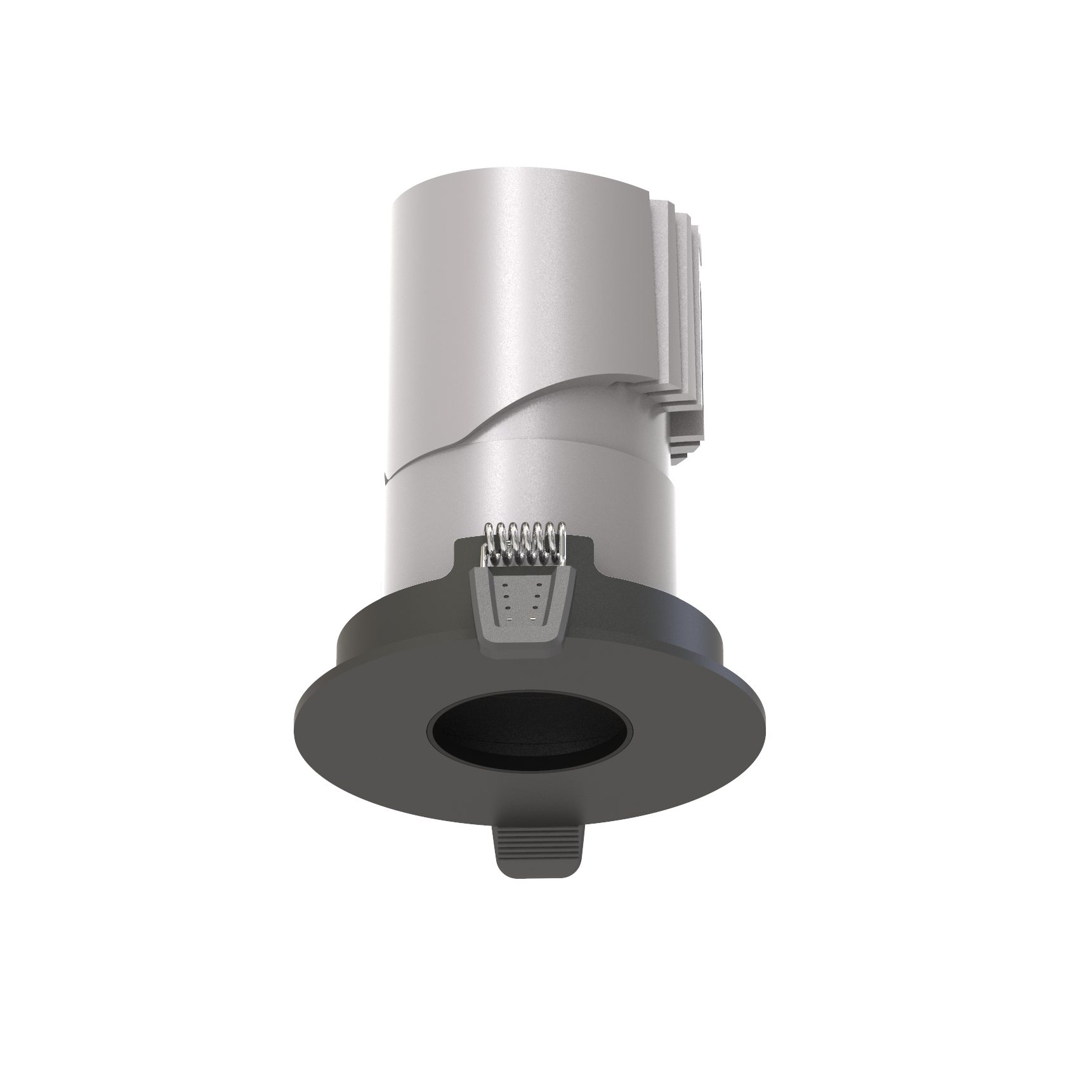

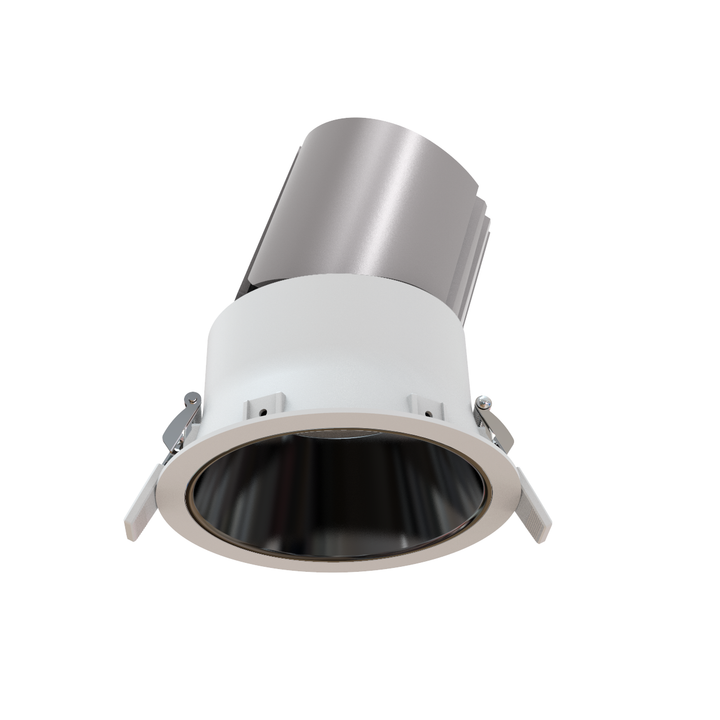

The P1 2" Architectural LED Recessed Downlight is the precision lighting solution within Lucretia's next-generation architectural lighting platform, purpose-built exclusively for the North American market.
Designed and engineered entirely in-house, the P1 Series has been developed to meet the installation practices, certification requirements and performance expectations of architectural projects throughout the United States and Canada. Every detail—from optical engineering and thermal management to modular architecture and installation systems—has been carefully designed to deliver exceptional performance, reliability and flexibility.
Featuring precision optics, outstanding visual comfort and interchangeable beam control, the P1 2" Architectural LED Recessed Downlight is ideal for luxury residences, hospitality, retail, galleries, museums and other architectural applications where precise accent lighting is essential.
Supporting 120–277V universal input voltage, multiple dimming protocols and a wide range of beam angles, the P1 provides exceptional flexibility for architectural lighting design. Its compact size makes it ideal for feature lighting, artwork, display shelving, corridors and premium residential interiors.
Built around Lucretia's modular lighting platform, the P1 features a serviceable design that allows the LED engine and driver to be replaced efficiently, simplifying maintenance while extending product life.
More than a recessed downlight, the P1 Series represents Lucretia's expertise in optical engineering, product innovation and architectural lighting system design—purpose-built for the North American market.
Type:
Architectural LED Recessed Downlight
Power Options:
5W · 8W
Luminous Flux:
5W: 293–345 lm
8W: 468–552 lm
Luminous Efficacy:
Up to 69 lm/W
Colour Temperature:
2700K · 3000K · 4000K
Custom CCT available on request
Colour Rendering:
CRI 90+
Beam Angles:
15° · 24° · 38° · 50°
Optical System:
Precision optical system with interchangeable lenses for accurate beam control and consistent light distribution
Glare Control:
Deep recessed optical design for enhanced visual comfort and glare reduction
LED Engine:
High-performance Bridgelux LED module
Construction:
Precision die-cast aluminium construction with integrated thermal management
Control Options:
TRIAC (120V only) · 0–10V · DALI
Additional control protocols available on request
Input Voltage:
120–277V AC · 50/60Hz
Power Factor:
0.90
LED Module Dimensions:
Ø45.7 × H53.9 mm
Remote J-Box Dimensions:
176 × 45 × H31 mm
Weight:
0.15 kg

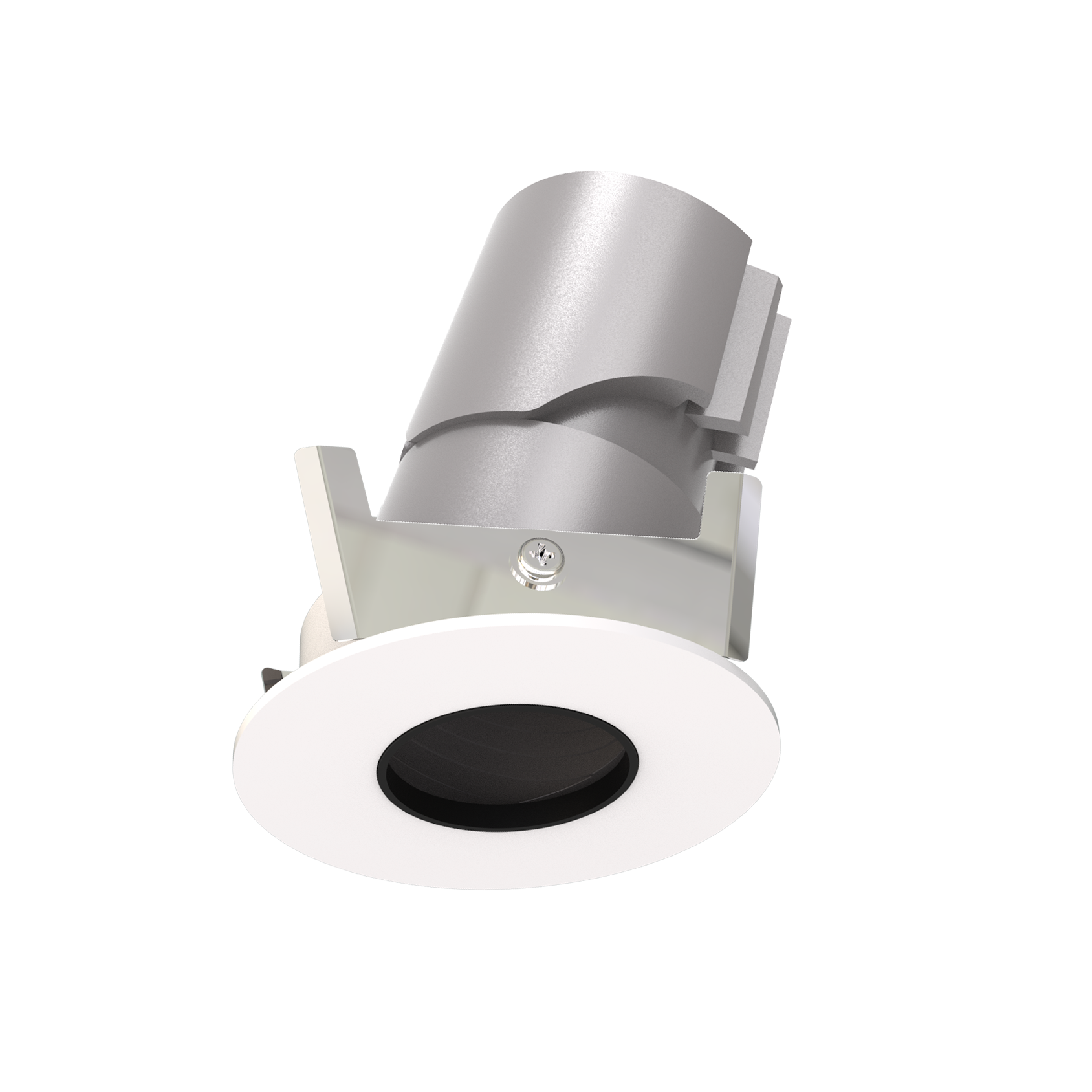

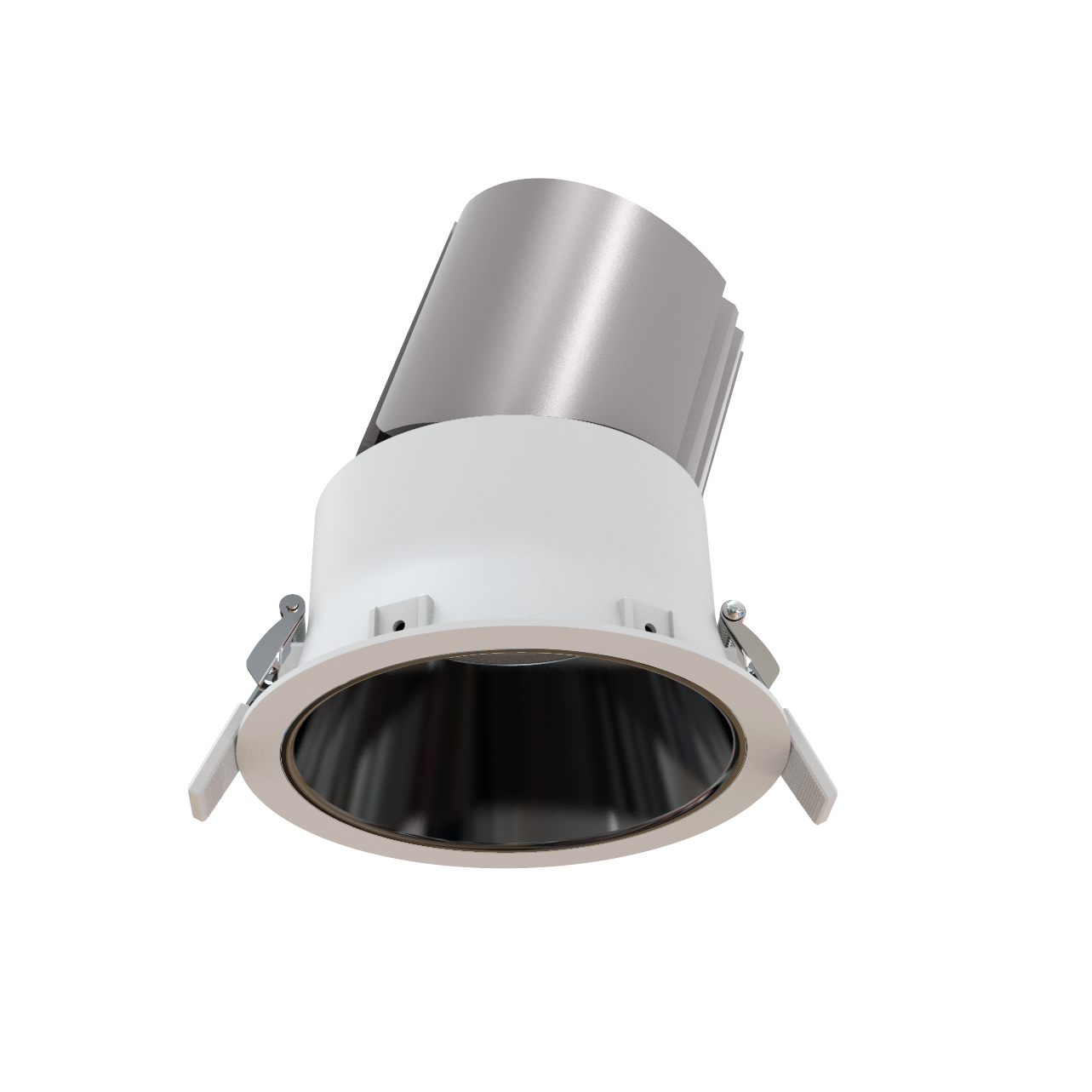

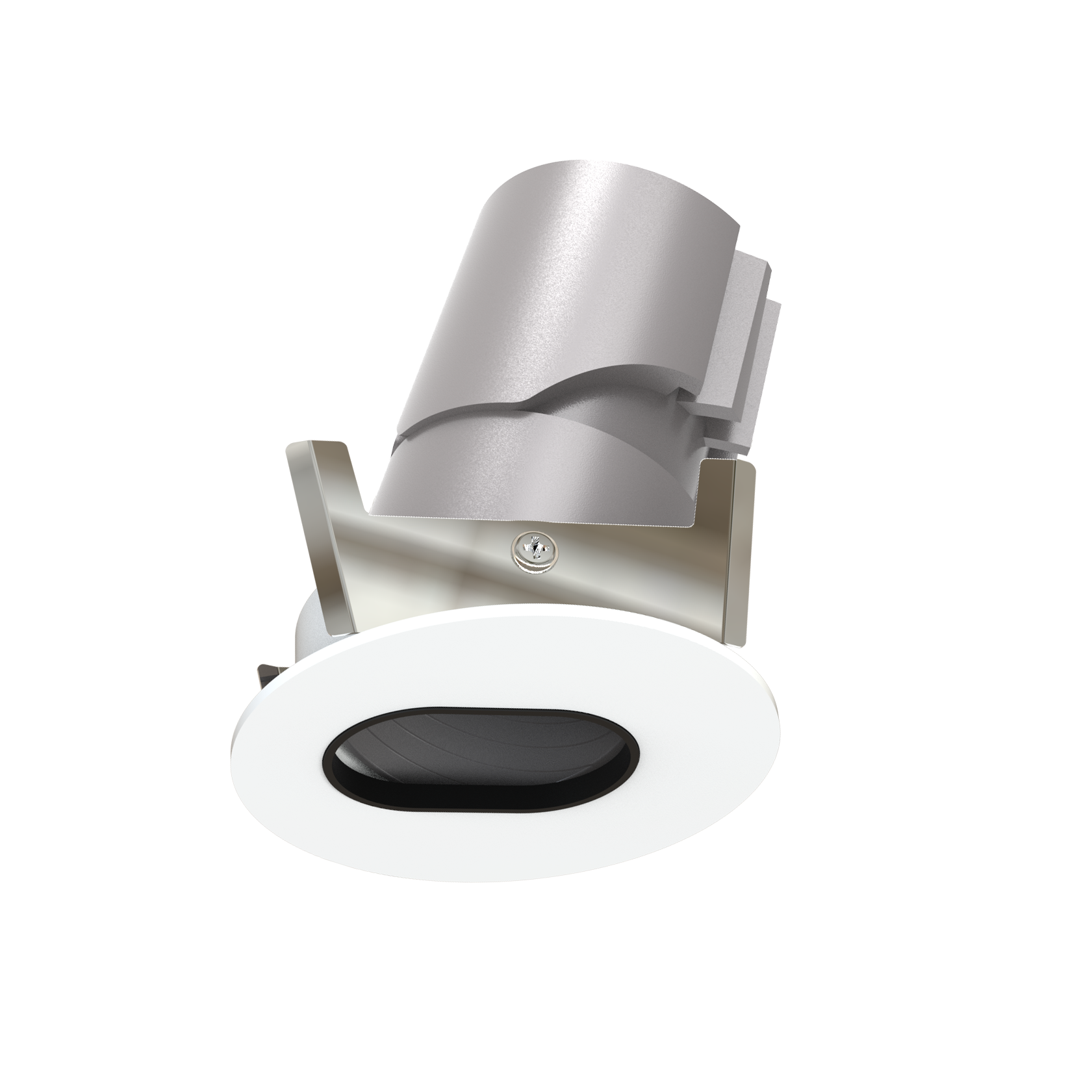

Trim Options:
Round Trim · Round Trimless
Available in Fixed and Adjustable configurations
Luminaire Dimensions:
Round Trim: Ø63 × H39 mm
Round Trimless: Ø52 × H39 mm
Cut-Out:
Ø55 mm
Ingress Protection:
IP20 · IP44
Installation Options:
Remodel Installation · New Construction Installation
Optional IC-Rated Housing
Optional New Construction Plate
Certification:
ETL Listed for the United States and Canada
Serviceability:
LED module, optics and driver replaceable without removing the complete luminaire
Customisation:
Custom beam angles, colour temperatures, trim finishes and control solutions available for project requirements
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Display Lighting
