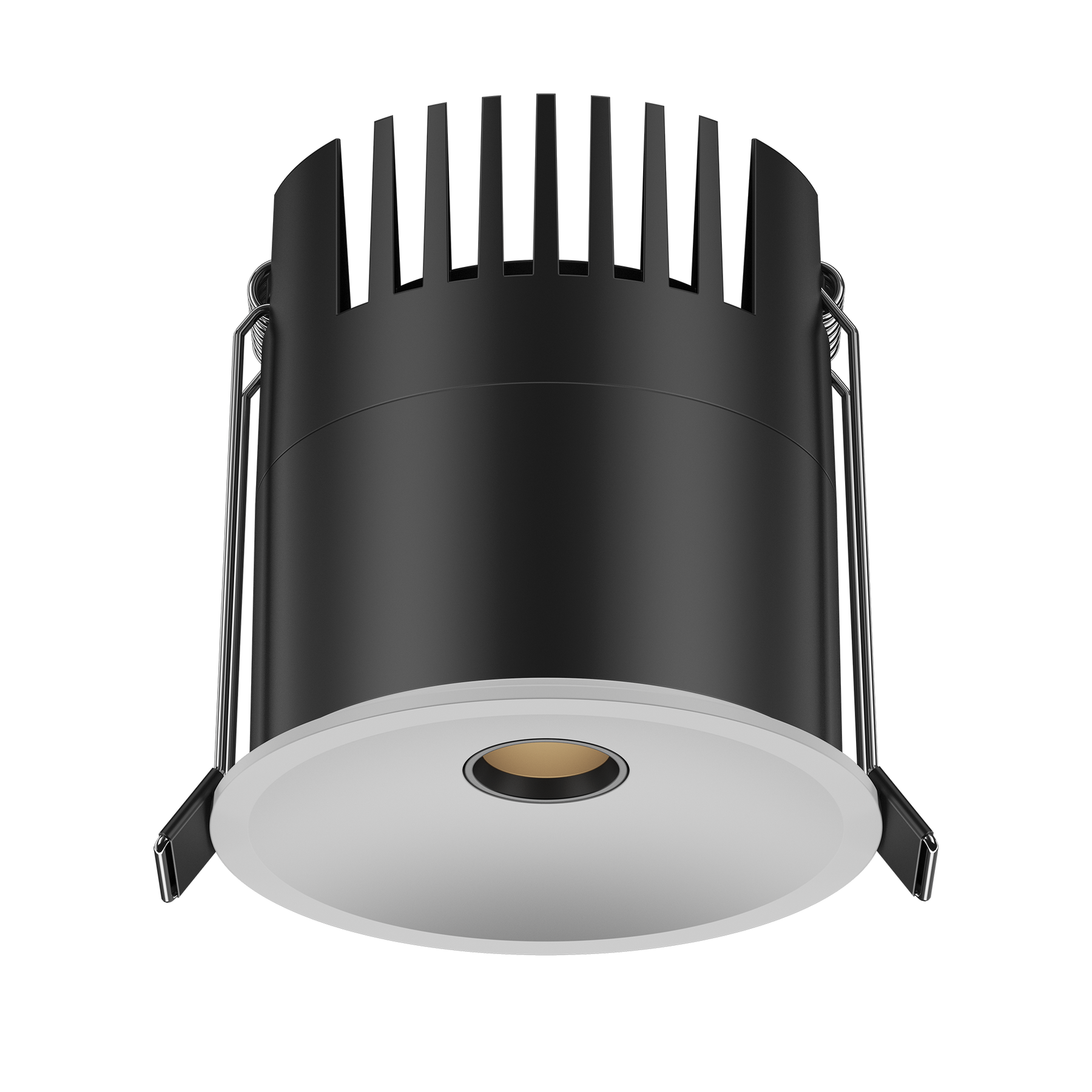

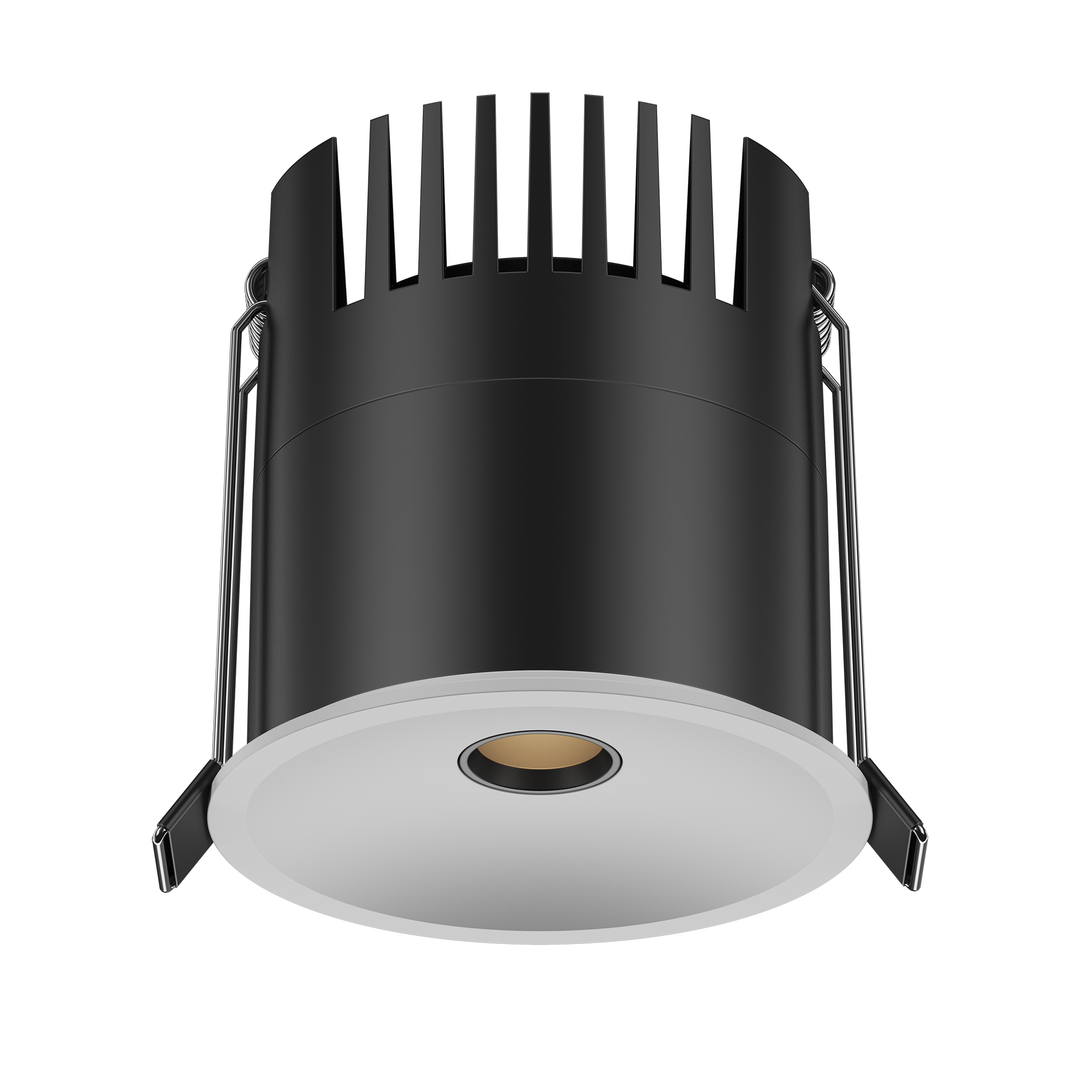

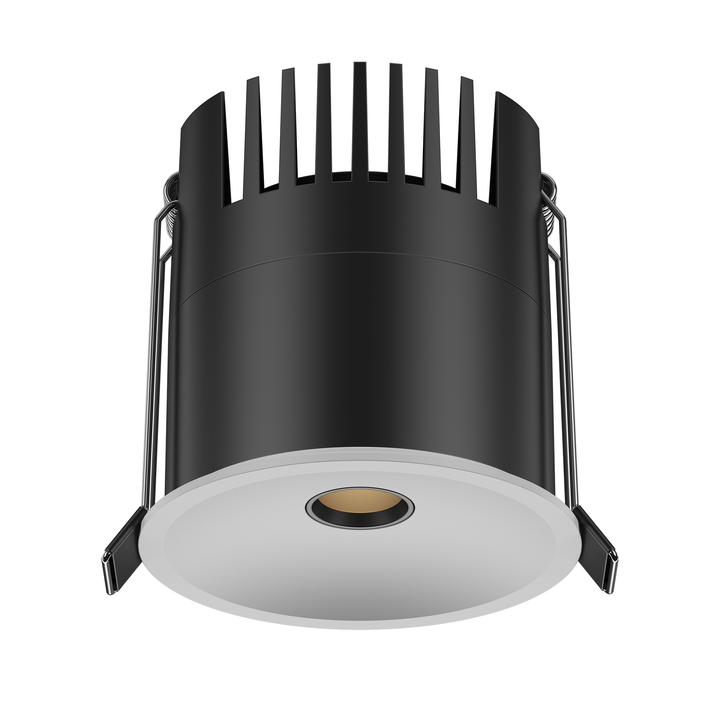

FOCUS 75 Pinhole Architectural Downlight
The FOCUS Series is a collection of precision architectural pinhole downlights designed and engineered exclusively by Lucretia. Combining a deep recessed optical design with a signature 10 mm pinhole aperture, the series delivers exceptional visual comfort while maintaining a clean, minimalist ceiling appearance.
Developed around Lucretia's proprietary FOCUS Deep Aperture System™, each luminaire integrates the LED module, precision optics and aperture assembly into a refined optical platform engineered for consistent beam control, outstanding visual comfort and long-term reliability.
Designed to seamlessly integrate into contemporary architecture, the FOCUS Series conceals the light source deep within the luminaire, creating refined illumination with minimal visual distraction. Available in multiple cut-out sizes, it is ideal for luxury residential, hospitality, retail and commercial interiors.
- Customisable
- Worldwide shipping
- Secure Payment
Type:
Pinhole Architectural Recessed LED Downlight
Installation:
Recessed with Trim
Power Options:
12W
Luminous Flux:
Up to 960 lm
Luminaire Efficacy:
Up to 80 lm/W
Colour Temperature:
2700K · 3000K · 3500K · 4000K
Custom CCT available on request.
Colour Rendering:
CRI 90+
Colour Consistency:
SDCM <3
Beam Angles:
24°
Optional beam angles available on request.
Optical System:
Lucretia FOCUS Deep Aperture System™ featuring a deep recessed optical architecture with precision optics for outstanding visual comfort and accurate beam control.
Glare Control:
Deep recessed 10 mm pinhole aperture designed to minimise glare and conceal the light source for refined architectural illumination.
Light Source:
High-performance COB LED module
Construction:
Precision die-cast aluminium housing with integrated thermal management.
Aperture Finish:
Matte White Trim with Matte Black Inner Aperture
Custom finishes available on request.
Control Options:
TRIAC (Standard) · DALI · 0–10V · Casambi
Additional control protocols available on request.
Input Voltage:
220–240V AC · 50/60Hz
Dimensions:
Ø70 × H71 mm
Cut-Out:
Ø75 mm
Material:
Die-cast Aluminium
Ingress Protection:
IP20
Serviceability:
Modular optical construction designed for reliable long-term performance and simplified maintenance.
Customisation:
Custom beam angles, colour temperatures, aperture finishes and control solutions available for project requirements.
Warranty:
5-Year Warranty
Applications:
Luxury Residential · Hospitality · Retail · Gallery · Museum · Commercial
Lead Time & Delivery
Our products are made or prepared to order to ensure quality and precision.
Lead times vary depending on stock availability, production schedule, and delivery location.
In-Stock Items
- Melbourne Metro: 1–2 business days
- Other Australian locations: 2–5 business days
- Remote areas (including Hobart & Cairns): 5–7 business days
Made-to-Order / Backordered Items
- Standard production & delivery: 8–12 weeks
- Airfreight option available: 4–5 weeks (additional cost may apply)
International Shipping
All international orders are built to meet local electrical standards.
- Air Freight: approx. 3–4 weeks (production + air transit)
- Sea Freight: approx. 8–12 weeks (production + sea transit)
For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.
