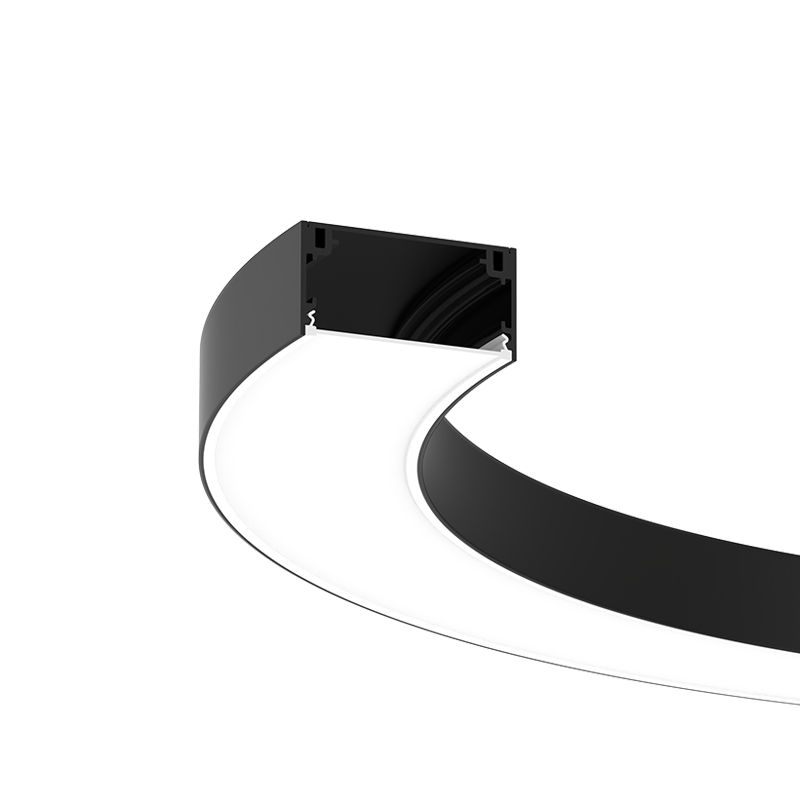

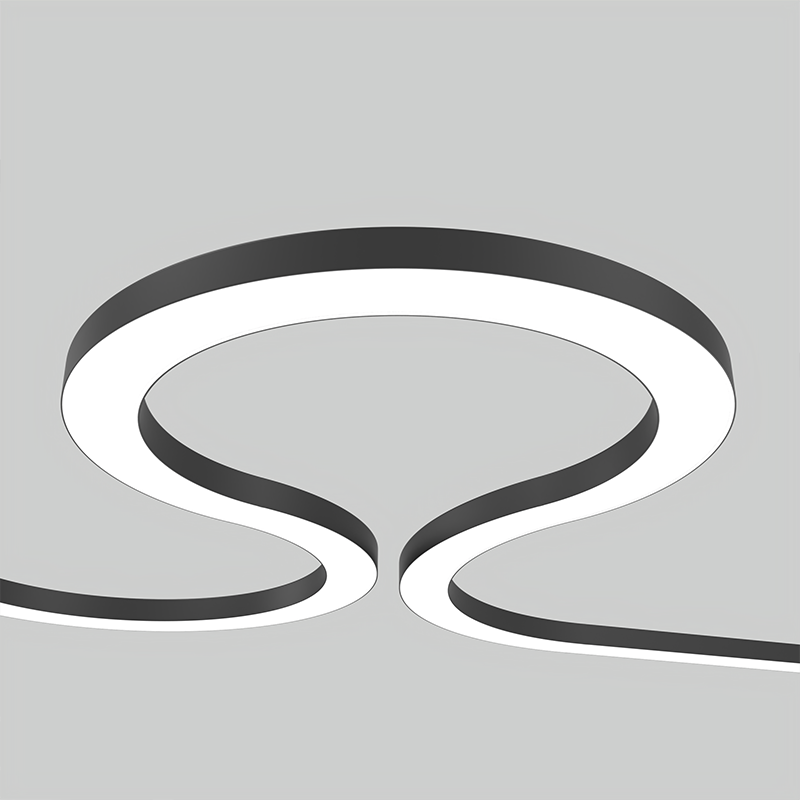

The FlexCurve CX80 is a surface or suspended curved LED profile system designed for modern architectural lighting. With its 80mm width and 40mm height, it creates smooth, flowing light lines across ceilings or walls, offering both visual impact and uniform illumination. Compatible with flexible strips and modular LED boards, it is ideal for retail, hospitality, and commercial interiors where soft geometry and large-scale curves are desired. Custom lengths and curvatures provide designers with maximum creative freedom.
Product Name: FlexCurve CX80 Bendable LED Profile
Product Code: LUP-CX80-C3

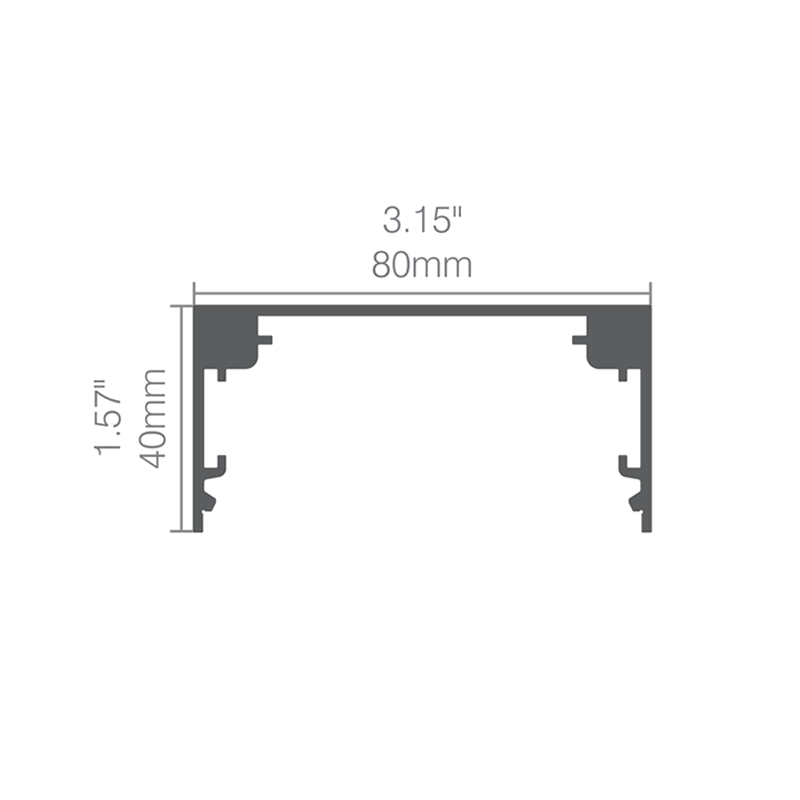

Dimensions: W80mm × H40mm
Material: Curved extruded aluminum (6063-T5)
Diffuser: PMMA NEW OPAL
Finish Options: Black, White, Custom RAL colors
Weight: 1.28 kg/m
Power & Light Source: S-type LED strip 4.8W/m or 14.4W/m; LED modules: 70mm, 140mm, 280mm, 560mm
Color Temperature Options: 2700K / 3000K / 4000K / 6000K / RGB / RGBW
Mounting Options: Surface-mounted or suspended
Accessories: Connector, Suspension kit, Power supply, Ceiling rose
Dimming Options: DALI / PUSH DIM / Emergency light compatible
IP Rating: IP20
Certifications: CE, RoHS
Warranty: 5 years

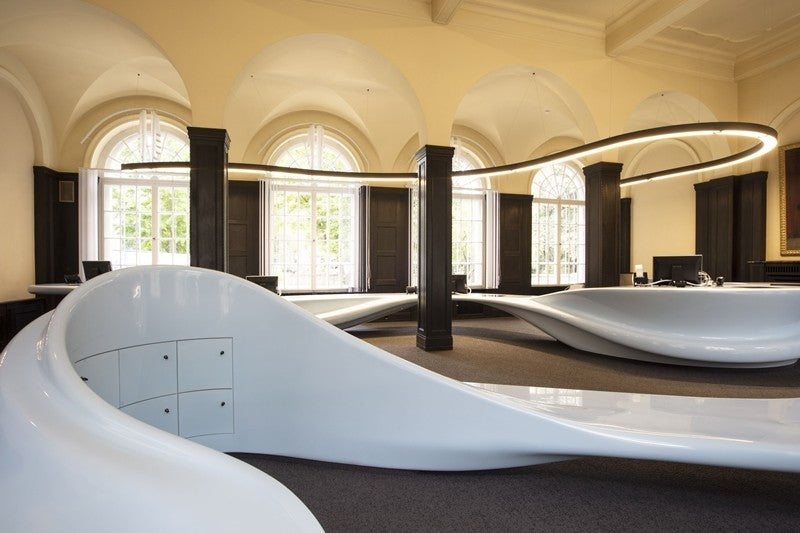

Application: Ideal for creating dynamic curved light lines in ceilings or walls across retail spaces, lobbies, hospitality, and commercial interiors
Standard Lead Time: 6–8 weeks
Code: C3
Note: Light output up to 90lm/W (after cover). Custom curved sections and lengths available. CAD layout recommended for precise production.
