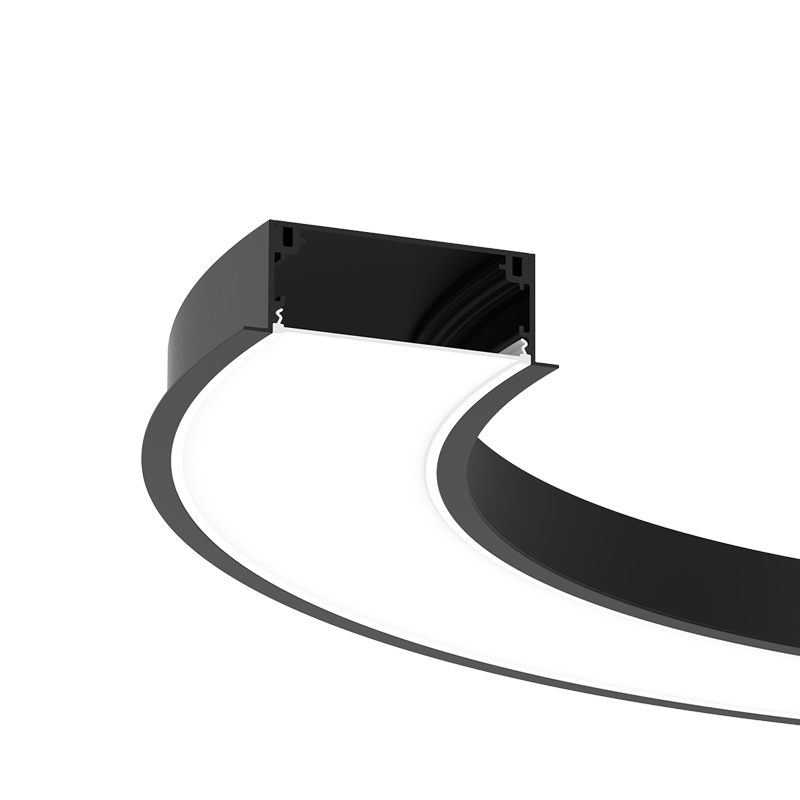

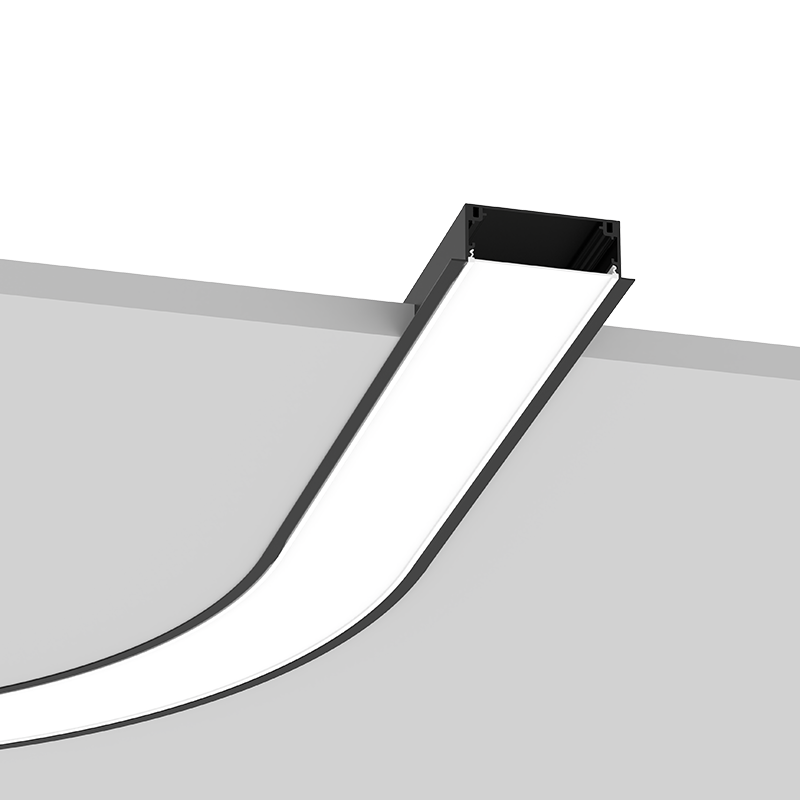

FlexCurve CRX100 Recessed Curved LED Linear Light
The FlexCurve CRX100 is a recessed curved LED linear light designed for large-scale architectural lighting applications requiring bold, continuous light lines. Featuring an ultra-wide 118mm visible aperture and a shallow 40mm recess depth, it delivers smooth, uniform illumination across ceilings and wall surfaces with clean, seamless integration into gypsum and architectural ceilings.
Engineered for commercial interiors and public spaces, the FlexCurve CRX100 is manufactured to project-specific requirements, including custom radius, shape, length, lumen output, colour temperature and finish. Ideal for lobbies, galleries, corporate interiors and large modern environments, it provides a professional solution for sculptural curved lighting designs with minimal visual interruption.
- Customisable
- Worldwide shipping
- Secure Payment
Product Name: FlexCurve CRX100 Recessed Curved LED Profile
Product Code: LUP-CRX100-C3

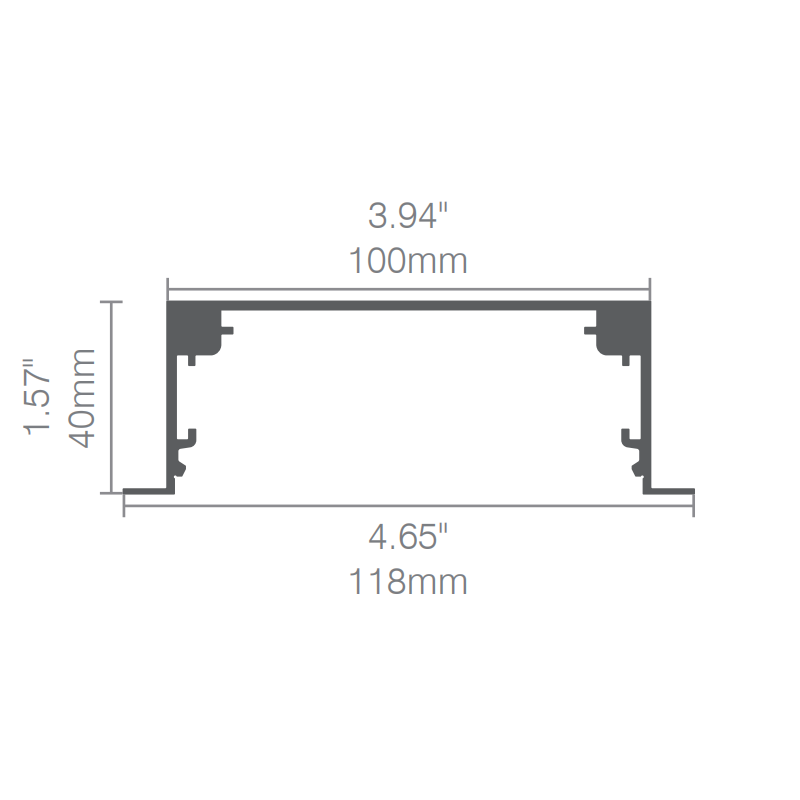

Dimensions: W118mm × H40mm
Material: Curved extruded aluminium (6063-T5)
Diffuser: New opal PMMA diffuser
Finish Options: Black, White, Custom RAL colours
Weight: 1.8 kg/m
Power & Light Source: S-type LED strip (4.8W/m or 14.4W/m); modular LED boards in 70mm, 140mm, 280mm and 560mm lengths
Colour Temperature Options: 2700K, 3000K, 4000K, 6000K, RGB, RGBW
Mounting Options: Recessed installation (ceiling or wall)
Accessories: Connectors, U-clips, power supply, ceiling rose
Dimming Options: DALI, Push-Dim, compatible with emergency lighting systems
IP Rating: IP20
Certifications: CE, RoHS, SAA
Warranty: 5 years

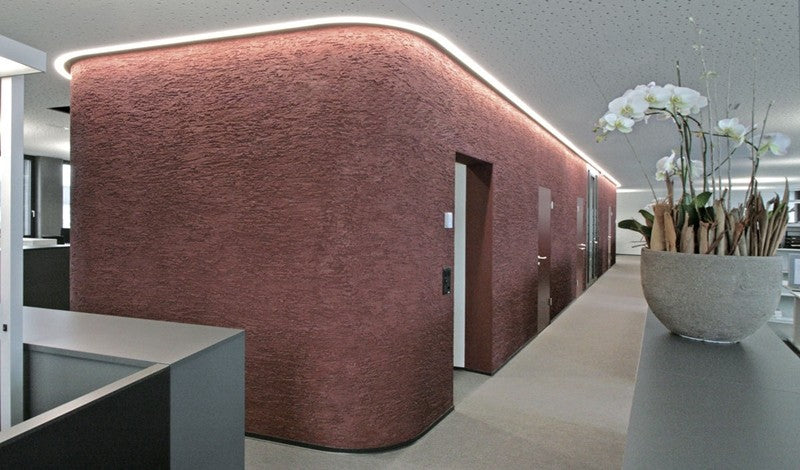

Application: Ideal for large-scale recessed curved lighting installations in shopping centres, airports, corporate interiors and galleries
Standard Lead Time: 6–8 weeks
Code: C3
Note: Designed for seamless recessed integration with high-output performance. Custom curvature supported. A CAD layout is required for factory pre-bending.
