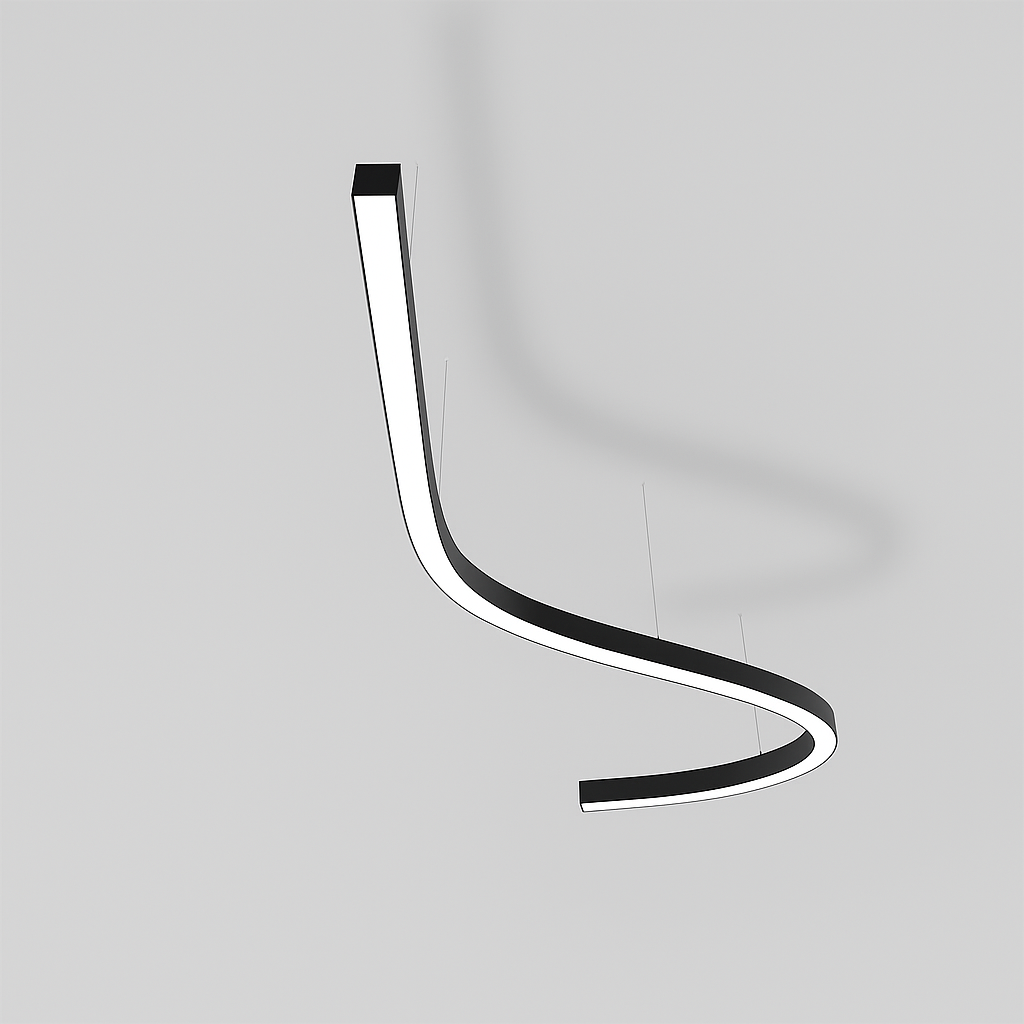

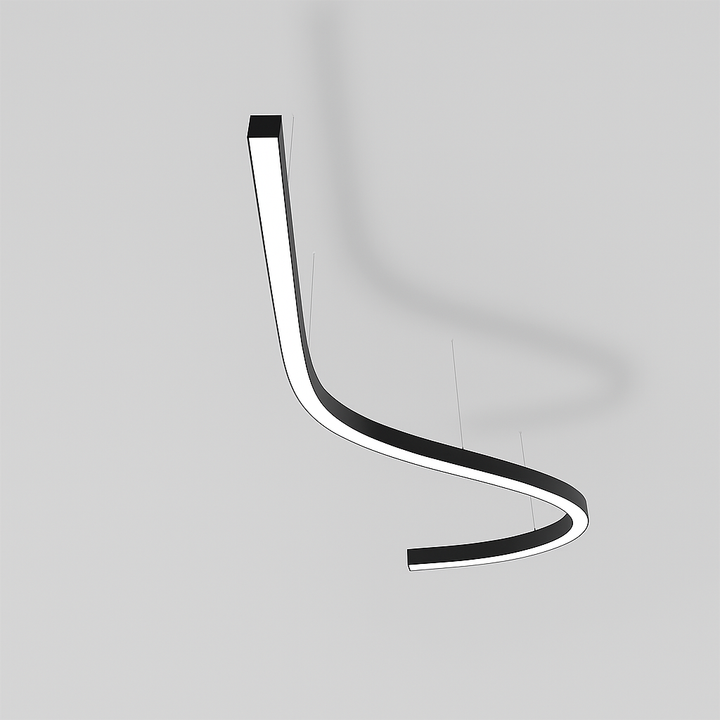

Modular LED linear lighting system for commercial ceilings, featuring curved and free-form light lines for offices and retail spaces

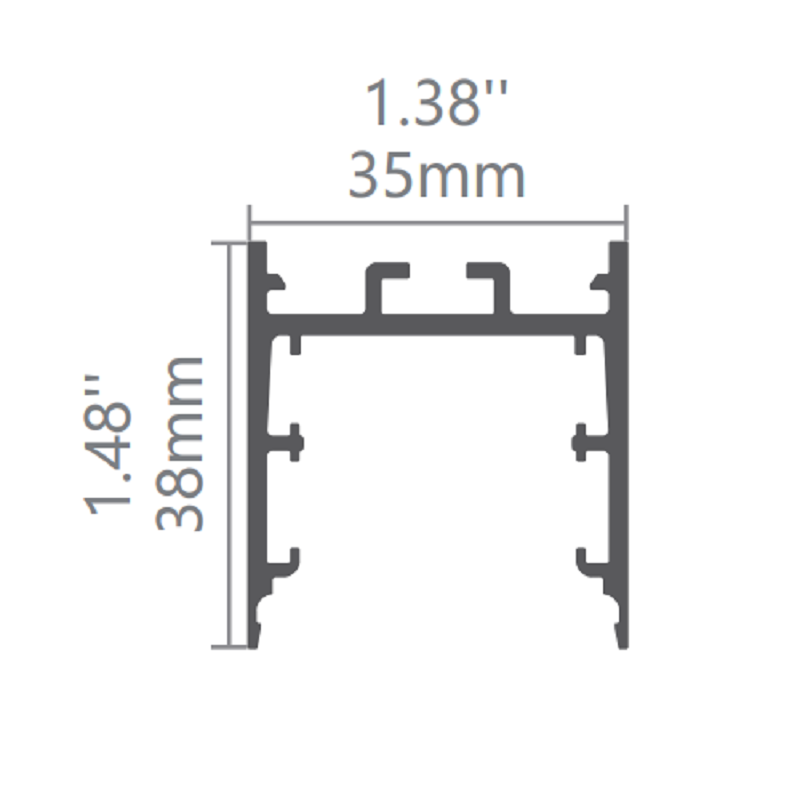

35mm modular LED linear lighting cross section designed for commercial ceiling systems and architectural lighting projects

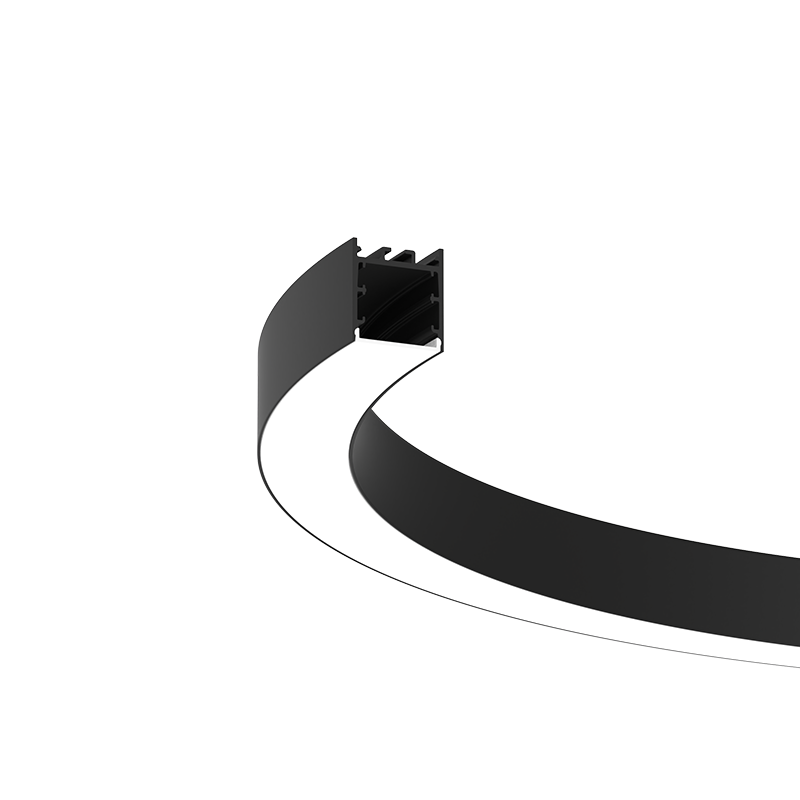

Curved modular LED linear light detail for architectural ceiling and wall installations in commercial environments
High-output curved LED linear lighting installation in a large commercial and public space with continuous architectural light lines

FlexCurve 35N Modular LED Linear Light

The FlexCurve 35N is a modular architectural LED linear lighting system designed for commercial ceilings, offices, retail and display spaces requiring curved or free-form illumination. Its 35mm wide aluminium profile supports both flexible LED strips and modular LED boards, delivering smooth, uniform light with high visual comfort.

As part of Lucretia Lighting’s custom project range, FlexCurve 35N can be fully customised in shape, radius, length, lumen output, colour temperature and finish—making it ideal for complex architectural lighting systems and bespoke commercial interiors.

  • Customisable
  • Worldwide shipping
  • Secure Payment

Product Name: FlexCurve 35N Modular LED Profile

Product Code: LUP-FC35N-C3

Dimensions: W35mm × H38mm

Material: 6063-T5 curved extruded aluminium

Diffuser: New opal PMMA diffuser (high-transmission milky finish)

Finish Options: Black, White, Custom RAL colours

Compatible LED Options: Flexible LED strips (4.8W/m or 14.4W/m), modular LED boards in 70mm / 140mm / 280mm / 560mm lengths

Light Output Efficiency: Up to 90 lm/W with diffuser

Colour Temperature Options: 2700K, 3000K, 4000K, 6000K, RGB, RGBW

Mounting Options: Surface-mounted or suspended

Accessories: Suspension kit, connectors, remote driver, canopy cover

IP Rating: IP20 (indoor use only)

Certifications: CE, RoHS

Warranty: 5 years

Application: Ideal for commercial interiors, showrooms, retail spaces, offices, gyms and warehouse environments

Standard Lead Time: 6–8 weeks

Code: C3

Note: Custom curvature and lengths available. Please provide a detailed layout or CAD drawing when placing an order.

Aluminium

Lead Time & Delivery

Our products are made or prepared to order to ensure quality and precision.

Lead times vary depending on stock availability, production schedule, and delivery location.

In-Stock Items

  • Melbourne Metro: 1–2 business days
  • Other Australian locations: 2–5 business days
  • Remote areas (including Hobart & Cairns): 5–7 business days

Made-to-Order / Backordered Items

  • Standard production & delivery: 8–12 weeks
  • Airfreight option available: 4–5 weeks (additional cost may apply)

International Shipping

All international orders are built to meet local electrical standards.

  • Air Freight: approx. 3–4 weeks (production + air transit)
  • Sea Freight: approx. 8–12 weeks (production + sea transit)

For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.

Datasheet
