Name: FlexCurve 25 Square LED Linear Light
Brand: Lucretia Lighting
SKU: LUP-FC25S-R4
Availability: InStock

Price

Customizable

Worldwide shipping

Secure payments

The FlexCurve 25 Square is a compact and versatile LED profile system designed for architectural lighting applications that require smooth curves or continuous lines with a square visual edge. Featuring a 25mm x 25mm form factor, this profile balances size and output performance, making it ideal for use in wall-washing, ceiling-mounted, or suspended lighting across commercial, hospitality, and modern interior spaces. It integrates seamlessly with flexible LED strips and remote drivers to deliver clean, uninterrupted illumination in any shape or layout.

Product Specification

Product Name: FlexCurve 25 Square LED Profile

Product Code: LUP-FC25S-R4

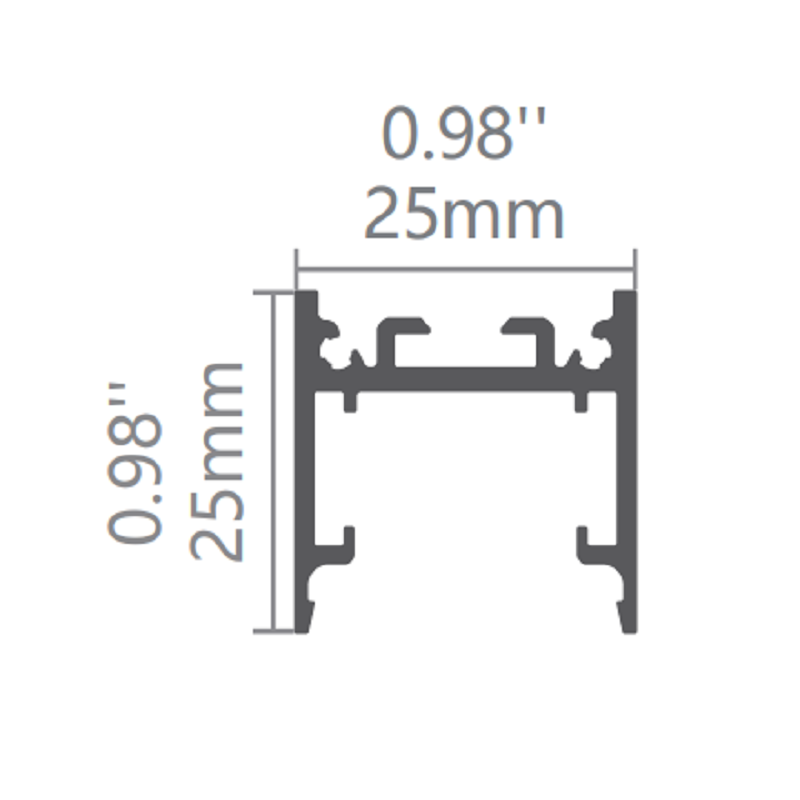

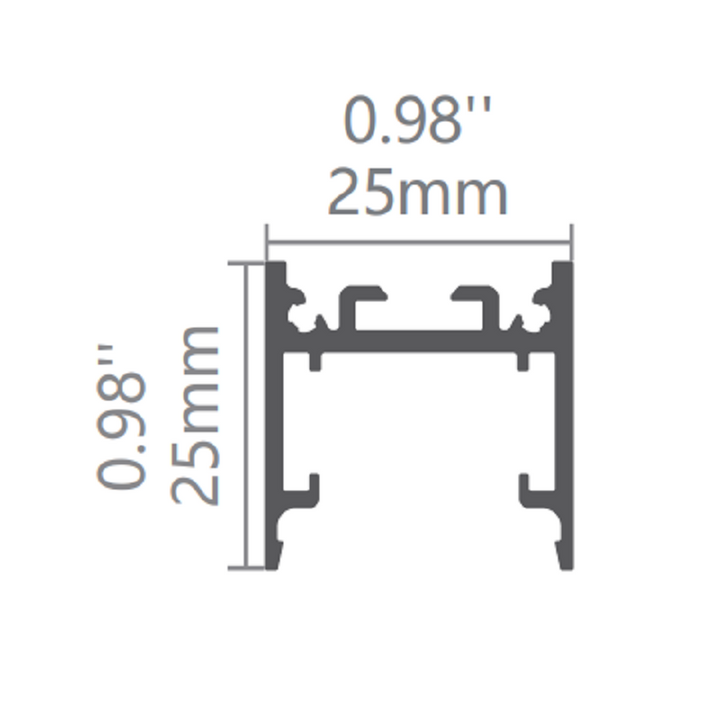

Dimensions: W25mm × H25mm

Lighting Direction: Direct (downlight)

Material: Aluminum profile with opal diffuser

Finish Options: Matte Black (standard), Matte White, Anodized Silver, Custom finishes available upon request

Compatible LED Strip Width: ≤20mm

Power & Light Source: Compatible with LED strip lights (24V / 48V); Wattage depends on selected strip (typically 14W–20W per metre)

Diffuser Options: Opal (standard), Frosted or Clear (optional)

Mounting Options: Surface-mounted, Suspended (optional kit), Recessed (with trim)

Bending Radius: Ideal for gentle curves and soft geometry; factory pre-curved or site-bendable

IP Rating: IP20 standard; IP44 optional with sealed end caps

Dimming Options: Triac, 0-10V, DALI, Casambi (depending on driver)

Installation: Requires external LED driver; suitable for continuous runs or geometric layouts

Application: Suitable for commercial interiors, galleries, meeting rooms, corridors, and any space requiring elegant, curved light paths

Standard Lead Time: 6–8 weeks

Code: C3

Note: For custom curving, please supply layout drawings before production.

Downloads

Datasheet
