VOH Glasses-Free 3D LED Display

SKU: LUD-VOH

VOH Glasses-Free 3D LED Display

SKU: LUD-VOH
Regular price
/
  • Customizable
  • Worldwide shipping
  • Secure payments

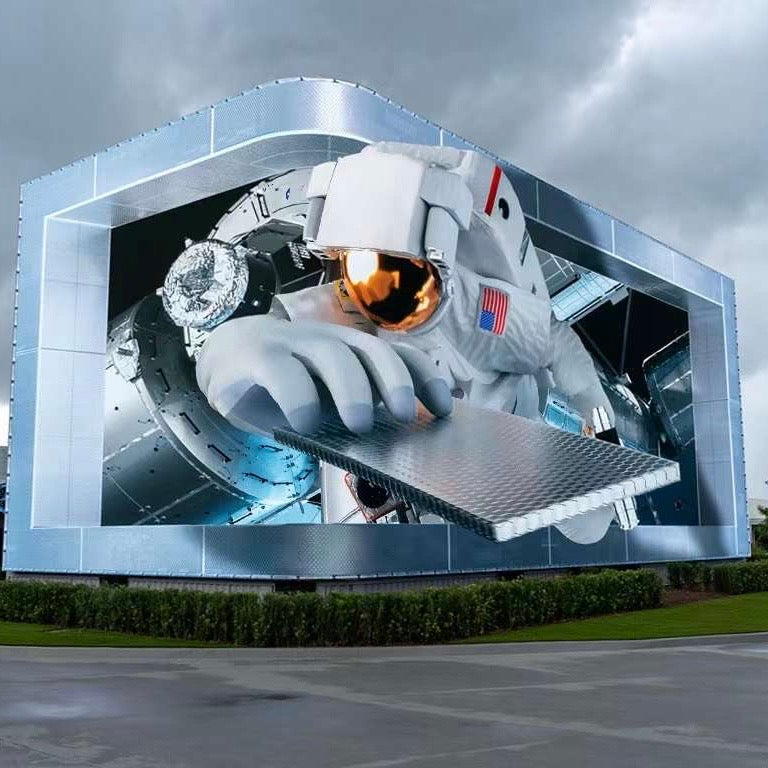

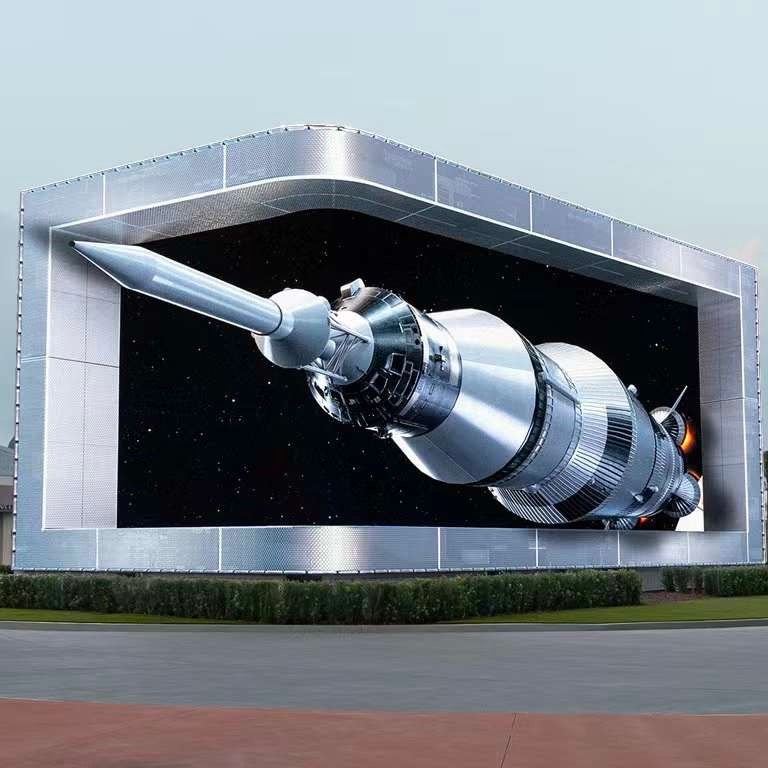

Discover a new dimension in digital signage with ourĀ Glasses-Free 3D LED Display, available in both indoor and outdoor models. Engineered to deliver stunning, lifelike 3D visuals without the need for special glasses, this display captivates viewers with depth and clarity that appear to transcend the screen. Ideal for retail, entertainment venues, exhibition spaces, and now outdoor environments, this display brings immersive visual experiences to building exteriors, plazas, and other high-traffic outdoor locations.

With advanced optical technology, high refresh rates, and ultra-thin cabinet design, the Glasses-Free 3D LED Display ensures vibrant, reliable performance in any setting. Its outdoor version is built to withstand the elements, offering robust weather resistance and brightness suited for open-air installations. Modular maintenance features make it easy to service, ensuring longevity and minimal downtime. This cutting-edge display transforms spaces and draws audiences, making it an exceptional choice for brands looking to stand out with innovative, glasses-free 3D imagery.

Tax included. Shipping calculated at checkout.
Enquiry now
VOH Glasses-Free 3D LED Display
VOH Glasses-Free 3D LED Display
VOH Glasses-Free 3D LED Display
VOH Glasses-Free 3D LED Display
VOH Glasses-Free 3D LED Display

Product Specification

Product Specification

Model Options: P1.2, P1.5, P1.9, P2.5, P2.9, P3.9, P4.8
Pixel Pitch: Based on model (e.g., P1.2, P1.5, etc.)
Pixel Configuration: 1R1G1B
LED Type: P1.2 - SMD1010, P1.5 - SMD1212, P1.9 - SMD1515, P2.5/P2.9/P3.9/P4.8 - SMD2121
Module Size (W x H): 250mm x 250mm
Cabinet Size (W x H x D): 1000mm x 250mm x 40mm
Cabinet Material: Die-cast aluminum
Weight: 6 kg per cabinet
Maintenance: Front accessible
IP Rating: IP30,IP65
Max Brightness: 1000 nits
Contrast Ratio: 3000:1
Viewing Angle (H/V): 160Ā° / 160Ā°
Grayscale: 12-bit / 14-bit adjustable
Refresh Rate: 3840Hz / 1920Hz
Frequency: 50/60 Hz
Brightness Adjustment: 0%-100%
Color Temperature Adjustment: 2000K to 10000K
Input Voltage: 90V~264V AC

Power Consumption - Maximum: P1.2 - 550W/mĀ², P1.5 - 400W/mĀ², P1.9 - 280W/mĀ², P2.5/P2.9/P3.9/P4.8 - 470W/mĀ²
Power Consumption - Average: P1.2 - 137.5W/mĀ², P1.5 - 100W/mĀ², P1.9 - 70W/mĀ², P2.5/P2.9/P3.9/P4.8 - 117.5W/mĀ²

Environmental Conditions:
Working Humidity: -10Ā°C to +40Ā°C, 10%-80% RH, no condensing
Storage: -40Ā°C to +60Ā°C, 10%-60% RH, no condensing
