OUTDOOR ADVERTISING, BUILDING FACADES
Outdoor LED Billboard
Outdoor LED Billboards are large-format digital display solutions designed for advertising, branding and public communication in high-visibility outdoor environments.
Visible Day and Night
High-brightness LED technology from 5,000 to 10,000 nits maintains clear visibility during both daytime and night-time operation.
Weather-Resistant Construction
Engineered for continuous operation, with IP65 front and IP54 rear protection for a wide range of weather conditions.
Naked-Eye 3D Content

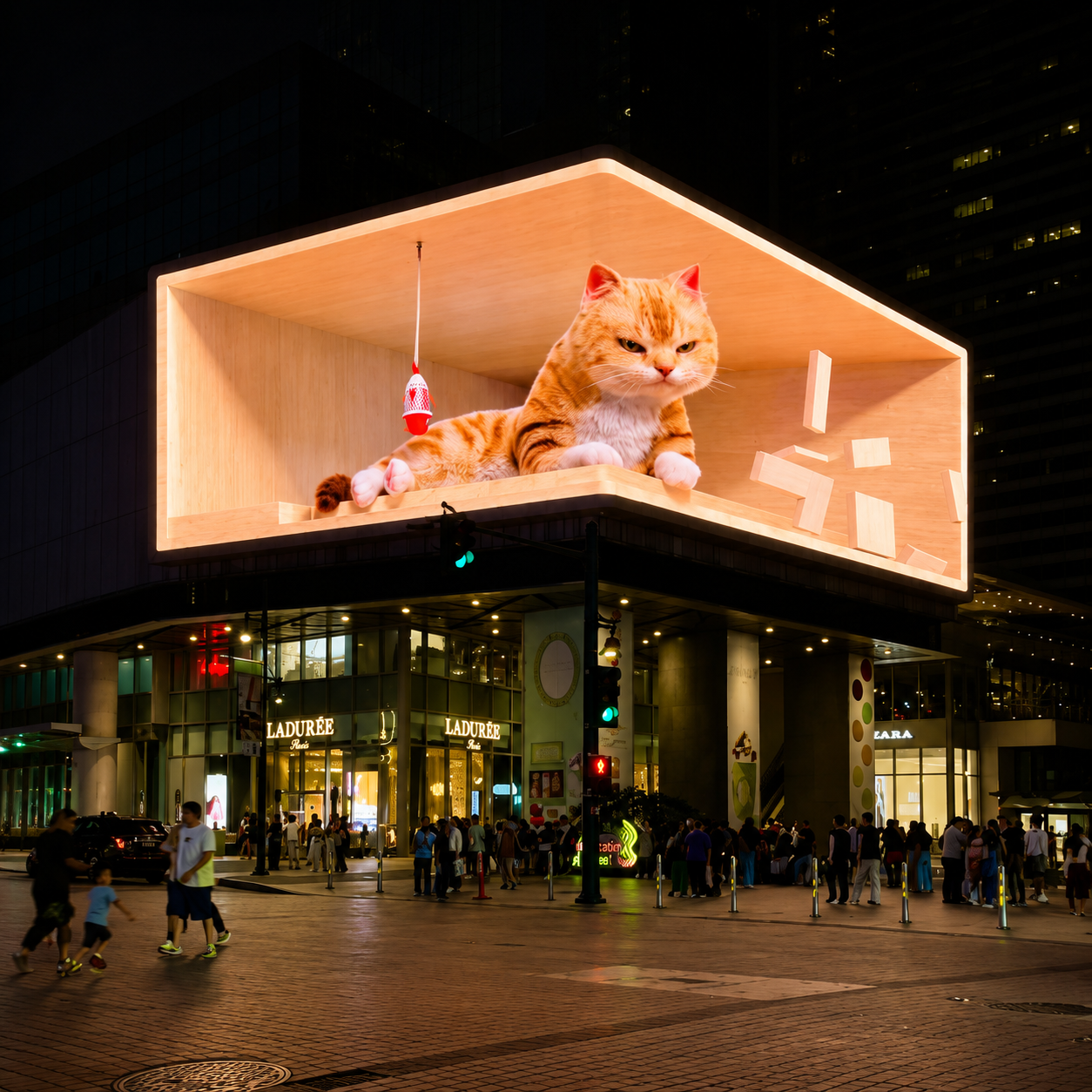

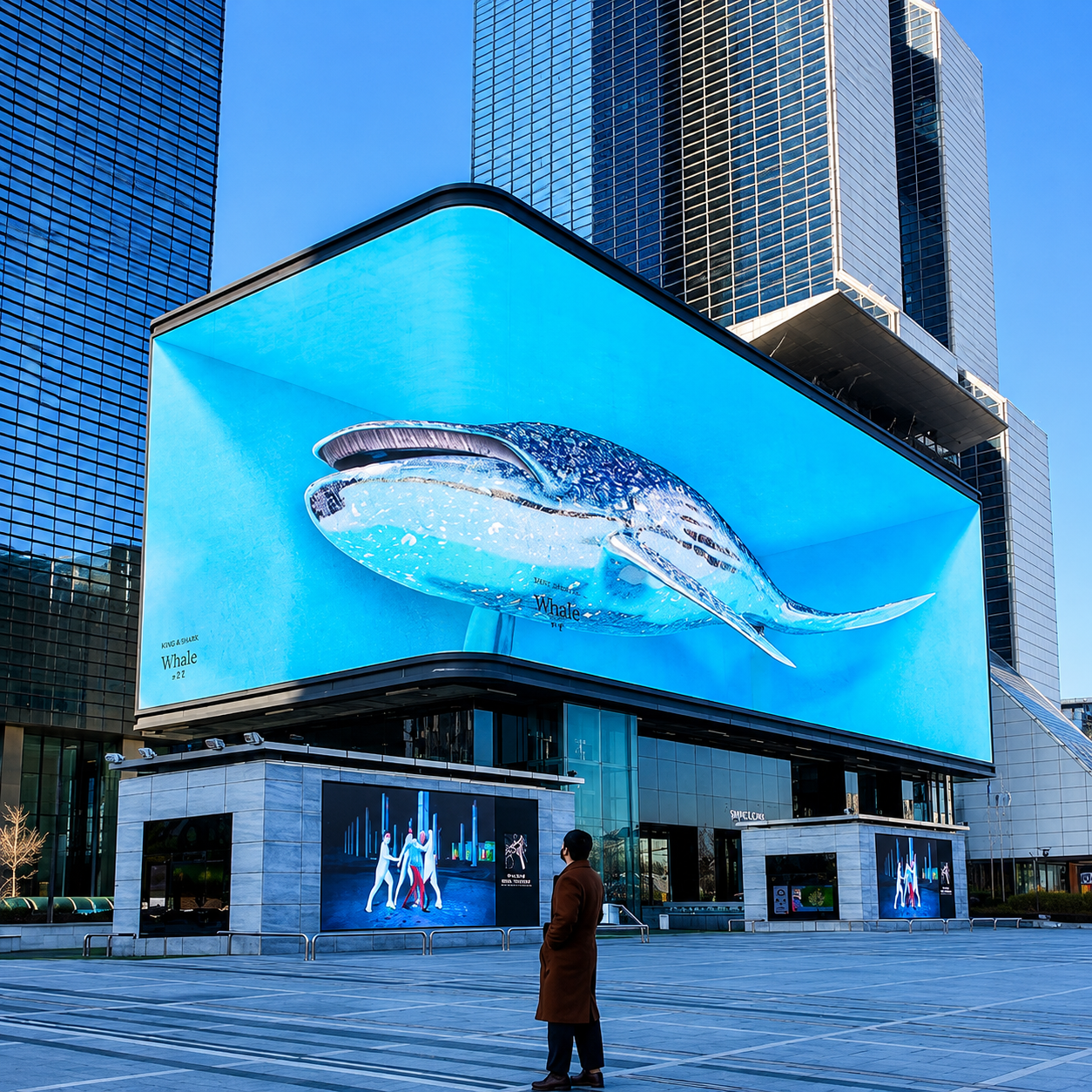

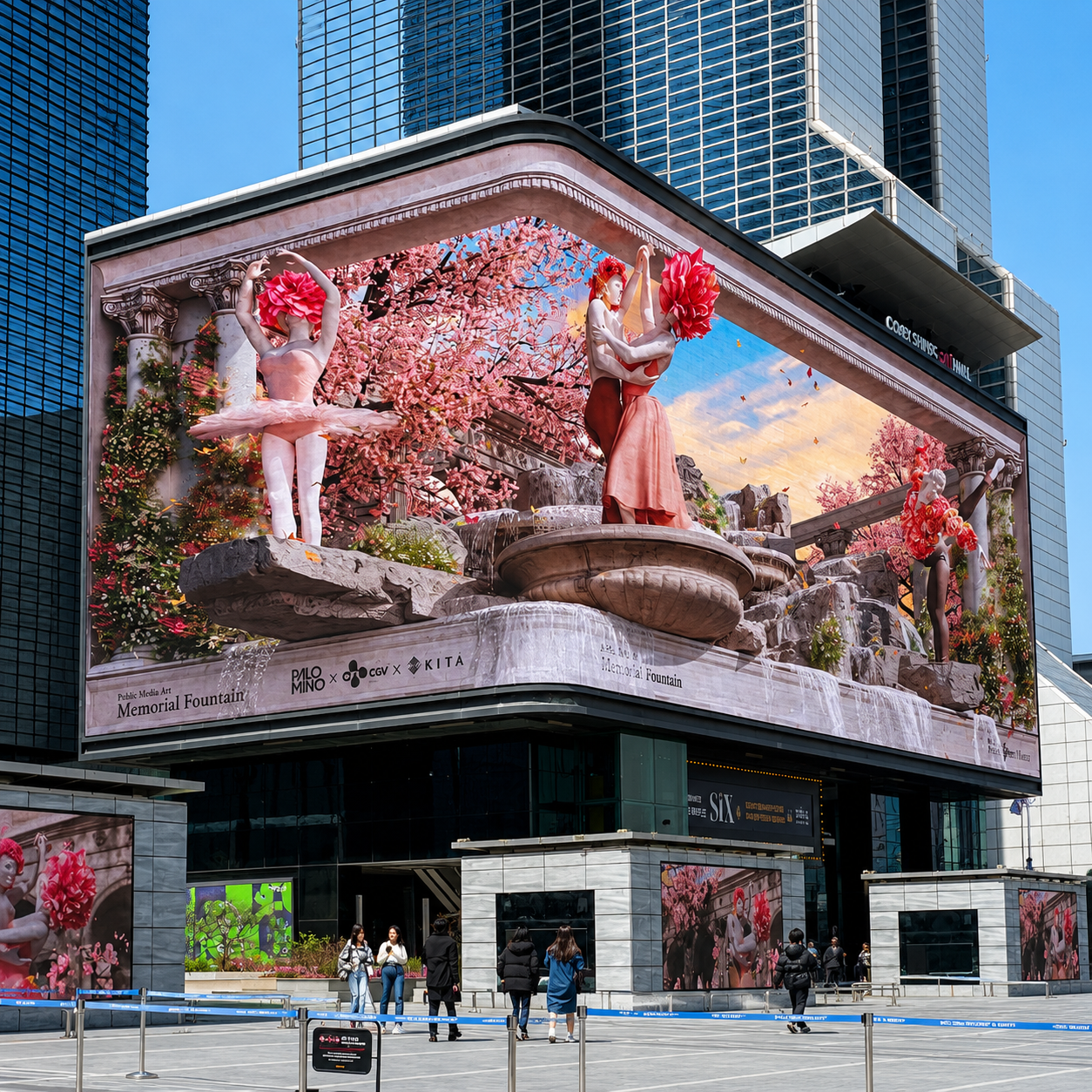

Available in flat, curved and corner configurations, the system supports both traditional advertising campaigns and advanced naked-eye 3D content.
Sized to the Site
Modular cabinet designs allow flexible sizing, with P4 to P10 pixel pitch options to suit the viewing distance.
Intro
Overview
Key Features
- 5,000 to 10,000 nits brightness
- IP65 front / IP54 rear protection
- Flat, curved and corner configurations
- Supports naked-eye 3D content
- Modular cabinets for custom sizes
Outdoor LED Billboards are large-format digital display solutions designed for advertising, branding and public communication in high-visibility outdoor environments. Engineered for continuous operation, these displays deliver exceptional brightness, image quality and reliability in a wide range of weather conditions.
Available in flat, curved and corner configurations, Outdoor LED Billboards can be integrated into commercial buildings, shopping centres, entertainment precincts and large-scale advertising networks. The system supports both traditional advertising campaigns and advanced naked-eye 3D content, providing businesses and property owners with a highly effective platform for audience engagement.
Featuring high-brightness LED technology, wide viewing angles and weather-resistant construction, Outdoor LED Billboards maintain clear visibility during both daytime and night-time operation. Modular cabinet designs allow flexible sizing and custom installations to suit project-specific requirements.
Outdoor LED Billboards are widely used across shopping centres, commercial precincts, transportation hubs, sports venues, public spaces and landmark developments where maximum visibility and long-term performance are essential.
Applications
- 01Outdoor Advertising
- 02Commercial Buildings
- 03Shopping Centres
- 04Sports Venues
- 05Airports
- 06Transport Hubs
- 07Entertainment Precincts
- 08Public Spaces
Installation Options
Flat Displays
Corner Displays
Curved Displays
Building Façades
Custom Outdoor Structures
Product details
Specifications
- Product Type
- Outdoor LED Billboard
- Display Technology
- Direct View LED
- Pixel Pitch Options
- P4, P5, P6, P8, P10
- Pixel Configuration
- 1R1G1B
- LED Type
- SMD Outdoor LEDs
- Cabinet Material
- Die-Cast Aluminium
- Cabinet Size
- Customisable
- Maintenance Access
- Front Service or Rear Service
- Ingress Protection
- IP65 Front / IP54 Rear
- Brightness
- 5,000–10,000 nits
- Contrast Ratio
- Up to 10,000:1
- Viewing Angle
- 160° Horizontal / 160° Vertical
- Grayscale
- 14-bit
- Refresh Rate
- ≥3840Hz
- Frame Frequency
- 50Hz / 60Hz
- Brightness Adjustment
- 0–100%
- Colour Temperature Adjustment
- 2,000K–10,000K
- Input Voltage
- AC100–240V, 50/60Hz
- Maximum Power Consumption
- Up to 800W/m²
- Average Power Consumption
- 250–350W/m²
- Operating Temperature
- -20°C to +50°C
- Operating Humidity
- 10–90% RH
- Certifications
- CE, RoHS, EMC,SAA
- Customisation
- Display size, pixel pitch, cabinet configuration, brightness level and installation method can be customised to suit project requirements and viewing distances.
