VM QuickAlign Fine Pitch LED Display
The Lucretia VM Series Fine-Pitch LED Display is a professional indoor LED video wall solution designed for commercial and corporate environments that demand high resolution, seamless visuals and reliable long-term performance. With pixel pitch options ranging from 1.53mm to 4.0mm, the VM Series is ideal for corporate lobbies, conference rooms, broadcast studios, shopping malls and exhibition halls.

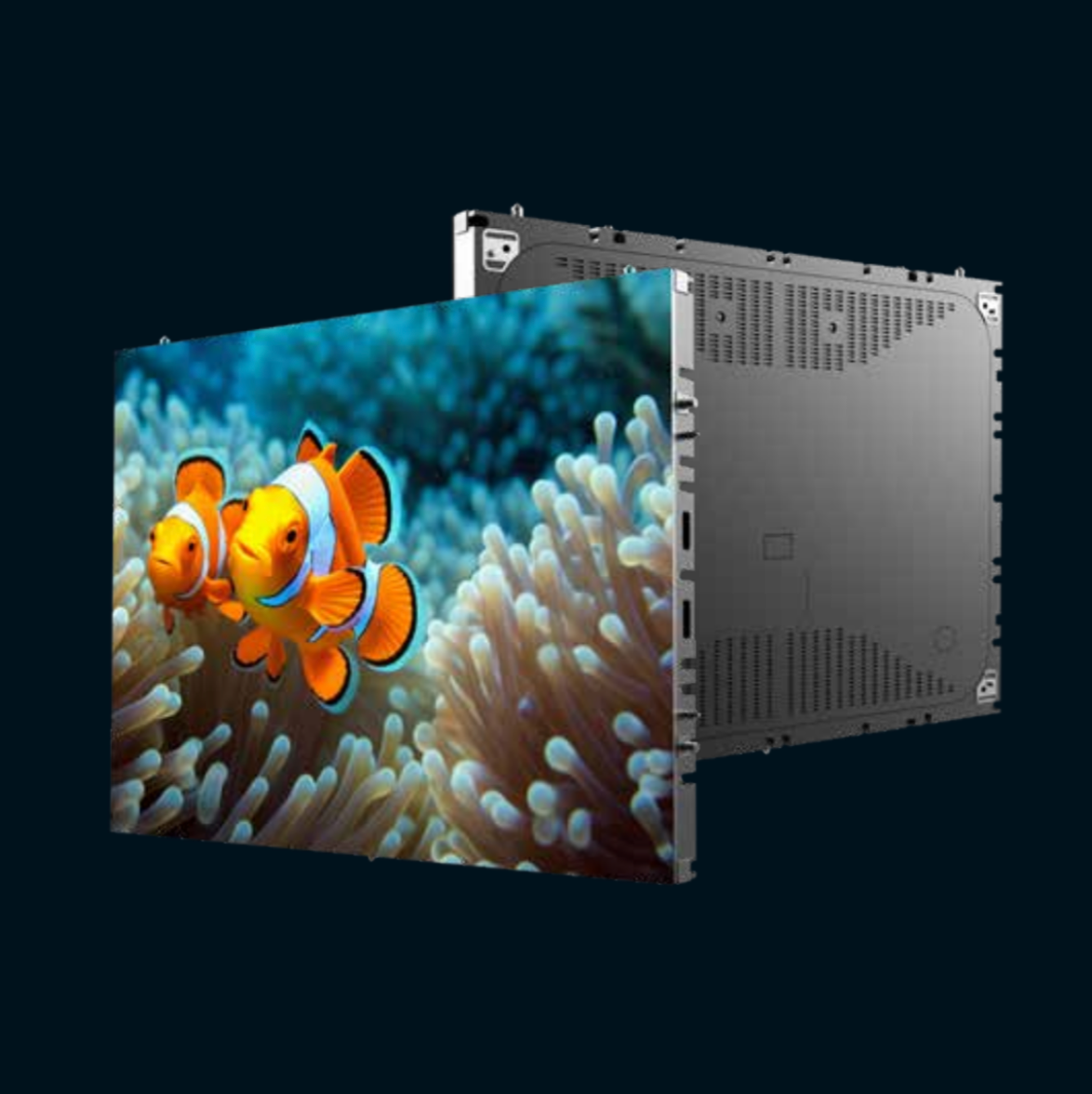

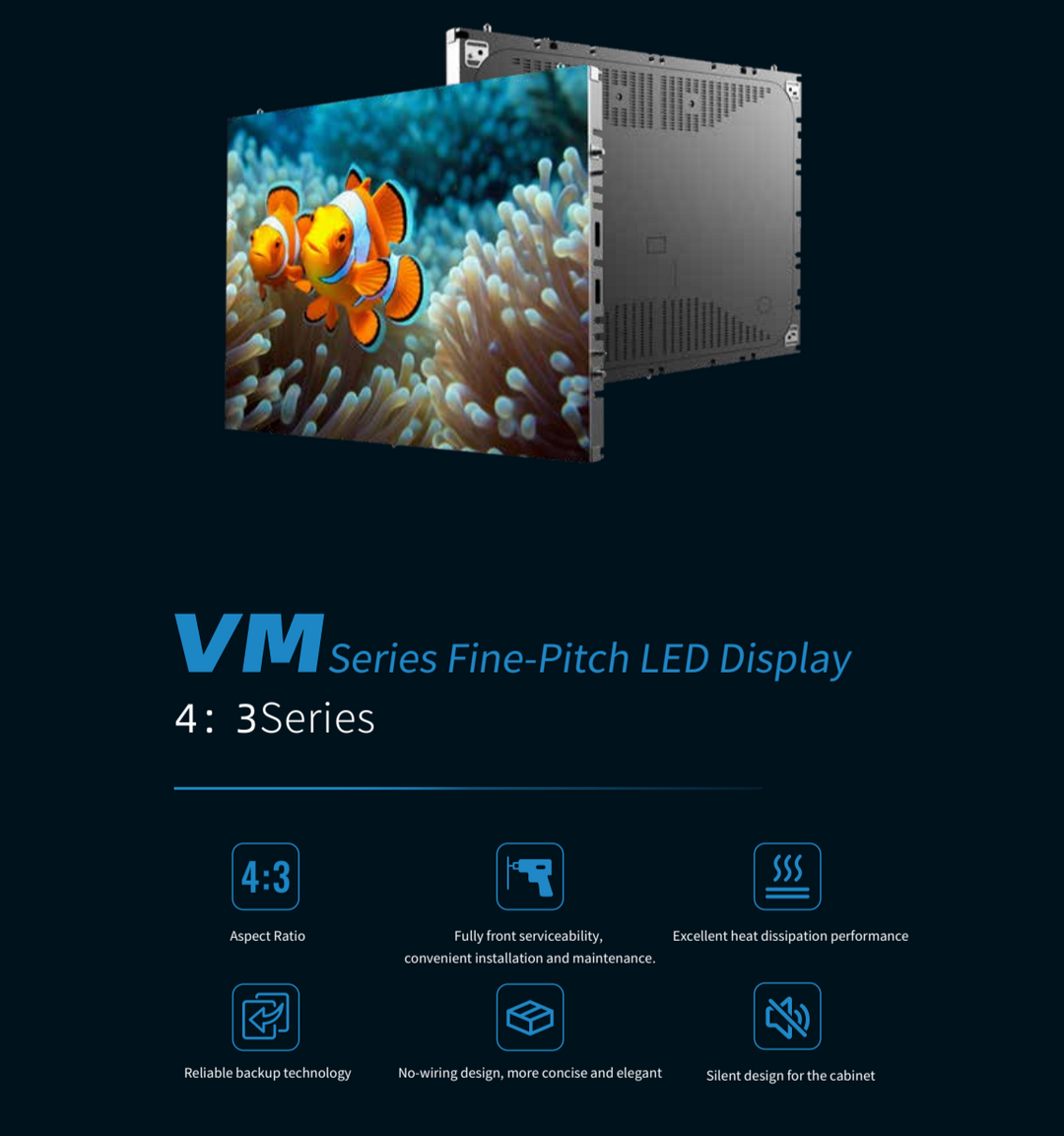

Each display module measures 640mm × 480mm × 40.6mm, enabling flexible installation and precise alignment for large-scale LED video wall configurations. The system is engineered to deliver clean, immersive visuals while maintaining installation efficiency and operational stability in professional environments.
Key Features

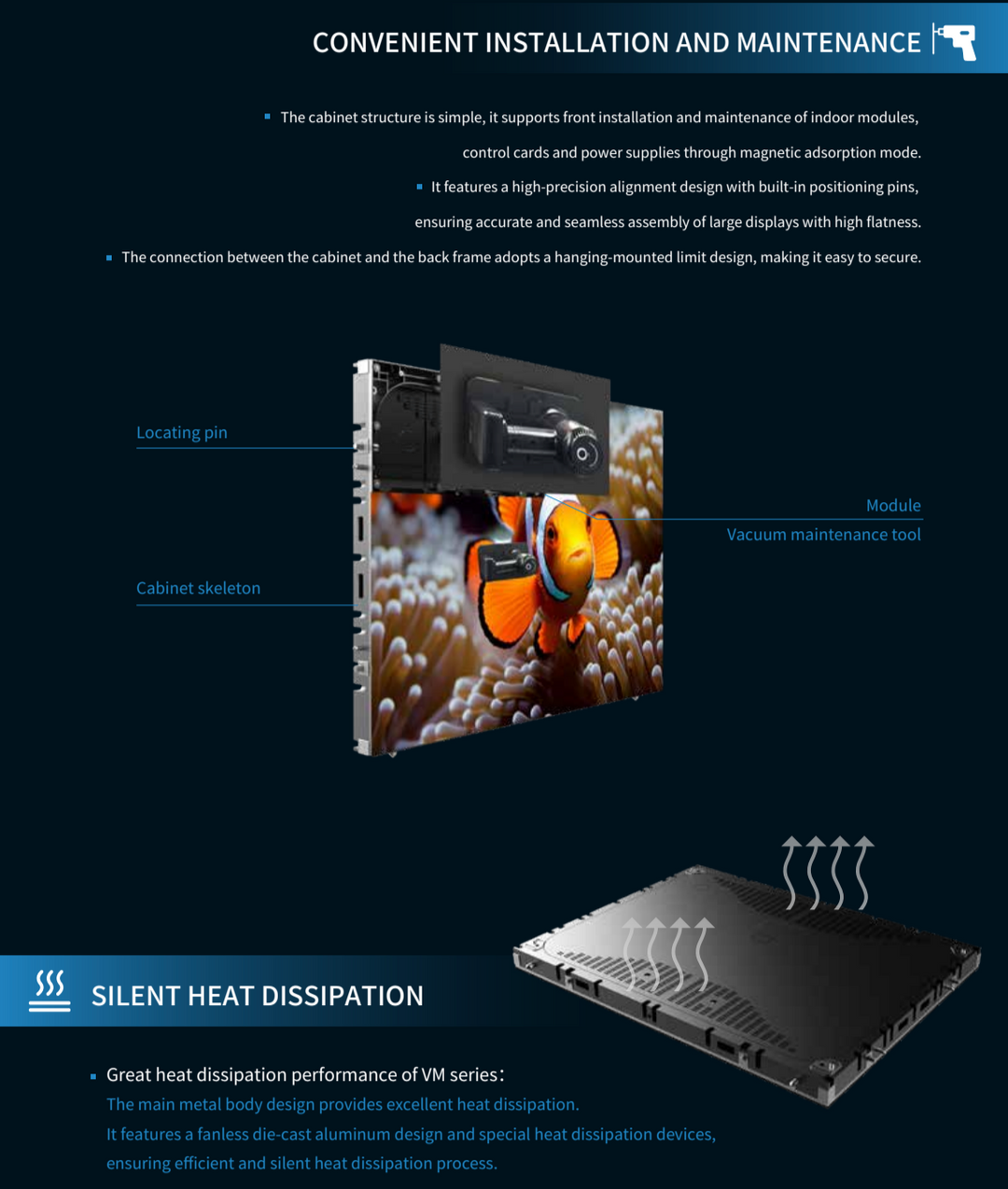

Front Access Installation & Maintenance
The VM Series supports full front installation and maintenance, using a magnetic adsorption system for quick replacement of modules, control cards and power supplies. Built-in alignment pins and a hanging-mounted structure ensure precise, flat alignment across large LED video wall installations.
Silent, Efficient Heat Dissipation
An all-metal, fanless die-cast aluminium cabinet provides excellent heat dissipation without noise, ensuring stable performance and long service life in continuous-operation commercial settings.
High-Quality Image Performance
With 12–16 bit grayscale processing and a refresh rate exceeding 3840Hz, the VM Series delivers smooth motion, accurate colour reproduction and flicker-free visuals suitable for broadcasting, presentations and close-viewing applications.
Adjustable Brightness & Colour Temperature
Brightness is configurable from 600 nits to 3000 nits, depending on installation and usage requirements. The adjustable colour temperature range from 3000K to 9500K allows the display to adapt easily to different lighting environments and design intents.
Wide Viewing Angle
A 140° horizontal and vertical viewing angle ensures consistent brightness and colour accuracy from multiple perspectives, enhancing visibility in open commercial spaces and high-traffic environments.
- Customisable
- Worldwide shipping
- Secure Payment

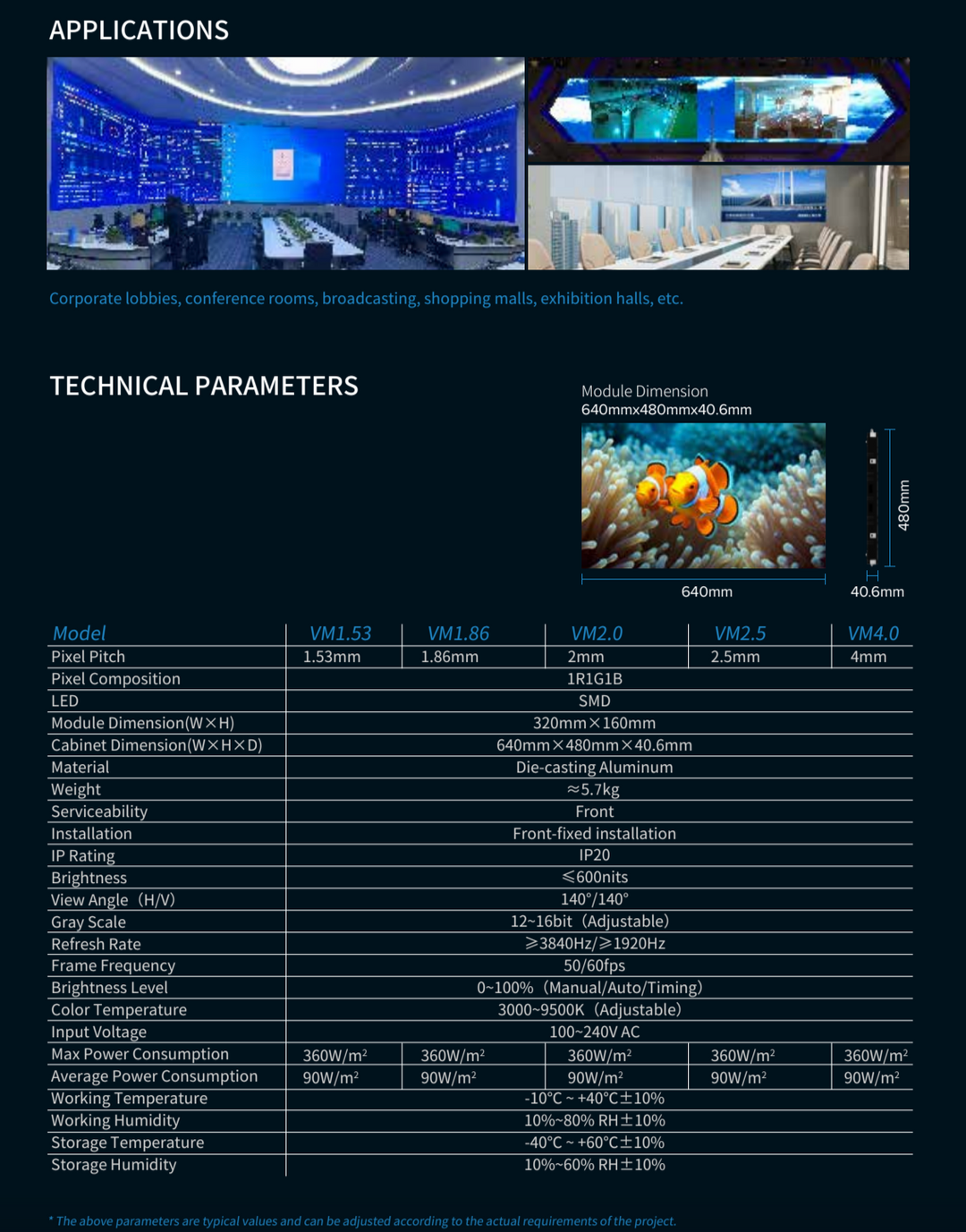

Technical Specifications – VM Series Fine-Pitch LED Display
Pixel Pitch:
1.53mm / 1.86mm / 2.0mm / 2.5mm / 4.0mm
Pixel Configuration:
1R1G1B
LED Type:
SMD
Module Dimensions (W × H):
320mm × 160mm
Cabinet Dimensions (W × H × D):
640mm × 480mm × 40.6mm
Cabinet Material:
Die-cast aluminium
Weight (per cabinet):
Approx. 5.7 kg
Serviceability:
Front service
Installation Type:
Front-fixed installation
IP Rating:
IP20 (indoor applications)
Brightness:
Adjustable from 600 nits to 3000 nits
(depending on installation and usage requirements)
Viewing Angle (H / V):
140° / 140°
Grey Scale:
12–16 bit (adjustable)
Refresh Rate:
≥ 3840 Hz
Frame Frequency:
50 / 60 fps
Brightness Control:
0–100% (manual / automatic / timing control)
Colour Temperature:
Adjustable from 3000K to 9500K
Input Voltage:
100–240V AC
Maximum Power Consumption:
360 W/m²
Average Power Consumption:
90 W/m²
Operating Temperature:
–10°C to +40°C
Operating Humidity:
10% to 80% RH (±10%)
Storage Temperature:
–40°C to +60°C
Storage Humidity:
10% to 60% RH (±10%)
Product Code:
X4
