3D LED Front & Reverse Lit Channel Letter Signs

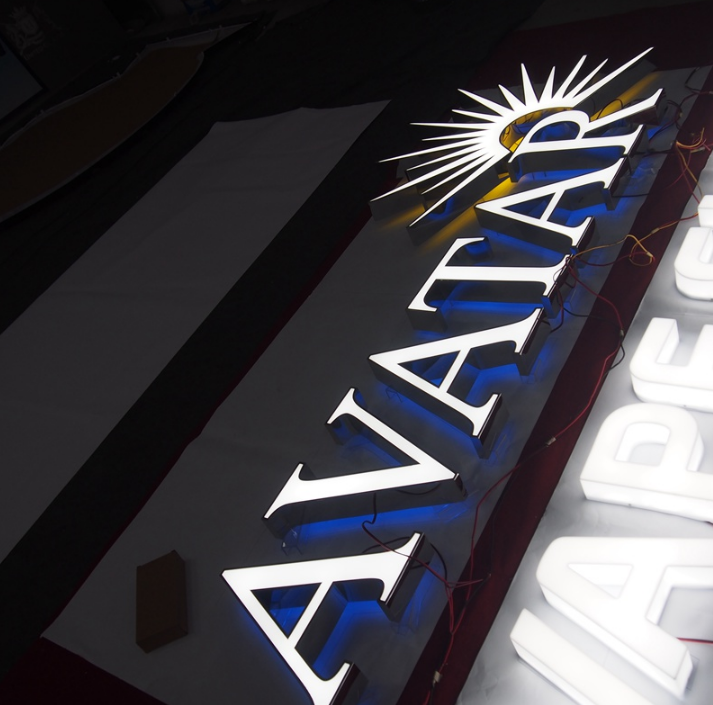

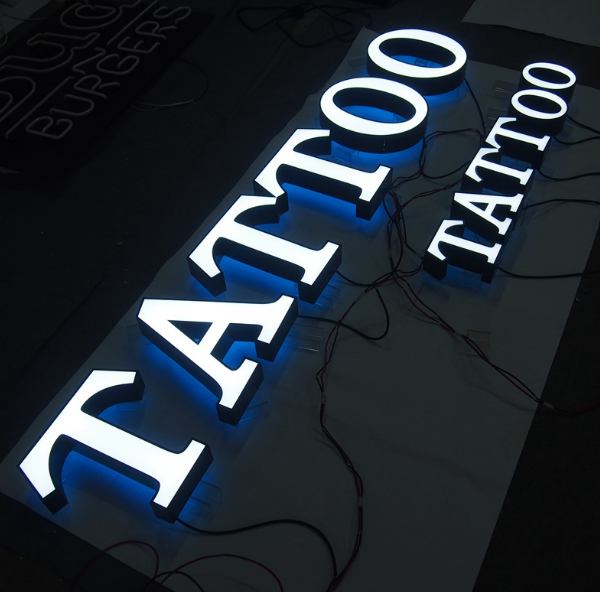

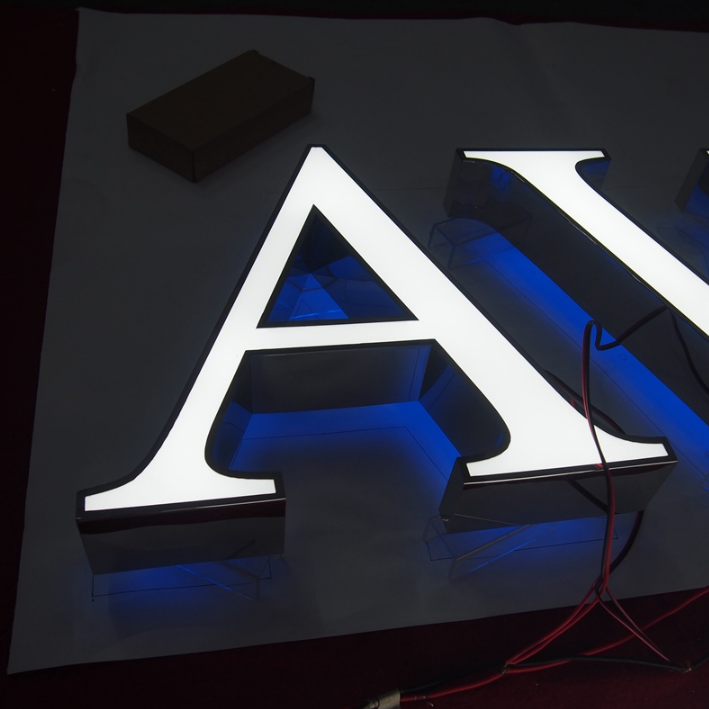

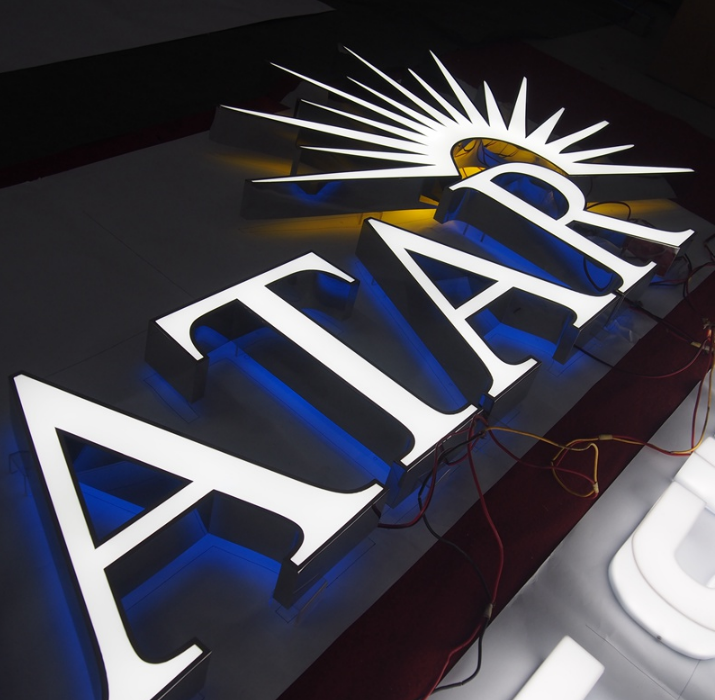

3D LED Front & Reverse Lit Channel Letter Signs feature dual illumination, combining bright front-facing light with a soft halo glow from the rear for a premium visual effect.
This double-depth channel letter design allows independent front and back lighting, creating strong daytime visibility and an elegant night-time presence. Ideal for retail shopfronts, hospitality venues, shopping centres and corporate branding.
All signs are fully custom made, including letter size, font, colours, materials and mounting options. Designed for both indoor and outdoor use, our dual illuminated channel letters deliver a high-end signage solution tailored to your brand.
- Customisable
- Worldwide shipping
- Secure Payment
Dimensions:
Custom made to order
Typical letter height: 300mm – 1500mm
Depth: 80–150mm (double-depth structure for front & halo illumination)
Power & Light Source:
Built-in high-efficiency LED modules
Front illumination + rear halo illumination (dual light source)
Luminous Flux:
Customised according to letter size and lighting requirement
Balanced brightness for clear front visibility and soft halo glow
Colour Temperature:
Front illumination: Custom colours available (White, Warm White, Red, Blue, Green, RGB optional)
Back halo illumination: Standard White / Warm White (custom options available)
Material:
Letter face: Acrylic (translucent / coloured)
Letter returns: Aluminium or stainless steel
Back plate: Aluminium composite or aluminium backing
Finish Options:
Powder-coated aluminium
Brushed stainless steel
Mirror polished stainless steel
Custom paint colours available
Weight:
Varies depending on letter size and material specification
Dimmable Options:
Optional dimming available (TRIAC / 0–10V / DALI, subject to project requirement)
Installation Type:
Wall-mounted with concealed fixings
Stud mounting or rail-mounted installation
Suitable for indoor and outdoor use
IP Rating:
IP65 (outdoor suitable)
Application:
Retail shopfront signage
Hospitality venues (restaurants, cafés, bars)
Corporate branding & commercial buildings
Shopping centres and feature façades
Certifications:
CE, RoHS, SAA
Standard Lead Time:
8–12 weeks
Code:
Z1
Note:
This is a fully custom signage solution. Letter size, font, lighting colour, materials and mounting method are all made to order based on project requirements.
