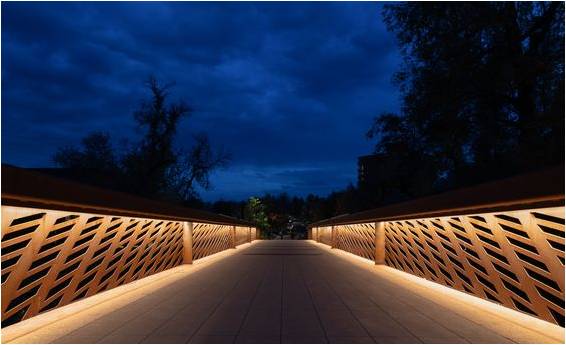

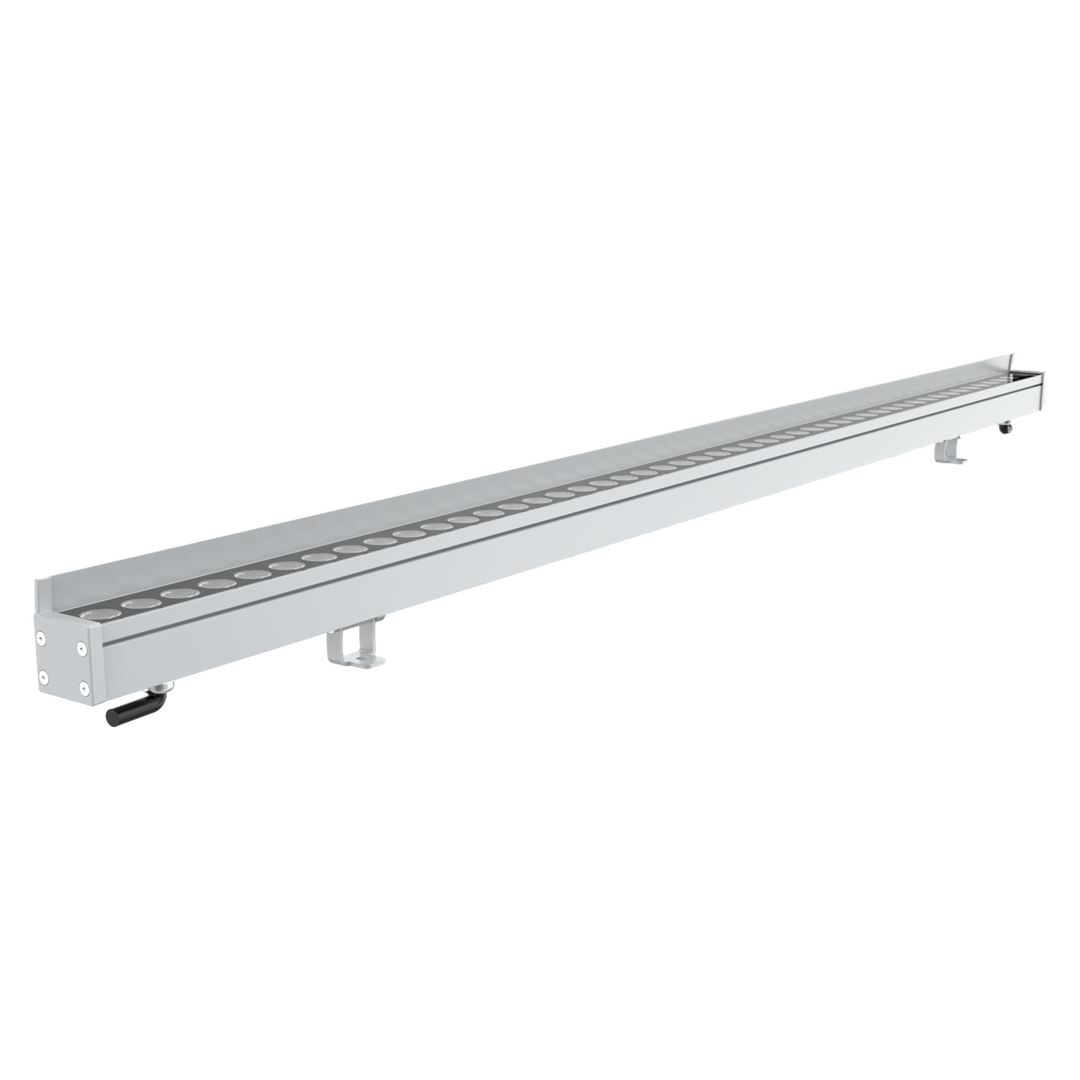

The VividWash-W30E is a low-power, strip-shaped wall washer light with a high-strength aluminum alloy shell, designed specifically for outdoor landscape lighting applications such as bridges and stages. It offers various lengths and lamp options.

Product Features:

  • High-Strength Aluminum Alloy: Provides robust construction and effective heat dissipation with low thermal resistance.
  • New-Generation DMX512 Parallel Bus Technology: Ensures stable and reliable control.
  • Outdoor Protection: Features electrostatic discharge (ESD) protection and robust outdoor lighting protection.
  • Side Outlet Structure: Adapts to various installation environments.
  • Wall Washing Height: Ideal for heights between 1-2 meters.
Tax included. Shipping calculated at checkout.
Enquiry now
VividWash W30E Wall Washer
VividWash W30E Wall Washer
VividWash W30E Wall Washer

Product Specification

Basic Specifications

  • Color: W/RGB/RGB+W
  • Light Source: SMD W/RGB 3-in-1 LED
  • Lifespan: 35,000 hours
  • Material: High-strength aluminum alloy
  • Weight: 1.1 kg

Working Conditions

  • Operating Temperature: -40°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Protection Rating: IP66
  • Application Environment: Outdoor

Electrical Parameters

  • Operating Voltage: DC24V
  • Maximum Power: 12W

Optical Parameters

  • Beam Angle: 20°/05° × 45°/30° × 45°
  • Gray Scale: 256/65536
  • Energy Efficiency Value: ≥65 lm/W

Materials

  • Aluminum + Glass

Controller

  • Main Controller
  • Sub Controller

Note: Above optical parameters are based on Cree/Osram/Lumileds LEDs with >2700K color temperature.
