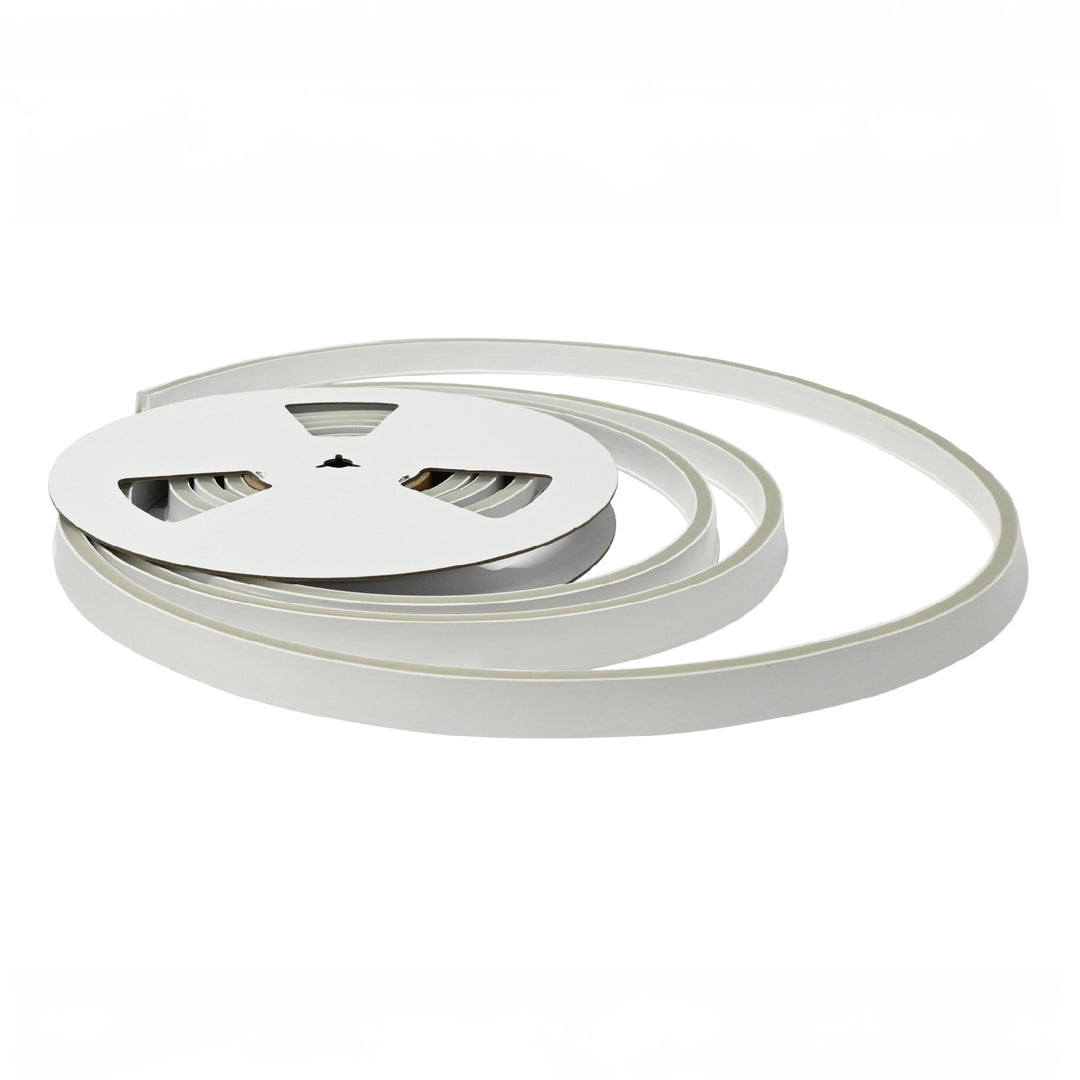

VividLine 3535 Linear Strip

SKU: LUS-VividWash3535

VividLine 3535 Linear Strip

SKU: LUS-VividWash3535
Regular price
/
  • Customizable
  • Worldwide shipping
  • Secure payments

Features:

Made from imported French materials, this product offers excellent light transmittance. It uses stainless steel fasteners for easy installation. With an IP68 rating, it provides the highest level of protection, making it suitable for long-term outdoor, underground, and underwater use. It has a V-0 flame retardancy rating, the highest level of flame resistance, and extinguishes itself upon fire, ensuring superior safety. UV-resistant, it does not easily yellow or crack. It has good weather resistance, tolerates high temperatures and cold, and can be used at temperatures as low as -20°C. It has passed salt spray tests, making it suitable for long-term use in coastal areas with high salt spray.

Applications:

  • Major festival light shows
  • Building facades
  • Park and scenic areas
  • Hotels and guesthouses
  • Commercial properties
  • Mixed-use commercial complexes
  • Long-lasting lighting landscapes
Tax included. Shipping calculated at checkout.
Enquiry now
VividLine 3535 Linear Strip
VividLine 3535 Linear Strip

Product Specification

Information

  • Weight: Approximately 205g (per meter/set)
  • Number of LEDs: 60 pcs (3535)
  • Housing Material: Blended modified engineering plastic
  • Cable: Double-ended, 15 cm length; Core/wire diameter: 20.5 + 10.22
  • UV Rating: No significant change on the surface (GB/T 16422.3-2014)
  • Mounting Hardware: Not included
  • Protection Level (IEC): Safety Class III
  • Connectors: / (Not specified)
  • Certifications: CE, FCC, BIS
  • Neutral Salt Spray: 48 hours
  • IP Rating: IP68
  • IK Rating: IK10
  • Flame Retardancy Rating: V-0

Electrical Parameters

  • Rated Voltage: DC24V
  • Rated Power: 14W/m
  • Control Method: SPI
  • Pixel Density: 10 pixels/m
  • Gray Scale: 8-bit
  • Refresh Rate: 1200 Hz
  • Power Factor: /

Optical Parameters

  • Light Source Color/Temperature (K): RGB
  • Wavelength Range (nm): Red: 603-623, Green: 500-522, Blue: 369-469
  • Beam Angle (°): 110°
  • Initial Light Efficiency (lm/W): 5 lm/W
  • Initial Luminous Flux (lm): 64 lm
  • Initial Center Light Intensity (cd): 18 cd

Downloads
