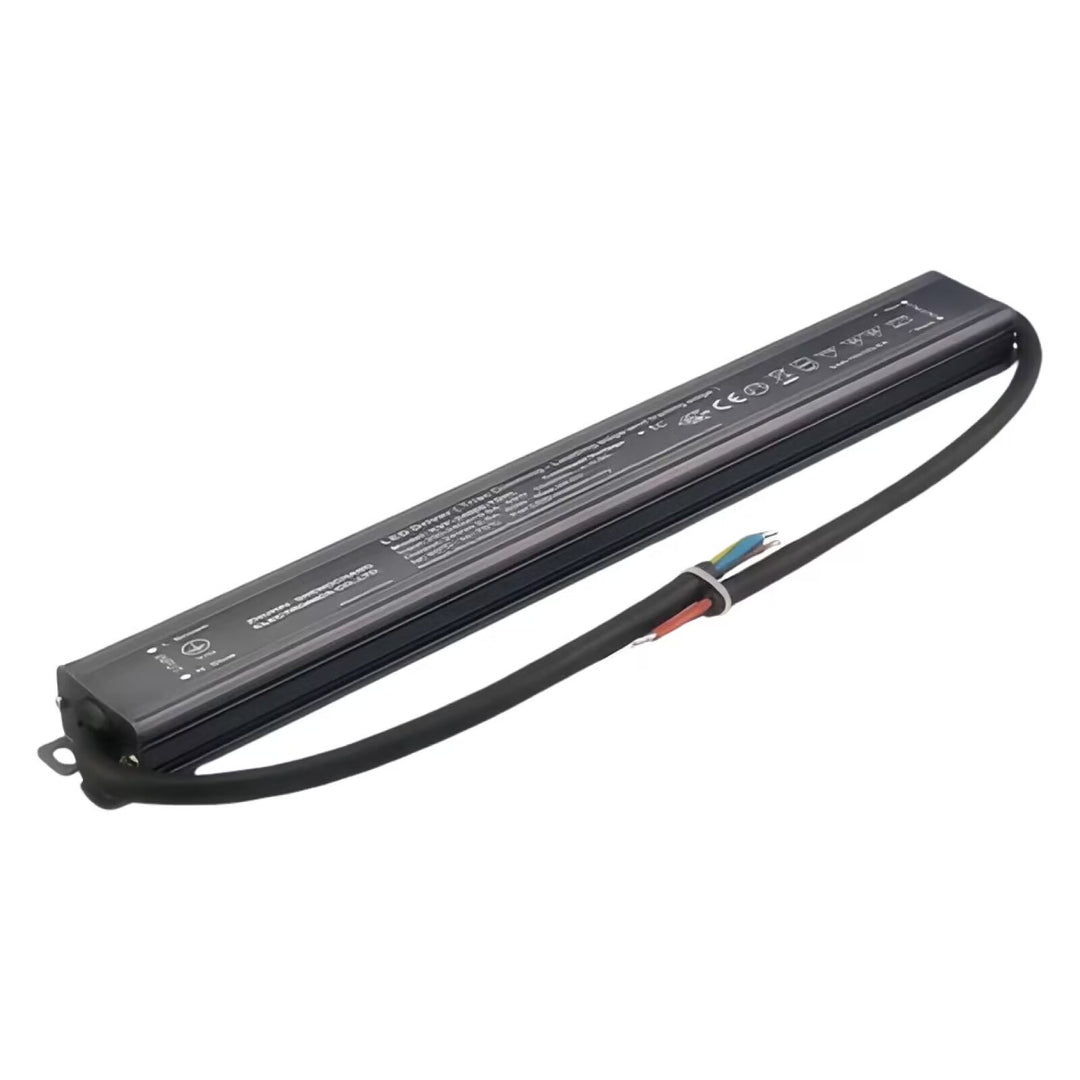

KVF 150W Linear Flicker-Free TRIAC Dimmable Driver

SKU: KVF-24150-TDHS

KVF 150W Linear Flicker-Free TRIAC Dimmable Driver

SKU: KVF-24150-TDHS
Regular price $290.00
/
  • Customizable
  • Worldwide shipping
  • Secure payments

Features:

  • Output: Constant voltage
  • Input Range: 200-240VAC
  • Built-in Active PFC Function: Power factor up to 0.95
  • Efficiency: Up to 92%
  • Dimming Range: 0-100%
  • Load Range: 10-100%
  • Protections: Short circuit, overload, over-temperature
  • PWM Output: Maintains color accuracy
  • Full Protection Aluminum Housing: IP66 rated for indoor and outdoor installation
  • Flicker-Free Performance
  • Compatible with Leading and Trailing Edge TRIAC Dimmers
  • Cooling: Free air convection
  • Applications: Suitable for LED lighting and moving sign installations
Tax included. Shipping calculated at checkout.
Enquiry now
KVF 150W Linear Flicker-Free TRIAC Dimmable Driver

Product Specification

Model:

  • KVF-12150-TDHL
  • KVF-24150-TDHL

Output:

  • DC Voltage: 12V / 24V
  • Voltage Tolerance: ±0.5V
  • Voltage Regulation: ±0.5%
  • Rated Current: 12.5A / 6.25A
  • Rated Power: 150W
  • Load Regulation: ±2%

Input:

  • Voltage Range: 200-240VAC
  • Frequency Range: 47-63Hz
  • Power Factor (Typ.) @ Full Load: PF ≥ 0.95 @ 230VAC
  • THD (Typ.) @ Full Load: ≤20%
  • Efficiency (Typ.) @ Full Load: 90% / 92%
  • AC Current (Max.): 0.95A @ 200VAC
  • Inrush Current (Typ.): 47.5A/312μs @ 50% Ipeak 230VAC
  • Leakage Current: <0.5mA

Protection:

  • Short Circuit: Hiccup mode; recovers automatically after fault condition is removed.
  • Overload: ≤120% constant current limiting, auto-recovery.
  • Over Temperature: Shuts down at 100°C ±10°C; re-power on to recover.

Environment:

  • Protection Class: I
  • Working Temperature: -40~+60°C (Refer to Derating Curve)
  • Working Humidity: 20-90%RH, non-condensing
  • Storage Temperature & Humidity: -40~+80°C, 10-95%RH
  • Temperature Coefficient: ±0.03%/°C (0-50°C)
  • Vibration: 10~500Hz, 5G, 10 min./1 cycle, period for 60 min. along X, Y, Z axes

Safety & EMC:

  • Safety Standards: EN61347-1, EN61347-2-13
  • Withstand Voltage: I/P-O/P: 3.75KVAC; I/P-FG: 1.88KVAC; O/P-FG: 0.5KVAC
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ/500VDC/25°C/70%RH
  • EMC Emission: EN55015, EN61000-3-2, EN61000-3-3
  • EMC Immunity: EN61000-4-2,3,4,5,6,11, EN61547

Others:

  • Net Weight: 0.55kg
  • Dimensions: 368 x 32x 23mm (LWH)
  • Packing: 30 pcs/CTN

Notes:

  1. All parameters not specifically mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature.
  2. Tolerances include setup tolerance, line regulation, and load regulation.
  3. The power supply is intended to be used as a component in combination with final equipment. EMC performance may be affected by the complete installation, requiring the final equipment manufacturer to re-qualify EMC Directive compliance.
