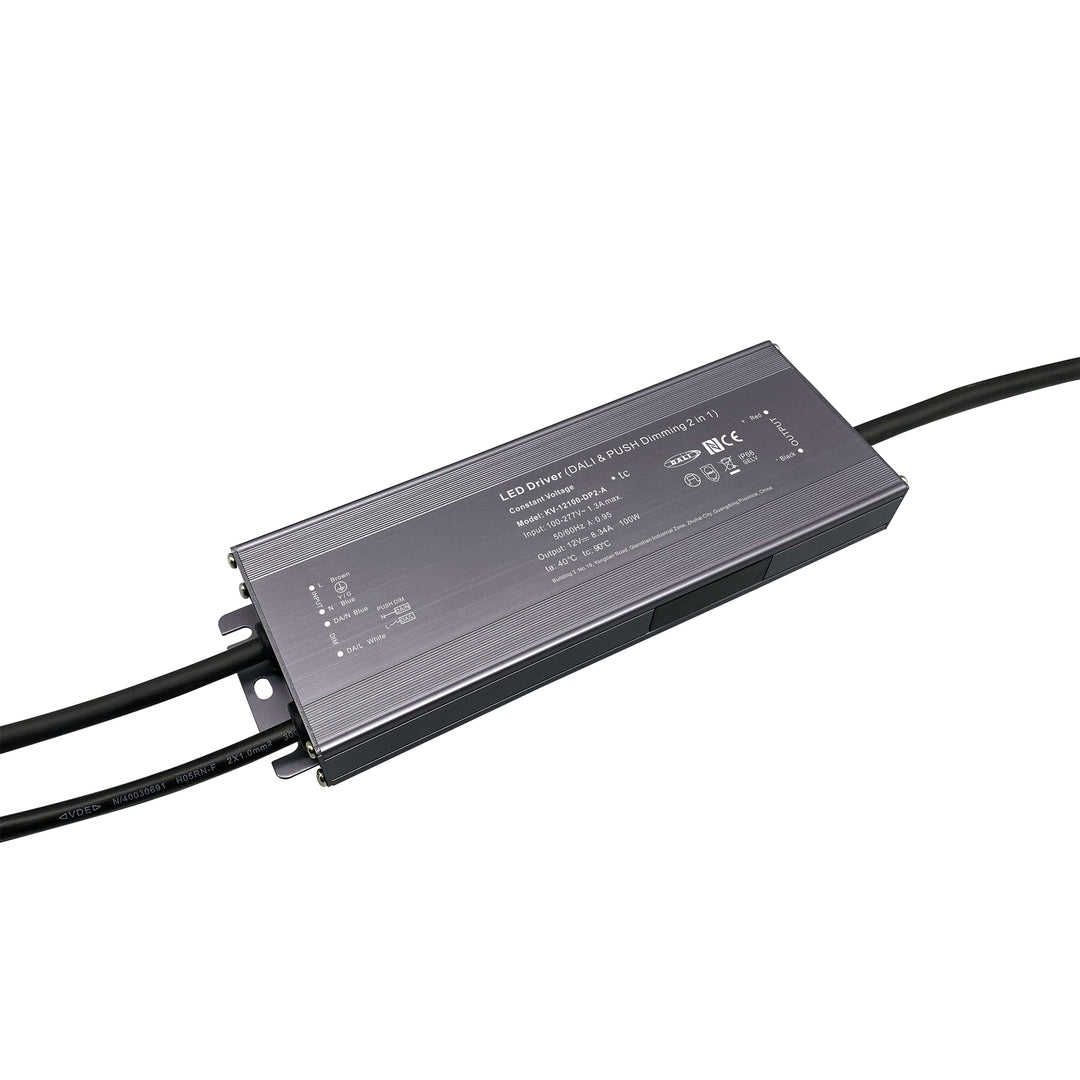

KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 75W

SKU: KV-24075-DP2A

KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 75W

SKU: KV-24075-DP2A
/
  • Customizable
  • Worldwide shipping
  • Secure payments

Features Overview:

  • Output: Constant Voltage
  • Voltage Range: 100-277VAC
  • PFC Design: Built-in active PFC function
  • Efficiency: Up to 90%
  • Protections: Short circuit, overload, over temperature
  • Heat Dissipation: Cooling by free air convection
  • Waterproof Performance: IP66 (EU); Full aluminum housing suitable for dry, damp, and wet locations (US)
  • Dimming Function: DALI-2 & PUSH (2-in-1) digital dimming, flicker-free
  • NFC Function: Ability to read and write the address
  • Dimming Range: 0-100% with a depth of 0.1%
  • Application: Ideal for LED lighting and moving sign applications
  • Warranty: 5 years
Tax included. Shipping calculated at checkout.
Enquiry now
KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 75W

Product Specification

Model Specifications:

  • Models:
  • Certifications:

Output Characteristics:

  • DC Voltage: 12V, 24V, 36V, 48V (Adjustable by NFC within specified ranges)
  • Voltage Tolerance: ±0.5V
  • Voltage Regulation: 0.5%
  • Rated Current: 6.25A, 3.13A, 2.08A, 1.56A
  • Rated Power: 75W
  • Load Regulation: 2%, 1%

Input Specifications:

  • Voltage Range: 100-277VAC
  • Frequency Range: 47 - 63Hz
  • Power Factor (@ full load): ≥0.98 @ 120VAC, ≥0.96 @ 230VAC, ≥0.92 @ 277VAC
  • THD (Typ. @ full load): ≤15%
  • Efficiency (@ full load): 88% @ 120VAC, 90% @ 230VAC, 90% @ 277VAC
  • AC Current (Max.): 0.9A
  • Inrush Current (Typ.): Varies by input voltage
  • Leakage Current: <0.5mA

Protection Mechanisms:

  • Short Circuit: Hiccup mode, automatic recovery
  • Overload: ≤120%, Hiccup mode, automatic recovery
  • Over Temperature: Shell surface temp. ≤ 100°C±10°C, automatic recovery

Environmental Conditions:

  • Operating Temperature: -40~+60°C
  • Operating Humidity: 20 - 95% RH non-condensing
  • Storage Temperature and Humidity: -40 - +80°C, 10 - 95% RH
  • Temperature Coefficient: ±0.03%/°C (0 - 50°C)
  • Vibration: 10~500Hz, 5G 12min./1 cycle, for 72min. along X, Y, Z axes

Safety & EMC:

  • Safety Standards: EN61347-1, EN61347-2-13 (EU), UL8750, CAN/CSA-C22.2 No. 250.13 (US)
  • Withstand Voltage: Varies by region
  • Isolation Resistance: I/P-O/P: 100MΩ / 500VDC

Additional Information:

  • Net Weight: 0.45Kg
  • Dimensions: 200x 78 x 125.1mm (LWH)
  • Packing: 300x 280 x 210mm, 20pcs/CTN
  • Notes: Parameters measured at rated load and 25°C unless specified. Tolerance includes setup and load regulation.
