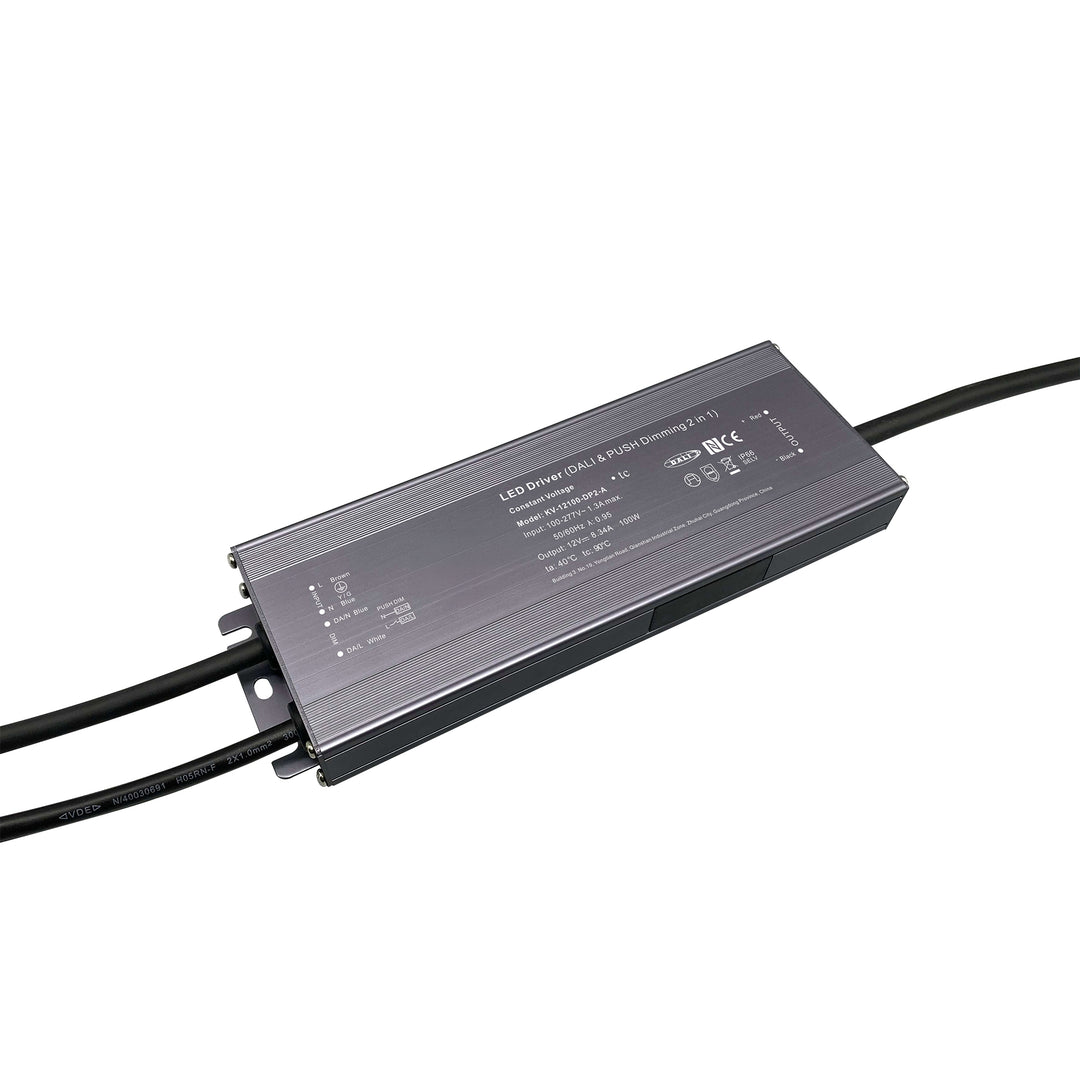

KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 100W

SKU: KV-24100-DP2A

KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 100W

SKU: KV-24100-DP2A
/
  • Customizable
  • Worldwide shipping
  • Secure payments

Features Overview:

  • Output: Constant Voltage
  • Voltage Range: 100-277VAC
  • PFC Design: Built-in active PFC function
  • Efficiency: Up to 90%
  • Protections: Protection against short circuits, overload, and over-temperature
  • Heat Dissipation: Cooling by free air convection
  • Waterproof Performance: Rated IP66 in the EU; designed with a full aluminum housing suitable for dry, damp, and wet locations in the US
  • Dimming Function: DALI-2 & PUSH digital dimming (2-in-1), offering flicker-free dimming
  • Dimming Range: 0-100% with a depth accuracy of 0.1%
  • Application: Ideal for LED lighting and moving sign applications
  • Warranty: 5-year warranty
Tax included. Shipping calculated at checkout.
Enquiry now
KV-DP2A DALI-2/PUSH 2-in-1 Dimmable LED Driver 100W

Product Specification

Model Specifications:

  • Models:
  • Certifications:

Output Characteristics:

  • DC Voltage: 12V, 24V, 36V, 48V (Adjustable via NFC)
  • Voltage Tolerance: ±0.5V
  • Voltage Regulation: 0.5%
  • Rated Current: 8.33A (12V), 4.17A (24V), 2.78A (36V), 2.08A (48V)
  • Rated Power: 100W
  • Load Regulation: 2% (for higher voltages), 1% (for lower voltages)

Input Specifications:

  • Voltage Range: 100-277VAC
  • Frequency Range: 47 - 63Hz
  • Power Factor (@ full load): PF ≥0.99 @ 120VAC, ≥0.98 @ 230VAC, ≥0.96 @ 277VAC
  • THD (Typ. @ full load): ≤15%
  • Efficiency (Typ. @ full load): Ranges from 87.5% to 90% depending on voltage and region
  • AC Current (Max.): 1.3A
  • Inrush Current (Typ.): Varies with voltage input
  • Leakage Current: <0.5mA

Protection Features:

  • Short Circuit: Hiccup mode, automatic recovery
  • Overload: ≤120%, Hiccup mode, automatic recovery
  • Over Temperature: Shell surface temp ≤ 100°C±10°C, automatic recovery after cooling

Environmental Conditions:

  • Operating Temperature: -40~+60°C
  • Operating Humidity: 20 - 95% RH non-condensing
  • Storage Temp. & Humidity: -40 - +80°C, 10 - 95% RH
  • Temperature Coefficient: ±0.03%/°C (0 - 50°C)
  • Vibration: 10~500Hz, 5G for 72min. along X, Y, Z axes

Safety & EMC:

  • Safety Standards: EN61347-1, EN61347-2-13 (EU), UL8750, CAN/CSA-C22.2 No. 250.13 (US)
  • Withstand Voltage: Specified for EU and US standards
  • Isolation Resistance: I/P-O/P: 100MΩ / 500VDC

Additional Information:

  • Net Weight: 0.83Kg
  • Dimensions: 232 x 78 x 25.1mm (L x W x H)
  • Packing: 300 x 280 x 210mm, 20pcs/CTN
  • Notes: All parameters are measured at rated load and 25°C unless specified. Tolerance includes setup and load regulation.
