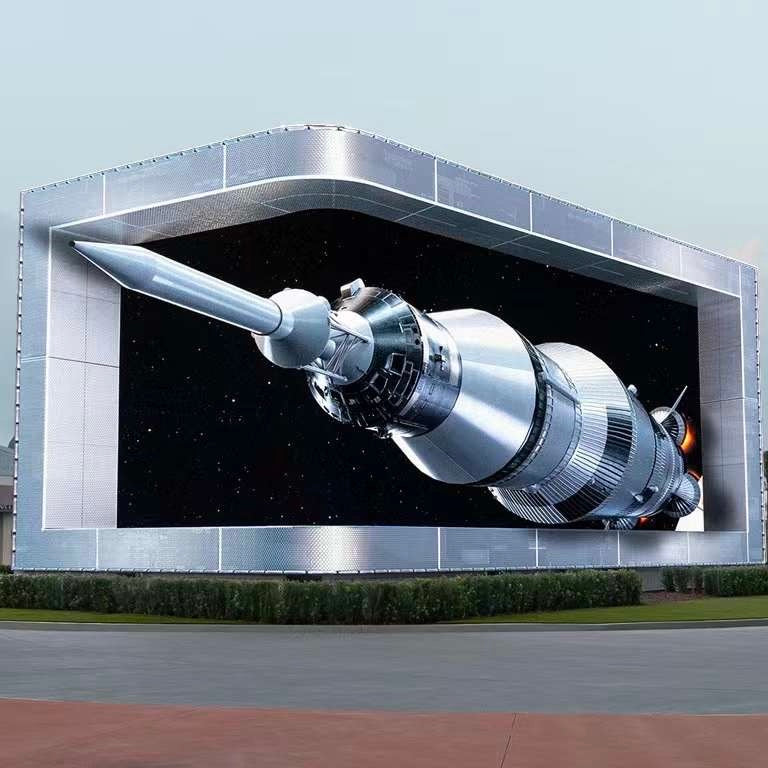

VOH Custom Architectural LED Display
The VOH Custom Architectural LED Display is a fully customisable LED display solution designed for complex architectural installations, including curved surfaces, corner façades and bespoke building structures. Built for high-impact commercial and landmark projects, this system integrates seamlessly into modern architecture while delivering striking visual performance.
Designed as a content-flexible display platform, the VOH Series supports both standard 2D content and immersive 3D visuals, allowing projects to evolve over time without hardware limitations. This makes it ideal for brands and developers seeking long-term value, creative freedom and future-ready digital façades.
With advanced LED technology, high refresh rates and precision-engineered cabinets, the VOH system ensures smooth visuals, high brightness and consistent image quality across irregular shapes and large-scale surfaces. Each installation is custom-engineered to match architectural requirements, enabling seamless transitions across curves, corners and multi-angle viewing areas.
The VOH Custom Architectural LED Display is widely used in retail landmarks, commercial façades, public spaces and immersive brand environments, where design impact and structural integration are as important as visual performance. This solution transforms buildings into dynamic digital statements while preserving architectural intent and flexibility.
- Customisable
- Worldwide shipping
- Secure Payment
Product Specifications
Model Options
P1.2, P1.5, P1.9, P2.5, P2.9, P3.9, P4.8
Pixel Pitch
P1.2, P1.5, P1.9, P2.5, P2.9, P3.9, P4.8
Pixel Configuration
1R1G1B
LED Type
P1.2 SMD1010, P1.5 SMD1212, P1.9 SMD1515, P2.5 P2.9 P3.9 P4.8 SMD2121
Module Size
250mm x 250mm
Cabinet Size
1000mm x 250mm x 40mm
Cabinet Material
Die cast aluminium
Weight
6 kg per cabinet
Maintenance
Front access serviceable
IP Rating
Indoor IP30, Outdoor IP65
Maximum Brightness
Up to 1000 nits
Contrast Ratio
3000 to 1
Viewing Angle
160 degrees horizontal, 160 degrees vertical
Grayscale
12 bit, 14 bit adjustable
Refresh Rate
3840Hz or 1920Hz
Frame Frequency
50Hz, 60Hz
Brightness Adjustment
0 percent to 100 percent
Colour Temperature Adjustment
2000K to 10000K
Input Voltage
90V to 264V AC
Maximum Power Consumption
P1.2 550W per square metre
P1.5 400W per square metre
P1.9 280W per square metre
P2.5 P2.9 P3.9 P4.8 470W per square metre
Average Power Consumption
P1.2 137.5W per square metre
P1.5 100W per square metre
P1.9 70W per square metre
P2.5 P2.9 P3.9 P4.8 117.5W per square metre
Operating Environment
Temperature minus 10 degrees to plus 40 degrees
Humidity 10 percent to 80 percent RH non condensing
Storage Environment
Temperature minus 40 degrees to plus 60 degrees
Humidity 10 percent to 60 percent RH non condensing
Customisation Notice
All specifications listed above are reference configurations.
This LED display system is fully customisable and can be tailored to specific installation scenarios, architectural requirements and project budgets.
Display size, pixel pitch, cabinet configuration, brightness level and power consumption can be adjusted according to site conditions, viewing distance and performance expectations, ensuring an optimal balance between visual impact, technical performance and cost efficiency.
Lead Time & Delivery
Our products are made or prepared to order to ensure quality and precision.
Lead times vary depending on stock availability, production schedule, and delivery location.
In-Stock Items
- Melbourne Metro: 1–2 business days
- Other Australian locations: 2–5 business days
- Remote areas (including Hobart & Cairns): 5–7 business days
Made-to-Order / Backordered Items
- Standard production & delivery: 8–12 weeks
- Airfreight option available: 4–5 weeks (additional cost may apply)
International Shipping
All international orders are built to meet local electrical standards.
- Air Freight: approx. 3–4 weeks (production + air transit)
- Sea Freight: approx. 8–12 weeks (production + sea transit)
For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.
