Transcend – LED Glass Balustrade System

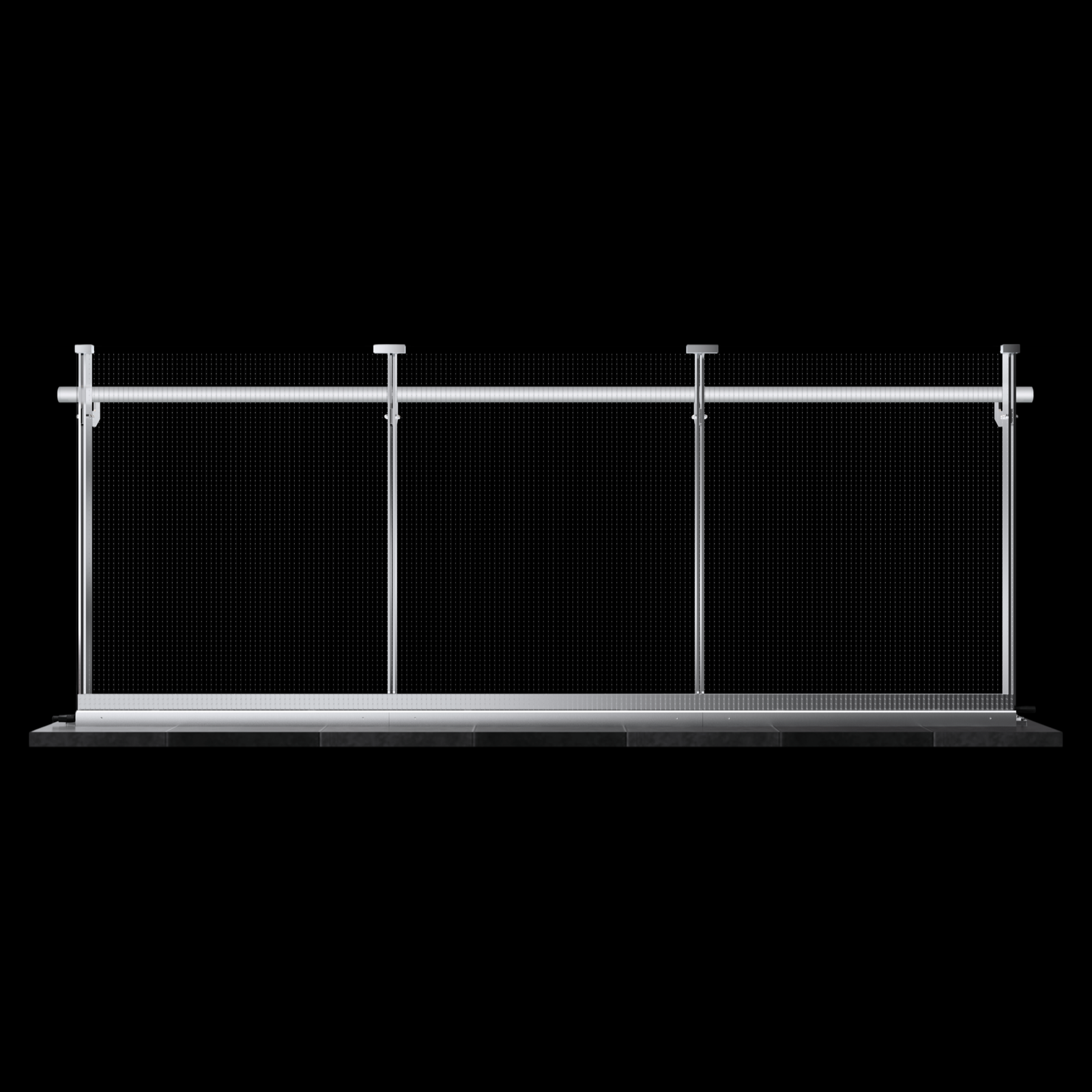

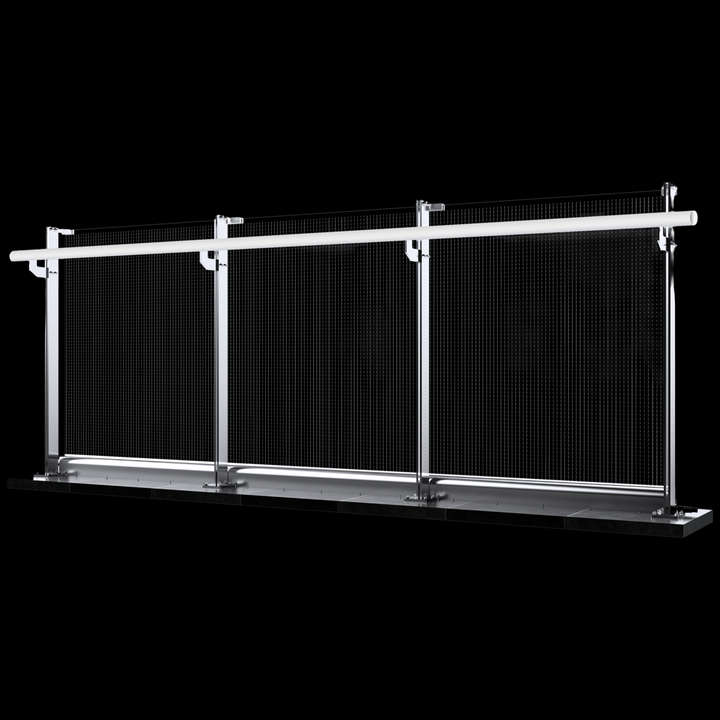

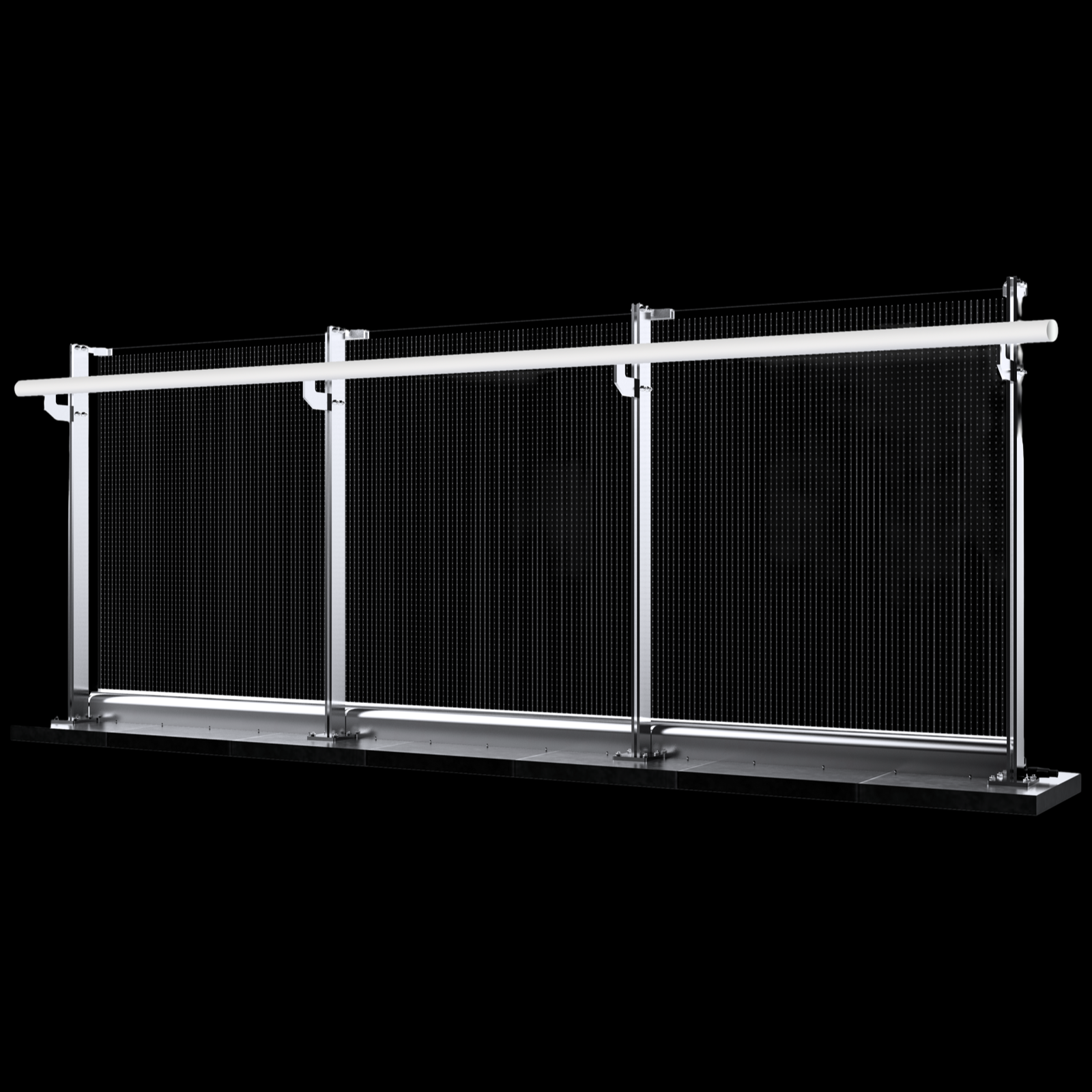

The Transcend LED Glass Balustrade System is a commercial-grade architectural solution that combines a structural glass balustrade with an integrated transparent LED display. Designed for applications where both safety railing and dynamic visual communication are required, this LED glass balustrade system is ideal for shopping malls, commercial buildings, exhibition halls, airports and high-end hotels.
By embedding LED display technology directly into the glass balustrade, Transcend delivers high-resolution digital visuals while maintaining clear sightlines and architectural transparency. This system transforms traditional glass railings into a powerful visual feature without compromising safety or design intent.
Key Features
Integrated LED Glass Balustrade Design

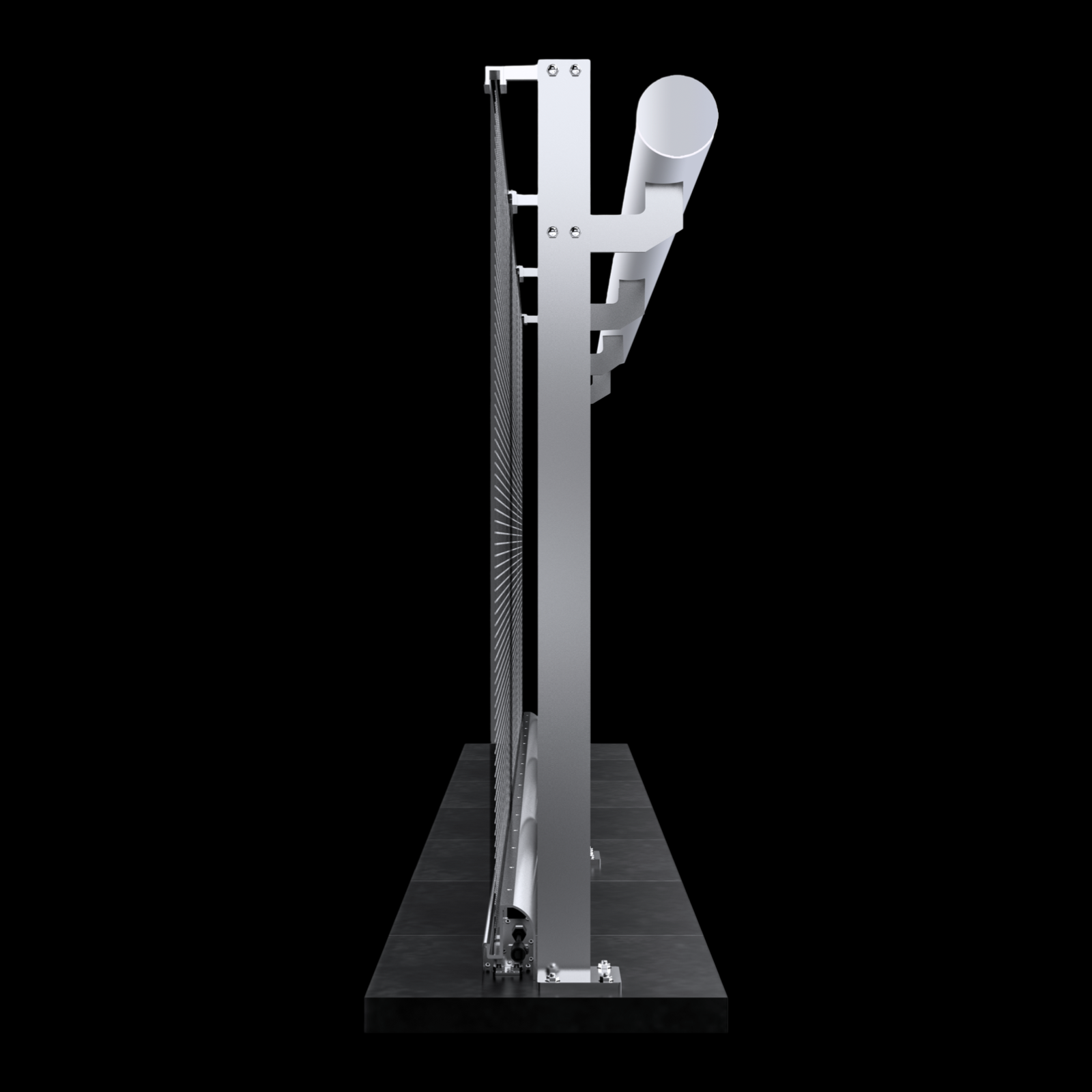

Combines a certified safety handrail system with a transparent LED display, providing both structural support and dynamic content display for commercial environments.
High Transparency for Architectural Spaces
With transparency levels of up to 90%, the LED glass balustrade preserves open views and blends seamlessly into modern architectural designs.
Seamless Modular Splicing
Modular panel construction enables seamless splicing, creating continuous LED glass balustrade displays for large-scale commercial and public projects.
Front Access Installation & Maintenance
Designed for front installation and maintenance, allowing fast access for servicing, replacement and long-term operation efficiency.
Weather-Resistant for Indoor & Outdoor Use
IP65-rated for water and dust resistance, making the system suitable for both indoor and outdoor architectural applications, including exposed public areas.
Commercial & Architectural Applications
The Transcend LED Glass Balustrade System is suitable for a wide range of commercial and architectural projects, including retail malls, hotel atriums, public circulation areas, exhibition venues and transportation hubs. It enhances safety compliance while introducing a dynamic digital layer that increases visual impact and commercial value.
- Customisable
- Worldwide shipping
- Secure Payment
Technical Specifications – GH Series Transparent LED Glass Display
Models:
GH 6 / GH 8
Pixel Density:
GH 6: 28,056 pixels/m²
GH 8: 14,400 pixels/m²
Pixel Pitch:
GH 6: 5.95mm × 6mm
GH 8: 8.33mm × 8.33mm
Cabinet Dimensions (W × H):
1500mm × 1055mm
1000mm × 1055mm
Cabinet Resolution:
GH 6: 252 × 176 / 168 × 176 pixels
GH 8: 180 × 132 / 120 × 132 pixels
LED Light Source:
GH 6: NEX1515
GH 8: NEX2222
Brightness:
GH 6: 2500–3000 cd/m²
GH 8: 3000–3500 cd/m²
Transparency:
GH 6: 85%
GH 8: 90%
Maximum Power Consumption:
GH 6: 1100W / 700W per panel
GH 8: 1200W / 820W per panel
Drive Mode:
Static
Product Overview:
The GH Series Transparent LED Glass Display is engineered for commercial and architectural applications requiring high brightness and high transparency. With precision pixel pitch and robust luminance performance, this series delivers vivid digital content while maintaining clear sightlines, making it ideal for glass façades, retail environments and architectural installations.
