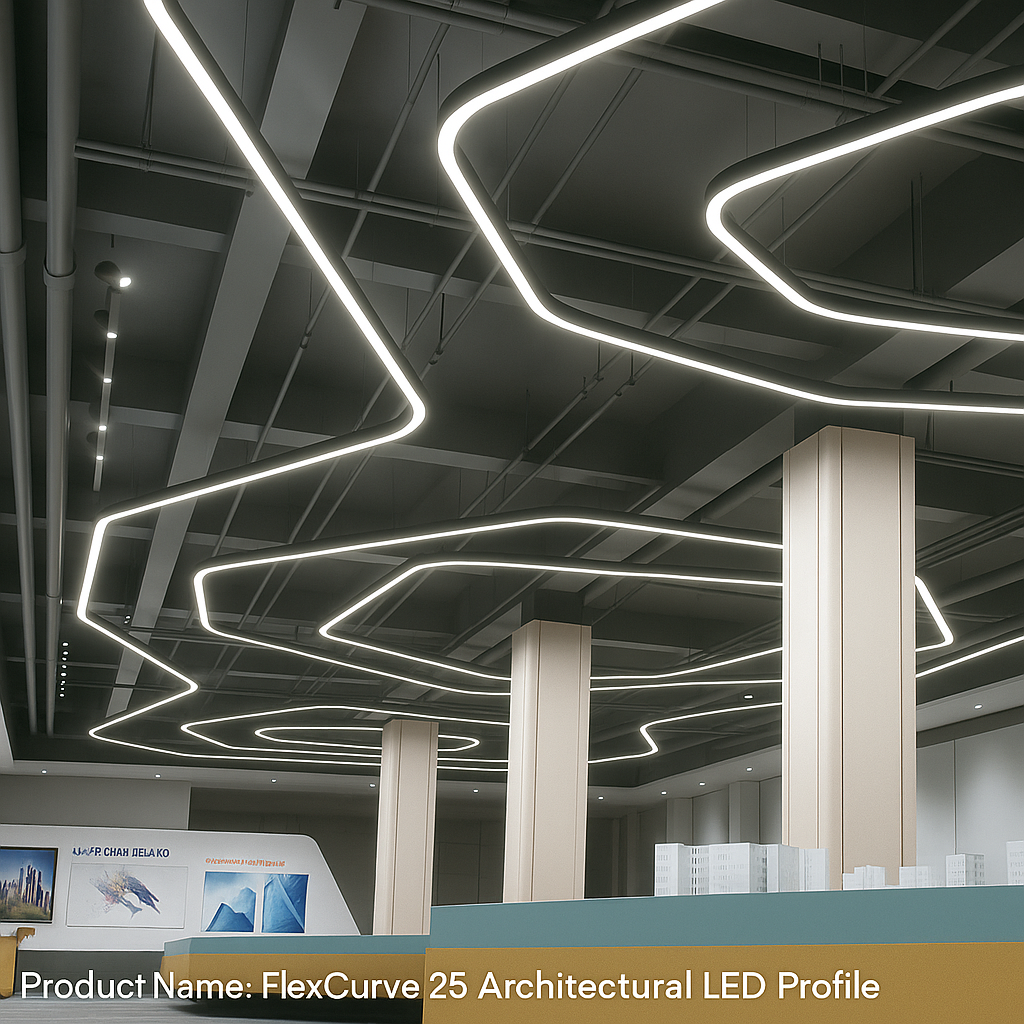

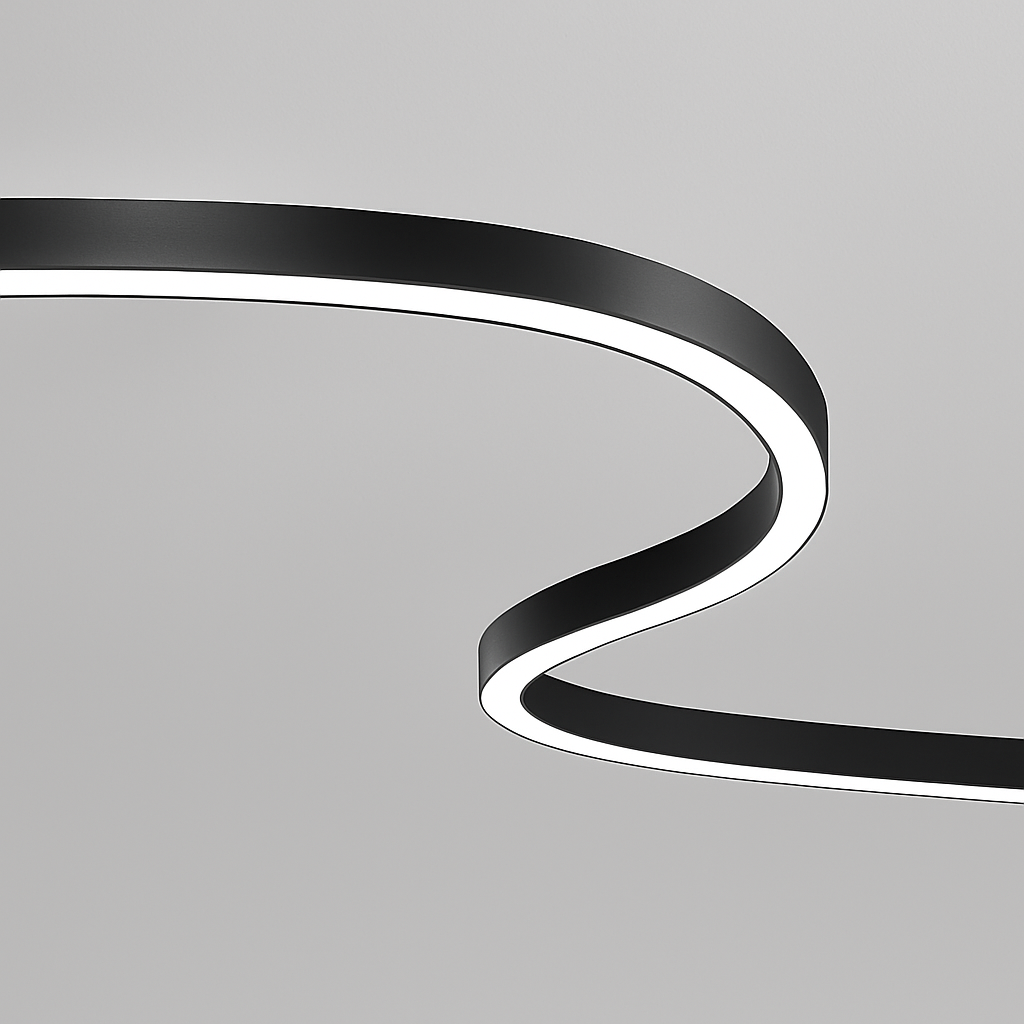

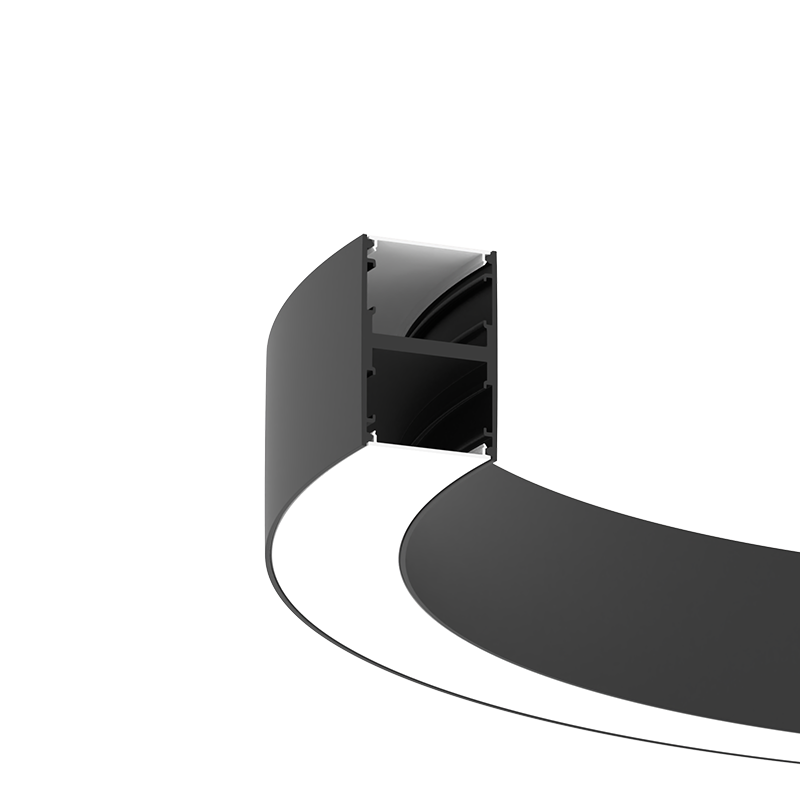

FlexCurve 25H Architectural LED Linear Light
The FlexCurve 25H is a 25mm architectural LED linear system designed for commercial, retail and hospitality environments requiring seamless curves and continuous light lines. Its curved aluminium profile enables fluid geometries across ceilings and walls, delivering smooth, uniform illumination with high visual comfort. Engineered for integration with high-output LED strips and remote drivers, FlexCurve 25H provides exceptional flexibility, precision and performance for modern lighting applications.
As part of Lucretia Lighting’s custom project range, the FlexCurve 25H can be fully customised to any radius, shape, length, lumen package, colour temperature or finish—allowing designers to achieve continuous architectural light lines tailored to complex interiors.
- Customisable
- Worldwide shipping
- Secure Payment
Product Name: FlexCurve 25H Architectural LED Profile
Product Code: LUP-FC25H-R4

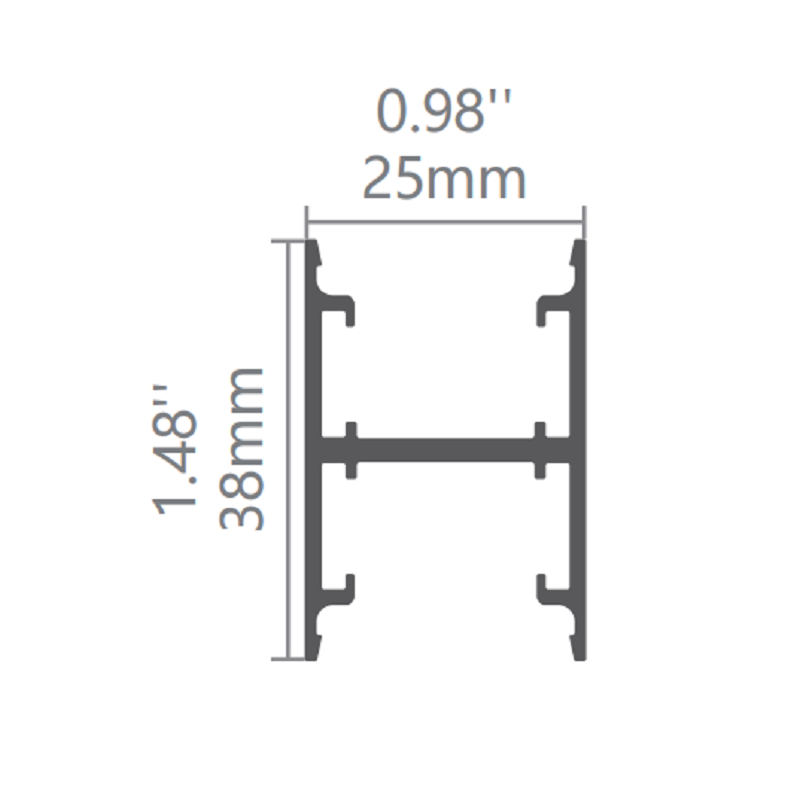

Dimensions: W25mm × H37.5mm
Lighting Direction: Direct (downlight)
Material: Aluminum profile with opal diffuser
Finish Options: Matte Black (standard), Matte White, Anodized Silver, Custom finishes available upon request
Compatible LED Strip Width: ≤20mm
Power & Light Source: Compatible with LED strip lights (24V / 48V); Wattage depends on selected strip (typically 14W–22W per metre)
Diffuser Options: Opal (standard), Frosted or Clear (optional)
Mounting Options: Surface-mounted, Suspended (with optional hanging kit), Recessed (with trim)
Bending Radius: Suitable for large-radius curves or freeform layouts; Factory pre-curved or on-site flexible bending available
IP Rating: IP20 standard; Optional IP44 with sealed end caps
Dimming Options: Depends on external driver: Triac, 0–10V, DALI, Casambi
Installation: Requires remote LED driver; Designed for continuous lines or segmented shapes; Compatible with high-output commercial-grade LED strips
Application: Perfect for retail, hospitality, commercial interiors, or modern residential designs seeking sculptural, linear lighting features
Standard Lead Time: 6–8 weeks
Code: C3
Note: Please provide CAD drawings or bending layout for custom pre-curving. Suitable for integration into stretch ceilings, gypsum ceilings, or wall panels.
