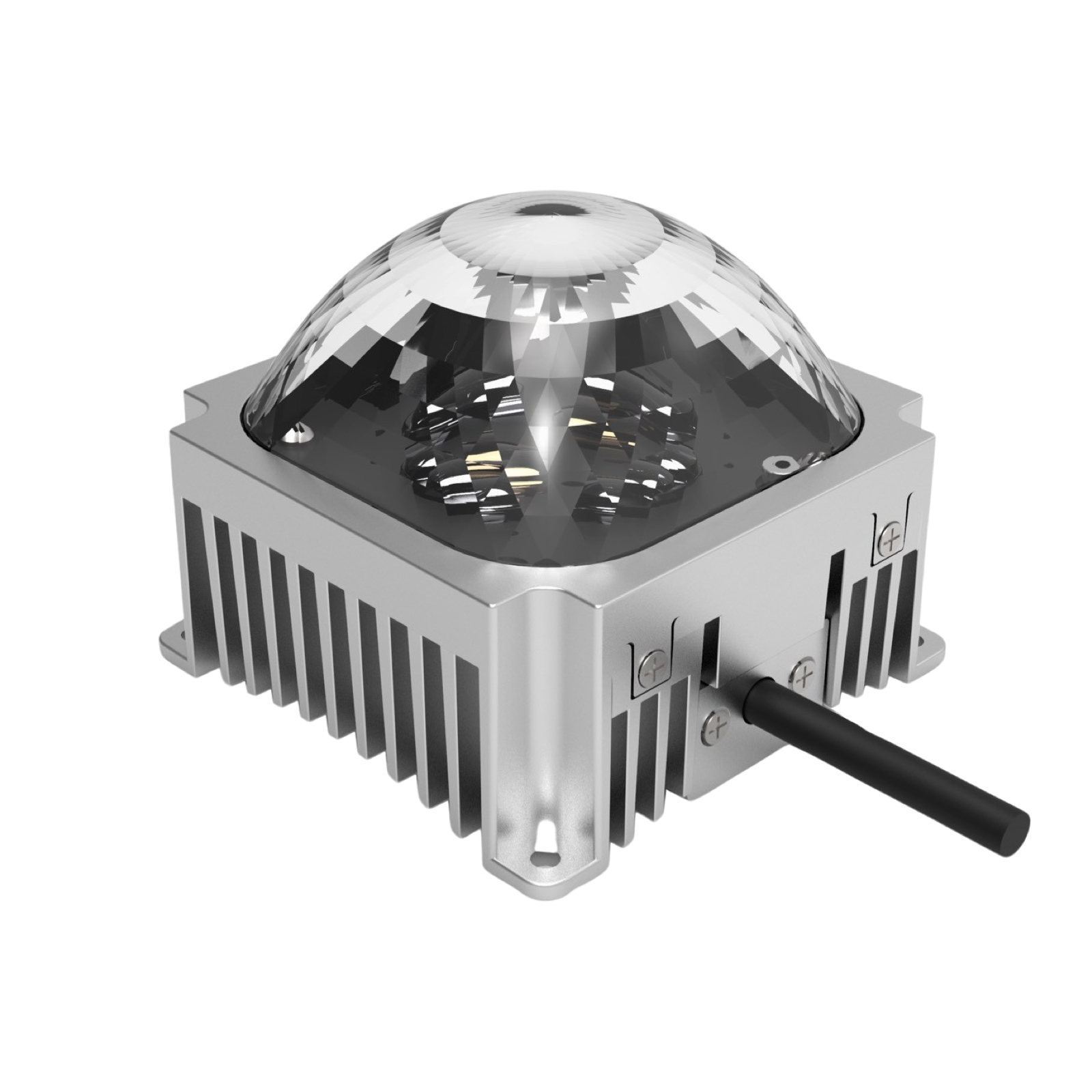

VividStar-P95DM1 Series Full-Color Chip LED String Pixel Lights

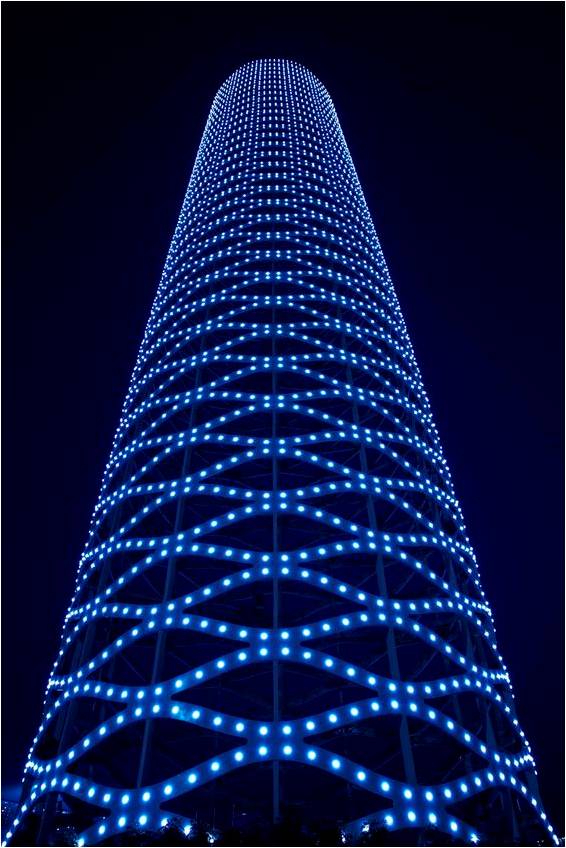

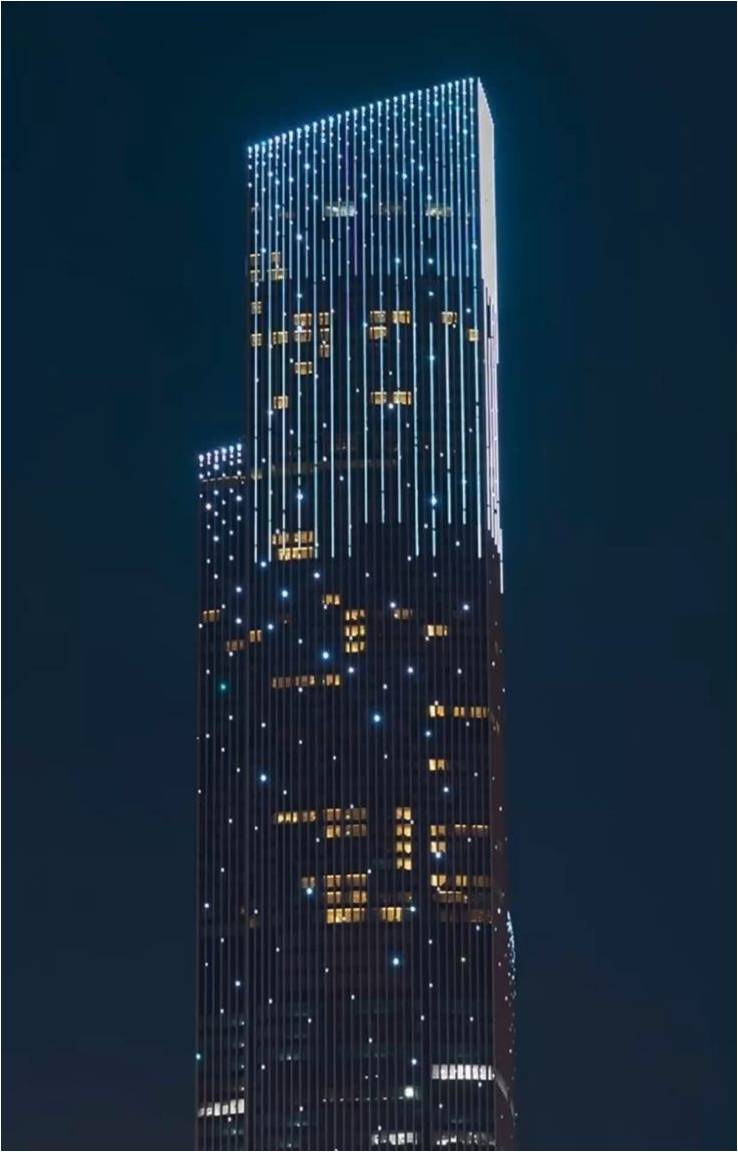

The VividStar-P95DM1 Series features full-color chip LED string pixel lights, expertly designed by Lucretia for outdoor landscape applications. This advanced series utilizes top-tier optical vision angle technology, ensuring exceptional multi-color brightness consistency and precise control. Each pixel is an individual four-primary color lighting unit capable of 65,536 grayscale levels, making it ideal for large-area displays, building facades, contour shaping, and both interior and exterior surface decoration.

Product Features:

  • Next-Generation DMX512 Parallel Bus Technology: Ensures reliable and efficient control.
  • High Grayscale & No-Strobe Design: Offers delicate, soft colors with superior wash quality.
  • Integrated Clip-On Endless Connection: Simplifies installation and customization.
  • Fully Sealed & Waterproof: Utilizes high thermal conductivity adhesive imported from Germany for enhanced durability.
  • Outdoor Protection & ESD Design: Provides robust protection against environmental elements and electrostatic discharge.

The pixel pitch is customizable, and various installation methods are available to suit diverse project needs.

Tax included. Shipping calculated at checkout.
Enquiry now
VividStar P95DM1 LED Pixel Light
VividStar P95DM1 LED Pixel Light
VividStar P95DM1 LED Pixel Light

Product Specification

Specifications

  • Colour Options: White / RGB + White
  • Light Source: SMD RGB 3-in-1 LED
  • Operating Voltage: DC24V
  • Maximum Power: 15W
  • Life Span: 35,000 hours
  • Material: High-strength die-cast aluminum
  • Weight: 600g
  • Beam Angle: 105° (Crystal Cover) / 120° (Transparent Cover)
  • Operating Temperature: -40°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Protection Rating: IP66
  • Application Environment: Outdoor

Control and Models

  • Main Controller: ON/OFF / DMX512
  • Sub Controller: Various models available
  • Control Protocol: ON/OFF / DMX512
  • Grey Scale: 65,536 levels

Available Models

  • P95DM1: DC24V, 15W, 24xW, 105° (Crystal Cover) / 120° (Transparent Cover)
  • EXC-Y220 Series, EXC-Y880 Series, EXC-M520 Series, EXC-5200 Series, EXC-6000 Series, EXC-8000 Series, EXC-10000 Series
  • EXC-S880, EXC-2905

Notes

  1. LED Brand Options: Cree / Osram / Lumileds
  2. Optical Parameters: For colour temperatures > 2700K, using Cree / Osram / Lumileds
