OFFICES, RETAIL, SHOWROOMS, HOSPITALITY
Ultra Panel Lighting – LED Stretch Ceiling System
Ultra Panel Lighting is a custom LED stretch ceiling system that combines high-transmission stretch fabric with LED backlighting to create a large, seamless white luminous surface with soft, even illumination and reduced glare and shadows.
Seamless Luminous Surface
High-transmission stretch fabric with LED backlighting creates a large, seamless white luminous surface with soft, even illumination.
Reduced Glare and Shadows
Soft, even illumination with reduced glare and shadows.
Tunable 2700K to 6500K
Tunable within a typical range of 2700K–6500K; RGB / RGBW dynamic colour options available.
Made to Order
Made to order in project-specific sizes and shapes.
Intro
Overview

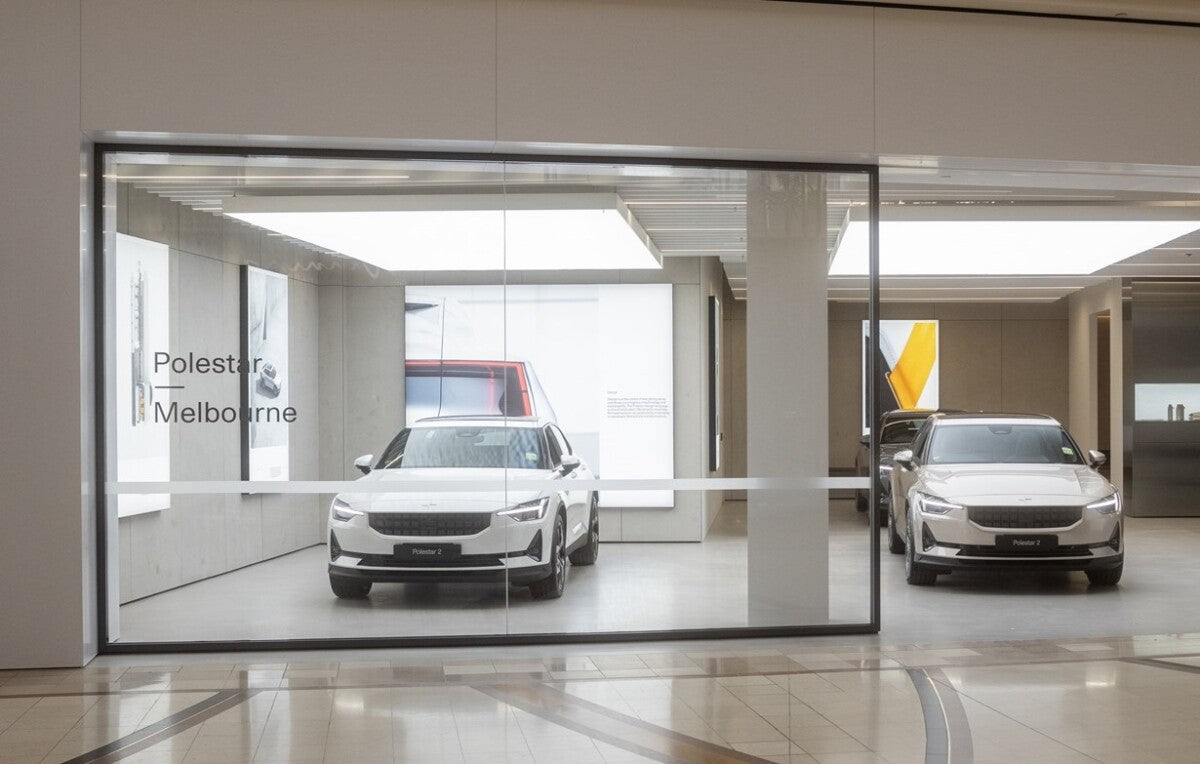

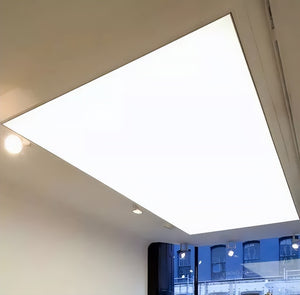

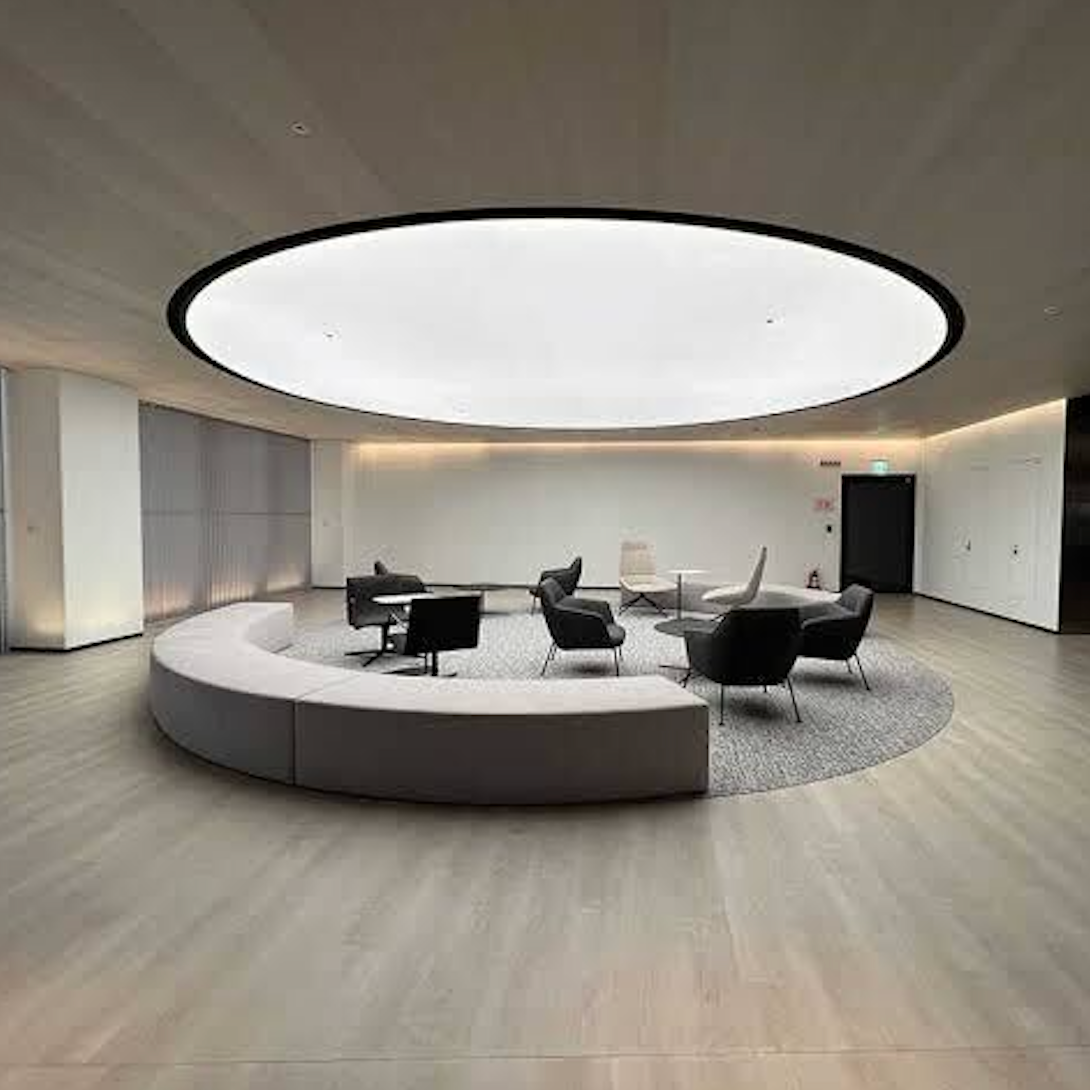

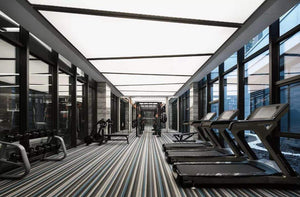

Ultra Panel Lighting is a custom LED stretch ceiling system that combines high-transmission stretch fabric with LED backlighting to create a large, seamless white luminous surface with soft, even illumination and reduced glare and shadows. Made to order in project-specific sizes and shapes, the panel can be installed on the ceiling, wall or a suspended frame, making it ideal for photography studios, showrooms, retail stores, offices and hotels that require clean, modern ceiling lighting.
Applications
- 01Offices
- 02Retail Stores
- 03Galleries
- 04Studios
- 05Showrooms
- 06Hospitality Environments
Installation Options
Ceiling-Mounted
Wall-Mounted
Suspended Frame
Product details
Specifications
- Panel Depth
- Standard 80–150 mm overall depth (including frame and LED backlighting); other depths available on request to suit ceiling build-up and service coordination.
- Customisation
- Fully customisable in size, shape and layout to follow project-specific architectural features, grid lines or feature zones.
- Light Source
- Integrated LED backlighting with project-specific wattage, lumen package and beam configuration to achieve the required brightness and uniformity.
- Colour Temperature
- Tunable within a typical range of 2700K–6500K; RGB / RGBW dynamic colour options available for feature and ambient lighting effects.
- Material
- Flame-retardant, light-diffusing stretch fabric with aluminium perimeter frame, engineered for uniform light distribution and long-term stability.
- Control & Dimming
- Compatible with DALI, 0–10V and other smart lighting control and automation systems for scene setting and energy management.
