DIRECT-TO-GLASS DISPLAY
Transparent LED Film
Transparent LED Film is a direct-to-glass display solution that transforms ordinary glass into a dynamic digital communication platform while preserving the transparency and natural light of the original space.
Direct-to-Glass Installation
Transparent LED Film is installed directly onto existing glass surfaces, without the bulky cabinets and supporting structures of traditional LED displays. At approximately 2mm thick and around 2.5kg/m², it is particularly suitable for retrofit projects where maintaining the original architectural appearance is important.
Preserves Natural Light and Views
With 64% to 78% transparency, digital content appears directly on the glass without significantly obstructing natural daylight or external views. For the strongest effect, content should be designed on a black background, as black areas stay see-through on the glass.
Flexible, Custom Cuttable Film

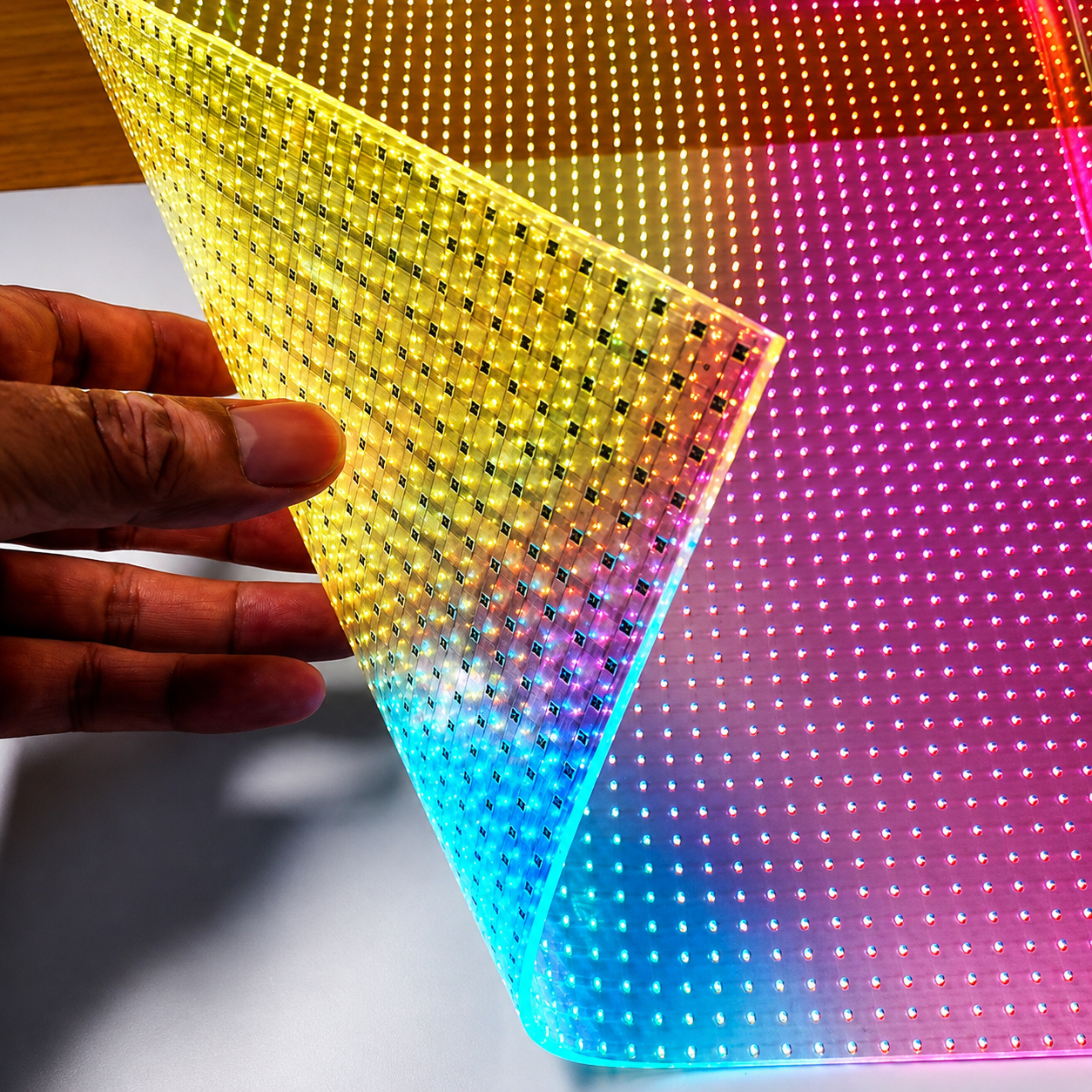

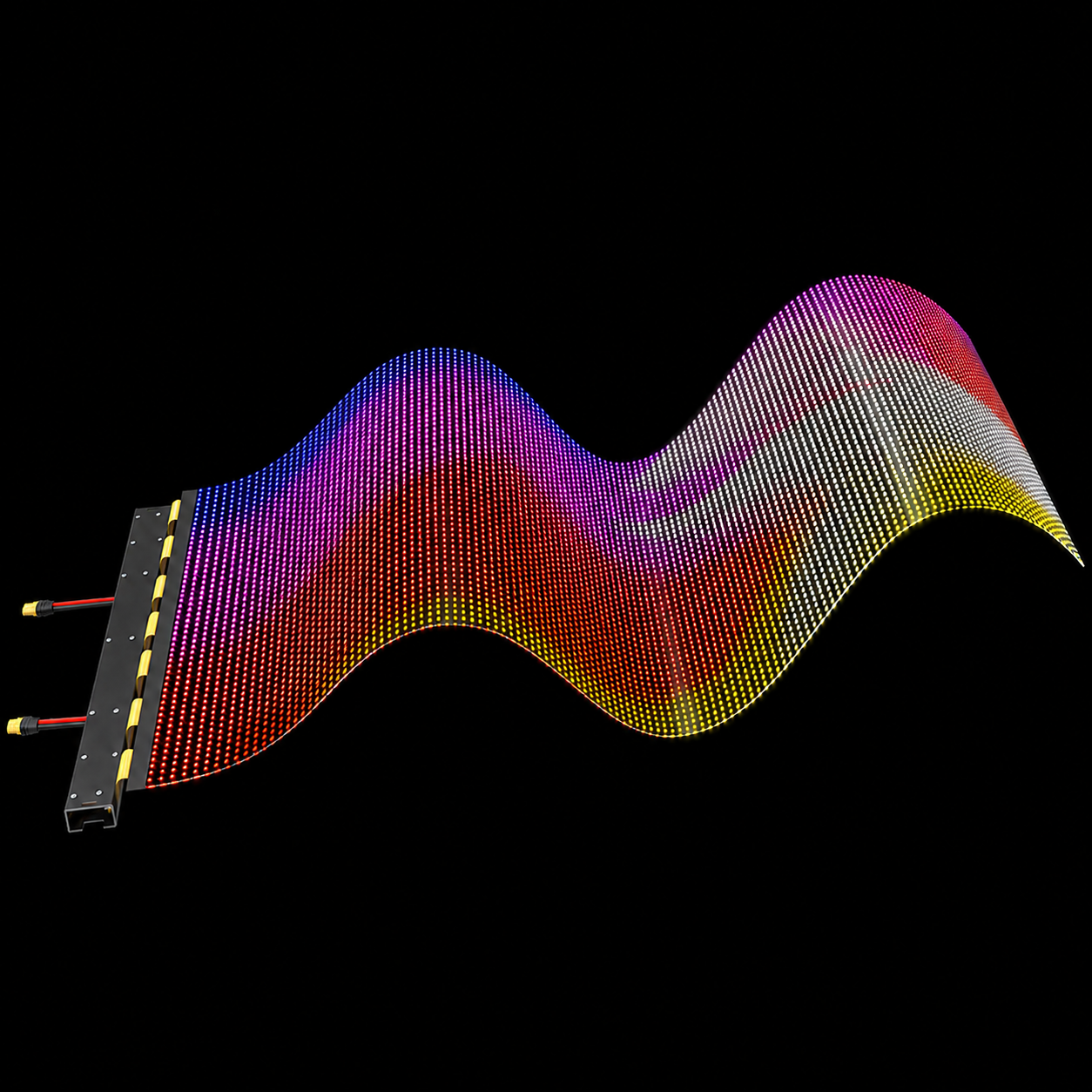

The flexible film structure can be applied to flat, curved and custom-shaped glass, and can be cut to suit unique project requirements, allowing greater design freedom than conventional LED displays.
Built for Commercial Glazing
Available in P3.9, P4.6 and P5.9 pixel pitch, with 3,000 to 3,500 nits brightness and a refresh rate of 3840Hz or higher. Modules can be stacked to achieve display heights of up to 3000mm.
Intro
Overview
Key Features
- Ultra-thin film construction, approximately 2mm
- Direct-to-glass adhesive installation
- Flexible and bendable for flat and curved glass
- Custom cuttable for unique shapes
- Maintains natural daylight transmission
Transparent LED Film is a direct-to-glass display solution that transforms ordinary glass into a dynamic digital communication platform while preserving the transparency and natural light of the original space.
Unlike traditional LED displays that require bulky cabinets and supporting structures, Transparent LED Film is designed to be installed directly onto existing glass surfaces. With a profile of approximately 2mm and a lightweight construction of around 2.5kg/m², it is particularly suitable for retrofit projects where maintaining the original architectural appearance is important.
The flexible film structure can be applied to flat, curved and custom-shaped glass, making it ideal for a wide range of architectural and retail applications. The film can also be customised and cut to suit unique project requirements, allowing greater design freedom than conventional LED displays.
Its high-transparency design enables digital content to appear directly on the glass without significantly obstructing natural daylight or external views. The result is a clean, modern display solution that combines visual impact with architectural integration.
Transparent LED Film is widely used in retail shopfronts, shopping centres, corporate offices, airports, hotels, exhibition spaces and commercial buildings where brands want to deliver engaging digital content without compromising the openness of the space.
Whether used for retail advertising, brand activations, glass facades or interior glass partitions, Transparent LED Film offers an elegant way to turn glass surfaces into high-impact digital displays.
Applications
- 01Retail Windows
- 02Shopping Centres
- 03Commercial Buildings
- 04Corporate Offices
- 05Showrooms
- 06Museums
- 07Exhibitions
- 08Airports
- 09Hospitality Venues
- 10Architectural Facades
Installation Options
Direct Glass Mounting

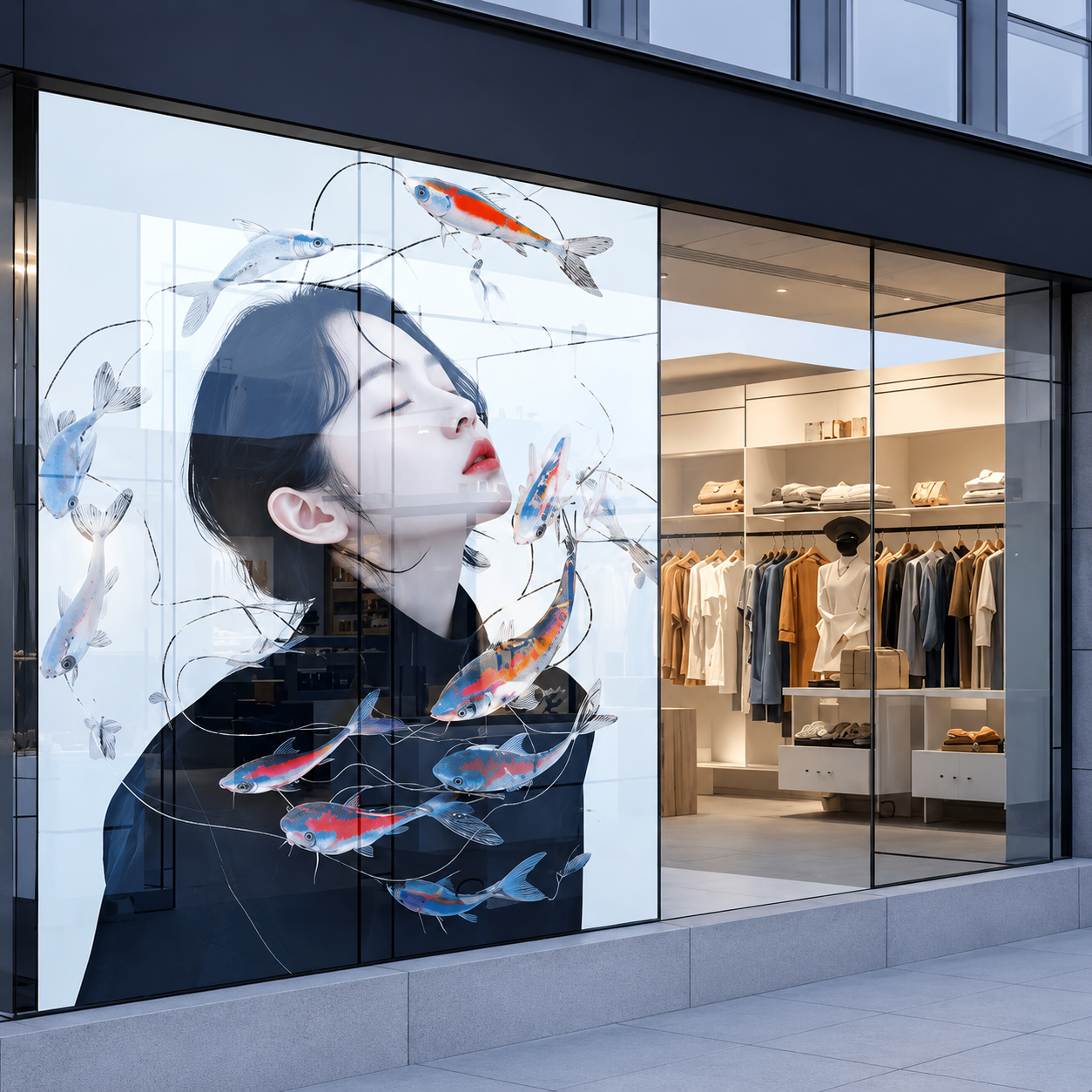

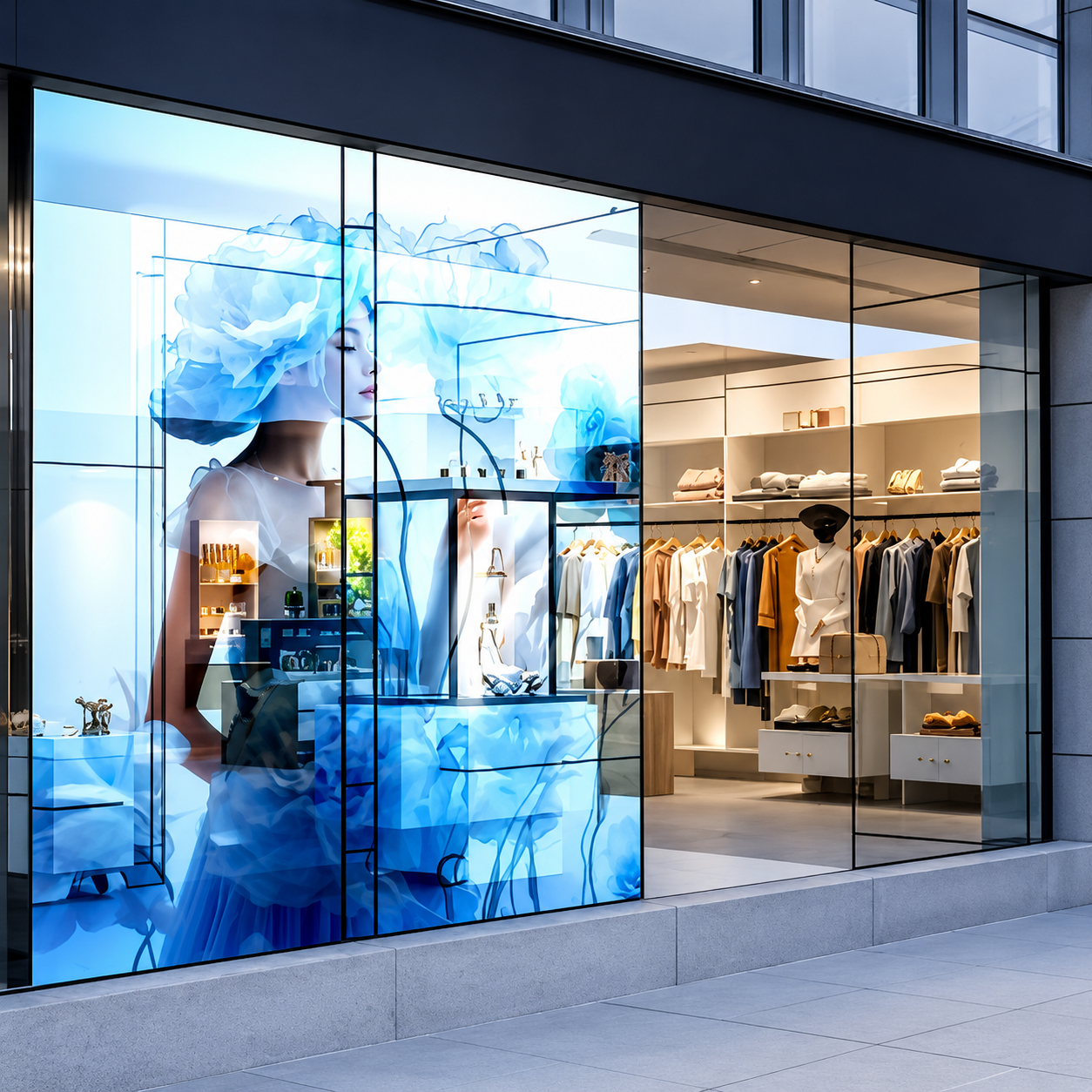

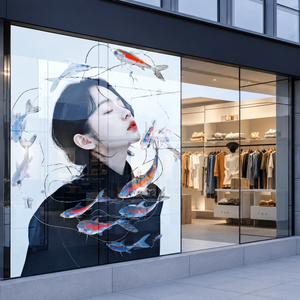

Retail Window Installation
Glass Facade Installation
Glass Balustrade Installation
Elevator Glass Installation
Custom Shaped Applications
Product details
Specifications
- Product Name
- Transparent LED Film
- Display Technology
- Flexible Transparent LED Film
- Pixel Pitch Options
- P3.9P4.6P5.9
- Transparency
- 64% – 78%
- Brightness
- 3000–3500 nits
- Refresh Rate
- ≥3840Hz
- Grey Scale
- 16 Bit
- Viewing Angle
- 160°+
- Film Thickness
- 2mm
- Weight
- Approximately 2.5kg/m²
- Module Width Options
- 351.5mm352mm357mm500mm
- Module Length Options
- 1000mm1250mm1500mm
- Maximum Display Height
- Up to 3000mm using stacked modules
- Control System
- Novastar / Colorlight
- Input Voltage
- 200–240V AC
- IP Rating
- IP50
- Features
- Ultra-Thin Film ConstructionDirect-to-Glass Adhesive InstallationFlexible and Bendable DesignCustom Cuttable for Unique ShapesMaintains Natural Daylight TransmissionSuitable for Existing and New Glass Structures
