FLAGSHIP STORES, SHOPPING CENTRES
Retail LED Display
Retail LED Displays are designed to help brands create engaging visual experiences within retail environments, shopping centres and commercial spaces.
Built for Retail Storytelling
Showcase promotions, advertising campaigns, seasonal content and brand storytelling with maximum visual impact in flagship stores, luxury boutiques and shopping centre feature walls.
Seamless Premium Presentation
The slim die-cast aluminium cabinet design provides a seamless appearance and excellent colour uniformity.
Fine Pixel Pitch
Available in P1.53, P1.86, P2.0, P2.5 and P4.0, suitable for both close-viewing and large-format installations.

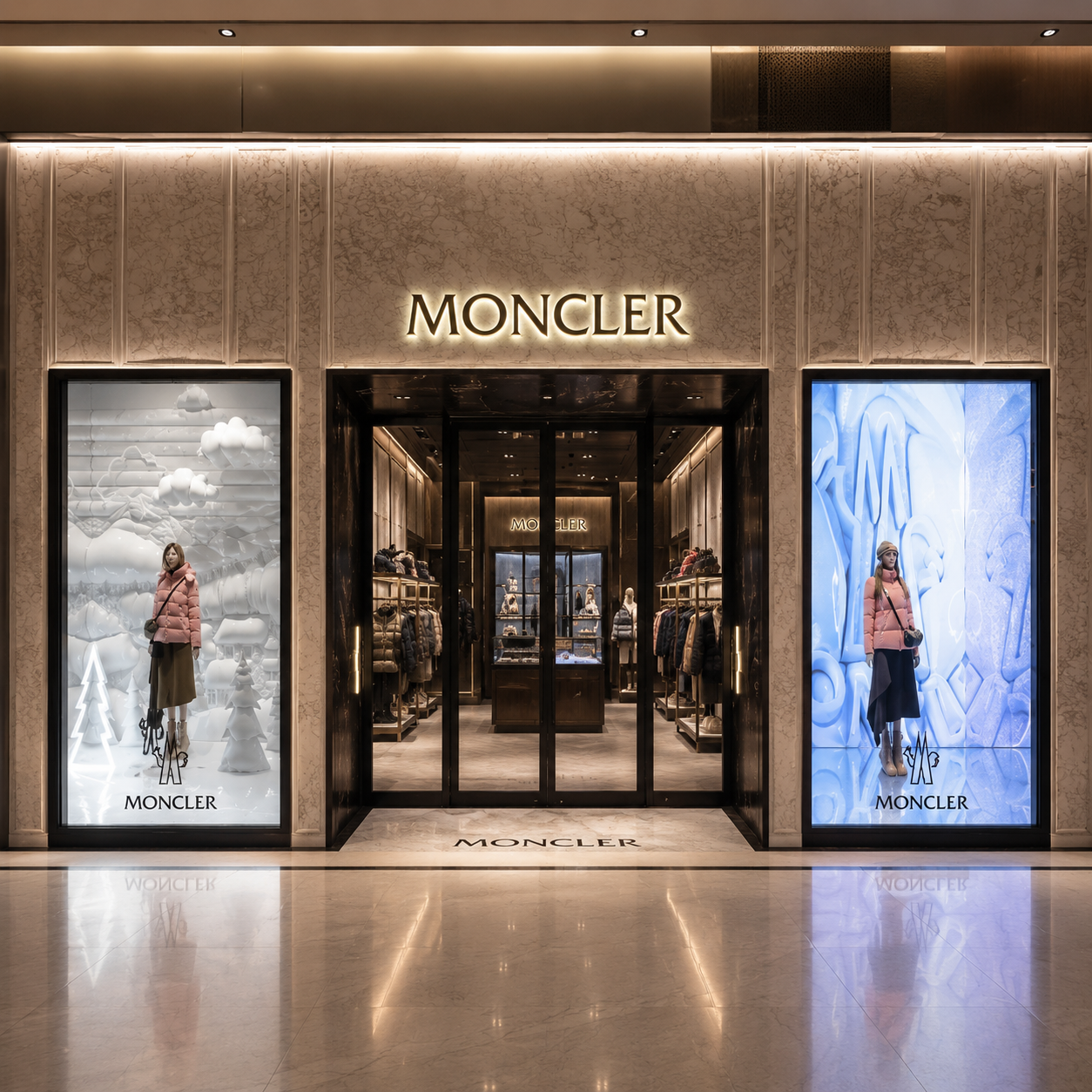

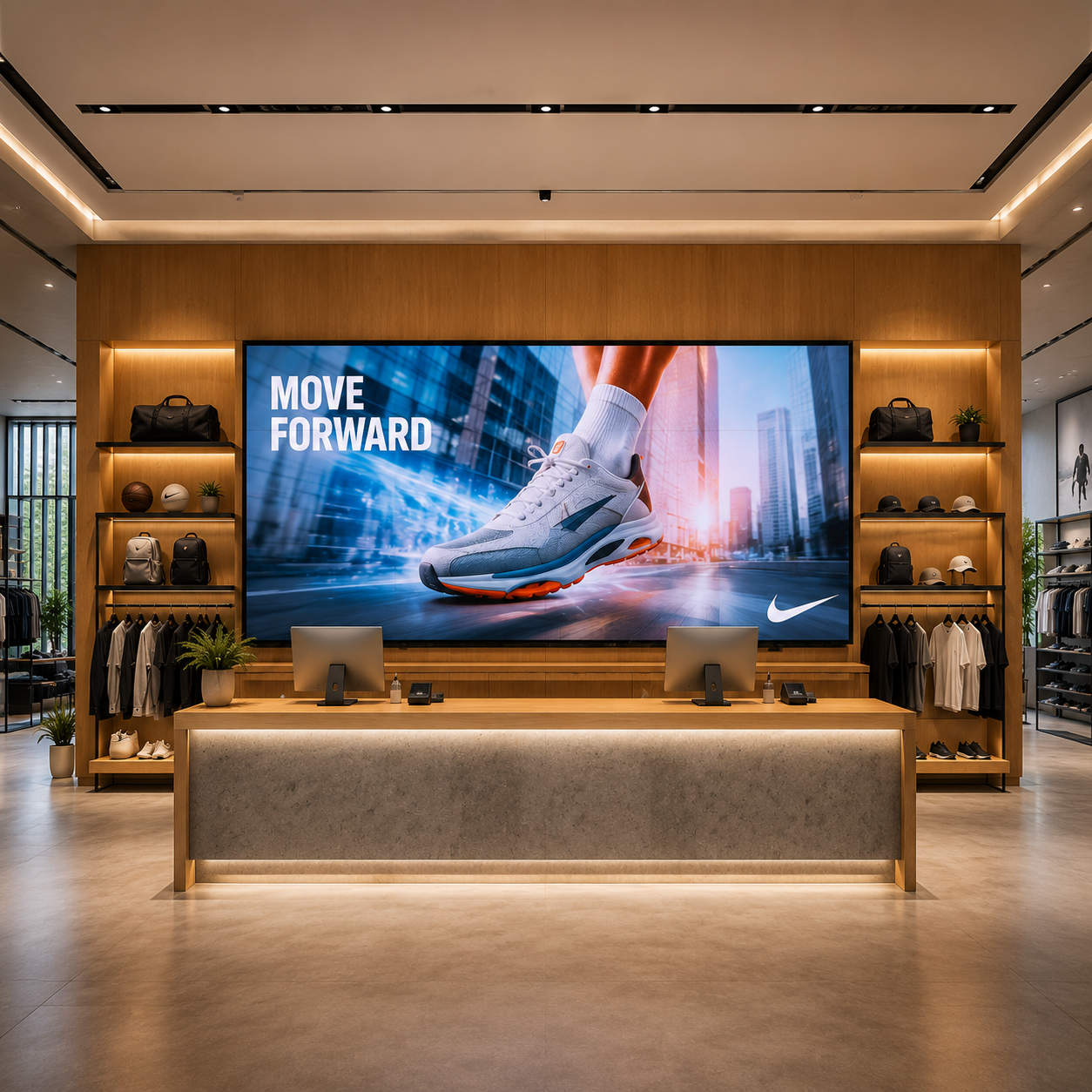

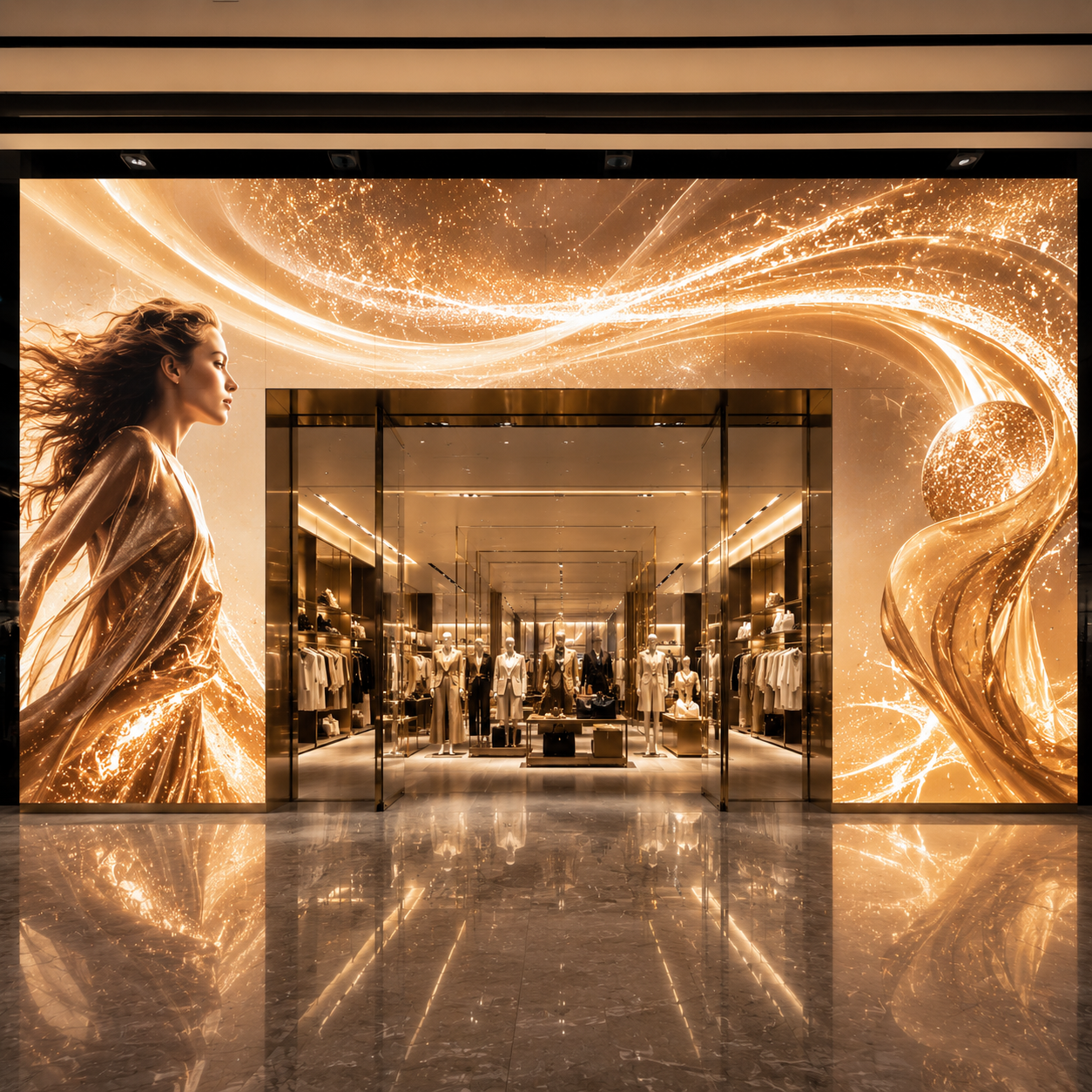

Storefront, Feature Wall or In-Store
Whether used as a digital storefront, feature wall or in-store media display, front-service maintenance keeps servicing simple.
Intro
Overview
Key Features
- High-resolution LED display for retail environments
- Seamless cabinet design for premium presentation
- Fine pixel pitch options for close viewing
- Front-service maintenance
- Flexible sizing and configuration options
Retail LED Displays are designed to help brands create engaging visual experiences within retail environments, shopping centres and commercial spaces. Combining seamless LED technology with high-resolution image quality, these displays enable retailers to showcase promotions, advertising campaigns, seasonal content and brand storytelling with maximum visual impact.
Available in a range of fine pixel pitches, Retail LED Displays are suitable for both close-viewing and large-format installations. The slim die-cast aluminium cabinet design provides a seamless appearance, making the system ideal for flagship stores, luxury boutiques, shopping centre feature walls and high-end retail environments.
With high refresh rates, excellent colour reproduction and front-service maintenance, Retail LED Displays deliver reliable performance while maintaining a premium visual presentation. Whether used as a digital storefront, feature wall or in-store media display, the system provides a modern and flexible solution for today's retail environments.
Applications
- 01Retail Stores
- 02Shopping Centres
- 03Luxury Boutiques
- 04Brand Flagship Stores
- 05Fashion Retailers
- 06Showrooms
- 07Duty Free Stores
- 08Automotive Showrooms
- 09Commercial Spaces
Installation Options
Front Fixed Installation
Front Service Access
Custom Mounting Structures to suit project requirements
Product details
Specifications
- Product Type
- Retail LED Display
- Available Pixel Pitch Options
- P1.53, P1.86, P2.0, P2.5, P4.0
- LED Technology
- SMD LED
- Pixel Configuration
- 1R1G1B
- Module Dimensions
- 320 × 160 mm
- Standard Cabinet Dimensions
- 640 × 480 × 40.6 mm
- Cabinet Material
- Die-Cast Aluminium
- Cabinet Weight
- Approx. 5.7 kg
- Service Access
- Front Service
- Brightness
- Up to 600 nits
- Viewing Angle (H/V)
- 140° / 140°
- Grey Scale
- 12–16 Bit Adjustable
- Refresh Rate
- ≥3840Hz
- Frame Frequency
- 50 / 60Hz
- Brightness Adjustment
- 0–100% (Manual / Automatic / Scheduled)
- Colour Temperature
- 3000K–9500K Adjustable
- Input Voltage
- 100–240V AC
- Maximum Power Consumption
- 360W/m²
- Average Power Consumption
- 90W/m²
- IP Rating
- IP20
- Operating Temperature
- -10°C to +40°C
- Operating Humidity
- 10%–90% RH
- Storage Temperature
- -40°C to +60°C
- Storage Humidity
- 10%–90% RH
- Customisation
- Custom cabinet dimensions, screen sizes, mounting structures and control systems are available to suit project requirements.
- Certifications
- CE, RoHS, SAA
