R20-5 Recessed Magnetic Track

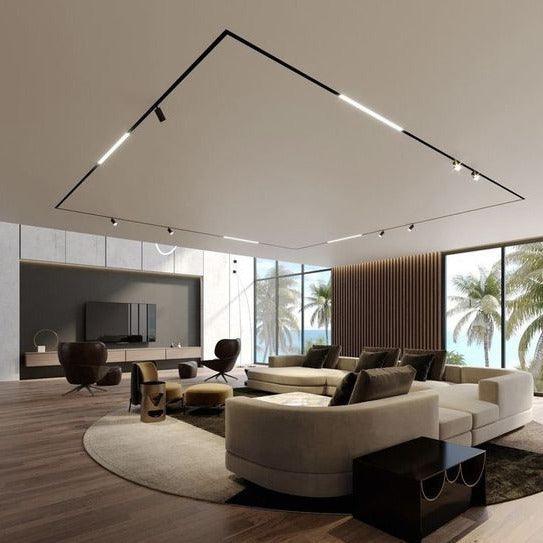

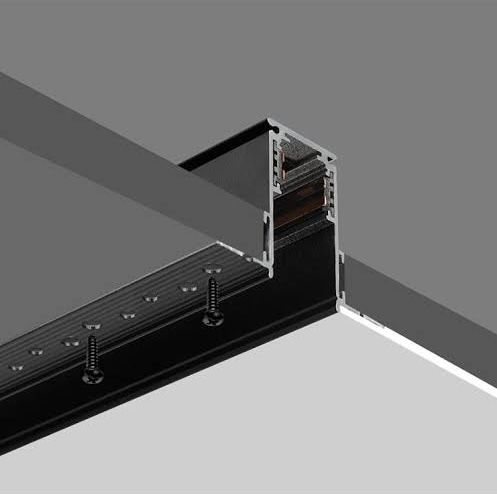

This recessed magnetic track is specifically designed for projects where the gypsum board ceiling has already been installed, but an embedded magnetic track lighting solution is still required. Installation involves cutting the finished gypsum board ceiling to fit the track, followed by plastering and surface finishing to achieve a flush, integrated ceiling appearance. Once completed, the track sits neatly within the ceiling, providing a clean and stable mounting base for compatible magnetic lighting modules.
Before selecting this option, it is essential to ensure that there is sufficient ceiling cavity depth behind the gypsum board and that no structural beams or obstructions are present. If the gypsum board has not yet been installed, a pre-plaster recessed magnetic track system is recommended. If the ceiling space is limited or site conditions do not allow for recessed installation, a surface-mounted magnetic track system is the most suitable alternative.
- Customisable
- Worldwide shipping
- Secure Payment
TYPE: Recessed magnetic lighting channel (Post-plaster installation)
Light Source: Requires DC48V magnetic track LED products

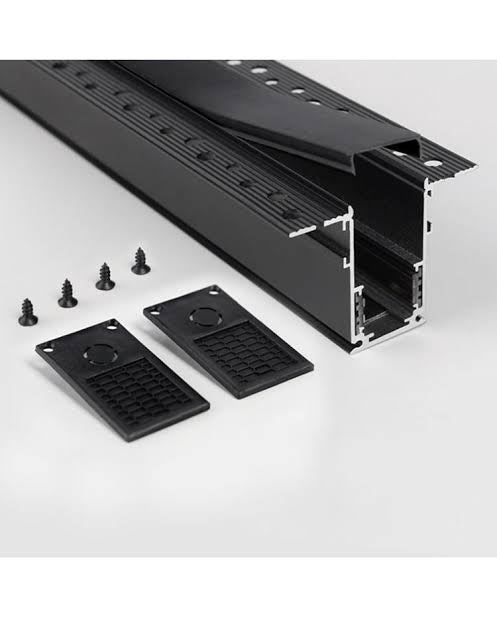

Body: Extruded aluminium magnetic track channel designed for recessed installation after gypsum board is already installed. The track is fixed into pre-cut ceiling slots and finished with plaster to achieve a clean, flush ceiling appearance. Power feed profiles connect to a remote DC48V driver, with intermediate profiles linking to the power feed. Inner and left/right corner options are available. Finished in white or black, with a black internal channel for improved visual control. Profiles can be cut on site to suit installation requirements.
Finish: White, Black

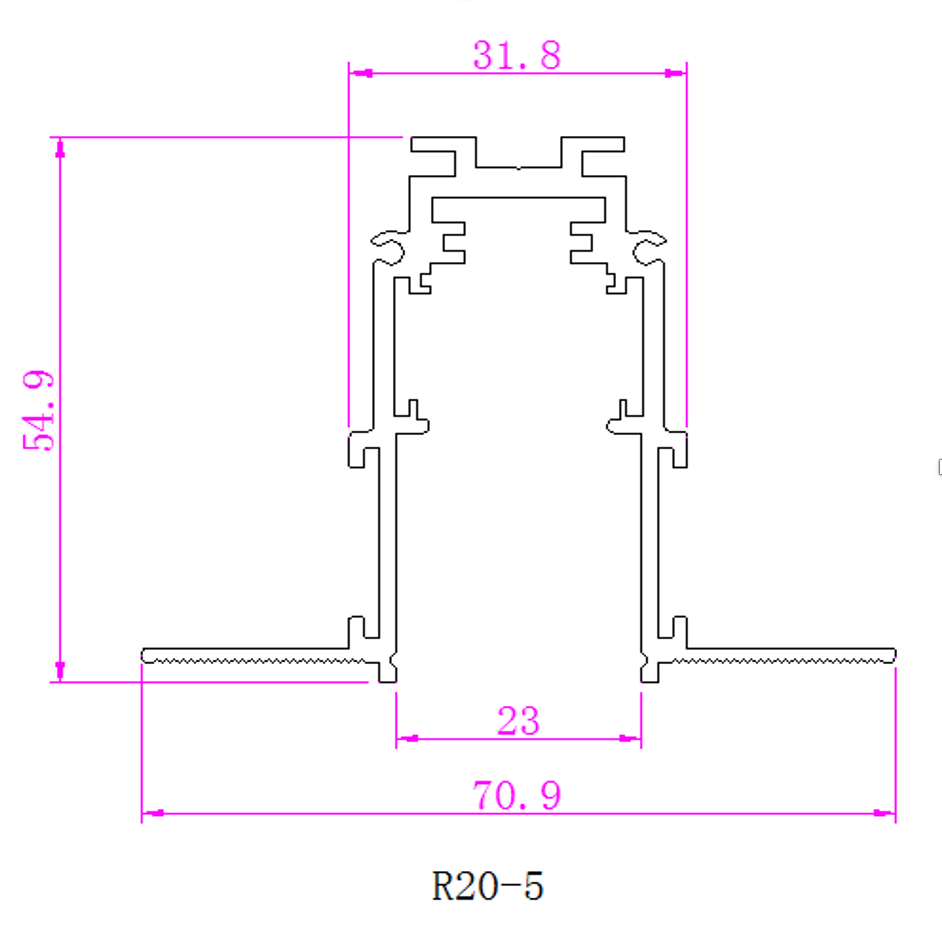

Dimensions (L × W × H):
Recessed Feed Unit Profile – 1000 / 2000 / 3000 mm × W70.9 × H54.9mm
IP: 20
Information: This version is designed for projects where gypsum board is already installed. Adequate ceiling cavity depth and clearance from structural beams are required. If ceiling conditions do not allow, pre-plaster or surface-mounted magnetic track options are recommended. For further details, please contact us.
Lead Time & Delivery
Our products are made or prepared to order to ensure quality and precision.
Lead times vary depending on stock availability, production schedule, and delivery location.
In-Stock Items
- Melbourne Metro: 1–2 business days
- Other Australian locations: 2–5 business days
- Remote areas (including Hobart & Cairns): 5–7 business days
Made-to-Order / Backordered Items
- Standard production & delivery: 8–12 weeks
- Airfreight option available: 4–5 weeks (additional cost may apply)
International Shipping
All international orders are built to meet local electrical standards.
- Air Freight: approx. 3–4 weeks (production + air transit)
- Sea Freight: approx. 8–12 weeks (production + sea transit)
For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.
