GLASS FACADES, LUXURY RETAIL
High Transparency LED Mesh Display
High Transparency LED Mesh Display is a premium transparent LED solution designed for large glass facades, luxury retail environments and architecturally sensitive projects where transparency and aesthetics are critical.

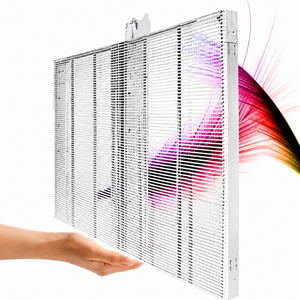

Side-Mounted LED Technology
Advanced side-mounted LED technology and a slim frameless structure achieve up to 80% transparency, significantly higher than conventional LED mesh displays.
The Architecture Stays the Focus
Minimal visual obstruction gives a cleaner appearance from both inside and outside the building, so the display complements the architecture rather than dominating it.
Daytime Brightness
Standard brightness of 4500 to 5000 nits, with a high brightness option of 5300 to 5800 nits, keeps content visible on large glass facades.
Engineered for Premium Projects
Designed for luxury retail stores, shopping centre atriums, corporate headquarters, airports and landmark developments where design quality and digital communication must coexist.
Intro
Overview
Key Features
- Advanced side-mounted LED technology
- Higher transparency than standard LED mesh displays
- Slim frameless cabinet design
- High brightness for daytime visibility
- Suitable for large glass facades
High Transparency LED Mesh Display is a premium transparent LED solution designed for large glass facades, luxury retail environments and architecturally sensitive projects where transparency and aesthetics are critical.
Utilising advanced side-mounted LED technology and a slim frameless structure, the display achieves significantly higher transparency than conventional LED mesh displays while maintaining excellent brightness and visual impact. The result is a cleaner appearance with minimal visual obstruction, allowing the architecture itself to remain the focal point.
Unlike standard Transparent LED Mesh Displays that prioritise cost efficiency and general retail applications, High Transparency LED Mesh Display is engineered for projects where architectural integration, premium presentation and long-term visual quality are equally important.
Its lightweight construction and high transparency make it ideal for luxury retail stores, shopping centre atriums, corporate headquarters, airports, automotive showrooms and large glass facade installations.
Available in custom sizes and multiple pixel pitch options, the system provides a premium digital display solution for projects where design quality and digital communication must coexist.
Why Choose High Transparency LED Mesh Display?
High Transparency LED Mesh Display is designed for projects where the display should complement the architecture rather than dominate it.
Compared with standard Transparent LED Mesh Displays, the side-mounted LED structure provides higher transparency, reduced visual obstruction and a cleaner appearance when viewed from both inside and outside the building.
For premium retail environments, large glass facades and landmark commercial developments, it offers an exceptional balance between architectural aesthetics and digital communication.
Applications
- 01Luxury Retail Stores
- 02Flagship Brand Stores
- 03Glass Facades
- 04Corporate Headquarters
- 05Shopping Centre Atriums
- 06Airports
- 07Automotive Showrooms
- 08Museums & Exhibition Spaces
Installation Options

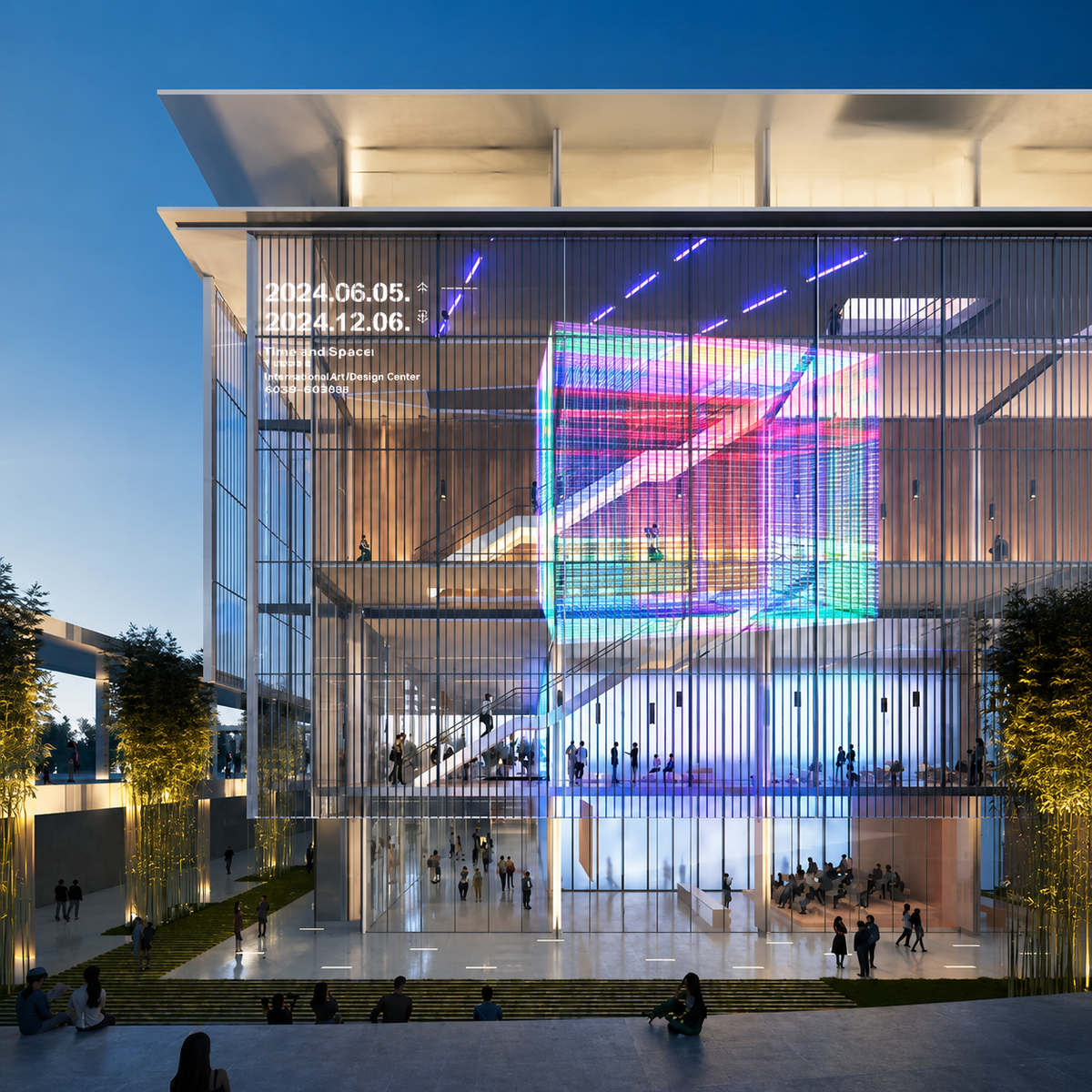

Glass Facade Installation
Suspended Installation

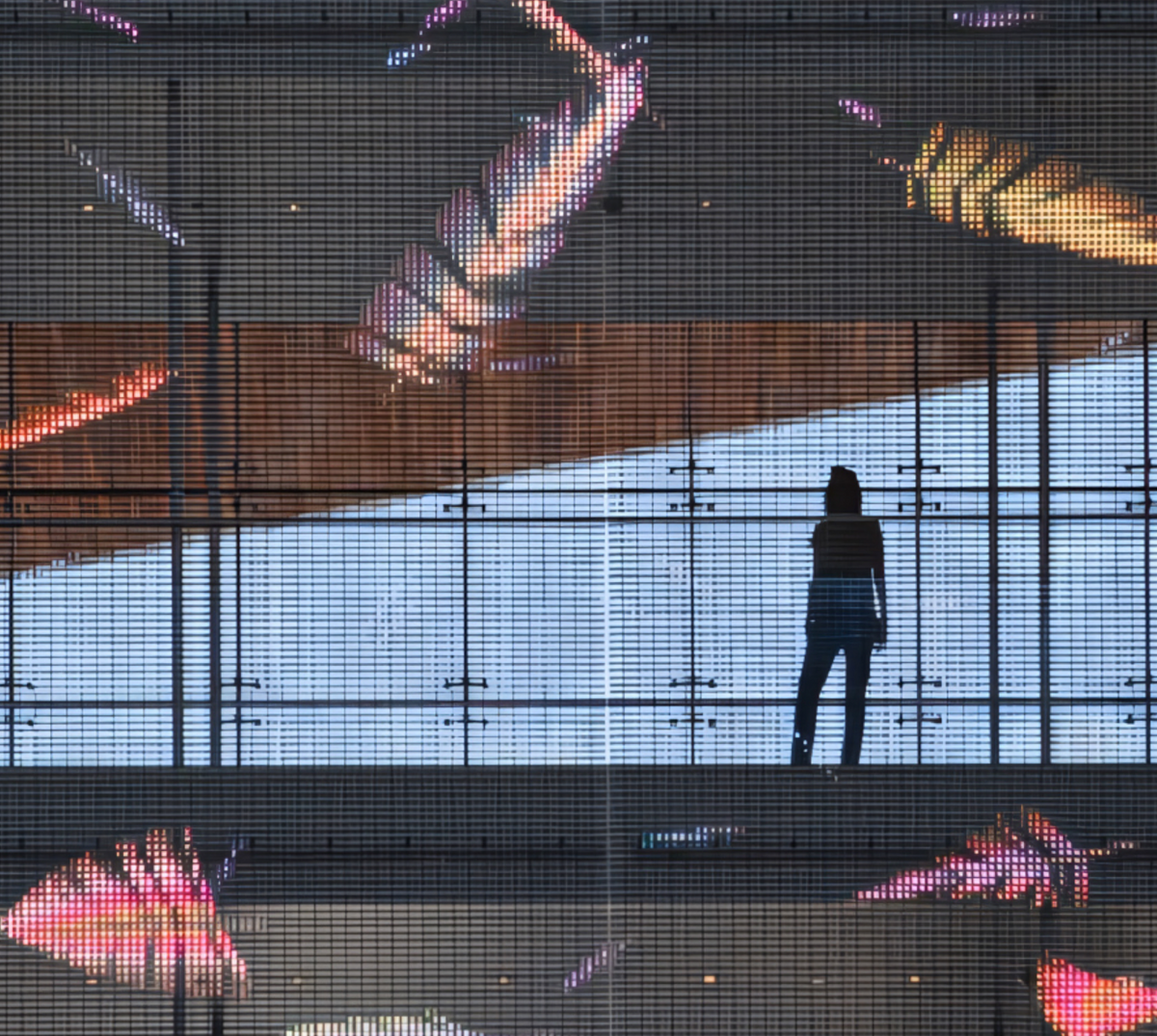

Luxury Retail Storefront Installation
Shopping Centre Atrium Installation
Custom Architectural Integration
Product details
Specifications
- Product Type
- High Transparency LED Mesh Display
- Display Technology
- Side-Mounted SMD LED Mesh Technology
- Available Models
- PVP2.6 / PVP3.3 / PVP3.9
- Pixel Pitch Options
- PVP2.6: 2.61mm × 5.68mmPVP3.3: 3.38mm × 6.94mmPVP3.9: 3.91mm × 7.82mm
- Transparency
- PVP2.6: Approx. 72%PVP3.3: Approx. 78%PVP3.9: Up to 80%
- Brightness
- Standard Brightness: 4500–5000 nitsHigh Brightness Option: 5300–5800 nits
- LED Type
- SMD1516 (Standard Brightness)SMD1515 (High Brightness Option)
- Refresh Rate
- ≥3840Hz
- Cabinet Dimensions
- 813 × 500 mm813 × 750 mm1000 × 500 mm1000 × 750 mm1156 × 500 mm
- Display Size
- Customisable
- Maximum Power Consumption
- 800W/m²
- Average Power Consumption
- 240W/m²
- Operating Environment
- Indoor & Outdoor Applications
- Control System
- Compatible with Novastar and Colorlight Control Systems
- Customisation Options
- Custom SizesPixel Pitch OptionsBrightness ConfigurationsInstallation Configurations
