ARCHITECTURAL DOWNLIGHT

NOVA 75 Twin Trimless Square

The NOVA 75 Twin Trimless Square is designed for architectural spaces requiring higher illumination, enhanced flexibility and a seamless ceiling appearance.

Designed and engineered exclusively by Lucretia, the NOVA 75 Twin Trimless Square features two independently adjustable lighting modules within a trimless plaster-in frame, delivering greater lighting coverage while maintaining a clean architectural aesthetic. The seamless installation allows the luminaire to integrate effortlessly into the ceiling, making it ideal for premium residential, hospitality, retail, gallery and commercial environments.

Powered by the proprietary NOVA Optical Engine, each lighting module incorporates a deep recessed light source, precision reflector and advanced anti-glare optics to provide exceptional visual comfort, accurate beam control and consistent lighting performance. Multiple beam angles, colour temperatures and intelligent control options allow the luminaire to adapt to a wide range of architectural lighting applications.

Designed for long-term reliability, the modular construction enables the LED modules and drivers to be serviced or replaced from below the ceiling without removing the complete luminaire, simplifying maintenance while extending the product's service life.

The NOVA 75 Twin Trimless Square combines seamless architectural integration with the flexibility and performance of a twin-head lighting solution.

Reflector finish White
Request a quote Specification sheet PDF
THE NOVA SERIES · THE COLLECTION FILMWatch on Vimeo

01 / DESIGN & PERFORMANCE

Engineered for Visual Comfort and Lasting Performance.

Precision optics, exceptional colour rendering and a modular design come together to deliver superior lighting quality and long-term reliability.

01

Advanced Glare Control

Deep-recessed optics and a four-layer anti-glare design minimise direct glare for enhanced visual comfort.

02

Exceptional Colour Accuracy

With CRI 95+, colours, materials and textures are rendered with exceptional clarity and fidelity.

03

Modular & Serviceable Design

Replaceable LED modules and drivers simplify maintenance without replacing the entire luminaire.

NOVA series precision housing and thermal design

PROPRIETARY THERMAL DESIGN

Precision in Heat Management.

Featuring a proprietary heat sink design developed in-house, NOVA efficiently dissipates heat to maintain stable LED performance and long-term reliability.

View specifications

THE NOVA SERIES

Explore the NOVA Series

REFLECTORS AND ACCESSORIES

Reflector finishes and honeycomb louvre.

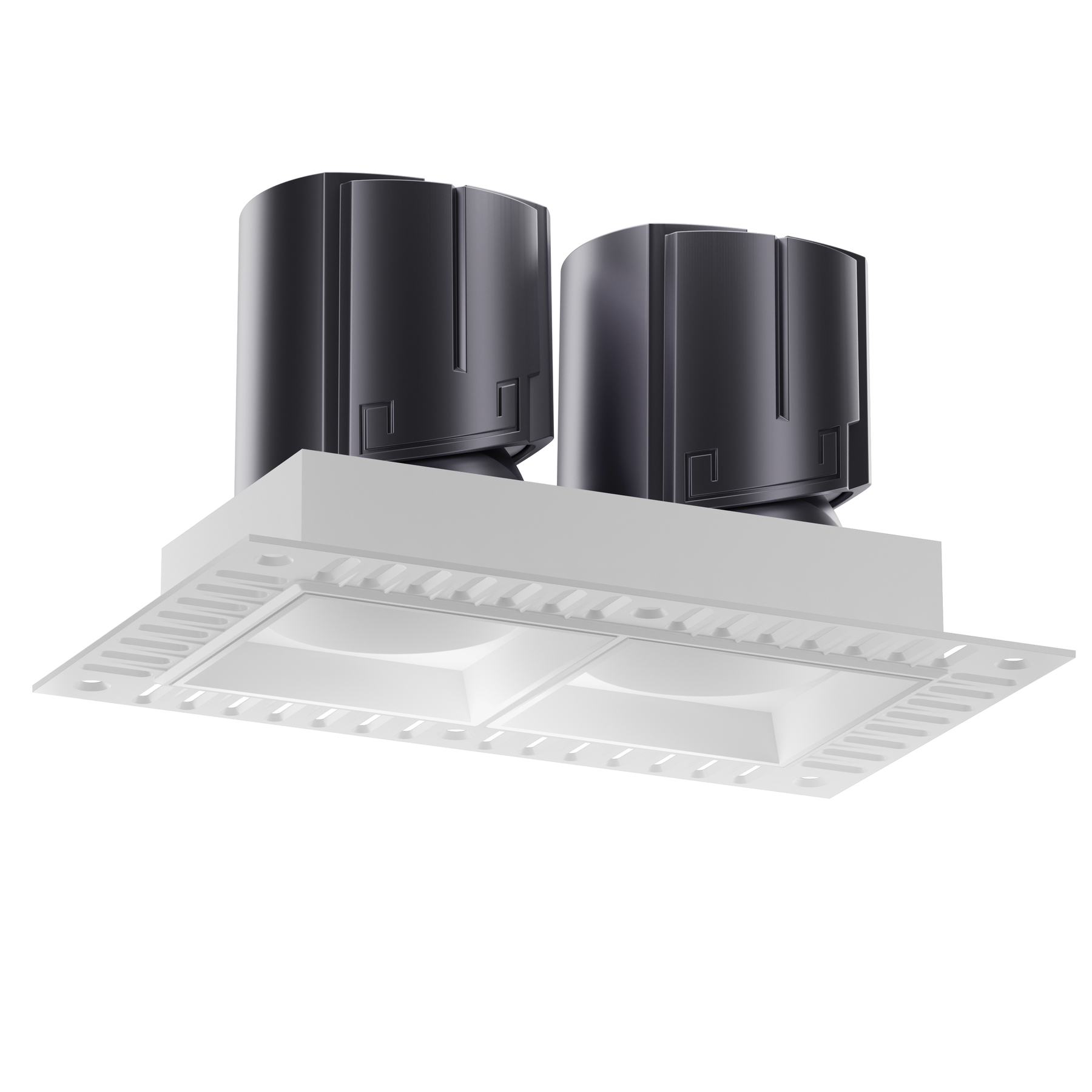

White

Reflector

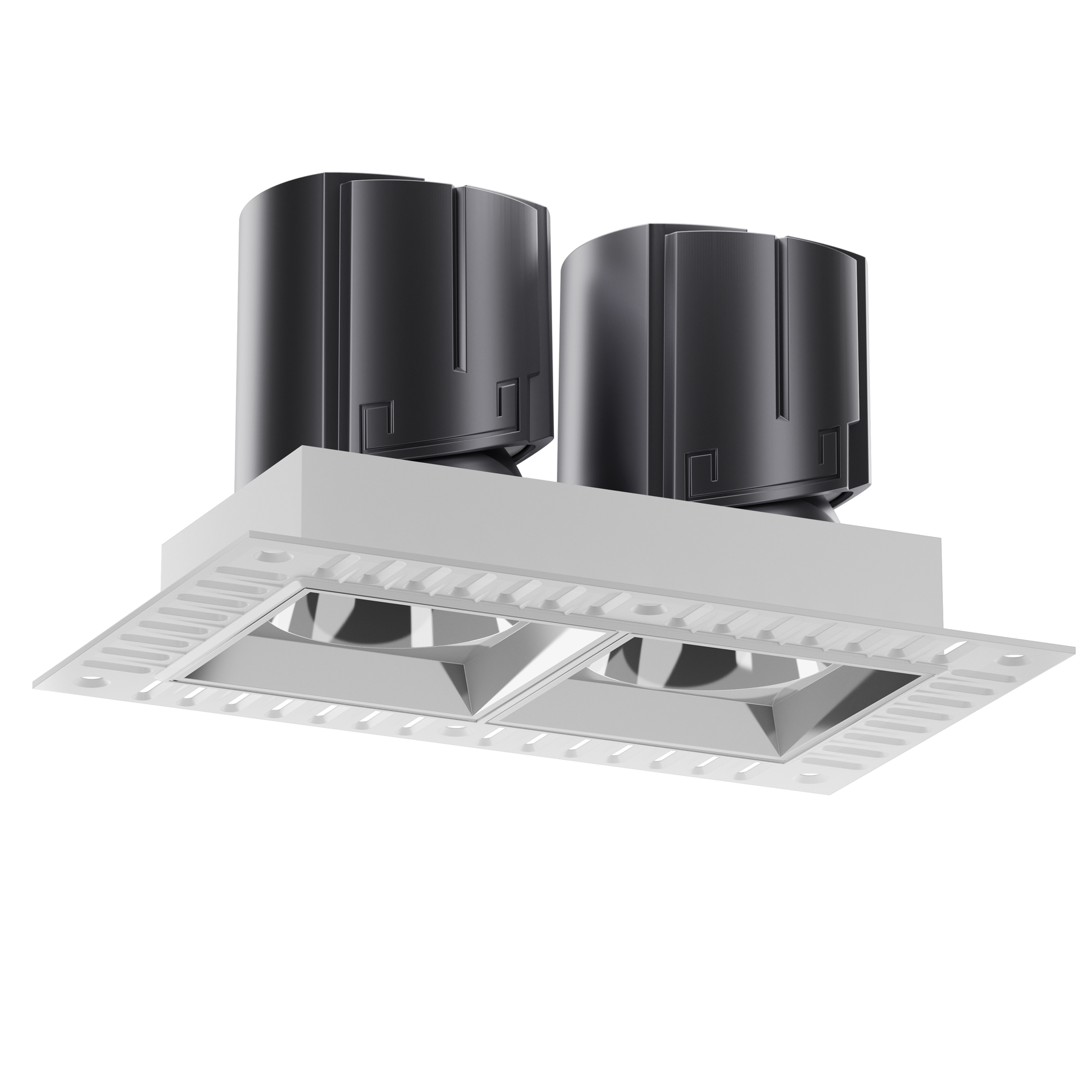

Silver

Reflector

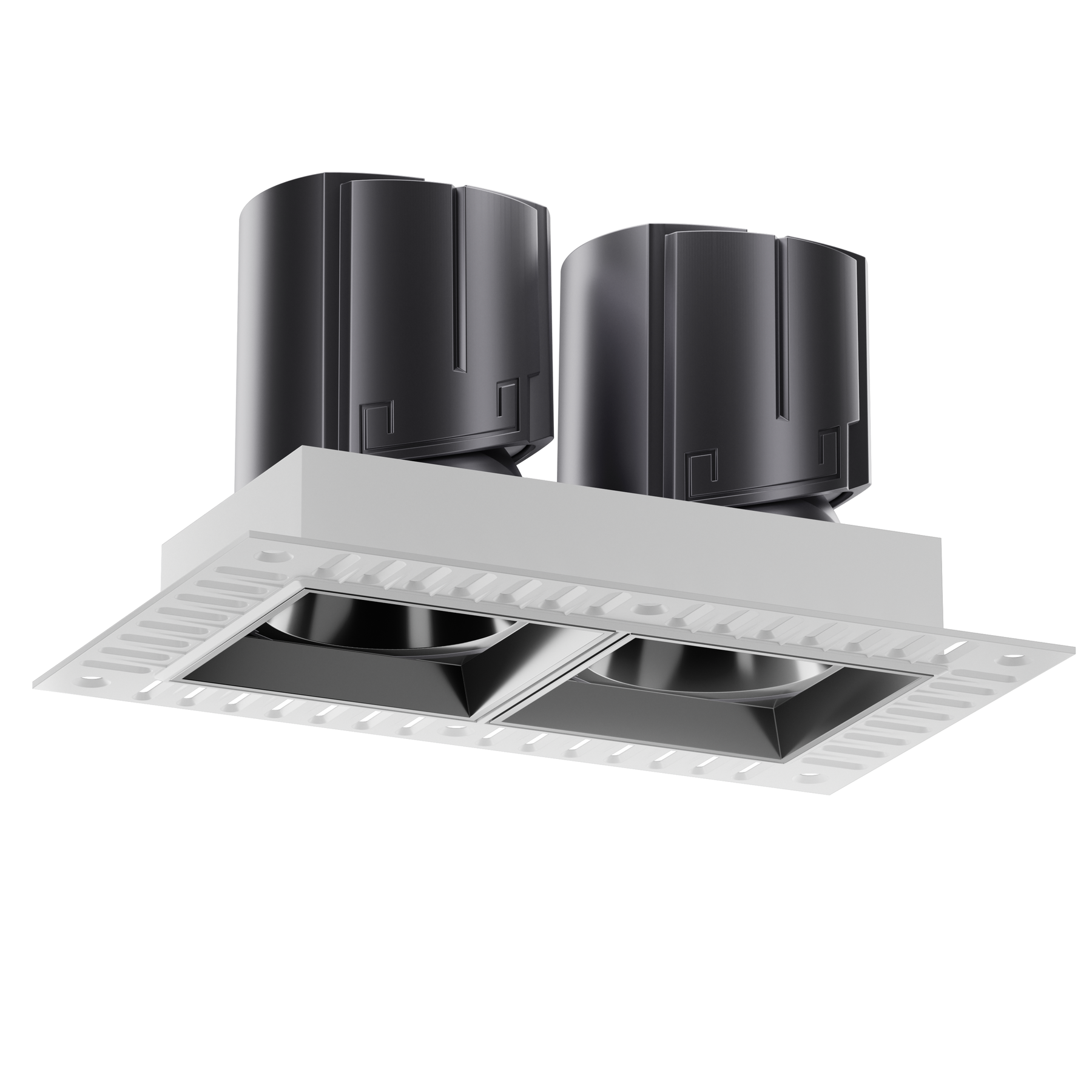

Metallic Black

Reflector

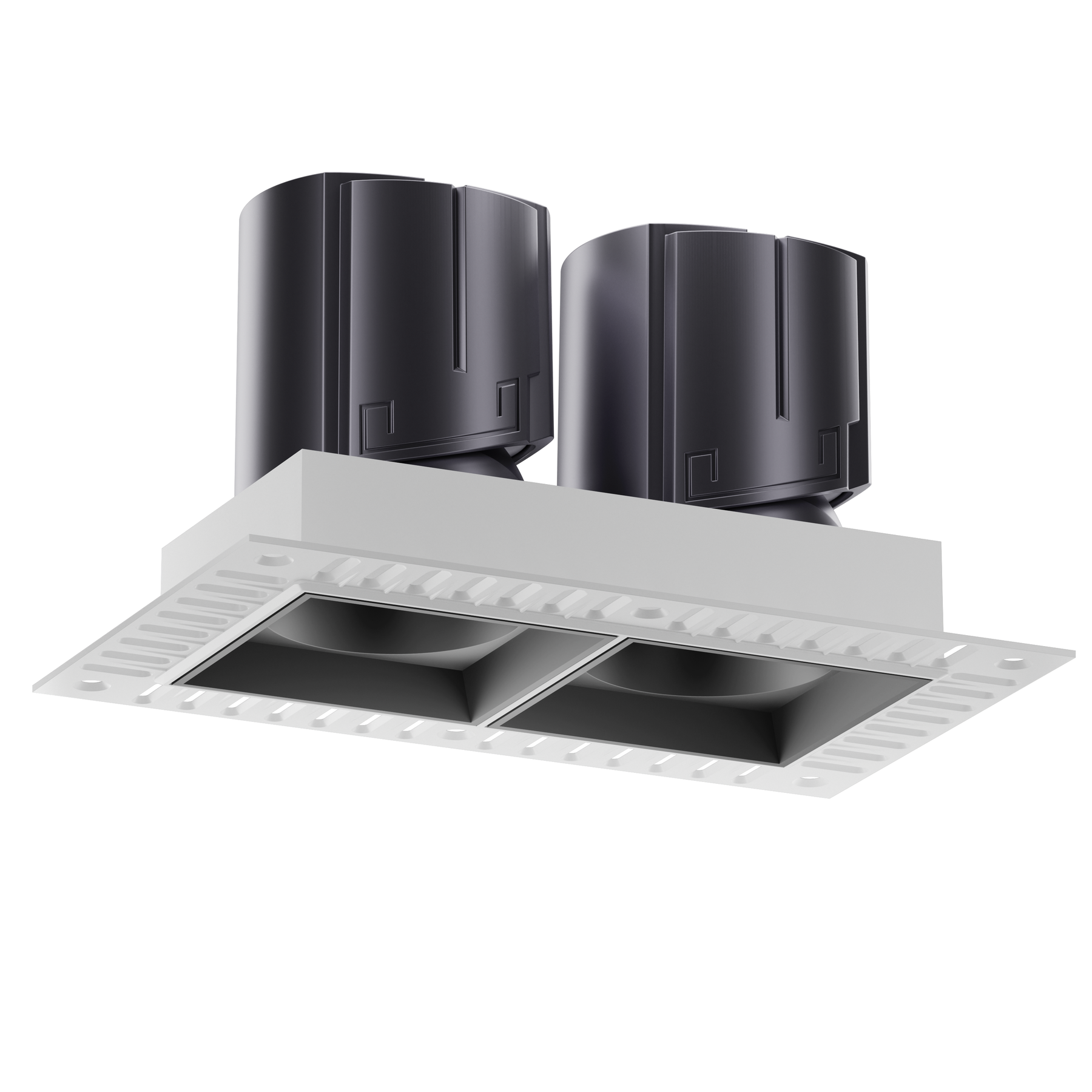

Matte Black

Reflector

Honeycomb louvre

Glare control accessory

02 / TECHNICAL DATA

Specifications.

Full specification sheet PDF
NOVA 75 Twin Trimless Square dimension drawing
DIMENSIONS IN MILLIMETRES
Type
Twin Trimless Architectural Recessed LED Downlight
Installation
Trimless Plaster-In
Power Options
2 × 12W · 2 × 15W
Luminous Flux
Up to 2100 lm
Luminaire Efficacy
Up to 70 lm/W
Colour Temperature
2700K · 3000K · 3500K · 4000K
Custom CCT available on request
Colour Rendering
CRI 95+
Colour Consistency
SDCM <3
Beam Angles
15° · 24° · 36° · 50°
Optical System
NOVA Optical Engine with deep recessed optics, precision reflector, anti-glare lens and optional honeycomb louvre
Glare Control
NOVA Visual Comfort System featuring advanced four-layer anti-glare technology
Light Source
High-performance LED module
Construction
Precision die-cast aluminium housing with integrated thermal management architecture
Reflector Finishes
White · Silver · Metallic Black · Matte Black
Custom finishes available on request
Control Options
TRIAC (Standard) · DALI · 0–10V · Casambi
Additional control protocols available on request
Input Voltage
220–240V AC · 50/60Hz
Dimensions
185 × 113 × H93 mm
Cut-Out
145 × 75 mm
Material
Die-cast Aluminium
Ingress Protection
IP44
Serviceability
LED modules and drivers replaceable from below the ceiling without removing the complete luminaire
Customisation
Custom beam angles, colour temperatures, reflector finishes and control solutions available for project requirements
Warranty
5-Year Warranty
Applications
Luxury Residential · Hospitality · Retail · Gallery · Museum · Commercial

03 / PROJECT ENQUIRIES

Tailored to Your Project.

From individual spaces to large-scale developments, we offer tailored solutions to meet the unique requirements of every project.

Our team can assist with product selection, technical specifications, customisation and project pricing.
