SUSPENDED CEILING INSTALLATIONS
LED Mesh Ceiling Display
The LED Mesh Ceiling Display is a suspended digital display solution designed for commercial interiors, stadium hospitality areas, shopping centres, airports, exhibition halls and entertainment venues.
Turn Ceilings Into Digital Canvases
By transforming ceiling spaces into dynamic digital canvases, the system creates immersive visual experiences without occupying valuable wall or floor areas.
Open Architectural Appearance
The lightweight transparent mesh structure delivers vibrant video content while maintaining an open architectural appearance, with 55% transparency.
Custom Shapes and Layouts
The modular design supports custom dimensions, curved configurations with a radius from 1000mm, internal and external corners, and circular, triangular and special-shaped layouts.
Made for Large Public Spaces
High brightness up to 4500 cd/m² and a refresh rate of 3840Hz or higher suit branding, advertising, wayfinding and event graphics in stadiums, airports and shopping centres.
Intro
Overview
Key Features
- Lightweight transparent LED mesh structure
- Designed for suspended ceiling installations
- 55% transparency for open architectural designs
- Custom shapes and layout configurations
- Curved and corner installation available
The LED Mesh Ceiling Display is a suspended digital display solution designed for commercial interiors, stadium hospitality areas, shopping centres, airports, exhibition halls and entertainment venues. By transforming ceiling spaces into dynamic digital canvases, the system creates immersive visual experiences without occupying valuable wall or floor areas.
Featuring a lightweight transparent mesh structure, the display delivers vibrant video content while maintaining an open architectural appearance. Its modular design supports custom dimensions, curved configurations and creative ceiling layouts, allowing architects and designers to seamlessly integrate digital media into modern commercial environments.
With high brightness LED technology, exceptional colour consistency and flexible installation options, the LED Mesh Ceiling Display is ideal for branding, advertising, wayfinding, event graphics and immersive digital experiences in large-scale public spaces.
Applications
- 01Commercial Buildings

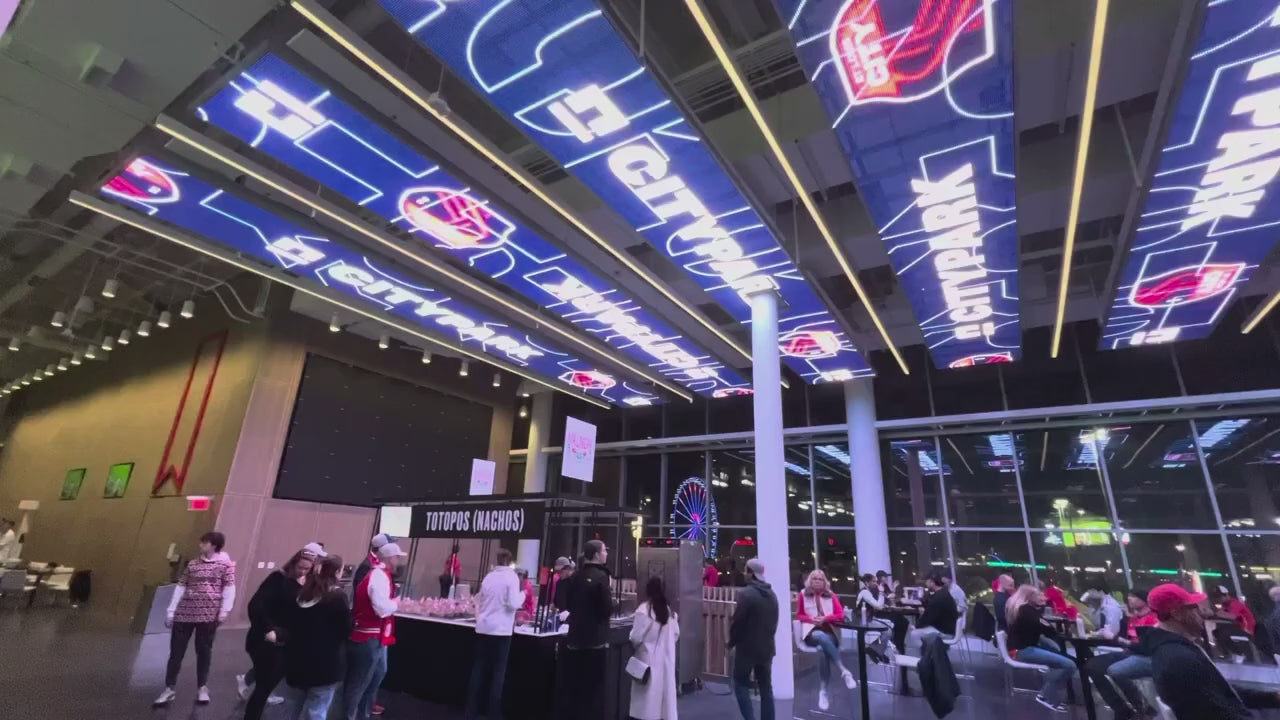

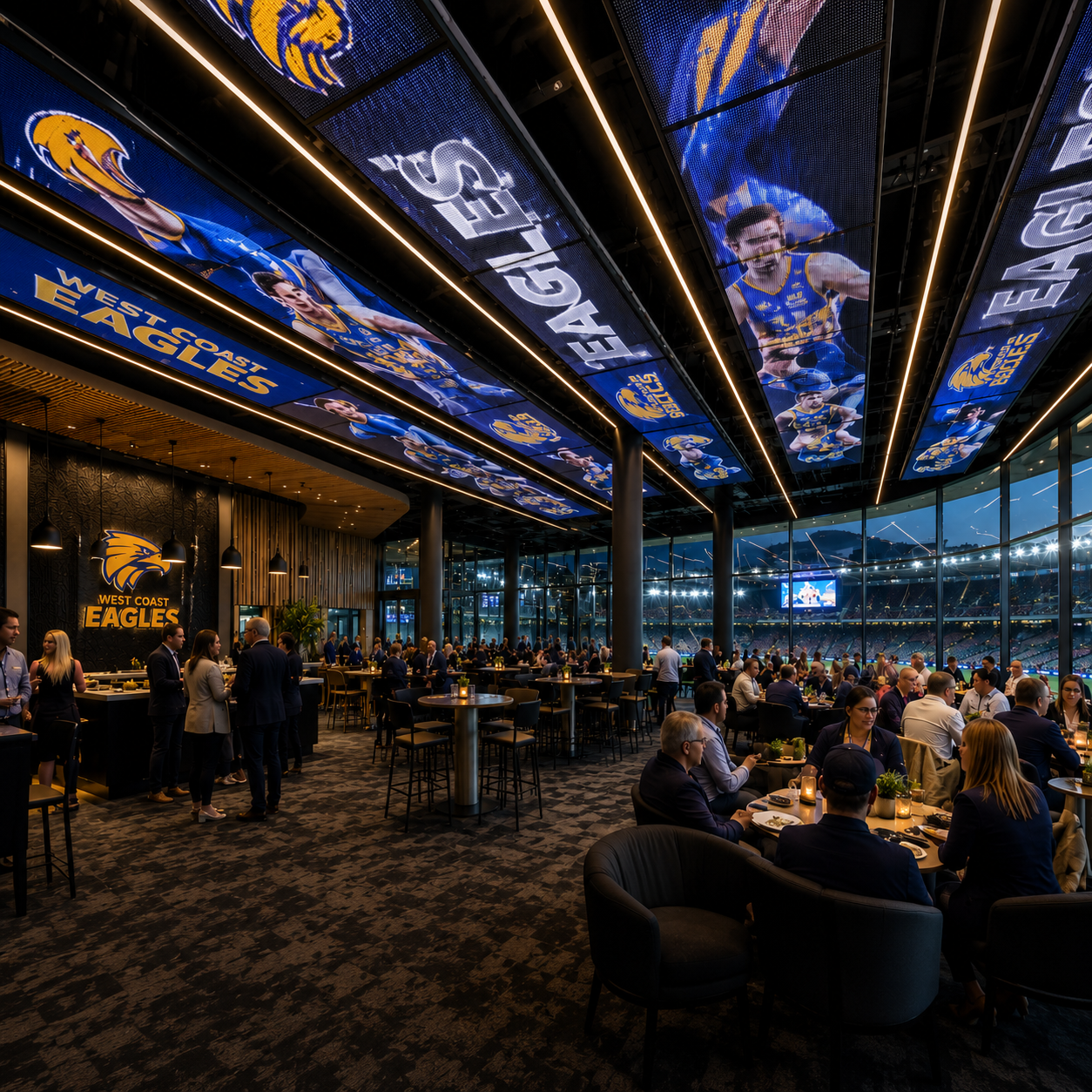

- 02Stadiums

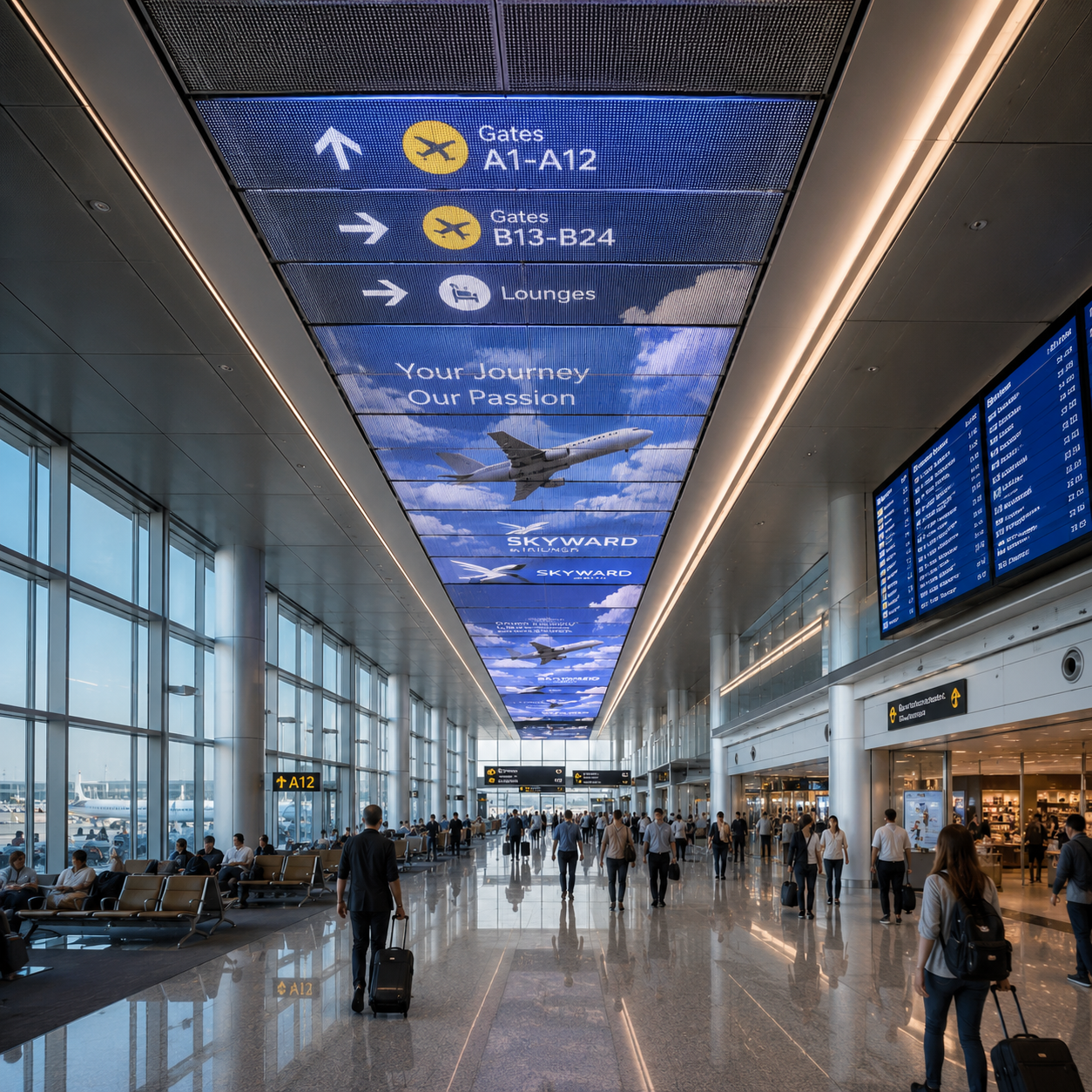

- 03Airports
- 04Shopping Centres
- 05Exhibition Halls
- 06Entertainment Venues
Installation Options
Suspended
Curved Installation
Internal Corner Installation
External Corner Installation
Product details

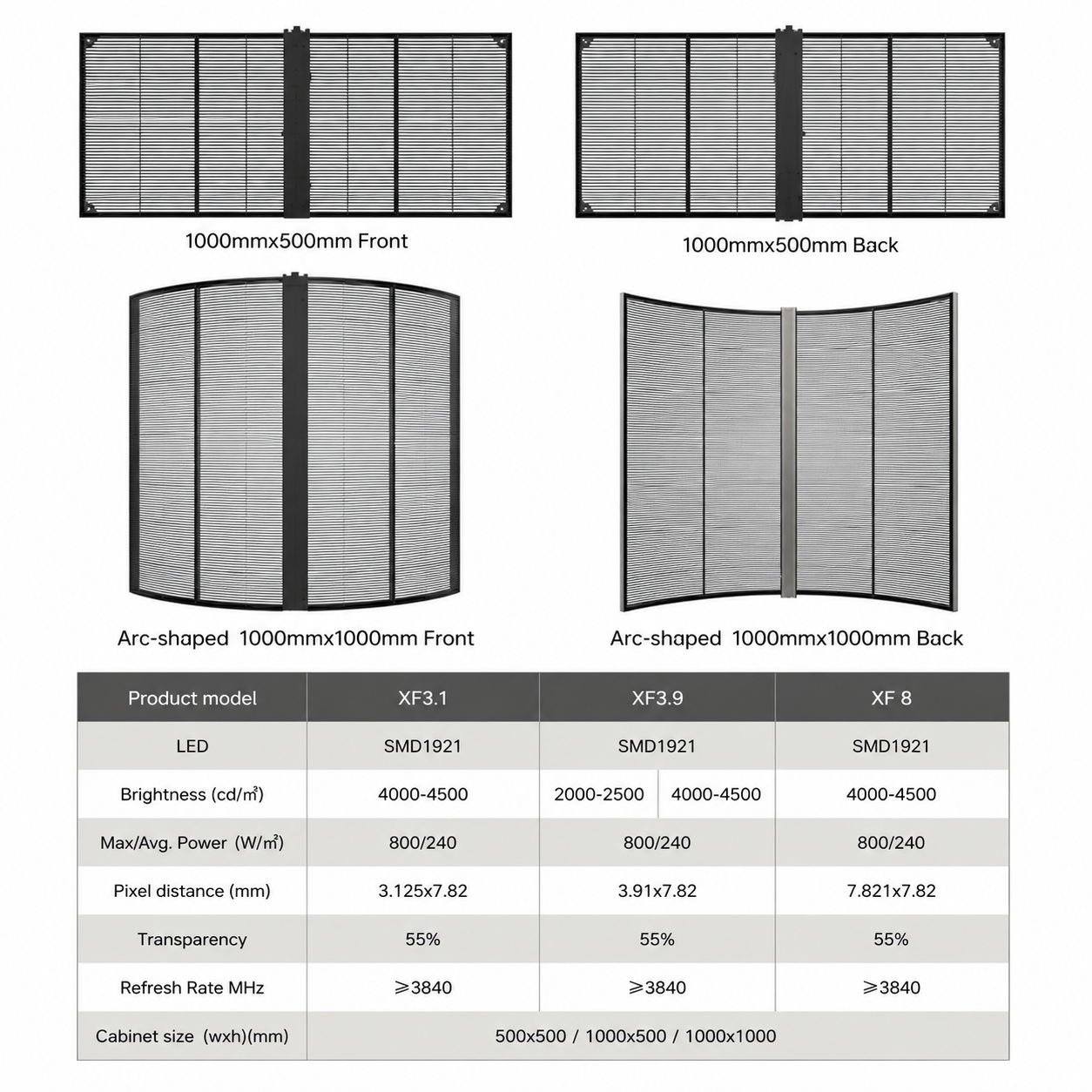

Specifications
- Product Name
- LED Mesh Ceiling Display
- Display Type
- Transparent LED Mesh Display
- Pixel Pitch Options
- P3.1 (3.125 × 7.82mm)P3.9 (3.91 × 7.82mm)P7.8 (7.821 × 7.82mm)
- LED Type
- SMD1921
- Brightness
- P3.1: 4000–4500 cd/m²P3.9: 2000–2500 cd/m²P7.8: 4000–4500 cd/m²
- Transparency
- 55%
- Refresh Rate
- ≥3840Hz
- Power Consumption
- Maximum: 800W/m²Average: 240W/m²
- Cabinet Sizes
- 500 × 500mm1000 × 500mm1000 × 1000mm
- Curved Radius
- R ≥ 1000mm
- Customisation
- Custom Width and HeightCircular ShapesTriangular ShapesParallelogram ShapesSpecial-Shaped Designs
