CORPORATE, RETAIL, EDUCATION
Indoor LED Video Wall
Designed for premium commercial environments, the Indoor LED Video Wall delivers seamless large-format visual communication for corporate, retail, education and public sector applications.
Seamless Large-Format Display
Engineered with high-performance SMD LED technology, the Indoor LED Video Wall delivers exceptional image clarity, vibrant colour reproduction and smooth motion performance for presentations, digital signage, brand experiences and real-time information display.
Any Size, Any Aspect Ratio
The modular cabinet design can be configured into virtually any screen size, resolution or aspect ratio. Custom cabinet dimensions, screen sizes, mounting structures and control systems are available to suit each project.
Die-Cast Aluminium Cabinets
Standard 640 × 480 × 40.6mm die-cast aluminium cabinets, approximately 5.7kg each, ensure precise panel alignment across the full wall.
Front-Service Access
Front-service access simplifies installation and ongoing maintenance. Brightness can be adjusted from 0 to 100% manually, automatically or on a schedule.
Intro
Overview
Key Features
- Modular cabinets for virtually any screen size
- Pixel pitch options from P1.53 to P4.0
- Die-cast aluminium cabinets for precise alignment
- Front-service access for installation and maintenance
- Refresh rate of 3840Hz or higher
Designed for premium commercial environments, the Indoor LED Video Wall delivers seamless large-format visual communication for corporate, retail, education and public sector applications. Engineered with high-performance SMD LED technology, it provides exceptional image clarity, vibrant colour reproduction and smooth motion performance, making it ideal for presentations, digital signage, brand experiences and real-time information display.
Featuring a modular cabinet design, the system can be configured into virtually any screen size, resolution or aspect ratio to suit the requirements of each project. Whether installed in a corporate lobby, boardroom, shopping centre, university, exhibition venue or control room, the display creates a powerful visual impact while maintaining reliable long-term operation.
Available in multiple pixel pitch options including P1.53, P1.86, P2.0, P2.5 and P4.0, the Indoor LED Video Wall provides flexible solutions for both close-viewing and large-format display applications. The die-cast aluminium cabinet construction ensures precise panel alignment, while front-service access simplifies installation and ongoing maintenance.
With high refresh rates, wide viewing angles and energy-efficient operation, the Indoor LED Video Wall delivers outstanding image quality and long-term reliability for professional commercial environments. Custom cabinet dimensions and screen configurations are available to accommodate unique architectural and project requirements.
Suitable for corporate headquarters, conference centres, retail environments, shopping centres, education facilities, museums, exhibition venues, control rooms and commercial developments throughout Australia.
Applications

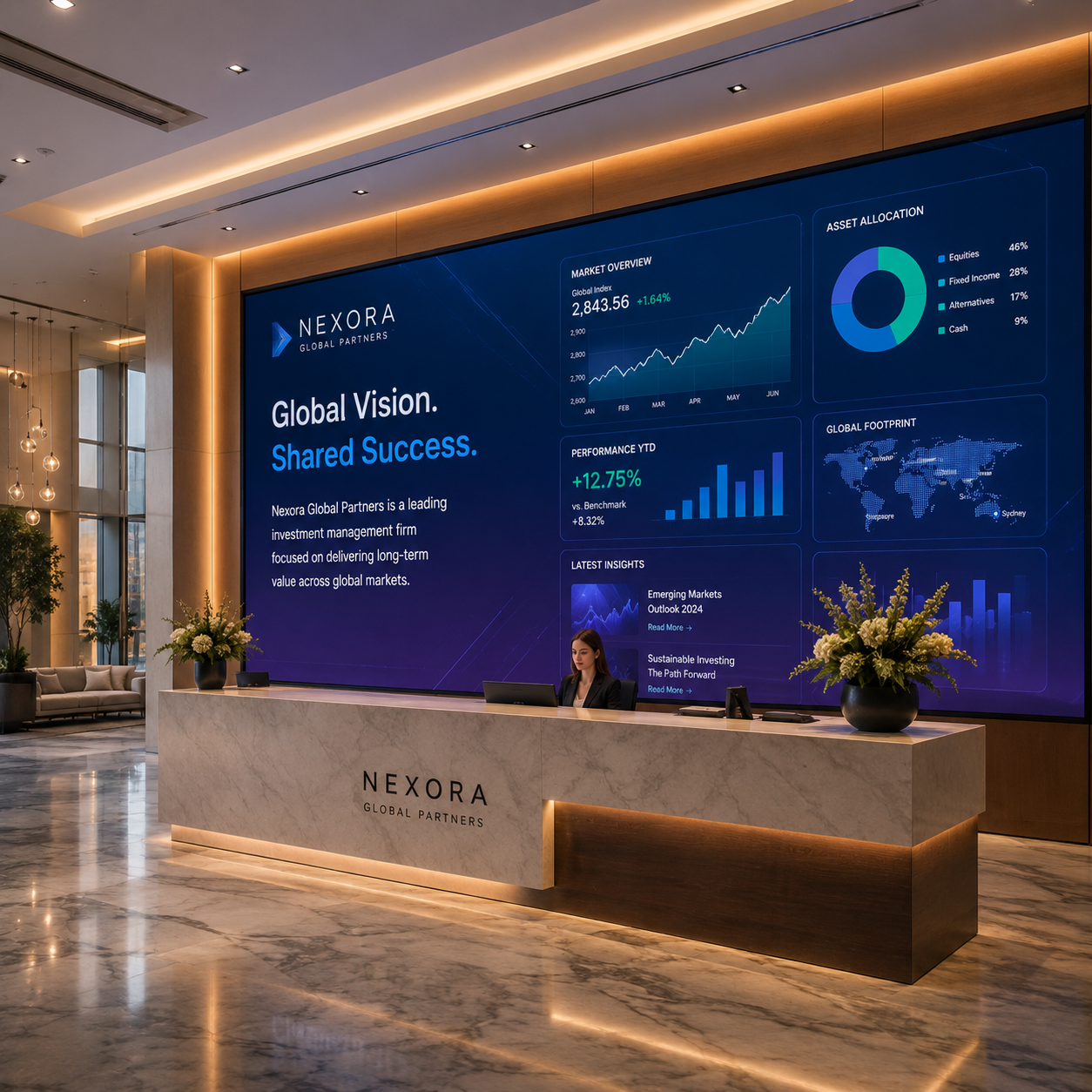

- 01Corporate Lobbies
- 02Conference Rooms
- 03Boardrooms
- 04Retail Stores

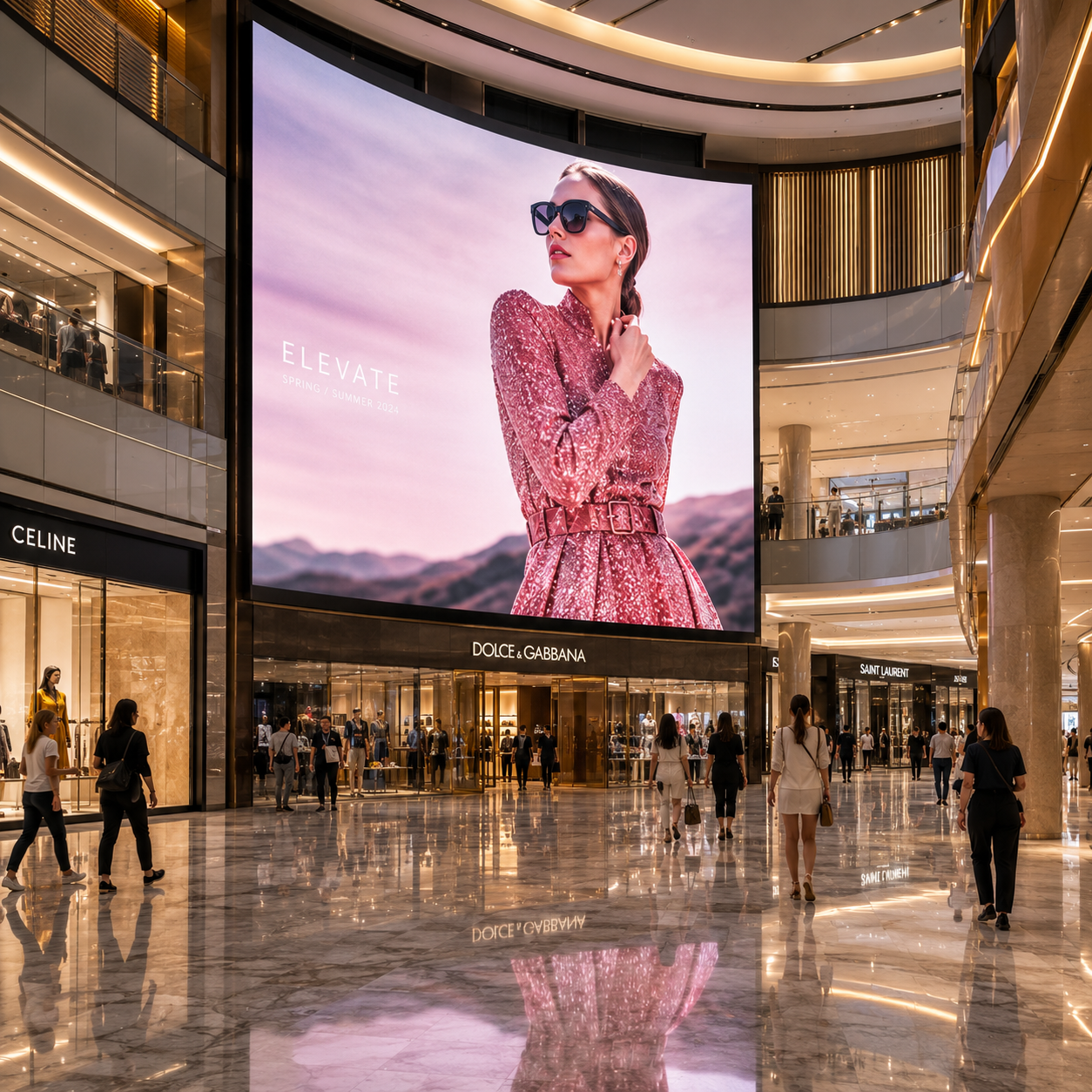

- 05Shopping Centres
- 06Universities
- 07Museums
- 08Exhibition Halls
- 09Control Rooms
- 10Public Spaces
Installation Options
Front Fixed Installation
Front Service Access
Custom Mounting Structures to suit project requirements
Product details
Specifications
- Product Type
- Indoor LED Video Wall
- Available Pixel Pitch Options
- P1.53P1.86P2.0P2.5P4.0
- LED Technology
- SMD LED
- Pixel Configuration
- 1R1G1B
- Module Dimensions
- 320 × 160 mm
- Standard Cabinet Dimensions
- 640 × 480 × 40.6 mm
- Cabinet Material
- Die-Cast Aluminium
- Cabinet Weight
- Approx. 5.7 kg
- Service Access
- Front Service
- Brightness
- Up to 600 nits
- Viewing Angle (H/V)
- 140° / 140°
- Grey Scale
- 12–16 Bit Adjustable
- Refresh Rate
- ≥3840Hz
- Frame Frequency
- 50 / 60Hz
- Brightness Adjustment
- 0–100% (Manual / Automatic / Scheduled)
- Colour Temperature
- 3000K–9500K Adjustable
- Input Voltage
- 100–240V AC
- Maximum Power Consumption
- 360W/m²
- Average Power Consumption
- 90W/m²
- IP Rating
- IP20
- Operating Temperature
- -10°C to +40°C
- Operating Humidity
- 10%–90% RH
- Storage Temperature
- -40°C to +60°C
- Storage Humidity
- 10%–90% RH
- Customisation
- Custom cabinet dimensions, screen sizes, mounting structures and control systems are available to suit project requirements.
- Certifications
- CE, RoHS, SAA
