LONG OPERATING HOURS, GLASS FACADES

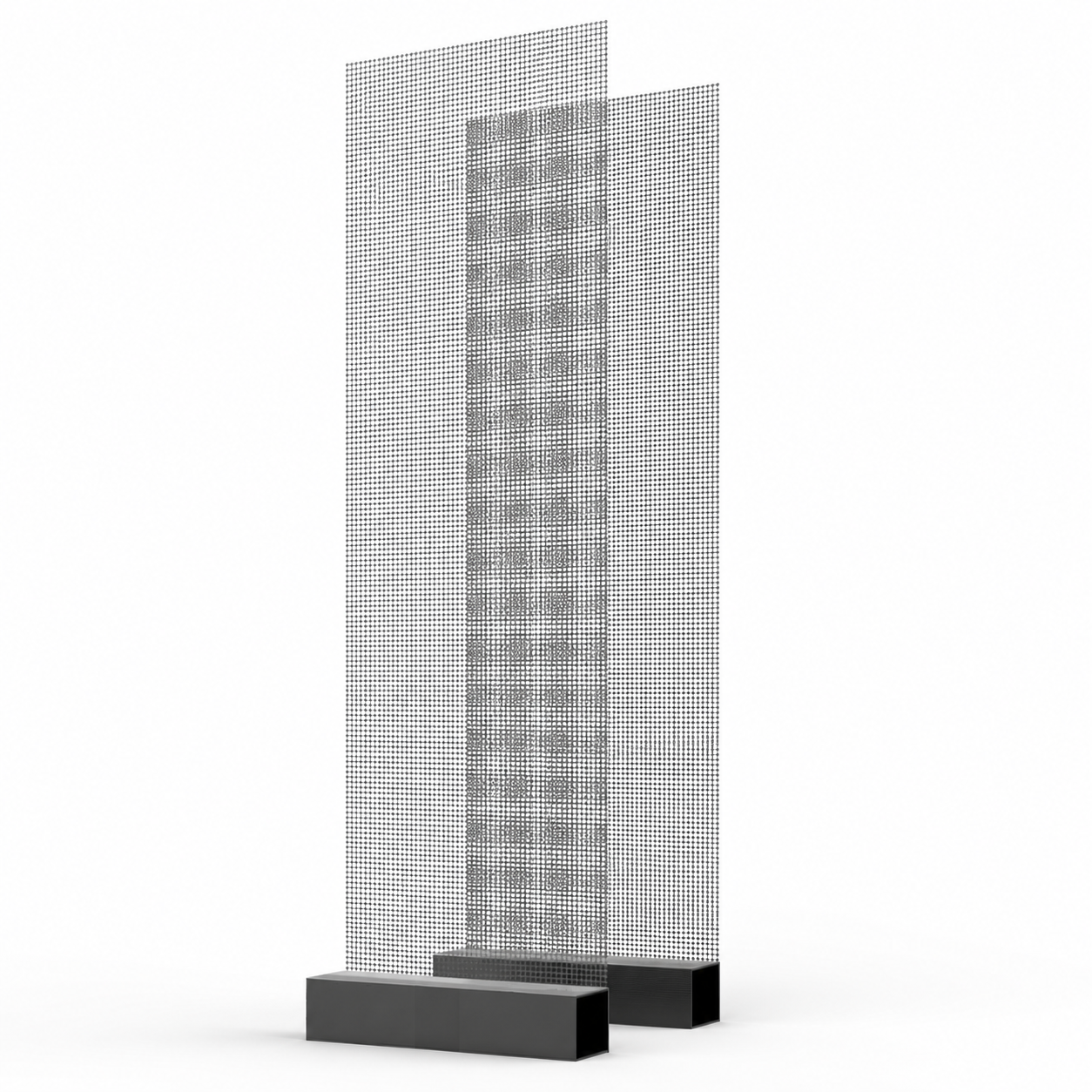

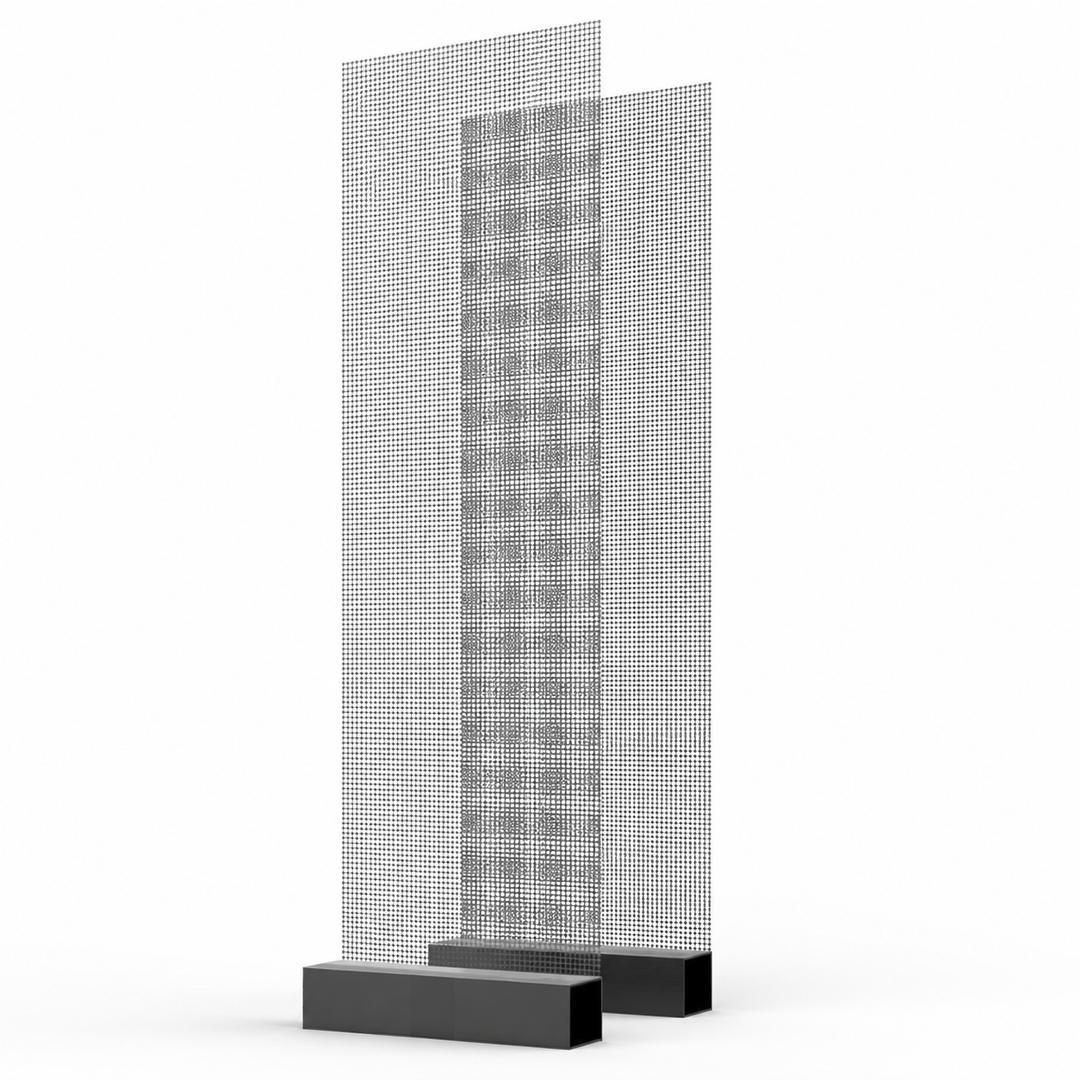

Holographic LED Display – X Series
Holographic LED Display – X Series is the premium COB version of our standard Holographic LED Display, developed for projects where energy efficiency, reduced heat generation and long daily operating hours are critical.
Premium COB Technology
The X Series is the premium COB version of our standard Holographic LED Display, delivering lower power consumption, improved thermal performance and enhanced long-term reliability.
Built for Long Operating Hours
COB technology reduces power consumption and heat generation while maintaining the same transparent visual effect, making it well suited to shopping centres, retail networks, airports and large-scale installations.
Transparent Floating Effect
With 70% to 88% transparency, digital content appears on the glass while preserving visibility, natural light and the original appearance of the glazing.
Behind-Glass Installation Recommended
The system can be mounted directly onto glass, suspended behind glazing, freestanding or double-sided. For the best visual result, installation behind glass is recommended.
Intro
Overview
Key Features
- Premium COB transparent display technology
- Lower power consumption than standard SMD displays
- Reduced heat generation
- Designed for long daily operating hours
- Suitable for flat, curved and custom-shaped glass
Holographic LED Display – X Series is the premium COB version of our standard Holographic LED Display, developed for projects where energy efficiency, reduced heat generation and long daily operating hours are critical.
While maintaining the same transparent floating display effect as traditional holographic LED displays, the X Series utilises advanced COB technology to deliver lower power consumption, improved thermal performance and enhanced long-term reliability.
Designed for retail windows, glass facades, shopping centres, commercial buildings, museums and architectural environments, the X Series allows digital content to appear on glass while preserving visibility, natural light and the original appearance of the glazing.
The system is lightweight, modular and available in multiple pixel pitch options. It can be mounted directly onto glass, suspended behind glazing, integrated into freestanding display structures or configured as a double-sided display for specialised applications.
For the best visual result, installation behind glass is recommended. This method creates a clean floating display effect while maintaining the architectural appearance of the glass.
Why Choose X Series?
Compared with our standard Holographic LED Display, the X Series is designed for projects that operate for extended hours each day.
COB technology helps reduce power consumption and heat generation while maintaining the same transparent visual effect, making it particularly suitable for shopping centres, retail networks, airports, commercial buildings and large-scale installations where operating efficiency is important.
Applications

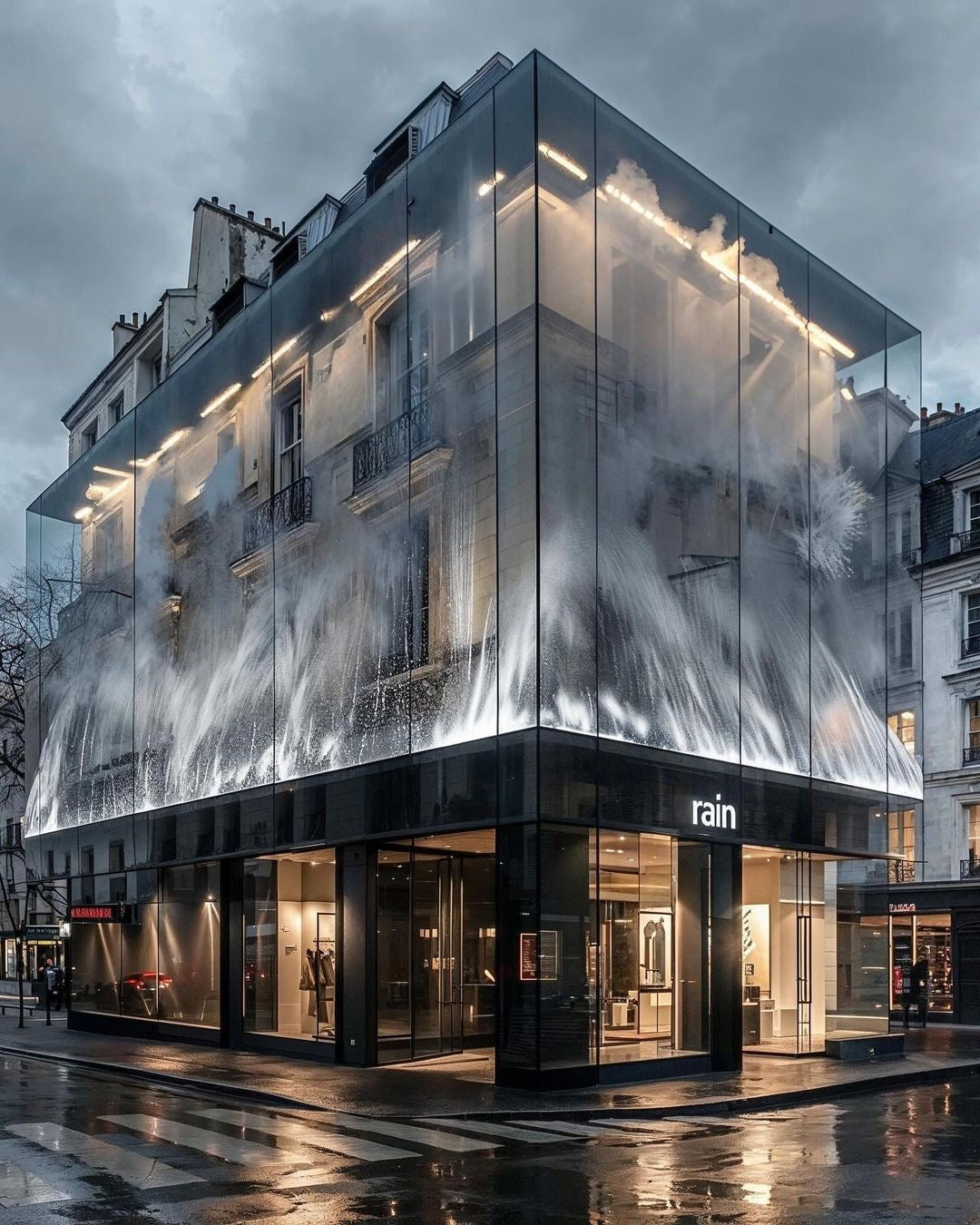

- 01Retail Windows
- 02Luxury Storefronts
- 03Shopping Centres

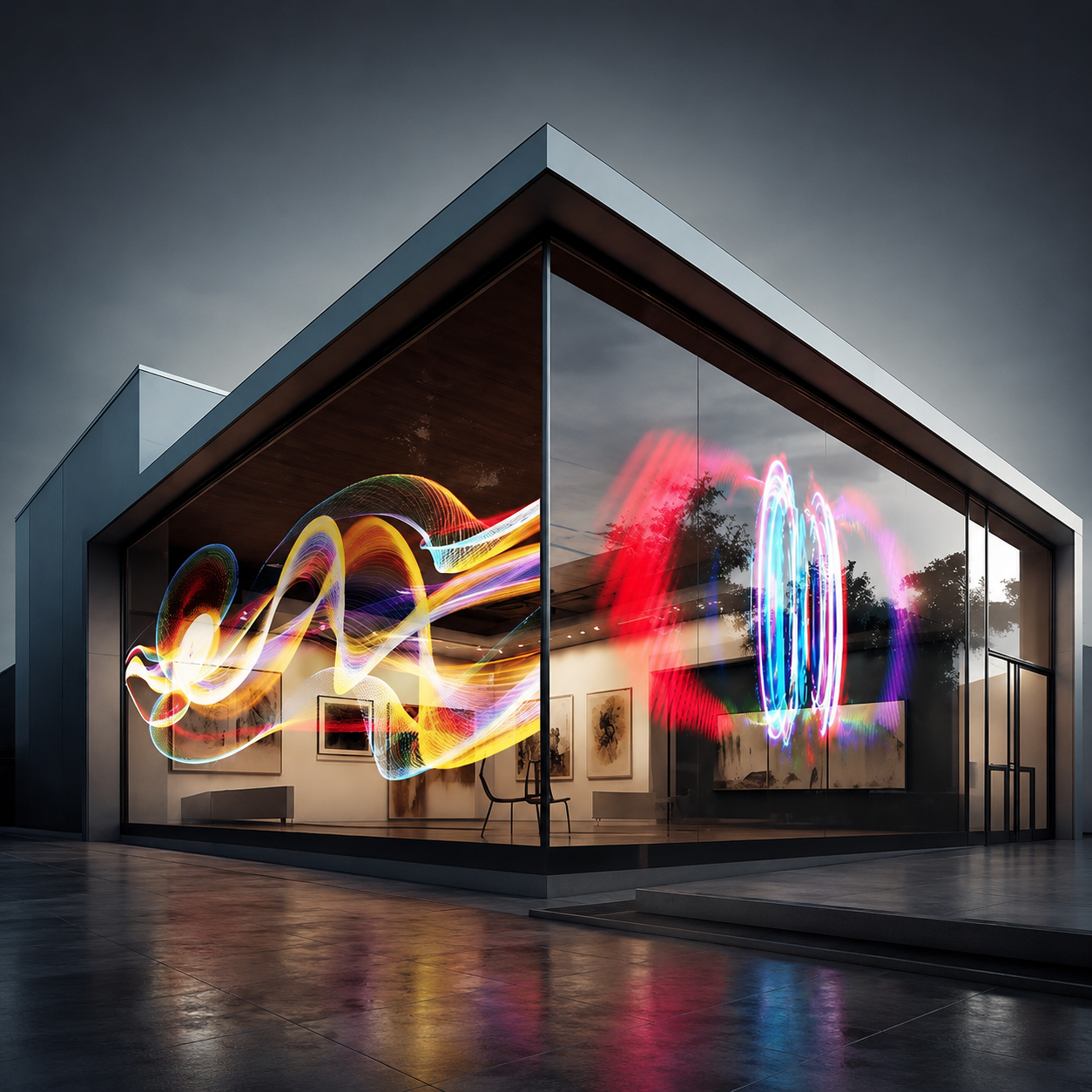

- 04Glass Facades
- 05Commercial Buildings
- 06Corporate Lobbies
- 07Museums
- 08Airports
- 09Architectural Display Projects
Installation Options
Behind-Glass Suspended Installation (Recommended)
Direct Glass Mounting
Freestanding Display Structures
Double-Sided Suspended Display (Optional)
Product details
Specifications
- Product Type
- Holographic LED Display – X Series
- Display Technology
- COB Transparent LED Technology
- Pixel Pitch Options
- P3.91 / P6.25 / P10.4
- Transparency
- 70%–88% (depending on pixel pitch)
- Brightness
- 3,500–4,500 nits
- Refresh Rate
- ≥3840Hz
- Viewing Angle
- 170°
- Contrast Ratio
- 5000:1
- Grey Scale
- 16 Bit
- Colour Temperature
- 2000K–9500K
- Module Dimensions
- 250 × 1500mm
- Screen Thickness
- Less than 2mm
- Power Consumption
- Average: 120W/m²Maximum: 500W/m²
- Energy Efficiency
- Designed for lower power consumption compared with conventional SMD transparent displays
- Input Signal
- HDMI, DVI
- Input Voltage
- AC 110–240V, 50–60Hz
- Operating Temperature
- -20°C to +80°C
- Glass Compatibility
- Flat GlassCurved GlassGlass FacadesGlass PartitionsShopfront Glazing
- Customisation Options
- Custom Sizes and Installation Configurations Available
