Fine Pitch COB LED Display
- Customisable
- Secure payments
- Worldwide shipping
The Fine Pitch COB LED Display is a premium large-format display solution designed for applications where exceptional image quality, close viewing distances and long-term reliability are essential. Utilising advanced Flip-Chip COB (Chip-on-Board) technology, it delivers outstanding visual performance with ultra-fine pixel pitches, seamless panel integration and enhanced surface durability.

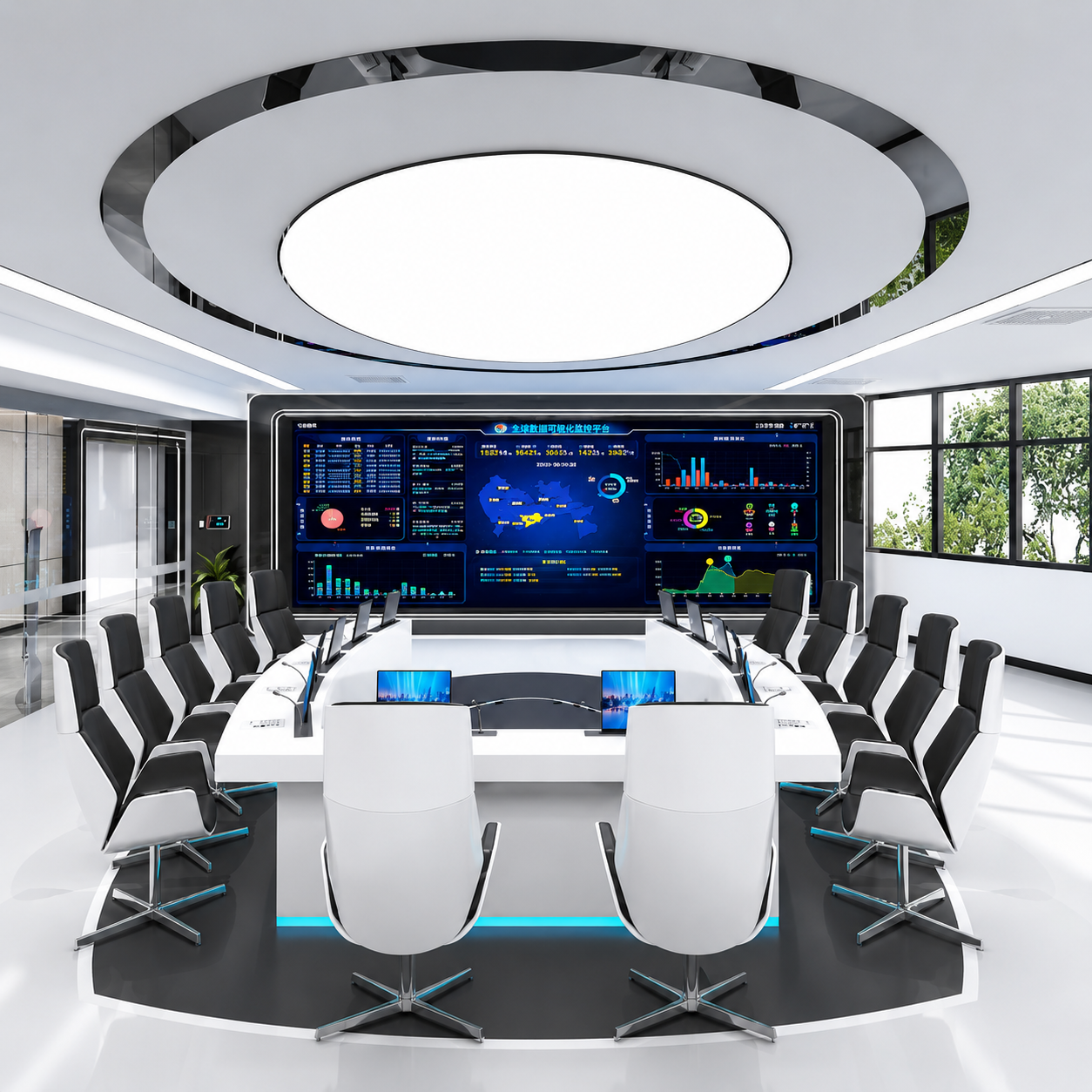

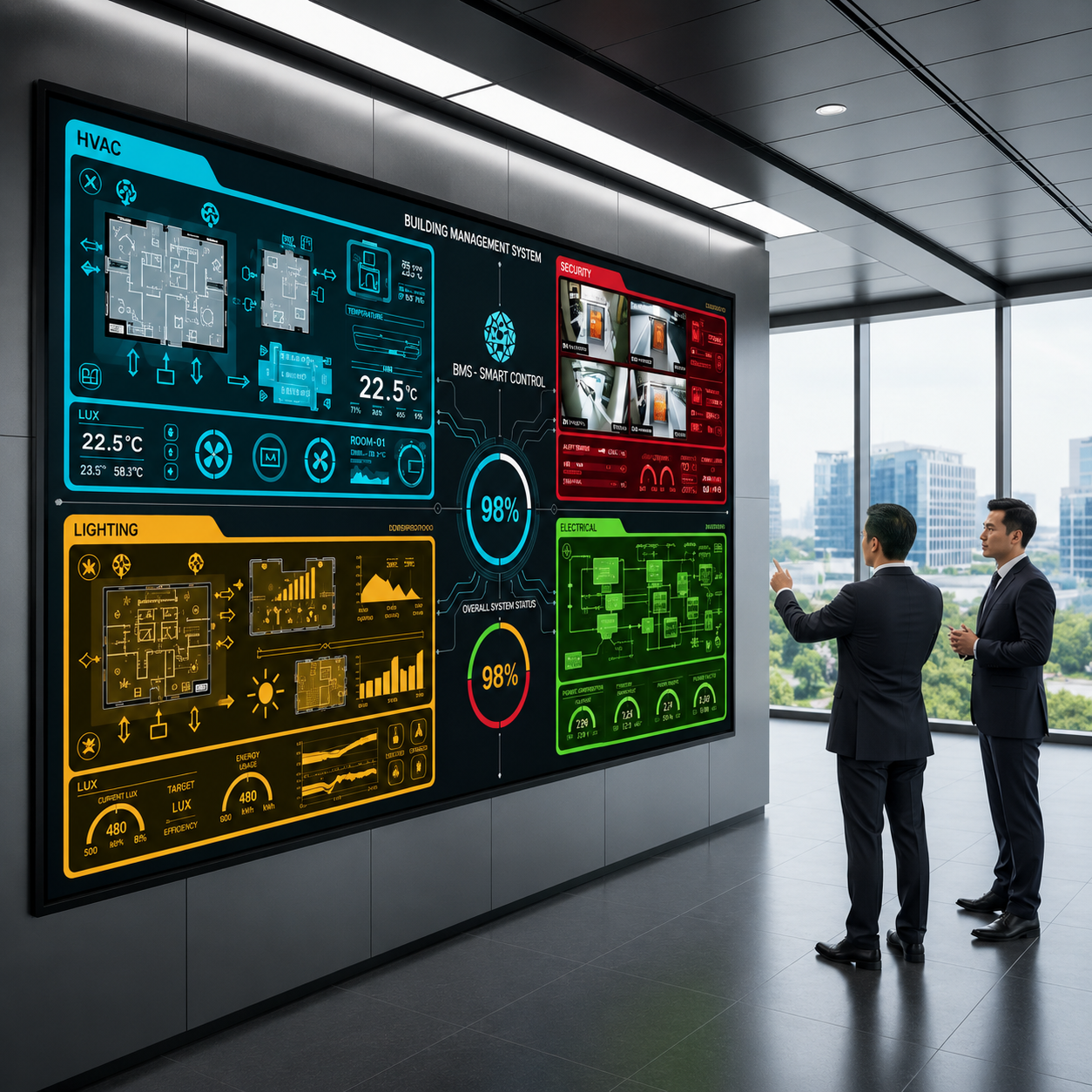

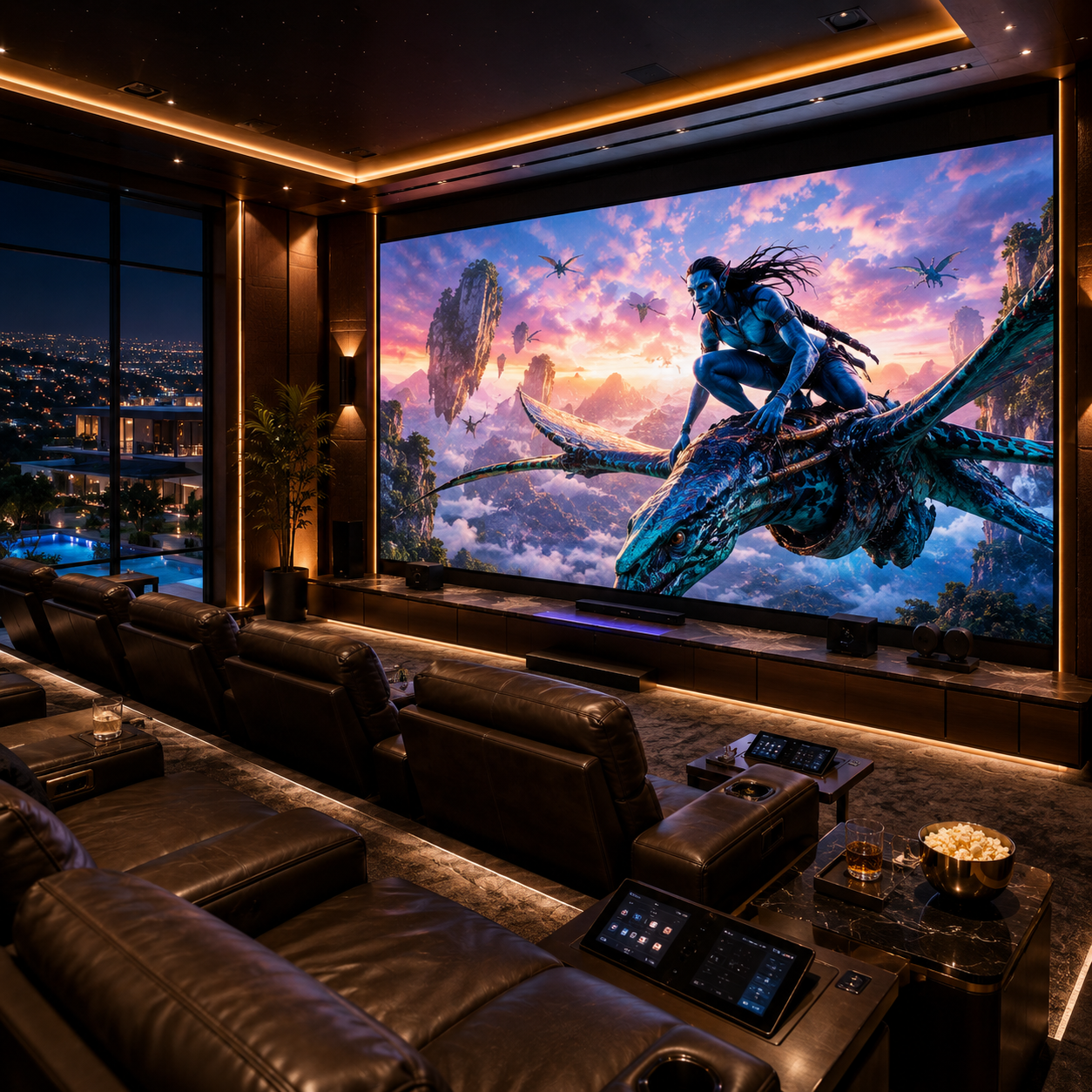

Designed for luxury retail environments, executive boardrooms, command and control centres, museums, automotive showrooms and high-end home theatres, the display provides stunning image clarity with virtually invisible pixels, even at close viewing distances. The advanced COB structure improves contrast, colour consistency and viewing comfort while reducing glare and enhancing screen protection.
Its ultra-slim die-cast aluminium cabinet ensures precise alignment across large video wall installations while maintaining a lightweight and elegant profile. Front-service maintenance allows easy access for installation and servicing, making it suitable for both new projects and retrofit applications.
Available in P0.94, P1.25 and P1.56 pixel pitch options, the Fine Pitch COB LED Display offers a versatile solution for premium indoor environments requiring superior visual quality and seamless digital communication.
Whether used for luxury brand storytelling, executive presentations, immersive showroom experiences or cinematic home entertainment, the Fine Pitch COB LED Display delivers a sophisticated visual platform that combines cutting-edge technology with architectural integration.
Key Features
- Flip-Chip COB LED technology
- Ultra-fine pixel pitch for close viewing
- Virtually invisible pixel structure
- Seamless large-format video wall design
- Front-service maintenance
- Ultra-slim cabinet profile
- High contrast and exceptional colour accuracy
- 7680Hz high refresh rate
- NTSC 110% wide colour gamut
- Dust-resistant and impact-resistant screen surface
- Energy-efficient operation
- Custom screen sizes available
Product Specifications
Pixel Pitch Options: P0.94 / P1.25 / P1.56
LED Technology: Flip-Chip COB
Cabinet Dimensions: 600 × 337.5 × 27.5mm
Cabinet Material: Die-Cast Aluminium
Cabinet Weight: Approx. 4.5kg
Brightness: Up to 800 nits
Refresh Rate: Up to 7680Hz
Grey Scale: 14–16 Bit
Colour Temperature: 6500K–9300K Adjustable
Viewing Angle: 160° (H) / 160° (V)
Colour Gamut: NTSC 110%
Contrast Ratio: 10000:1
IP Rating: Front IP54
Input Voltage: AC100–240V, 50/60Hz
Maximum Power Consumption: ≤475W/m²
Average Power Consumption: 125–250W/m²
Operating Temperature: -10°C to +40°C
Storage Temperature: -40°C to +60°C
Operating Humidity: 10%–90% RH
Maintenance Access: Front Service
LED Lifetime: >100,000 Hours
Installation Methods: Wall Mounted, Recessed, Free Standing, Custom Architectural Integration
Applications: Luxury Retail Stores, Corporate Boardrooms, Control Rooms, Museums, Automotive Showrooms, Brand Experience Centres, Universities, Exhibition Spaces and Premium Home Theatre Installations
Our products are made or prepared to order to ensure quality and precision.
Lead times vary depending on stock availability, production schedule, and delivery location.
In-Stock Items
- Melbourne Metro: 1–2 business days
- Other Australian locations: 2–5 business days
- Remote areas (including Hobart & Cairns): 5–7 business days
Made-to-Order / Backordered Items
- Standard production & delivery: 8–12 weeks
- Airfreight option available: 4–5 weeks (additional cost may apply)
International Shipping
All international orders are built to meet local electrical standards.
- Air Freight: approx. 3–4 weeks (production + air transit)
- Sea Freight: approx. 8–12 weeks (production + sea transit)
For urgent or time-sensitive projects, please contact our team at sales@lucretia.com.au before placing your order.
