SHOPPING CENTRES, AIRPORTS, HOTELS
Double-Sided LCD Digital Signage Display
Double-Sided LCD Digital Signage Displays are designed to maximise visibility in high-traffic commercial environments.
Visible From Both Directions
Two integrated 4K LCD screens in a single freestanding unit increase audience reach without requiring additional floor space.
Same or Different Content
Show identical content on both sides or different content on each screen for promotions, wayfinding and visitor communications.
Remote Content Management
Powered by Android 11 and the RK3568 media platform, content can be updated quickly across one or multiple locations.
Optional Touch
Optional touch screen functionality suits directories, information kiosks and customer engagement displays.
Intro
Overview
Key Features
- Double-sided 4K LCD display
- Independent or mirrored content playback
- Android 11 operating system
- Remote content management
- Optional touch screen functionality

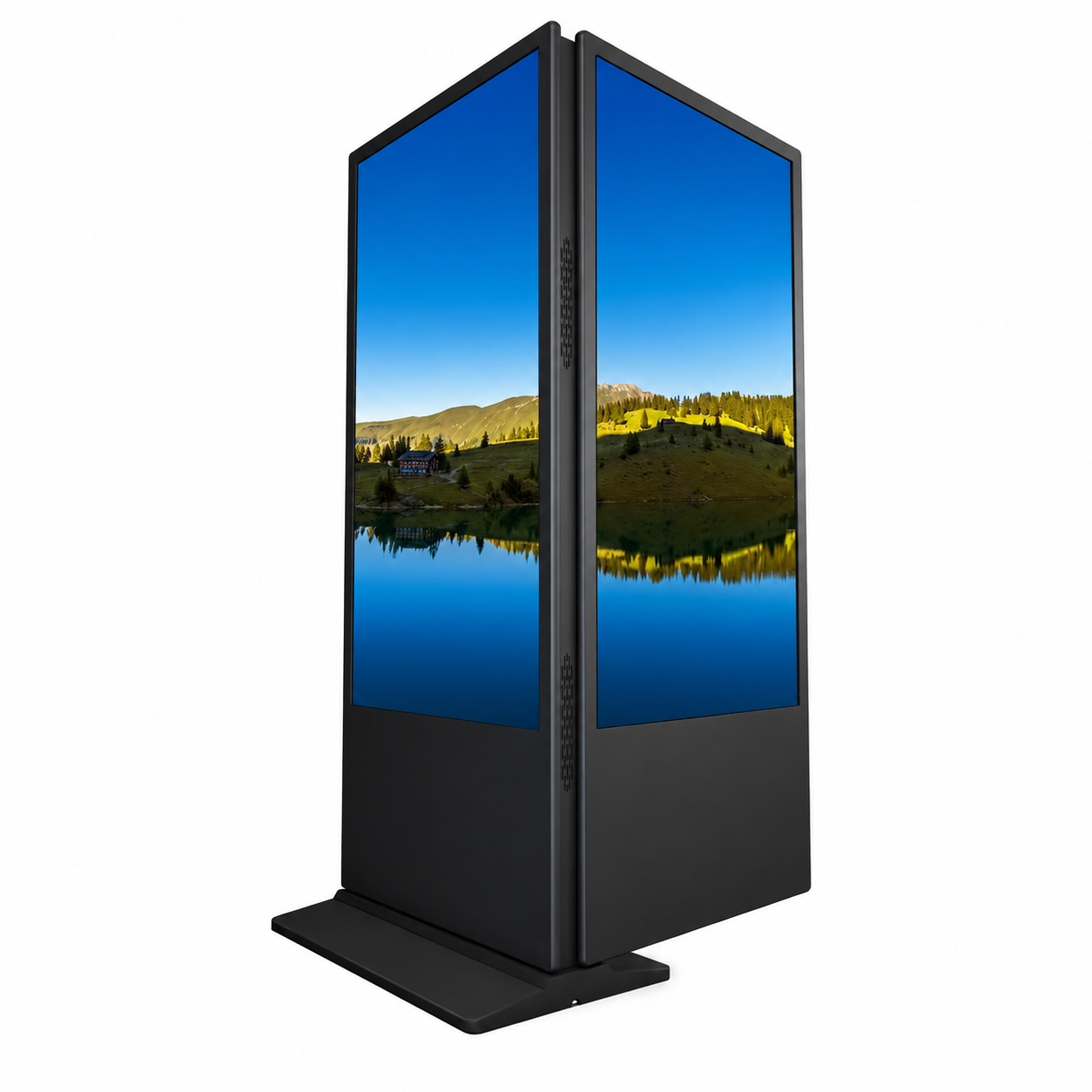

Double-Sided LCD Digital Signage Displays are designed to maximise visibility in high-traffic commercial environments. Featuring two integrated 4K LCD screens within a single freestanding unit, the display allows content to be viewed from both directions simultaneously, increasing audience reach without requiring additional floor space.

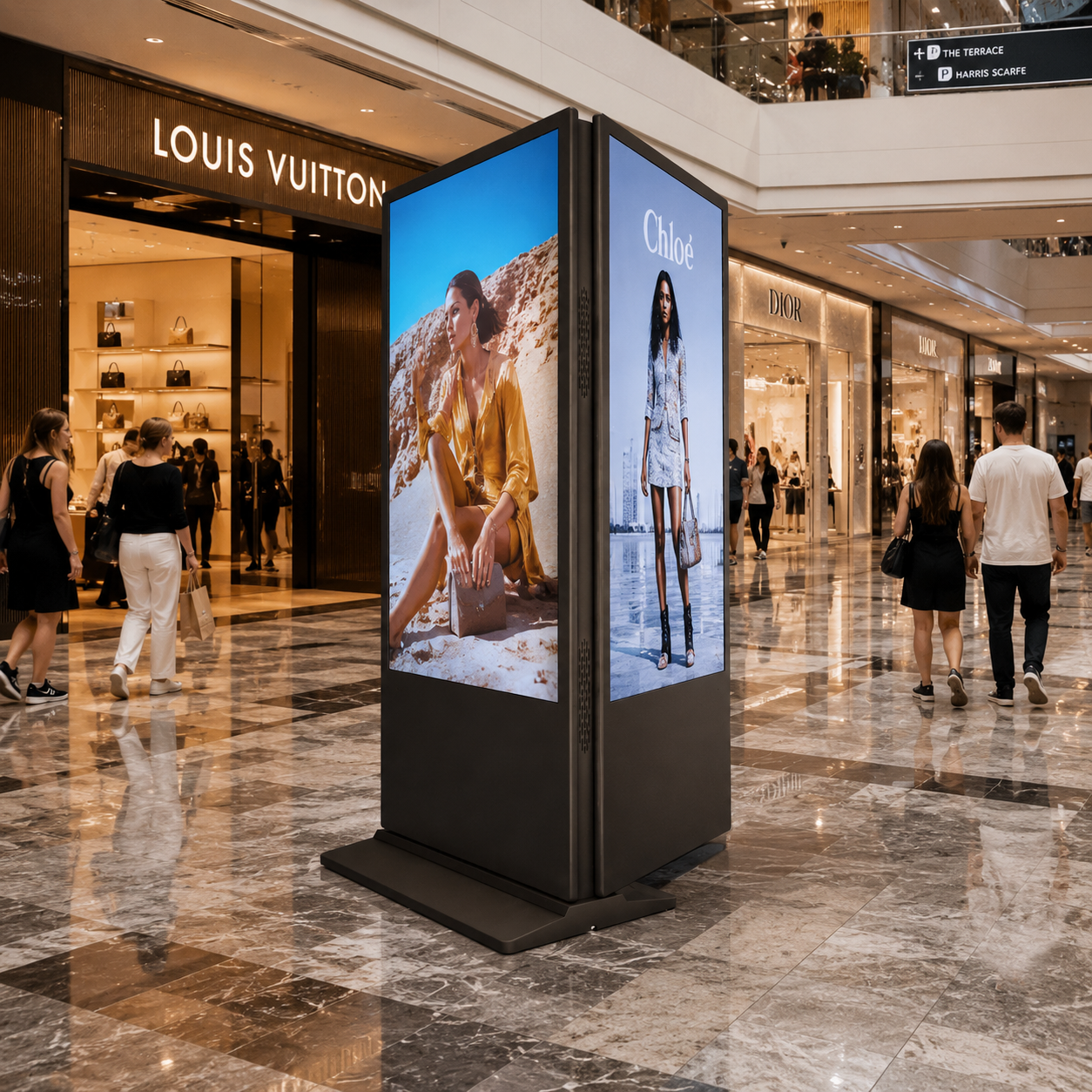

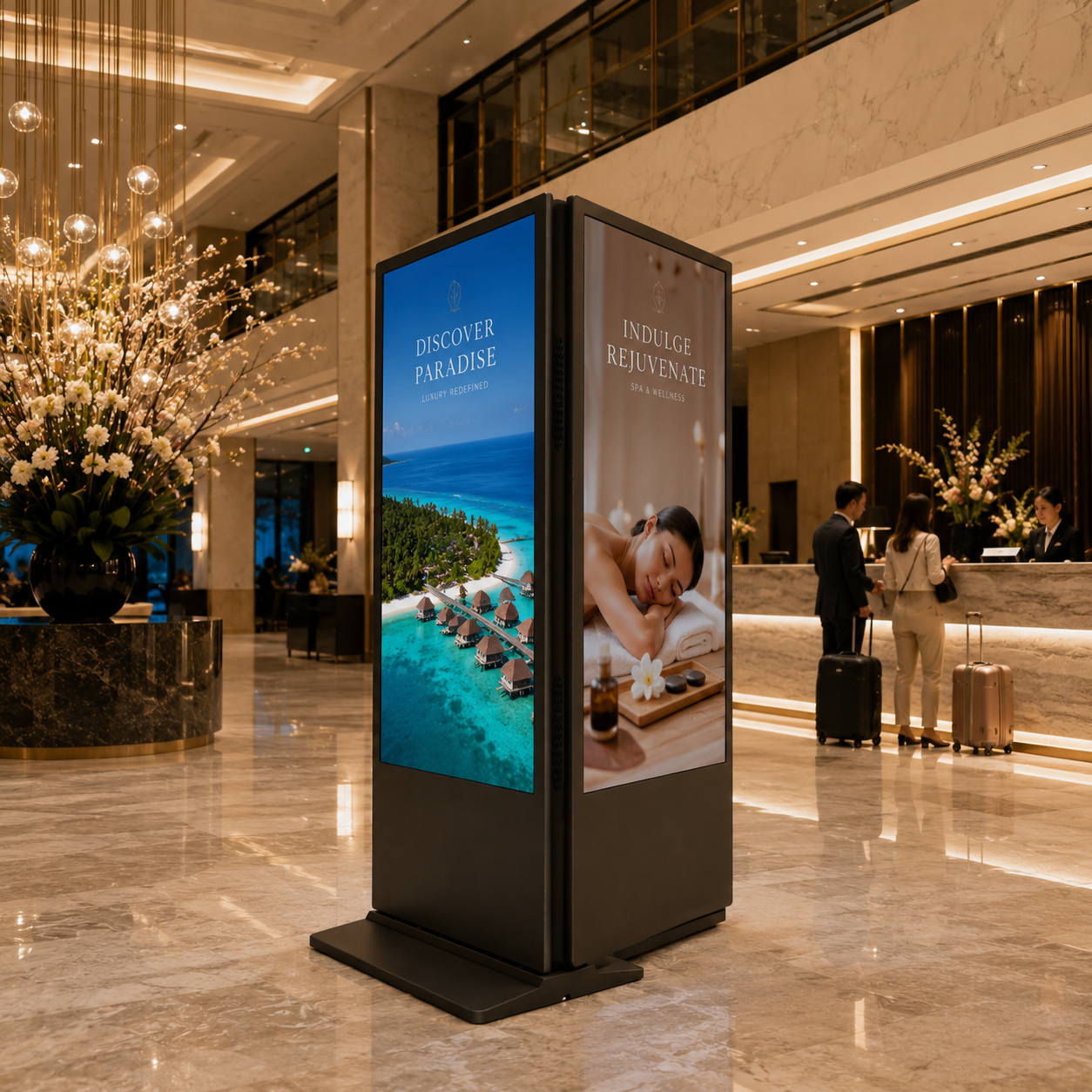

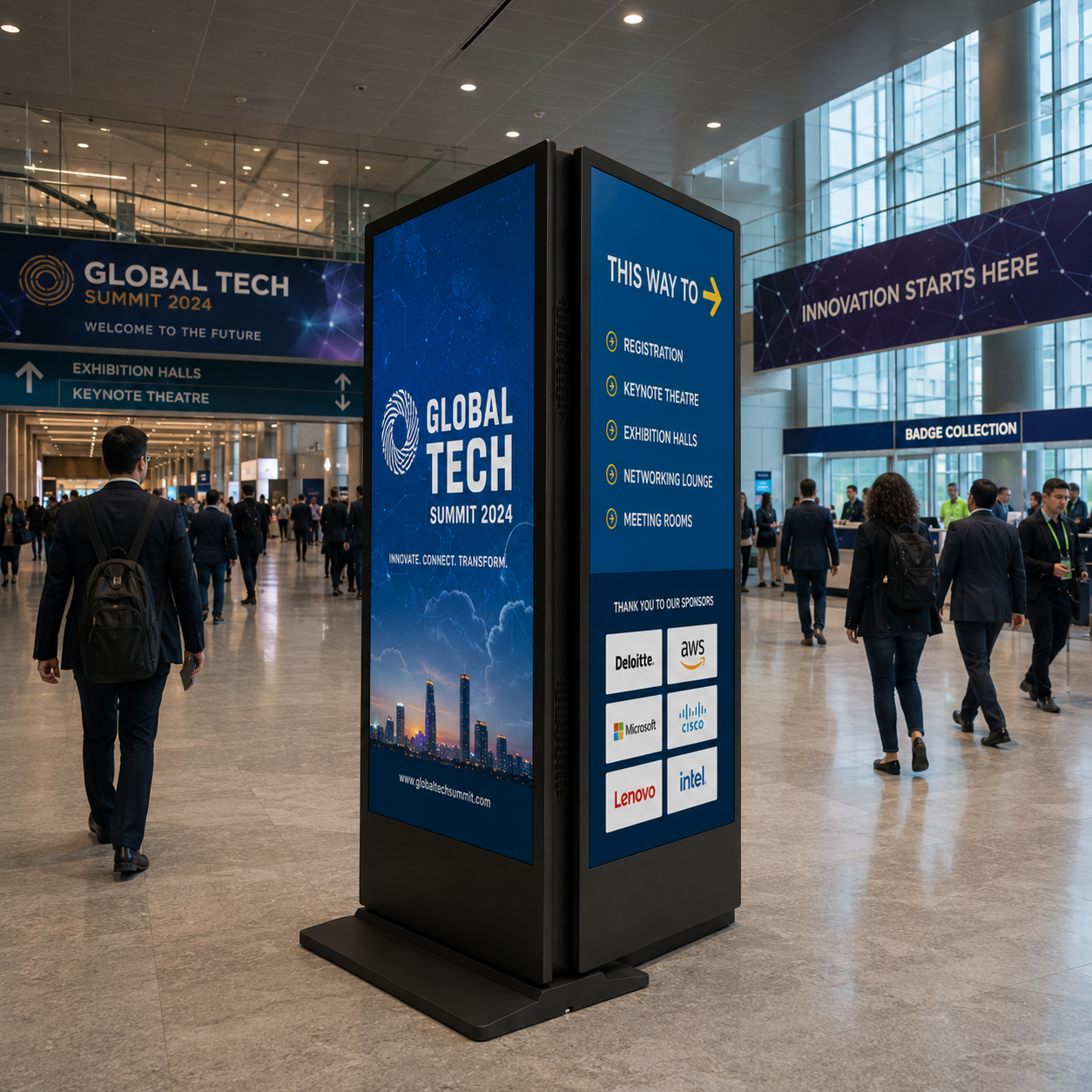

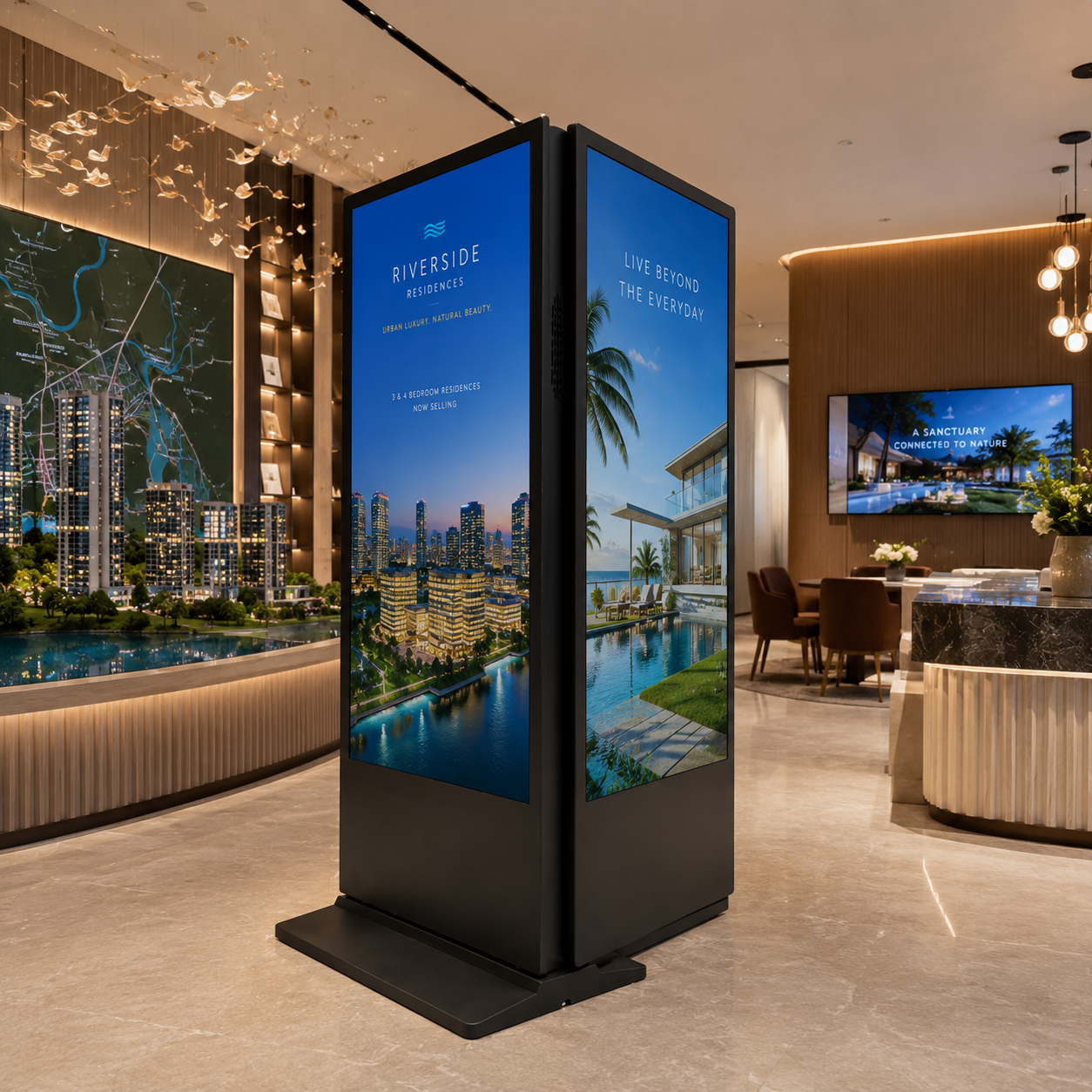

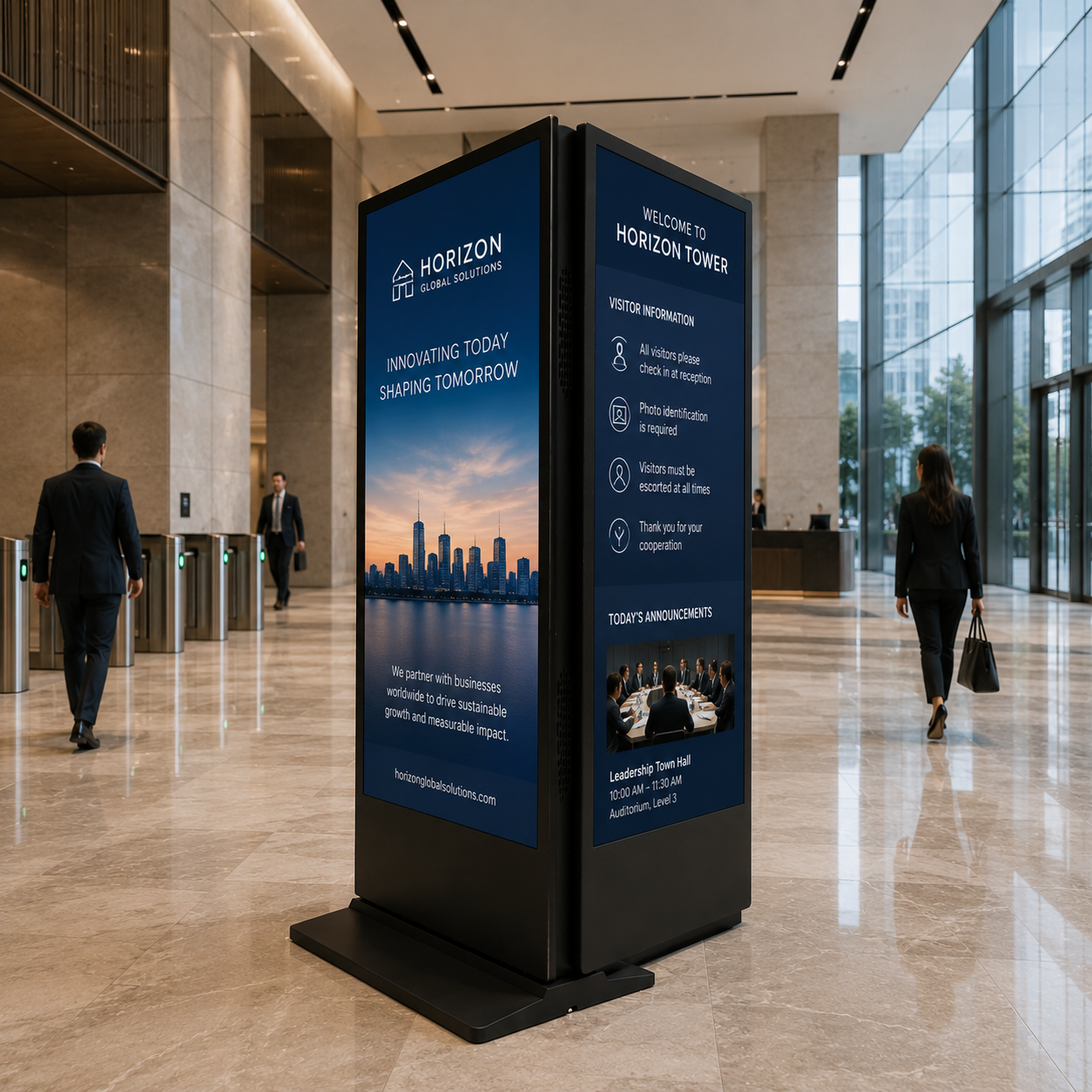

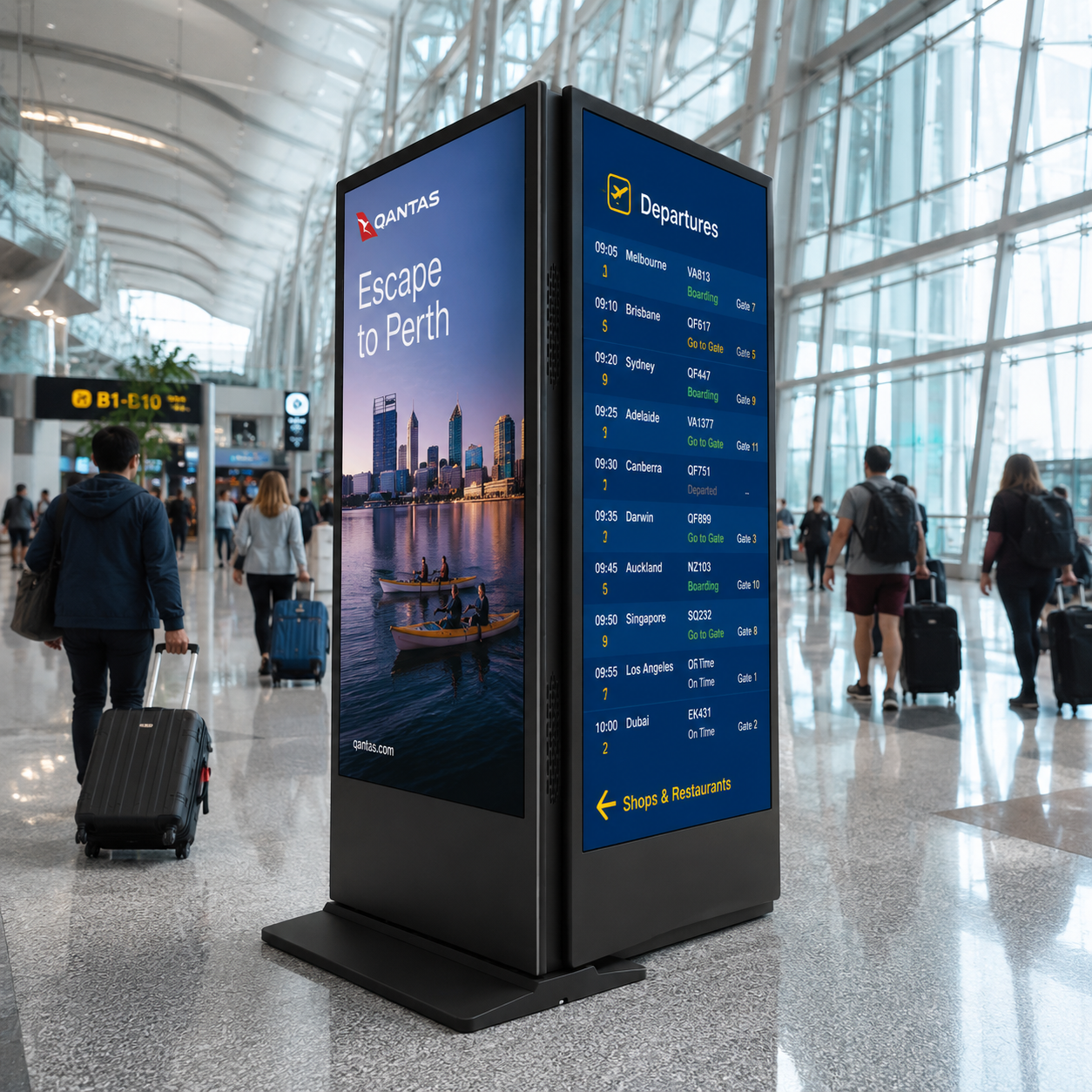

Ideal for shopping centres, airports, hotels, corporate buildings, universities, exhibition venues and public spaces, the display can show identical content on both sides or different content on each screen. Businesses can promote products, display advertising, provide wayfinding information or deliver visitor communications with greater impact.
Powered by Android 11 and the RK3568 commercial media platform, the system supports remote content management, allowing updates to be made quickly across one or multiple locations. Optional touch screen functionality is available for interactive applications, making it suitable for directories, information kiosks and customer engagement displays.
With 4K Ultra HD resolution, commercial-grade reliability and a modern freestanding design, Double-Sided LCD Digital Signage Displays provide a professional digital communication solution for a wide range of commercial applications.
Applications
- 01Shopping Centres
- 02Retail Stores
- 03Airports
- 04Hotels
- 05Corporate Buildings
- 06Property Display Centres
- 07Exhibition Venues
- 08Universities
- 09Museums
- 10Hospitals
- 11Visitor Centres
- 12Public Spaces
Product details
Specifications
- Display Technology
- Commercial Grade Double-Sided LCD Display
- Available Sizes
- 49", 55", 65" and 75"
- Resolution
- 4K Ultra HD (3840 × 2160)
- Brightness
- 350 nits (Each Side)
- Contrast Ratio
- 1200:1 Typical
- Viewing Angle
- 178° (H/V)
- Touch Options
- 49" – Optional Capacitive Touch55" – Optional Capacitive Touch65" – Optional Capacitive Touch75" – Optional Infrared Touch
- Operating System
- Android 11
- Processor
- RK3568 Quad-Core Processor
- Memory
- 2GB RAM + 32GB Storage
- Connectivity
- Wi-Fi, LAN, USB, HDMI, Audio Output
- Content Management
- Cloud-Based Remote Content ManagementRemote Content UpdatesMulti-Location Content DeploymentScheduled Content PublishingTemplate-Based Content Management
- Media Support
- Images, Videos, Slideshows, Web Content and Interactive Applications
- Display Modes
- Mirror Content on Both SidesIndependent Content on Each Side
- Display Orientation
- Portrait
- Construction
- Commercial Grade Steel HousingTempered Safety Glass Front PanelImpact-Resistant Design for High-Traffic Areas
- Audio
- Built-in Speakers
- Operating Environment
- Indoor Commercial Applications
- Power Supply
- AC 100–240V, 50/60Hz
- Operation
- Designed for Continuous Commercial Operation
