CURVED, CIRCULAR, FREEFORM
Curved LED Display
Curved LED Displays are designed for projects that require seamless digital content across curved, circular and freeform architectural surfaces.
Follows the Shape of the Space
Unlike conventional flat LED screens, curved LED technology allows displays to follow the natural contours of a space, creating more engaging visual experiences and greater design flexibility.
Concave, Convex, Cylindrical, Wave
Displays can be configured for concave, convex, cylindrical, wave-shaped and suspended installations, with smooth visual continuity across curved surfaces.
Fine Pixel Pitch Options
Available from P1.25 to P4.0, with a refresh rate of 3840Hz or higher for smooth video playback.
Customised to the Project
Display dimensions, curvature radius, mounting structures and control systems can be customised to suit project requirements.
Intro
Overview
Key Features
- Flexible curved LED display technology
- Supports concave and convex installations
- Cylindrical, ring and wave configurations
- Front-service maintenance design
- Custom display dimensions available
Curved LED Displays are designed for projects that require seamless digital content across curved, circular and freeform architectural surfaces. Unlike conventional flat LED screens, curved LED technology allows displays to follow the natural contours of a space, creating more engaging visual experiences and greater design flexibility.

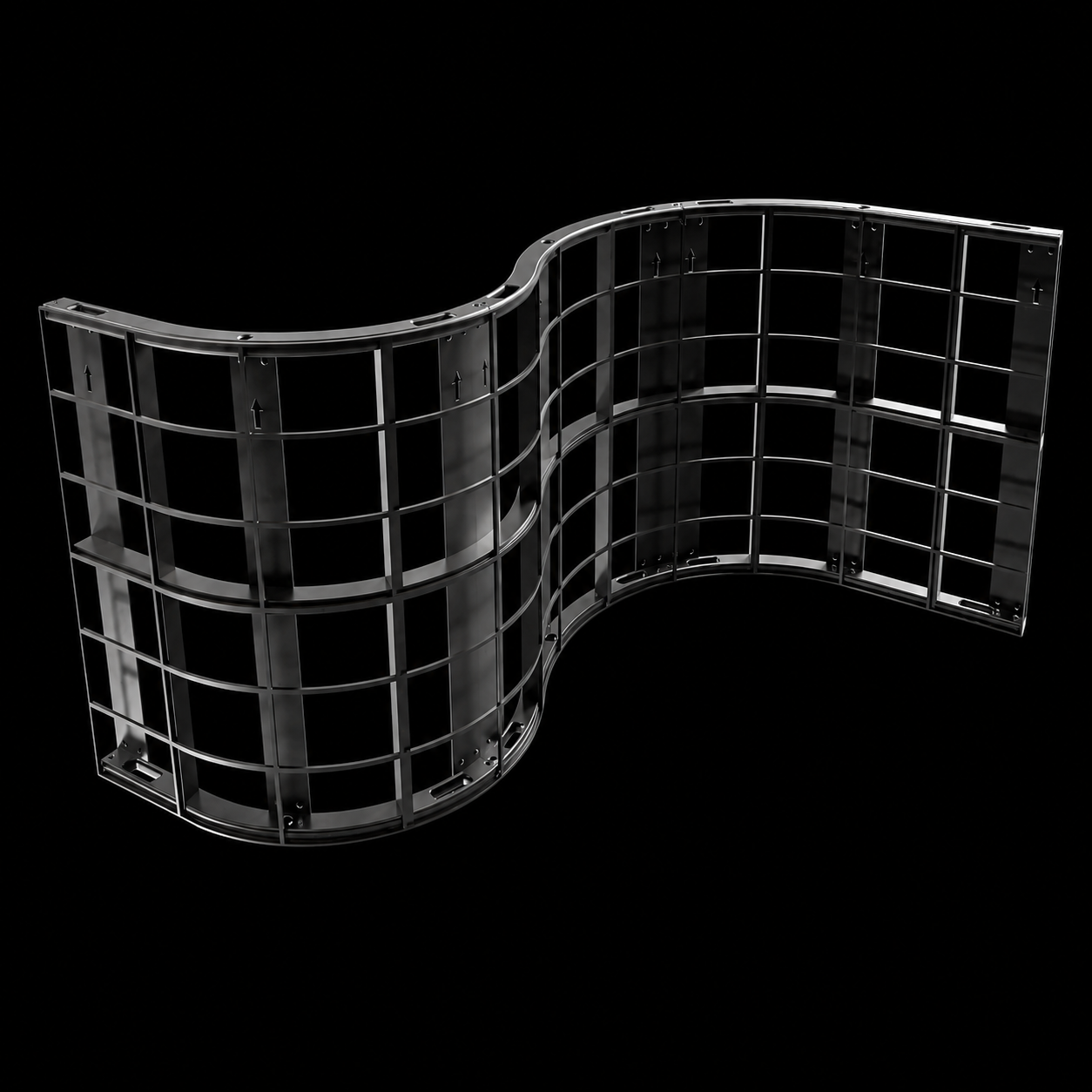

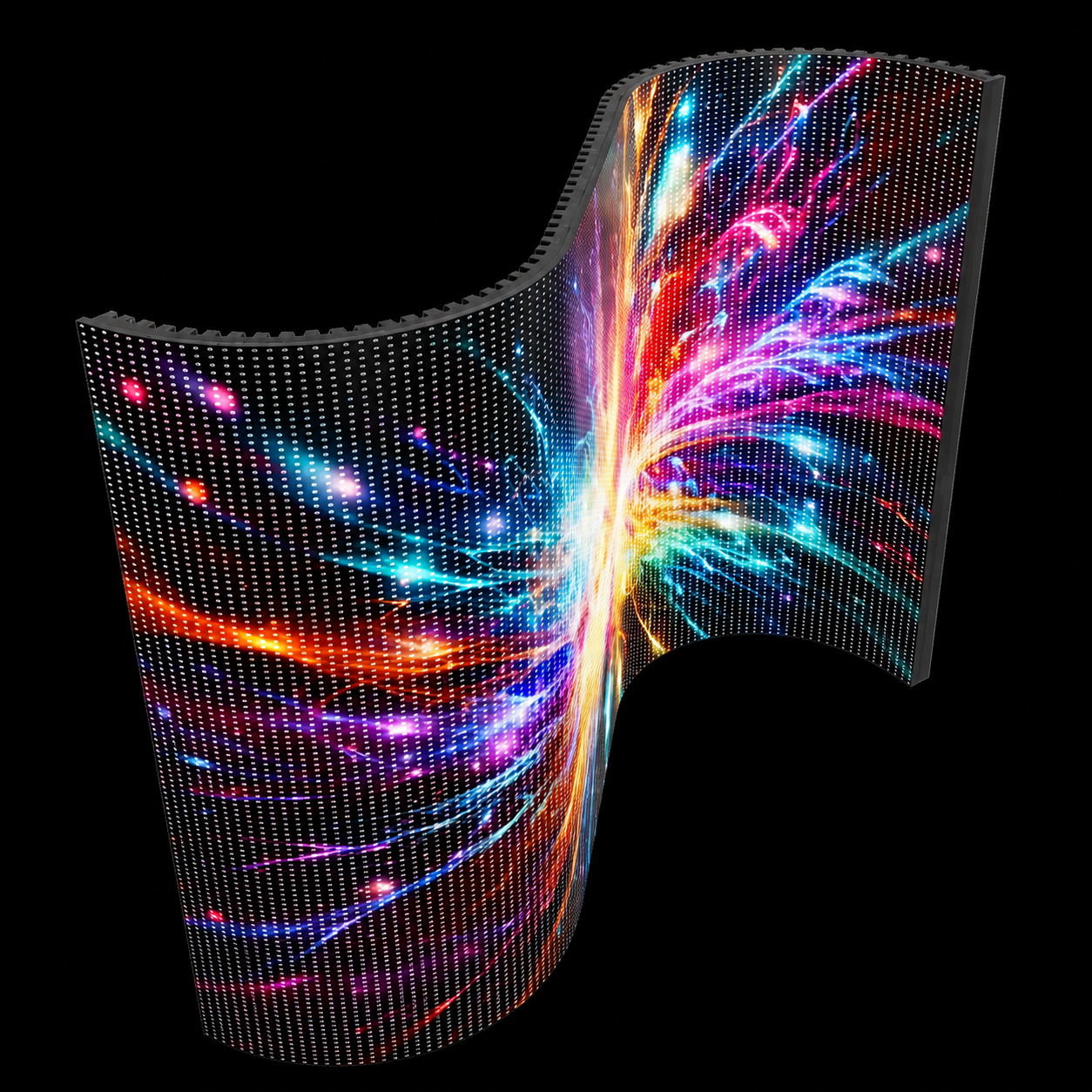

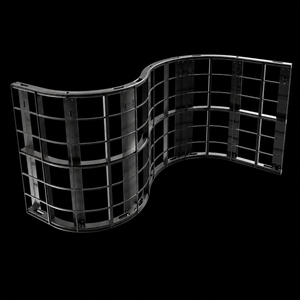

Available in multiple pixel pitch options, Curved LED Displays can be configured for concave, convex, cylindrical, wave-shaped and suspended installations. Flexible LED modules and precision-engineered cabinet systems enable smooth visual continuity while maintaining excellent image quality, colour consistency and viewing angles.

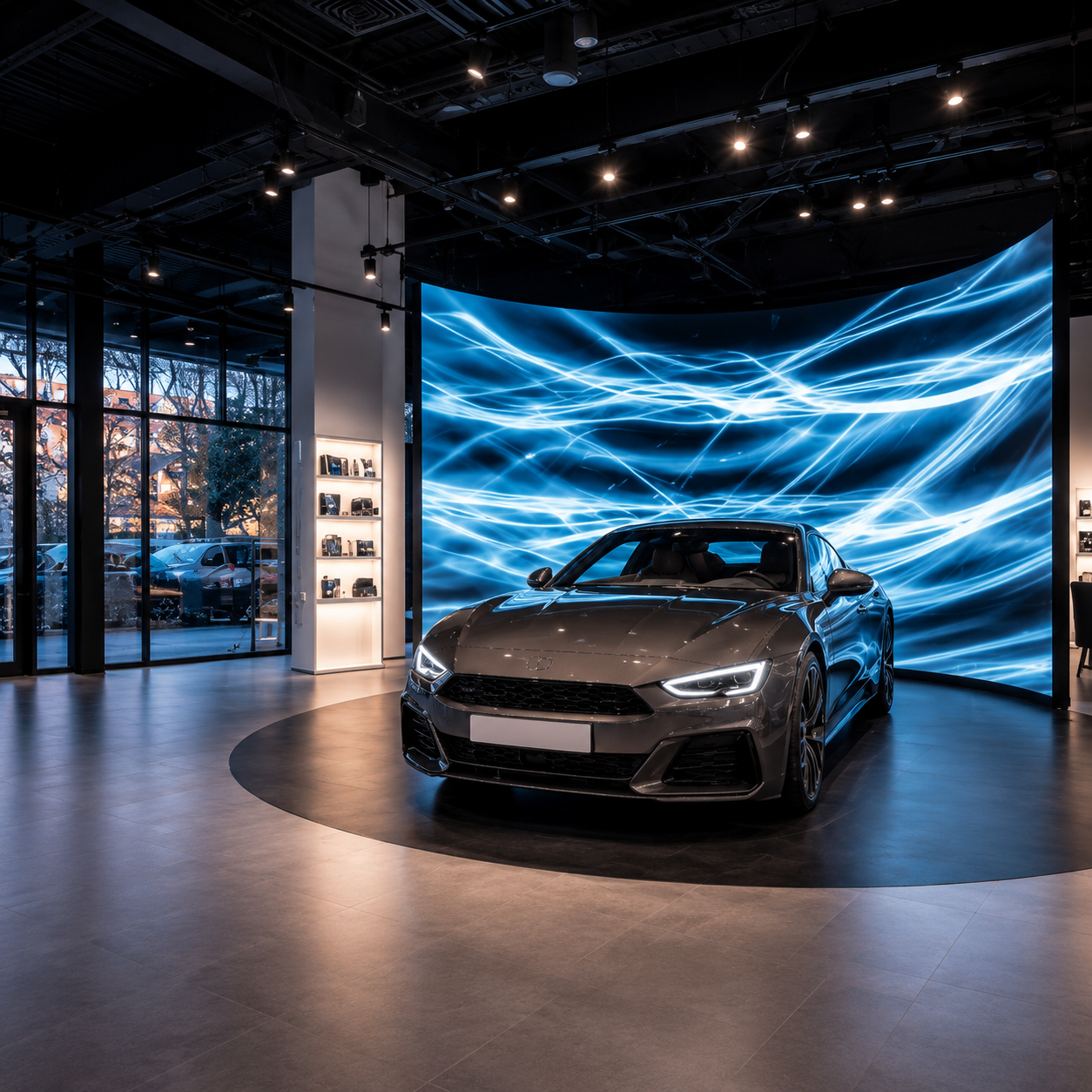

With high refresh rates, front-service maintenance and customisable display dimensions, Curved LED Displays are widely used in corporate experience centres, luxury retail environments, museums, exhibition spaces, airports and commercial developments where architectural integration is as important as visual performance.
Whether creating a feature wall, a suspended LED sculpture, a cylindrical column display or an immersive digital environment, Curved LED Displays provide a powerful platform for delivering memorable visual experiences while complementing modern architectural design.
Applications
- 01Corporate Experience Centres
- 02Retail Stores
- 03Shopping Centres
- 04Museums
- 05Airports
- 06Universities
- 07Exhibition Centres
- 08Luxury Hospitality Projects
- 09Architectural Feature Installations
Installation Options
Concave
Convex
Cylindrical
Ring
Wave
Suspended
Custom Architectural Installations
Product details
Specifications
- Product Type
- Curved LED Display
- Available Pixel Pitch Options
- P1.25, P1.56, P1.86, P2.0, P2.5, P3.0, P4.0
- LED Technology
- Flexible SMD LED Modules
- Pixel Configuration
- 1R1G1B
- Cabinet Material
- Die-Cast Aluminium
- Service Access
- Front Service Maintenance
- Brightness
- 600–1,500 nits
- Viewing Angle
- 160° Horizontal / 160° Vertical
- Contrast Ratio
- Up to 10,000:1
- Grey Scale
- 14–16 Bit Adjustable
- Refresh Rate
- ≥3840Hz
- Frame Frequency
- 50Hz / 60Hz
- Brightness Adjustment
- 0–100%
- Colour Temperature
- 3000K–9500K Adjustable
- Input Voltage
- AC100–240V, 50/60Hz
- Maximum Power Consumption
- ≤500W/m²
- Average Power Consumption
- ≤125W/m²
- Operating Temperature
- -10°C to +40°C
- Operating Humidity
- 10%–90% RH
- LED Lifetime
- >100,000 Hours
- Customisation
- Display dimensions, curvature radius, mounting structures and control systems can be customised to suit project requirements.
- Certifications
- CE, RoHS, SAA
