SHOPFRONTS, HOSPITALITY, SHOPPING CENTRES
3D LED Front & Reverse Lit Channel Letter Signs

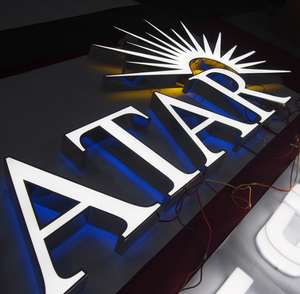

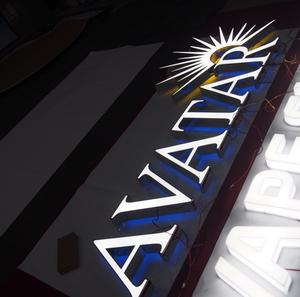

3D LED Front & Reverse Lit Channel Letter Signs feature dual illumination, combining bright front-facing light with a soft halo glow from the rear for a premium visual effect.
Dual Illumination
Bright front-facing light combines with a soft halo glow from the rear for a premium visual effect.
Double-Depth Letters

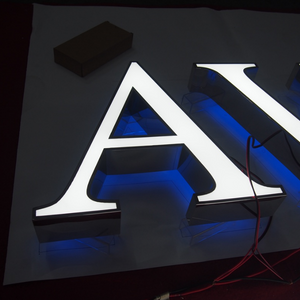

This double-depth channel letter design allows independent front and back lighting.
Day and Night
Strong daytime visibility and an elegant night-time presence.
IP65
IP65 rated, suitable for indoor and outdoor use.
Intro
Overview
3D LED Front & Reverse Lit Channel Letter Signs feature dual illumination, combining bright front-facing light with a soft halo glow from the rear for a premium visual effect.
This double-depth channel letter design allows independent front and back lighting, creating strong daytime visibility and an elegant night-time presence. Ideal for retail shopfronts, hospitality venues, shopping centres and corporate branding.
All signs are fully custom made, including letter size, font, colours, materials and mounting options. Designed for both indoor and outdoor use, our dual illuminated channel letters deliver a high-end signage solution tailored to your brand.
Applications
- 01Retail Shopfront Signage
- 02Hospitality Venues (Restaurants, Cafés, Bars)
- 03Corporate Branding & Commercial Buildings
- 04Shopping Centres and Feature Façades
Installation Options
Wall-Mounted with Concealed Fixings
Stud Mounting
Rail-Mounted
Product details
Specifications
- Dimensions
- Custom made to orderTypical letter height: 300mm – 1500mmDepth: 80–150mm (double-depth structure for front & halo illumination)
- Power & Light Source
- Built-in high-efficiency LED modulesFront illumination + rear halo illumination (dual light source)
- Luminous Flux
- Customised according to letter size and lighting requirementBalanced brightness for clear front visibility and soft halo glow
- Colour Temperature
- Front illumination: Custom colours available (White, Warm White, Red, Blue, Green, RGB optional)Back halo illumination: Standard White / Warm White (custom options available)
- Material
- Letter face: Acrylic (translucent / coloured)Letter returns: Aluminium or stainless steelBack plate: Aluminium composite or aluminium backing
- Finish Options
- Powder-coated aluminiumBrushed stainless steelMirror polished stainless steelCustom paint colours available
- Weight
- Varies depending on letter size and material specification
- Dimmable Options
- Optional dimming available (TRIAC / 0–10V / DALI, subject to project requirement)
- IP Rating
- IP65 (outdoor suitable)
- Certifications
- CE, RoHS, SAA
- Code
- Z1
This is a fully custom signage solution. Letter size, font, lighting colour, materials and mounting method are all made to order based on project requirements.
