Hexagrid Lighting System – Polygon Formation

SKU: ZT6132-Polygon

Hexagrid Lighting System – Polygon Formation

SKU: ZT6132-Polygon
Regular price
/
  • Customizable
  • Worldwide shipping
  • Secure payments

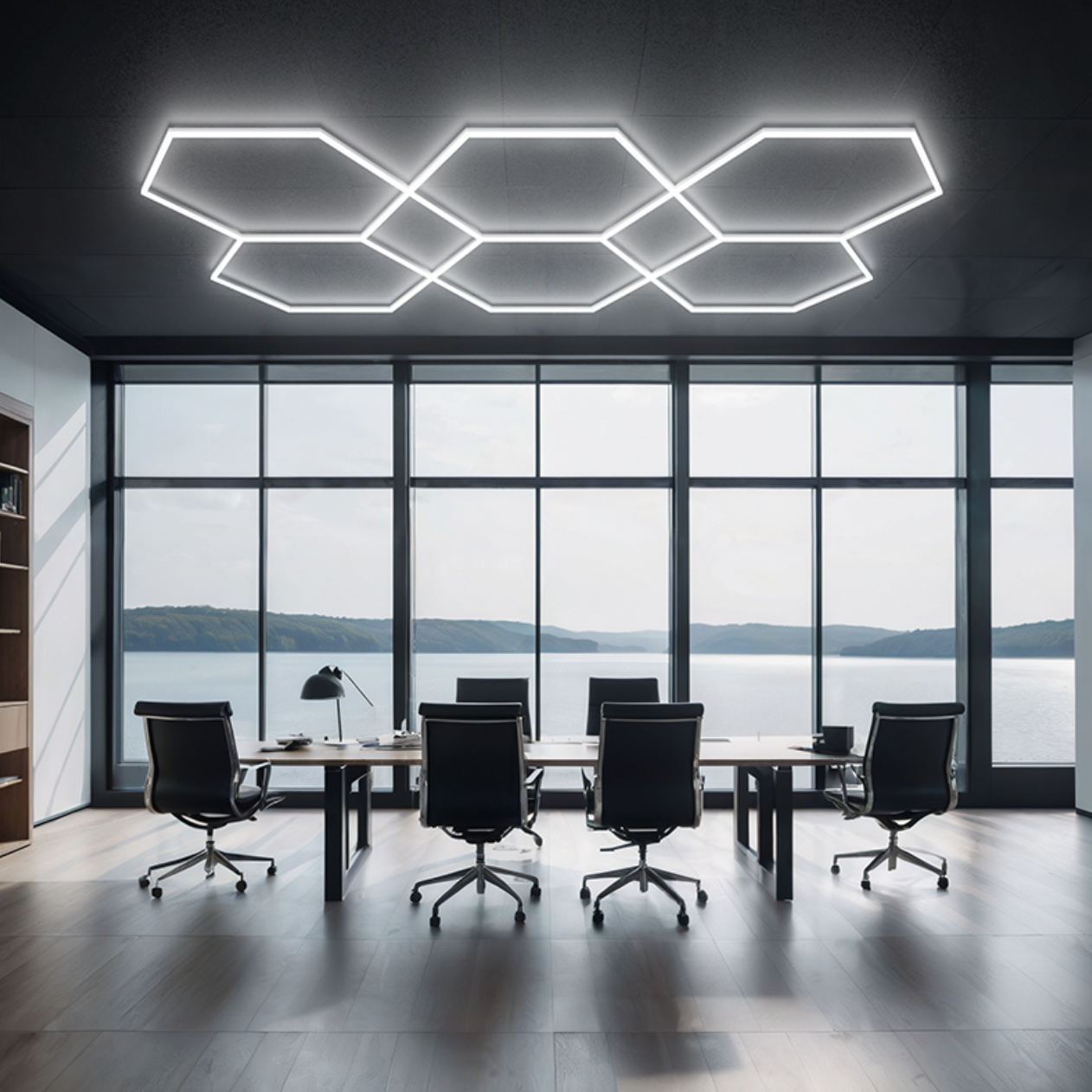

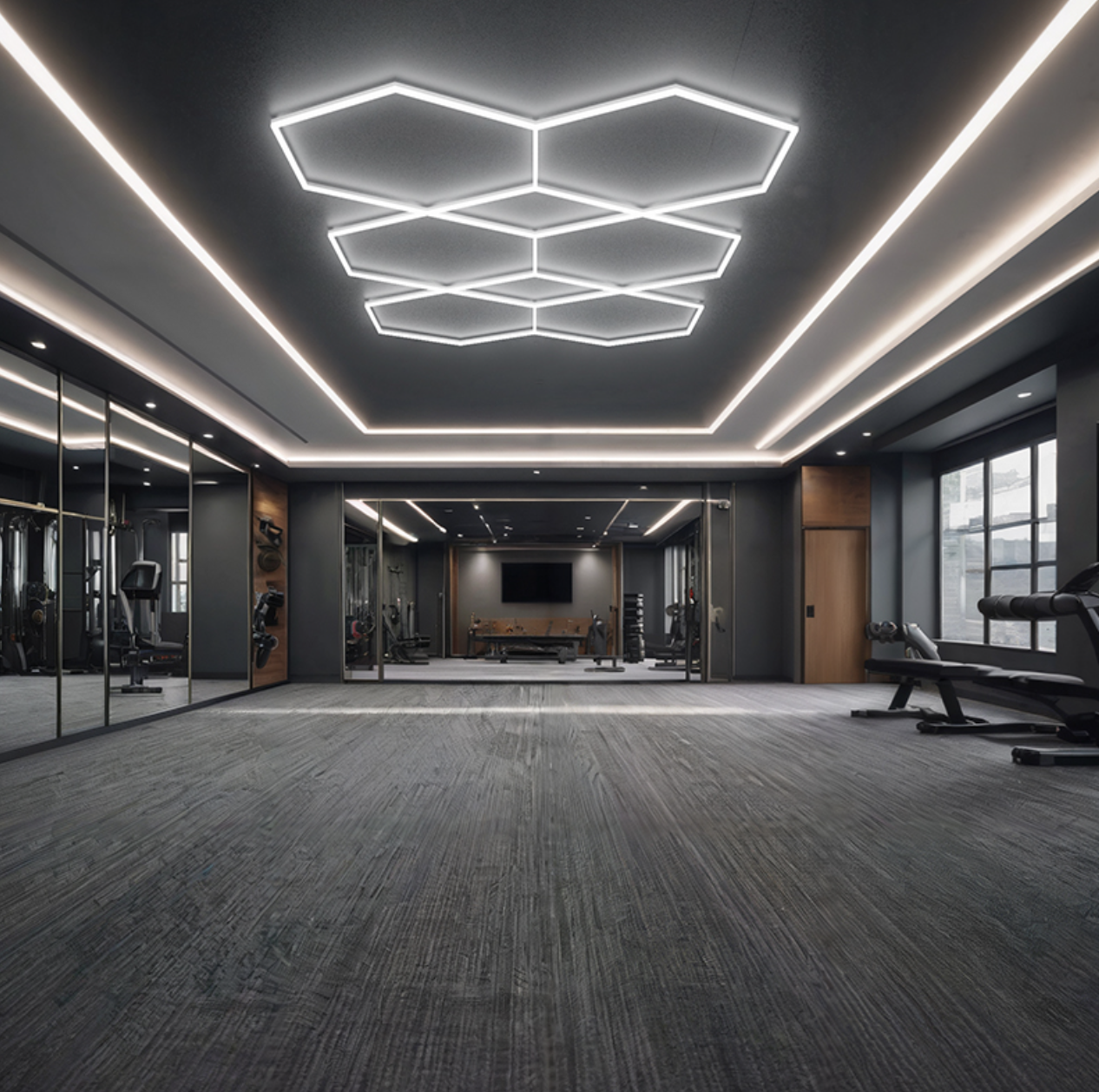

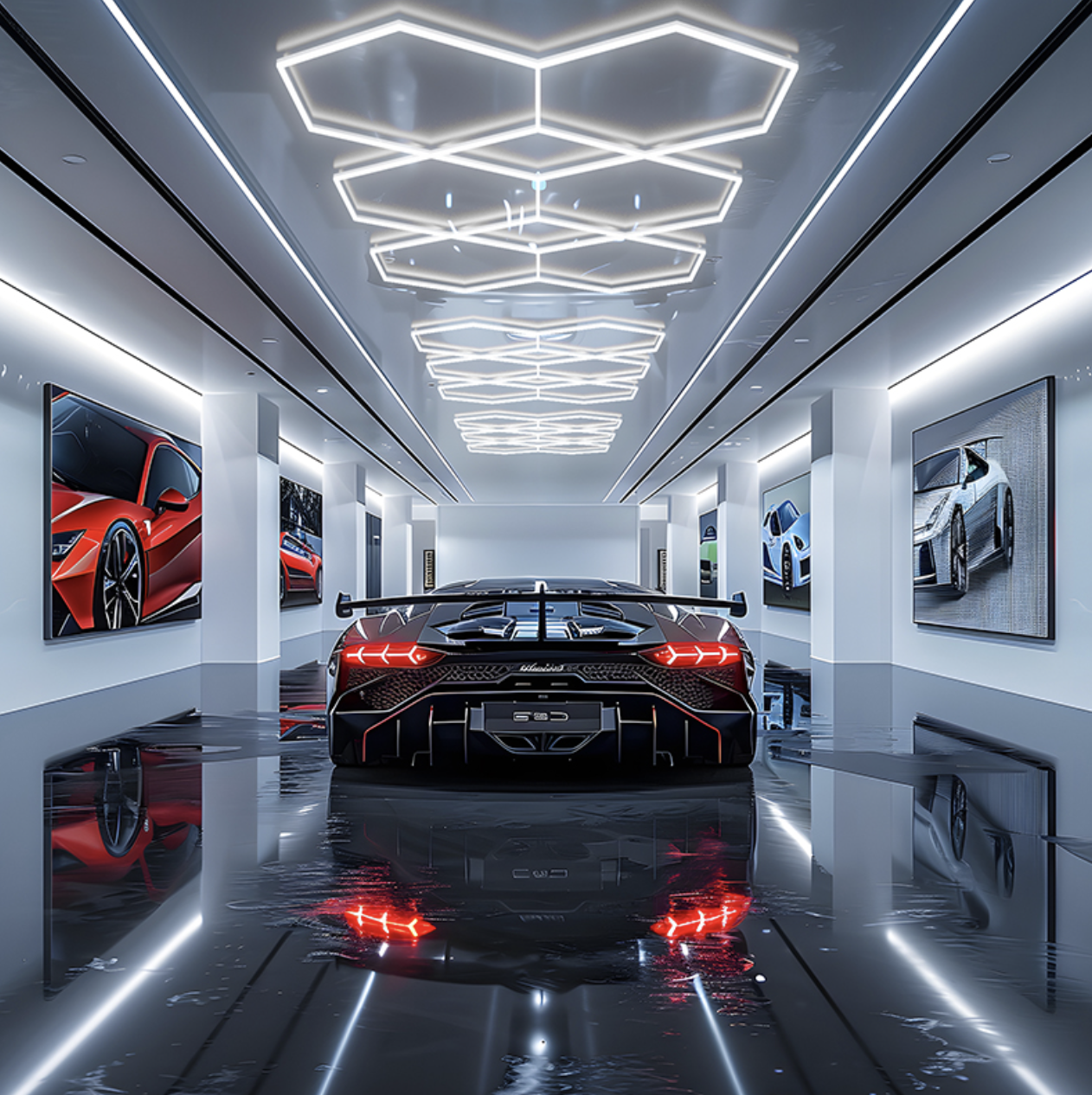

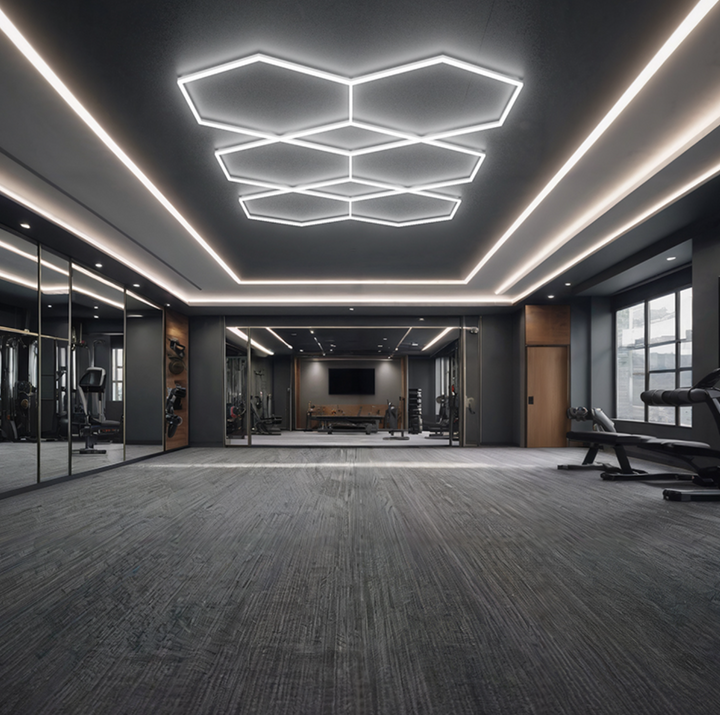

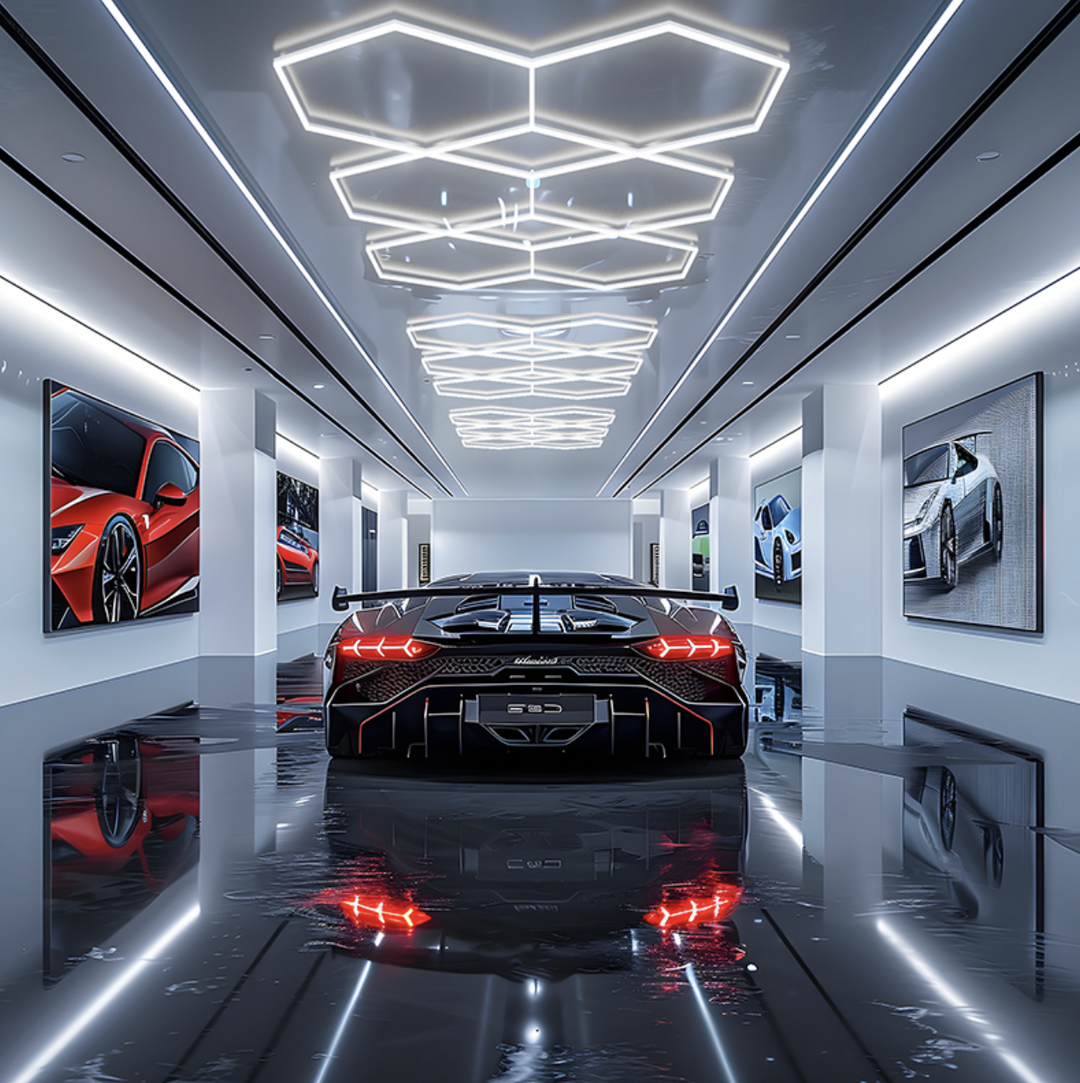

The Hexagrid Lighting System – Polygon Formation features a streamlined hexagonal layout with a bold, continuous pattern that delivers architectural rhythm and brightness. Its clean geometric lines elevate the ambiance of modern interiors — from car showrooms and gyms to offices and luxury retail spaces — offering both aesthetic impact and high-performance lighting.

Fully customizable in size, finish, and layout, this formation adapts effortlessly to environments demanding modern clarity and visual uniformity.

Key Features:

  • Sleek polygonal layout with clean geometric rhythm

  • 6500K LED lighting with 110–120 lm/W luminous efficiency

  • CRI >90 ensures vivid and accurate color rendering

  • Robust aluminum frame with custom RAL color finish options

  • Anti-glare PC diffusers for soft, uniform light output

  • Optional RGB or dimmable white versions available upon request

  • Supports suspended or surface-mounted installation

  • Layouts and dimensions can be customized to fit any ceiling design

Tax included. Shipping calculated at checkout.
Enquiry now
Hexagrid Lighting System – Polygon Formation
Hexagrid Lighting System – Polygon Formation
Hexagrid Lighting System – Polygon Formation
Hexagrid Lighting System – Polygon Formation

Product Specification

Product Code: ZT6132-Polygon

Dimensions: 2796mm x 4828mm (customizable)

Power & Light Source: Built-in LED, 284W

Luminous Flux: 110–120 lm/W

Colour Temperature: 6500K standard (custom options available)

Material: Aluminum + PC diffuser

Finish Options: Custom RAL finish available

Installation Type: Suspended or surface-mounted

Application: Suitable for gyms, showrooms, offices, retail, creative spaces

Certifications: CE, RoHS, SAA

Standard Lead Time: 6–8 weeks

Code: C3
