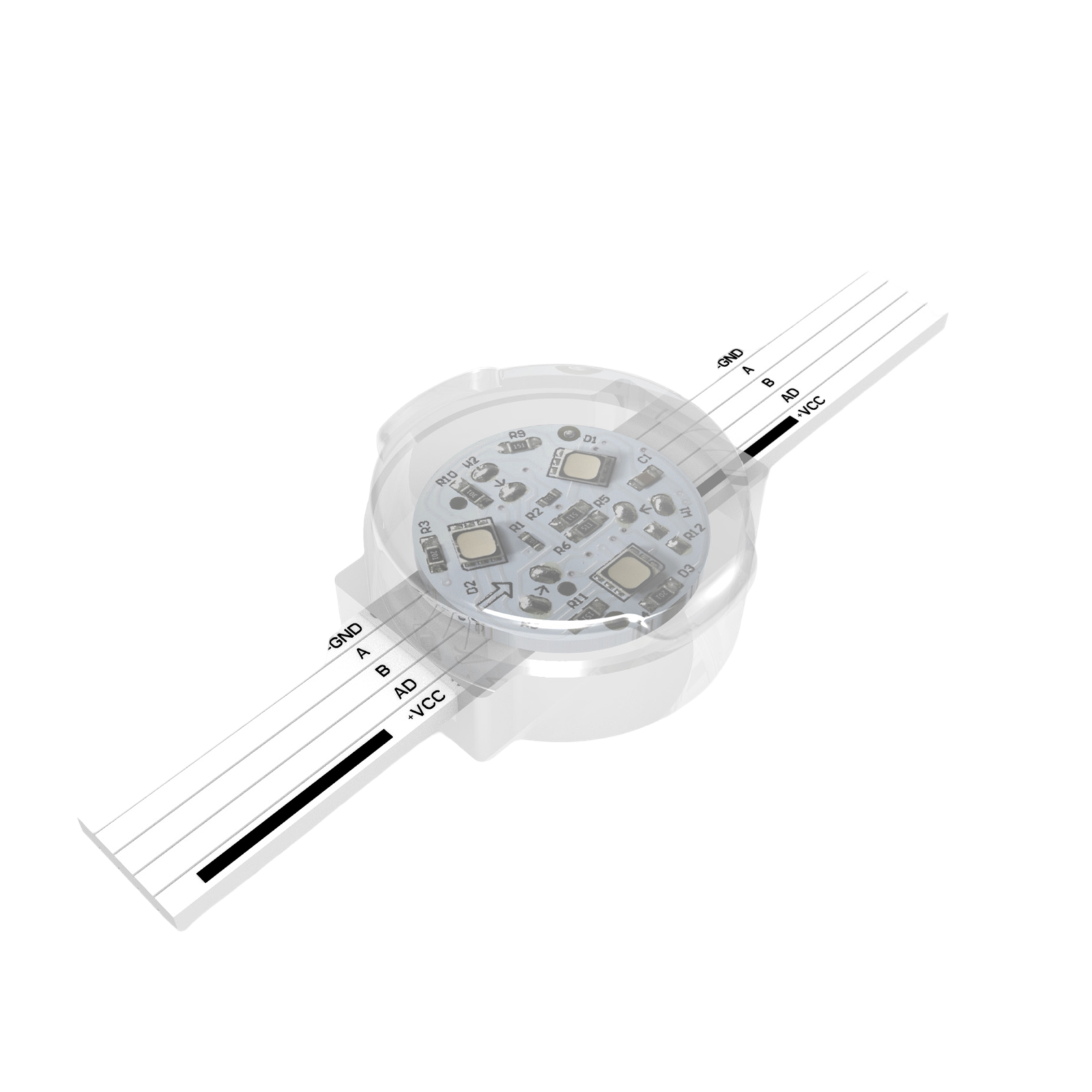

VividStar 308 LED Pixel Light
This product is a versatile point light source fixture that offers a more compact and lightweight design compared to traditional light sources. It can be paired with various accessories, providing strong adaptability and a wide range of applications. Utilizing secondary packaging technology, it ensures consistency in product quality, while enhancing waterproofing and stability, thus extending the product's lifespan.
The light source supports multiple control protocols, offering quick response times and strong directionality with excellent luminous efficiency. It can be used for single-color constant lighting or RGB color control via SD card for offline management, or connected to a computer for real-time transmission of images, text, and video signals.
Applications:

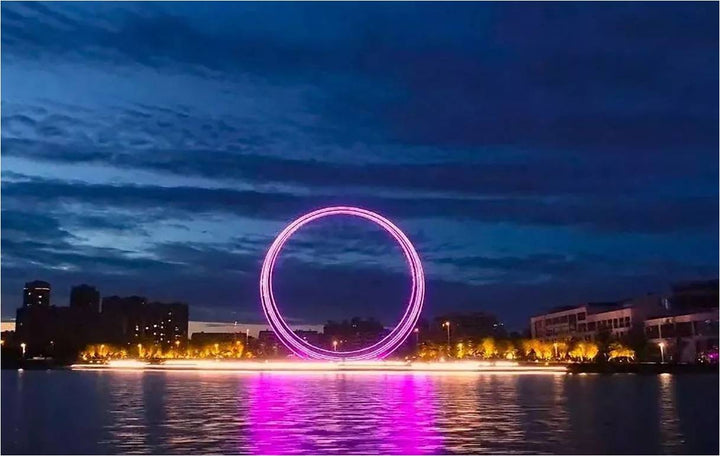

- Landscape lighting for plazas, parks, and riverways
- Bridge illumination

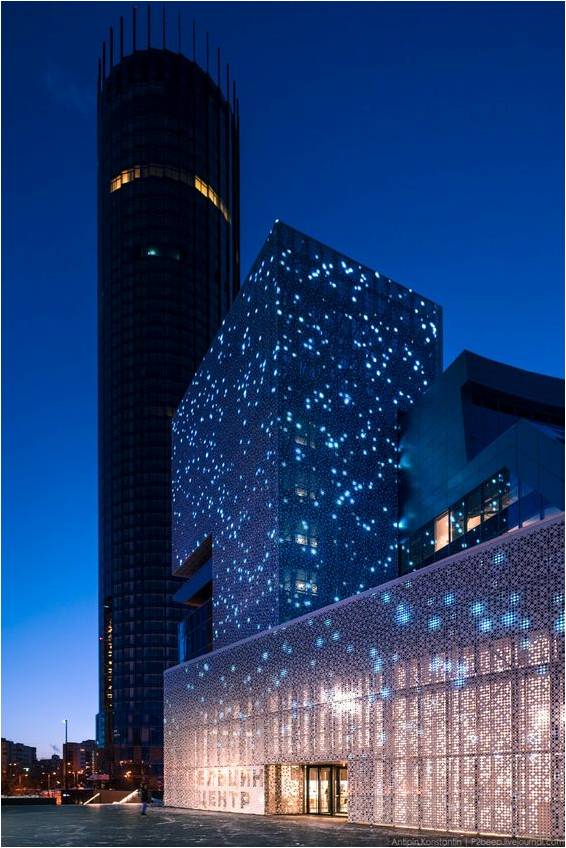

- Building outlines and facade walls
- Indoor decorative lighting
- Outdoor signage and billboards
- Outdoor large-scale advertising displays
- Customisable
- Free worldwide shipping
- Secure Payment
Information
- Weight: Approximately 17.5g per unit
- Number of LEDs: 3+3PCS (3535+2835)
- Body Material: Blended modified engineering plastic
- Light Source Connection: 40 units per string
- Regular Spacing: 17cm
- Minimum Spacing: 14cm
- Hole Size: Φ30.8mm (Thickness: ≤2mm)
Application
- IP Rating: IP68
- IK Rating: IK10
- Flame Retardancy: V-0
- UV Resistance: No significant change (GB/T 16422.3-2014)
- Protection Level (IEC): Safety Class III
- Certification: CE, FCC, CQC
- Neutral Salt Mist: 48 hours
Electrical Parameters
- Rated Voltage: DC12V
- Rated Power: 1W
- Control Method: DMX512
- Pixel Segments: /
- Gray Scale: 16bit
- Refresh Rate: 9000Hz
Optical Parameters
- Light Source Color/Color Temperature (K): RGBW
- Wavelength Range (nm): Red: 620-635nm, Green: 523-530nm, Blue: 463-475nm
- Color Rendering Index (Ra): ≥85
- Beam Angle (°): 110°
- Initial Luminous Efficacy (lm/W): 41 lm/W
- Initial Luminous Flux (lm): 31 lm
- Initial Peak Intensity (cd): 10 cd
